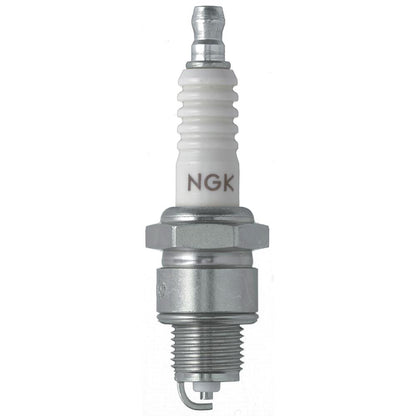

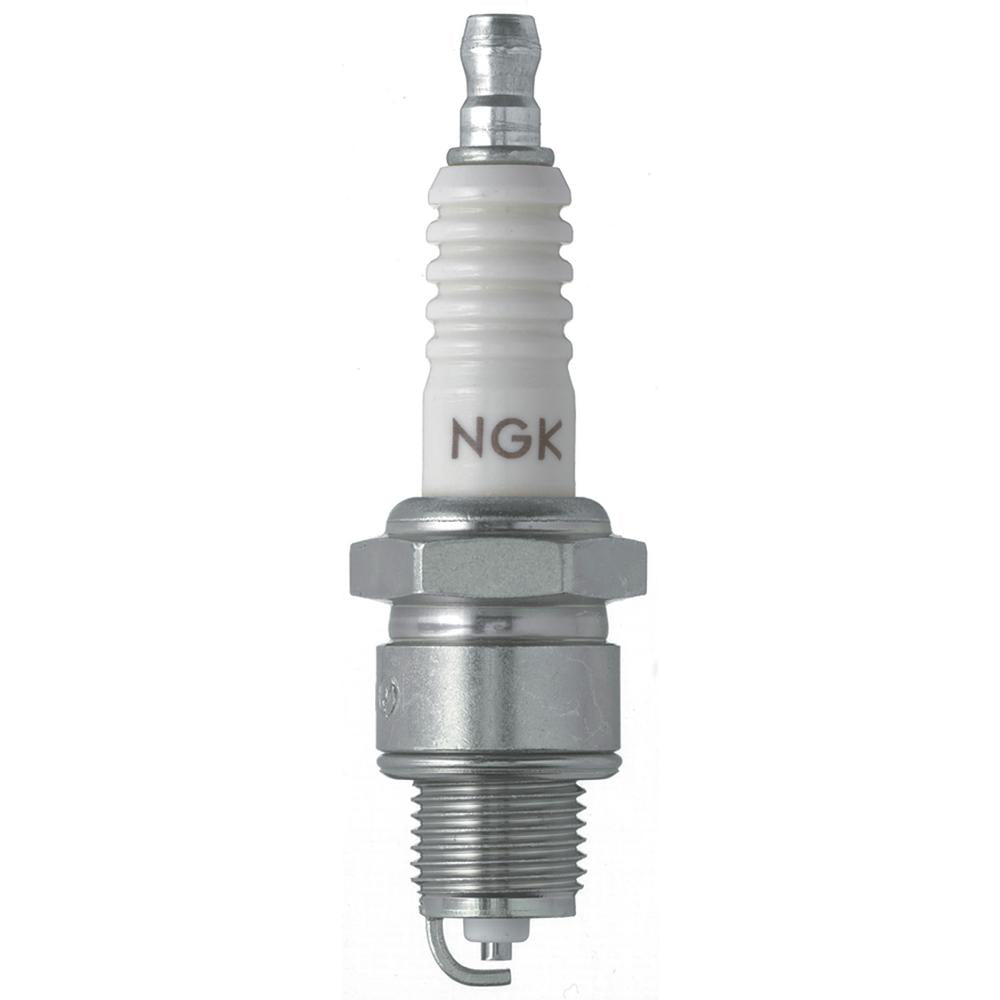

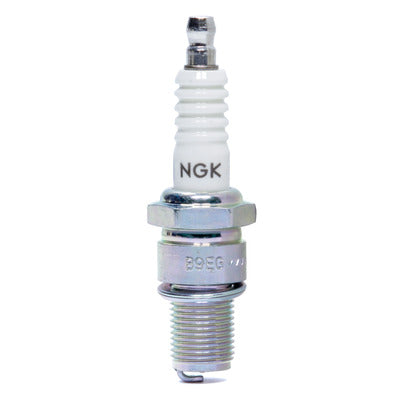

NGK Racing Series plugs are engineered to withstand the harshest engine conditions.
- Special insulator nose configurations improve throttle response
- Corrugated ribs prevent flashover
- Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
- Copper core aids in heat removal
- Triple seals prevent leakage
- MPN: B9EG
Specifications
Warranty |
1 Year |
Torque Specs |
Cast Iron: 18-25.3 lb. ft. Aluminum: 18-21.6 lb. ft. |
Brand |
NGK |
Heat Range |
9 |
Longevity |
30k Miles |
Resistor |
No |
Shell
Thread Size |
14mm |
Thread Pitch |
1.25mm |
Seat Type |
Gasket |
Reach |
19mm (3/4") |
Hex Size |
13/16" (21mm) |
Terminal Type |
Removable Nut |
Overall Height |
ISO |
Gap |
.024" (0.6mm) |
Center Electrode
Material |
Nickel |
Type |
Fine Wire |
Size |
1.3mm |
Projection |
Non-Projected |
Ground Electrode
Material |
Nickel |
Type |
Standard |
Center Electrode Type |
1 |
Fitment
Automotive
Sorry, no automotive applications are associated with this part.
Non Automotive
