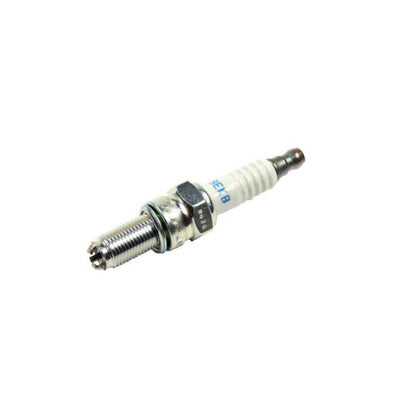

NGK Standard Spark Plug 2305 CR9EKB
NGK Standard Spark Plug 2305 CR9EKB
Regular price
$9.34 USD
Regular price
Sale price
$9.34 USD
Unit price
/
per
SKU:NGKCR9EKB
Inventory: 10 in stock
Couldn't load pickup availability
Multi-ground electrodes improve ignition capabilities and are less sensitive to increased voltage requirements due to gap growth.
Designed to specific manufacturer ignition requirements, NGK's multi-ground plugs maintain all the features of their standard plugs, including:
- Corrugated Ribs to Prevent Flashover
- Pure alumina silicate ceramic insulator, providing superior strength and better heat transfer
- Copper core to aid in heat removal
- Triple seals to prevent leakage
- MPN: CR9EKB
| Warranty | 1 Year |
| Torque Specs | Cast Iron: 7.2-10.8 lb. ft. Aluminum: 7.2-8.7 lb. ft. |
| Brand | NGK |
| Heat Range | 9 |
| Longevity | 50k Miles |
| Resistor | Yes |
Shell
| Thread Size | 10mm |
| Thread Pitch | 1.0mm |
| Seat Type | Gasket |
| Resistor Value | 5K Ohm |
| Reach | 19mm (3/4") |
| Hex Size | 5/8" (16mm) |
| Terminal Type | Solid |
| Overall Height | ISO |
| Gap | .031" (0.8mm) |
Center Electrode
| Material | Nickel |
| Type | Standard |
| Size | 2.5mm |
| Projection | Projected |
Ground Electrode
| Material | Nickel |
| Type | Multi-Ground |
| Quantity | 2 |
Automotive
Sorry, no automotive applications are associated with this part.
