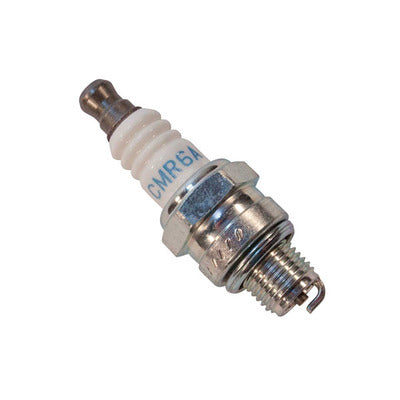

• NGK Standard Spark Plug 1223 CMR6A
1 5

NGK

NGK Standard Spark Plug 1223 CMR6A

NGK Standard Spark Plug 1223 CMR6A

$3.84 USD
$3.84 USD
Sale Sold out
Shipping Policy

NGKCMR6A

41 in stock

NGK standard plugs are constructed for longer life and optimum performance.

  • Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
  • Corrugated ribs prevent flashover
  • Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
  • Copper core aids in heat removal
  • Triple seals prevent leakage
  • MPN: CMR6A

Warranty 1 Year
Torque Specs Cast Iron: 7.2-10.8 lb. ft. Aluminum: 7.2-8.7 lb. ft.
Brand NGK
Heat Range 6
Longevity 30k Miles
Resistor Yes

Shell

Thread Size 10mm
Thread Pitch 1.0mm
Seat Type Gasket
Resistor Value 10K Ohm
Reach 9.5mm (3/8")
Hex Size 5/8" (16mm)
Terminal Type Removable Nut
Overall Height Bantam
Gap .024" (0.6mm)

Center Electrode

Material Nickel
Type Standard
Size 2.5mm
Projection Non-Projected

Ground Electrode

Material Nickel
Type Standard
Quantity 1

Automotive

Sorry, no automotive applications are associated with this part.

Non Automotive

  •  Commercial & Industrial
    •  Generators
      •  ARDISAM (Earthquake)
    •  Power Equipment Engines
      •  SUBARU-ROBIN
  •  Lawn & Garden
    •  Chain Saws
      •  DOLMAR
      •  MAKITA
    •  Outdoor Power Equipment
      •  ARDISAM (EARTHQUAKE)
      •  CRAFTSMAN (SEARS)
      •  DOLMAR
      •  EARTHQUAKE
      •  HOFFCO
      • HUSQVARNA
      •  LEHR
      •  MAKITA
      •  MCCULLOCH
      •  REDMAX
      •  SUBARU-ROBIN
