MSD Ignition

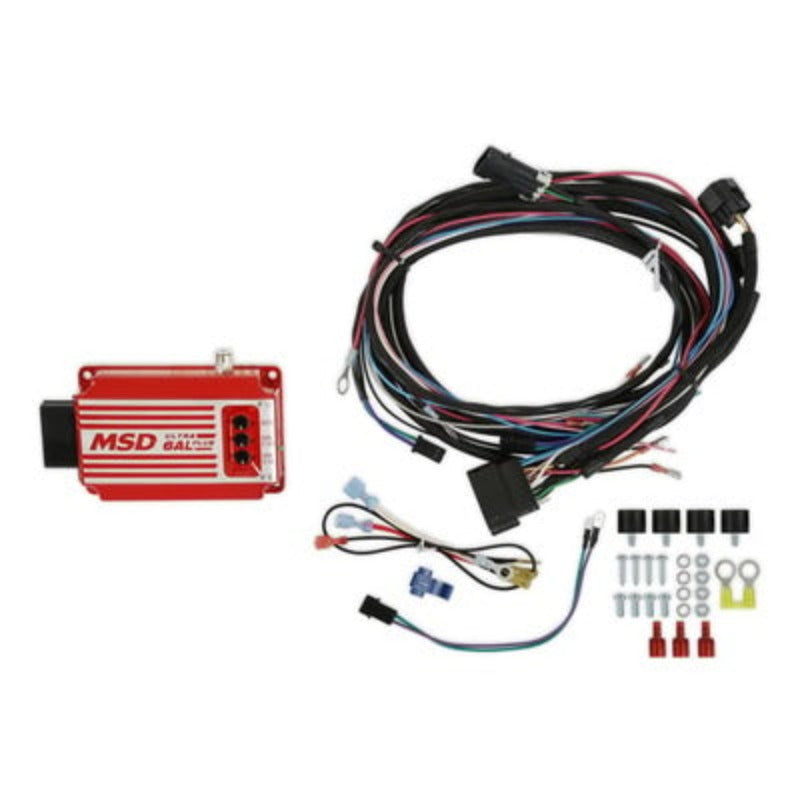

MSD Ultra 6AL Plus Ignition Control (Red)
MSD Ultra 6AL Plus Ignition Control (Red)
Regular price
$467.95 USD
Regular price
Sale price
$467.95 USD
Unit price
/
per
SKU:MSD6523
Inventory: 3 in stock
Couldn't load pickup availability
Similar to the Ultra 6AL with even more added features. The Ultra 6AL Plus adds a programmable step retard and timing curves, set-up using the MSD Ultra 6AL app or MSDView software via the integrated USB port. A 4-bar MAP sensor allows compatibility with mildly boosted applications utilizing a blow-through or draw-through carburetor. Connects to points, magnetic pickups, or Hall/Crank input distributors on 4, 6 or 8-cylinder engines with 7 to 28-volt electrical systems,
- Ultra 6AL Plus Ignition Box
- Digital
- CD Ignition
- Multi-Spark
- 45000V
- 3-Step Rev Limiter
- Harness Included
- Color: Red
- Part Number: 6523'
|
Brand
|
MSD
|
|
Part Number
|
6523
|
|
Product Line
|
Ultra 6AL Plus
|
|
Style
|
Capacitive Discharge
|
|
Digital / Analog
|
Digital
|
|
Programmable
|
Yes
|
|
Interface Style
|
USB
|
|
MultiSpark
|
Yes
|
|
Rev Limiter
|
Yes
|
|
Rev Limiter Quantity
|
3-Step
|
|
Rev Limiter Adjustment Method
|
Rotary Dials
|
|
Timing Control
|
Yes
|
|
Timing Control Quantity
|
3-Stage
|
|
Launch Control
|
Yes
|
|
Programmable Launch Timing Curve
|
Yes
|
|
Primary Voltage Minimum
|
520 Volts
|
|
Primary Voltage Maximum
|
540 Volts
|
|
Spark Energy Minimum
|
135 mj per Spark
|
|
Spark Energy Maximum
|
150 mj per Spark
|
|
Secondary Voltage
|
45000 Volts
|
|
Voltage Requirement Minimum
|
12 Volts
|
|
Voltage Requirement Maximum
|
15 Volts
|
|
Minimum Start Voltage
|
7 Volts
|
|
RPM Maximum
|
15000
|
|
Current Draw / 1000 RPM
|
0.8 amp
|
|
Length
|
3.3 in
|
|
Width
|
5.2 in
|
|
Weight
|
1.10 lbs
|
|
Channel Quantity
|
4
|
|
Ignition Wiring Harness Included
|
Yes
|
|
Material
|
Aluminum
|
|
Color
|
Red
|
|
Finish
|
Powder Coat
|
|
Quantity
|
Kit
|
