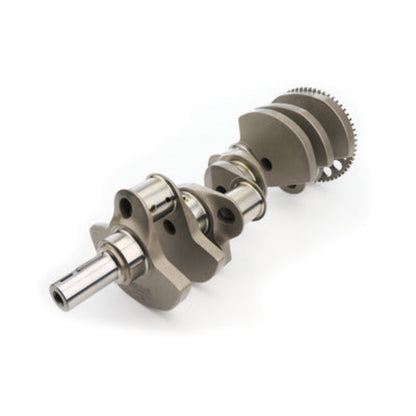

Molnar GM LS Series Forged Steel Crankshaft, 4.000” Stroke
Molnar GM LS Series Forged Steel Crankshaft, 4.000” Stroke
SKU:MLT346-4000LB6F-58
Inventory: 2 in stock
Couldn't load pickup availability

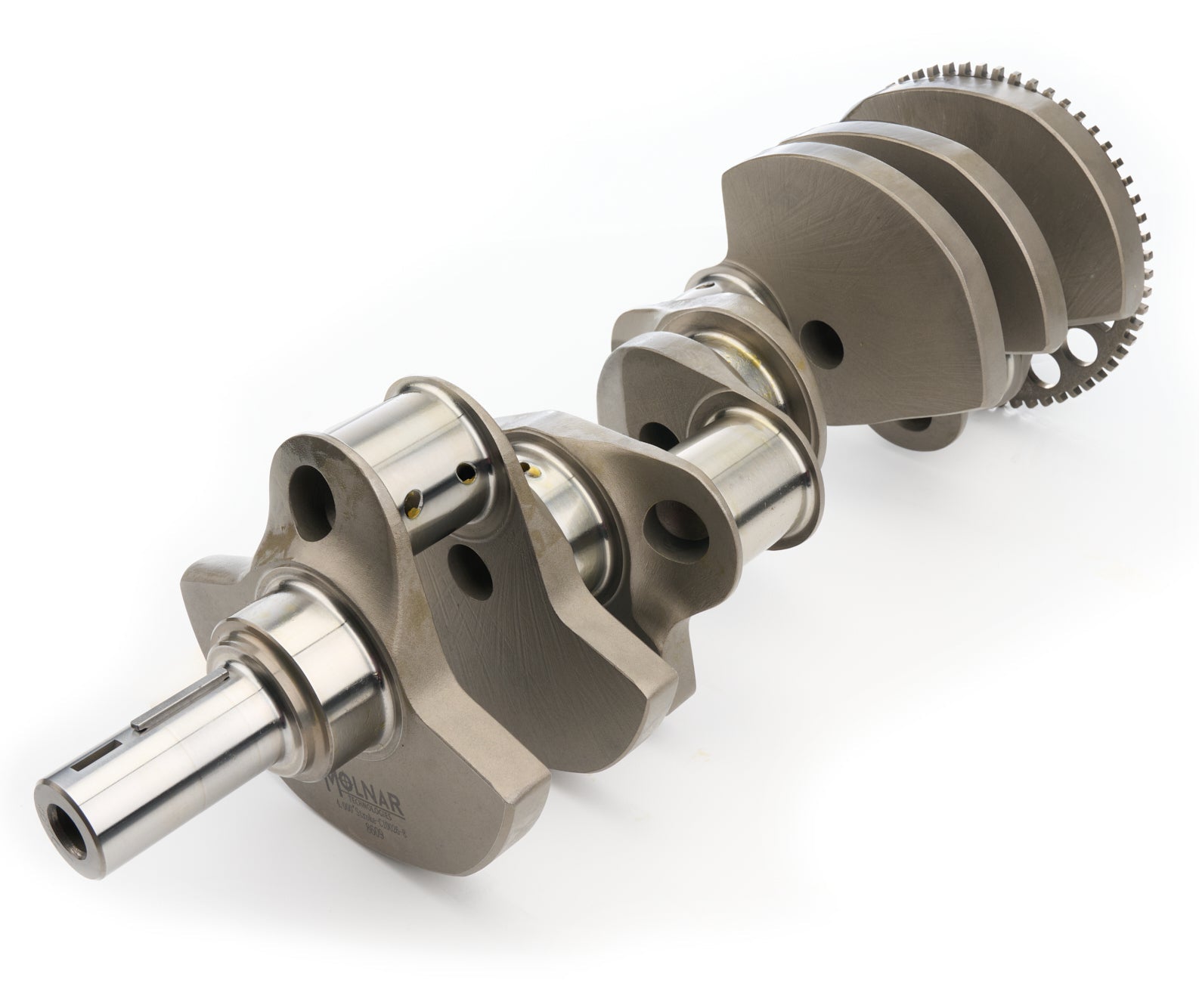

GM LS Series Forged Steel Crankshaft - 4.000” Stroke
Precision machined from premium 4340 forged steel for extreme strength and reliability in street or race applications, Molnar Technologies LS crankshafts feature multi-stage heat treatment, nitrided rod and main journals, optimized counterweights and 0.125” journal radii for superior durability and smooth operation. Precision-ground, micro-polished journals, chamfered oil holes and accurate indexing make them ideal for naturally aspirated and nitrous or boosted LS engines.
- Stroke: 4.000”
- Reluctor Wheel: 52-teeth
- 1-Piece Crank Seal
- Internally balanced
Crankshaft - 4.000 in Stroke - Internal Balance - 58X Reluctor Wheel - Forged Steel - 1-Piece Seal - GM LS-Series - Sold as Each - Brand: Molnar Technologies - Part Number: 346-4000LB6F-58
|
Brand
|
Molnar Technologies
|
|
Part Number
|
346-4000LB6F-58
|
|
1 / 2 Piece Rear Main Seal
|
1-Piece
|
|
Heat Treated
|
Yes
|
|
Nitrided
|
Yes
|
|
Stroke (in)
|
4.000 in
|
|
Main Journal Diameter (in)
|
2.559 in
|
|
Rod Journal Diameter (in)
|
2.100 in
|
|
Journal Radius
|
0.125 in
|
|
Narrowed Bearings Required
|
Yes
|
|
Intended Balance
|
Internal
|
|
Minimum Rod Length
|
6.125 in
|
|
Snout Style
|
Standard
|
|
Flexplate / Flywheel Mounting Bolt Quantity
|
6
|
|
Reluctor Wheel Included
|
Yes
|
|
Reluctor Wheel Tooth Quantity
|
58
|
|
Alloy
|
4340
|
|
Material Style
|
Forged
|
|
Material
|
Steel
|
|
Color
|
Natural
|
|
Finish
|
Natural
|
|
Quantity
|
Each
|
