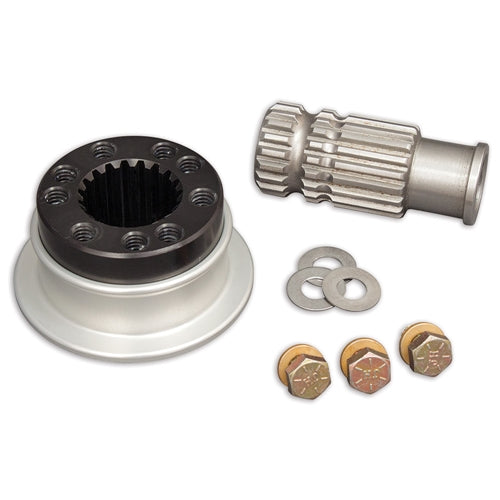

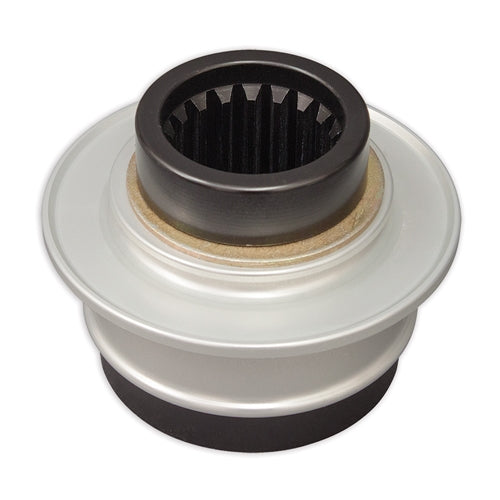

The Longacre Precision Fit Splined Hub Quick Disconnect will help to give you better steering control. Excess play in the steering, including the hub, takes away control by the driver letting the car wander. The Precision Hub has a micro-finished spud and hard anodized splined hub for a tight fit. It is easy to remove and install.
There are multiple sets of mounting holes so you can clock your wheel three times closer. For safety, there are two sets of retaining grooves. If you don't get the ring engaged it will catch on the second safety groove rather than come off on the track. The steel 'spuds' can be installed on both 3/4" and also 5/8" shafts.
- Spline hub - pull ring release with double safety grooves
- Welds to 3/4" or 5/8" steering shaft
- Aluminum hub
- 3 Mounting holes – 5/16" on a 1-3/4" bolt circle (hole distance 1-1/2" center-to-center)
- Weight: .85 lbs. including bolts
- Will not fit 290mm and 320mm flat suede wheels (part numbers 56911 and 56913)
| Hub |
| |
Style: |
Splined |
| |
Material: |
Aluminum |
| |
Release Type: |
Pull ring |
| |
Number of Mounting Holes: |
3
|
| |
Mounting Holes Size: |
5/16"
|
| |
Bolt Circle Diameter: |
1-3/4"
|
| |
Mounting Holes Distance: |
1-1/2" center to center |
| |
Bolt Size: |
5/16"-18 x .75" |
| Shaft |
| |
Style: |
Splined |
| |
Material: |
Steel |
| |
Safety Grooves: |
2 |
