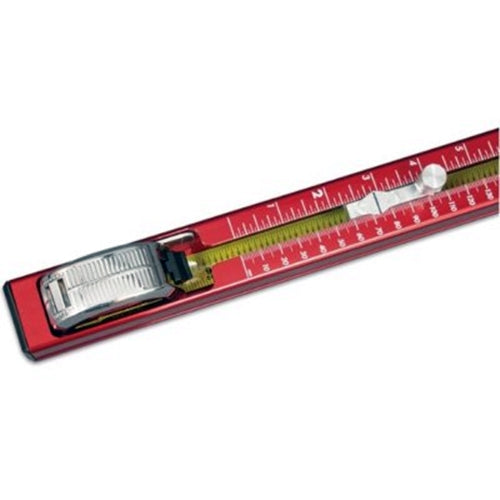

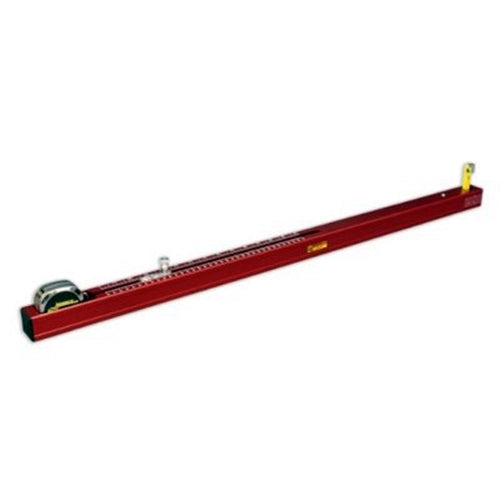

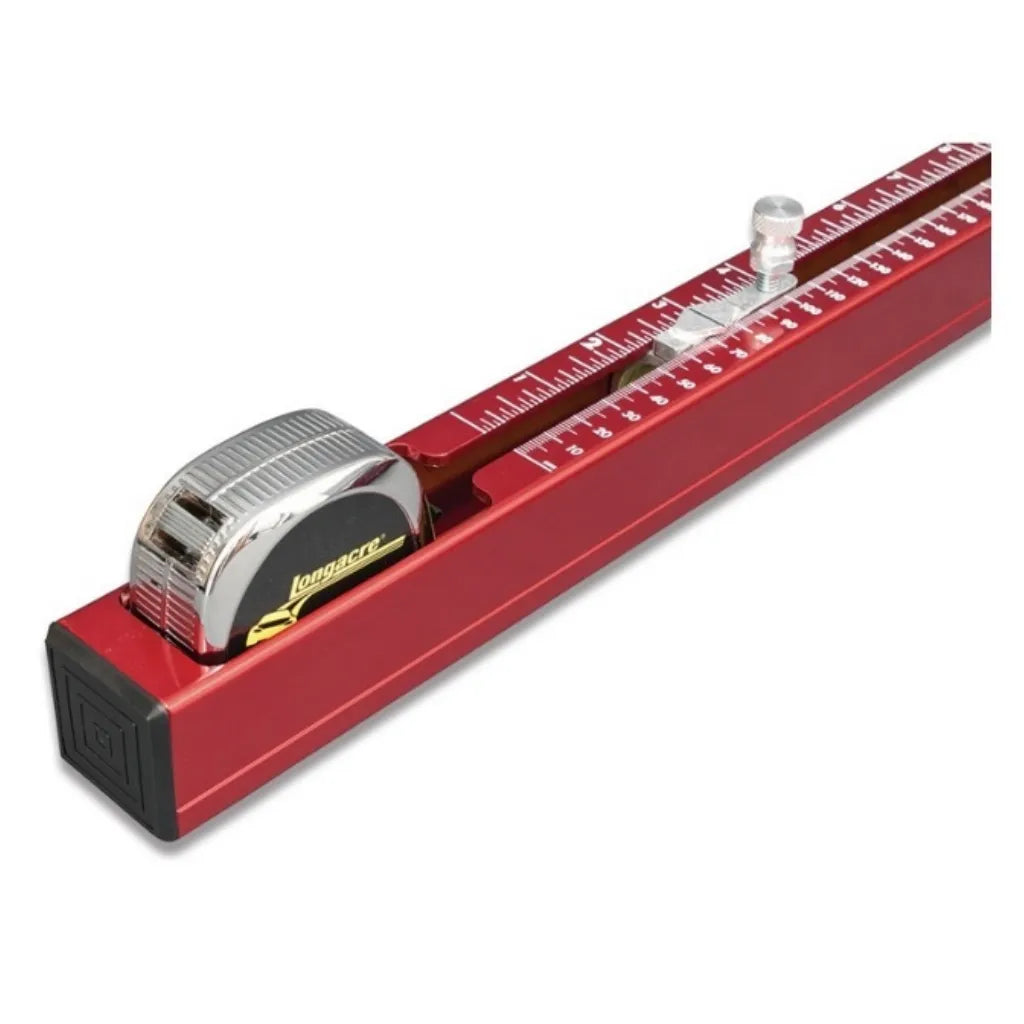

Longacre Chassis Height Measuring Tool
Longacre Chassis Height Measurement Tool - Long - 52-78325
Longacre Chassis Height Measurement Tool - Long - 52-78325

Longacre Chassis Height Measurement Tool - Long

LON52-78325 (65 in stock)

Longacre

Regular price $125.99 Sale

The Longacre Chassis Height Measurement Tool allows you to measure the chassis height with the car on the ground, on scale pads or as you work on the car.

Works in 3 Different Ways

  1. Car on the ground - measures chassis height directly, accurate to 1/16".
  2. Car on scale pads - measures from top of pads - ground level - to frame directly (no subracting needed here).
  3. Measures chassis height dynamically, as you work on the car. Magnet holds tape to frame. Indicator shows height as the car moves up and down. Use set of 4 to quickly see height at all 4 corners. You don't even need to bend over.

Attributes

  • 36" for straight rail cars on right side
  • Measures height from 2" to 15"
  • Works 3 ways - with scale pads or without
  • Metric scale also included - 50 mm to 350 mm

Specifications

Brand
Longacre
Part Number
52-78325
Style
Chassis Height Checker
Short / Tall
Long
Tool Length
36 in
Minimum Height
2 in
Maximum Height
15 in
Increments
1/16 in
Metric Scale Included
Yes
Metric Minimum Height
50 mm
Metric Maximum Height
350 mm
Adjust Method
Tape Measure
Material
Aluminum
Color
Red
Finish
Anodized
Quantity
Each
