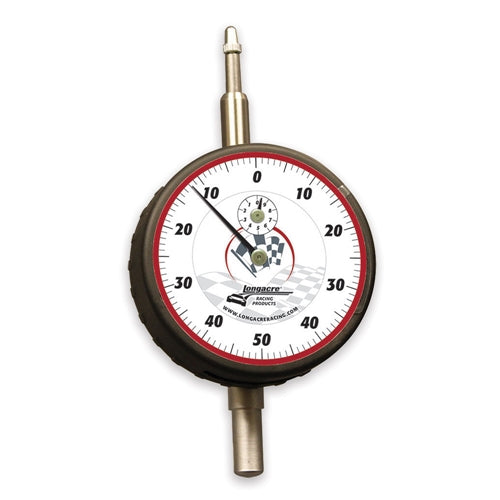

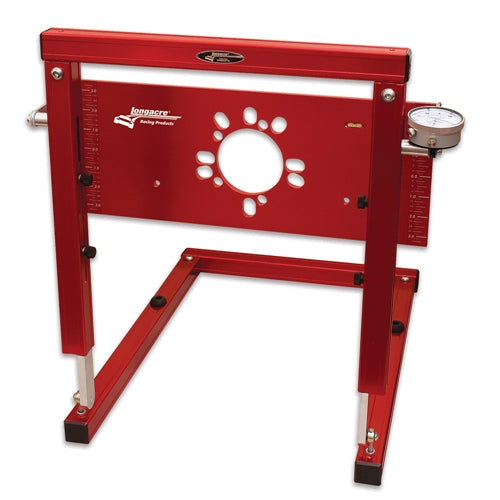

This simplified bump-steer gauge design uses a single precision dial indicator to tell you directly the exact amount of bump steer within .001". No need to subtract one dial reading from another, so there is less chance for error.
- New precision plate, 3/8" thick T6 Billet aluminum for the ultimate in accuracy. Anodized and laser engraved
- New compact frame. More rigid billet and tube design for the best accuracy. Bright dip anodized.
- Most accurate, easiest and quickest way to measure your critical bump steer
- Extended height design - check bump steer at ride height or on stands

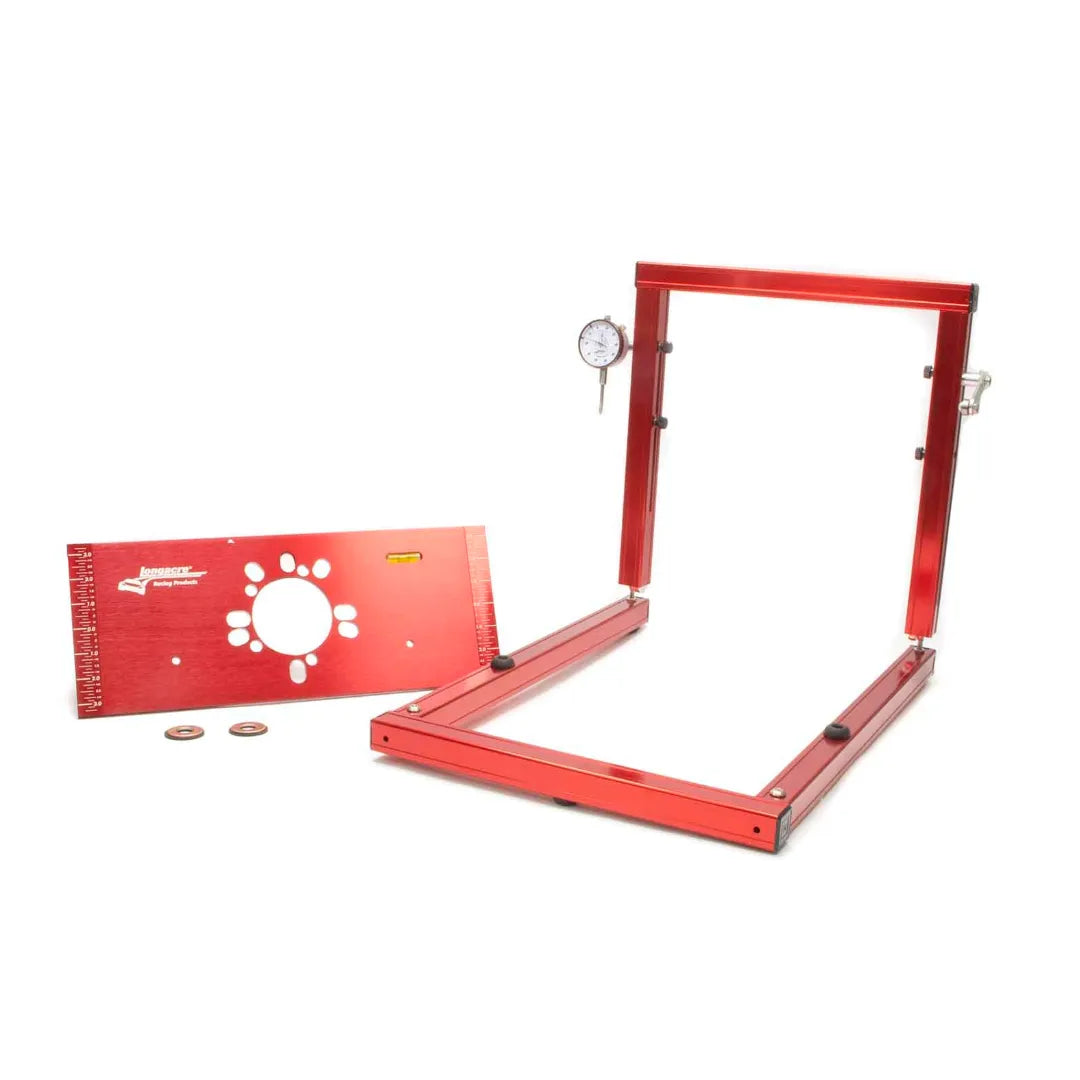

- Includes NEW 3/8" thick billet wheel plate with mounting holes for most 5 bolt patterns (4-1/2" - 5") and most wide 5 plus 4 bolt patterns (4-1/4" - 5"), 5 & 8 bolt drive flanges, adjustable stand and precision dial indicator
- Center hole is 3 1/4"
Note: Snap cap hubs will require Longacre part number 79121 Snap Cap Hub Mounting Stand-offs for use with the Bump Steer Gauge.
