LIGHT PERFORMANCE
- Raw Lumens: 50" 18,400 lm
- Lux @ 10 Meters: 50" 6,700 lx
- Candela: 50" 670,000 cd
- Beam Distance (Meters): 50” 1,637m
SPECIFICATIONS
- Wattage: 50" =160W
- Amp Draw: 5.0-14.67A
- LED Source: Cree XPL HD LED
- LED Color: 5000K
- Voltage: 9-32V
IP Rating: IP68 -Dimensions:
- 20” 3-Light = H - 6.06" x D - 3.33" x W - 20.325" (Straight) / 20.301" (Curved)
- 26” 4-Light = H - 6.06" x D - 3.33" x W - 26.575" (Straight) / 26.556" (Curved)
- 32” 5-Light = H - 6.06" x D - 3.33" x W - 32.875" (Straight) / 32.708" (Curved)
- 39” 6-Light = H - 6.06" x D - 3.33" x W - 39.125" (Straight) / 38.871" (Curved)
- 45” 7-Light = H - 6.06" x D - 3.33" x W - 45.38" (Straight) / 44.999" (Curved)
- 50” 8-Light = H - 6.06" x D - 3.33" x W - 51.625" (Straight) / 51.086" (Curved)
- 57” 9-Light = H - 6.06" x D - 3.33" x W - 57.625" (Straight) / 57.128" (Curved)

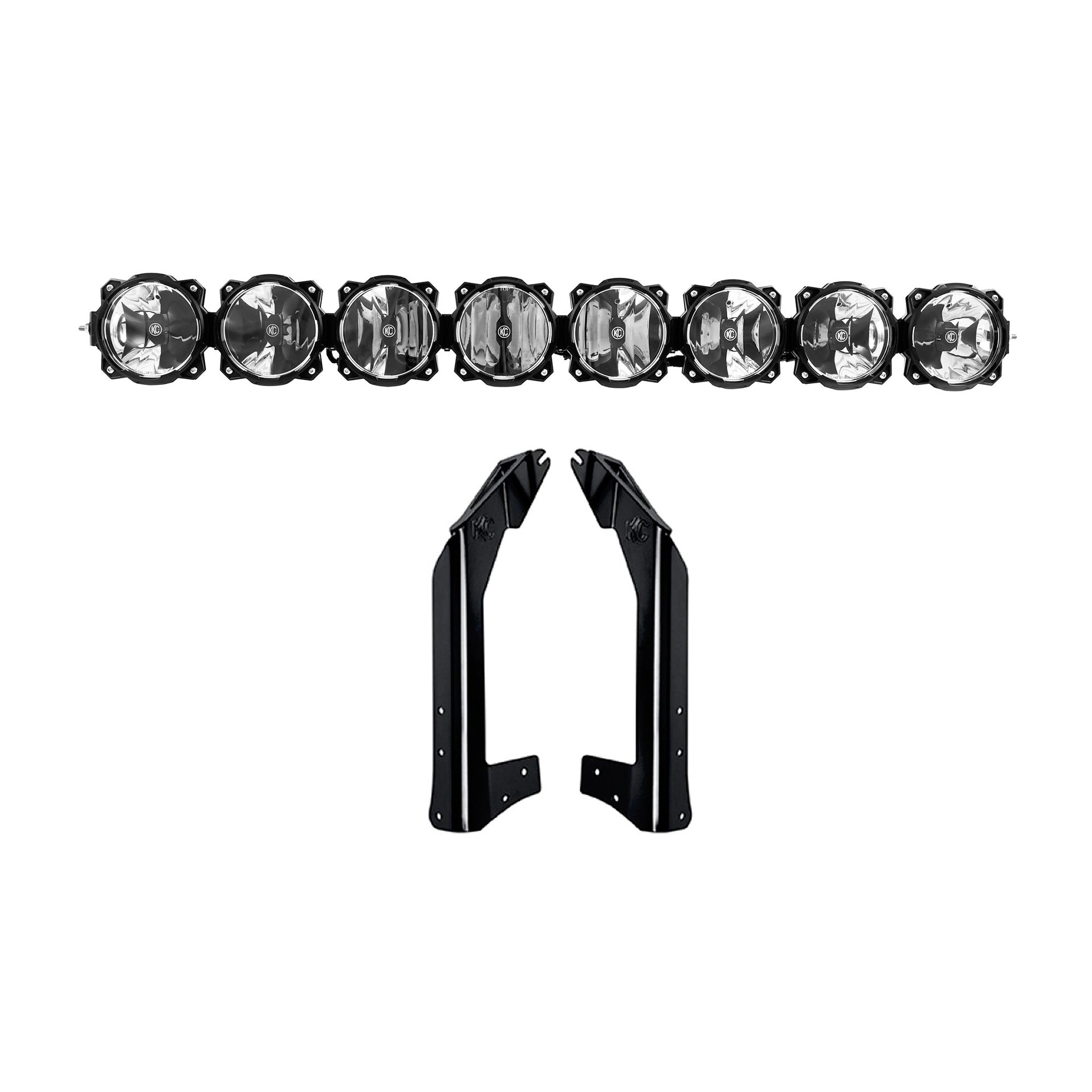

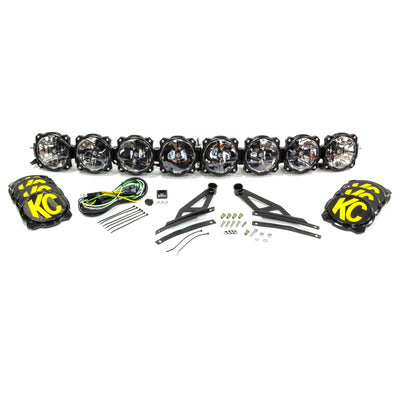

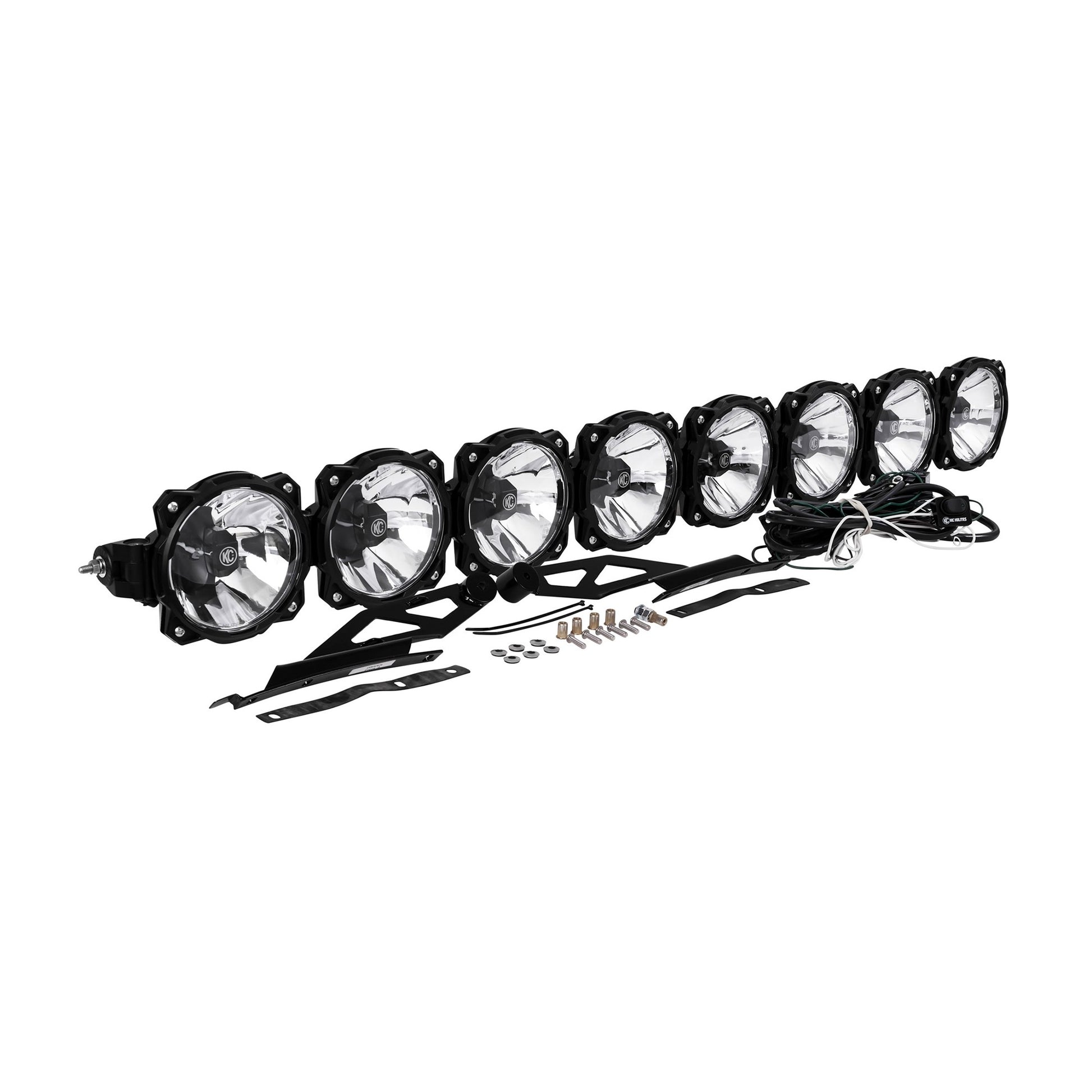

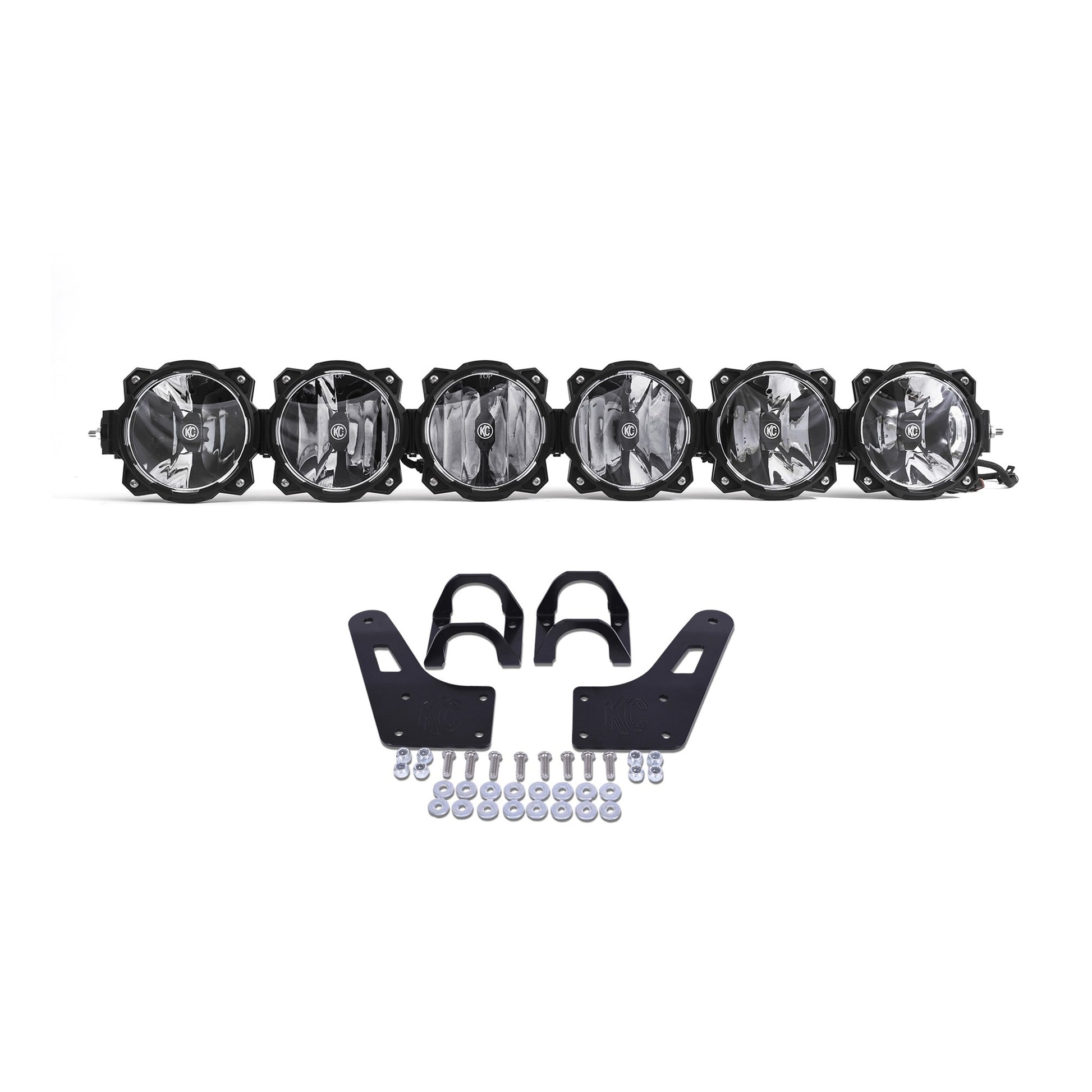

Parts Included With Pro6 LED Light Bar System

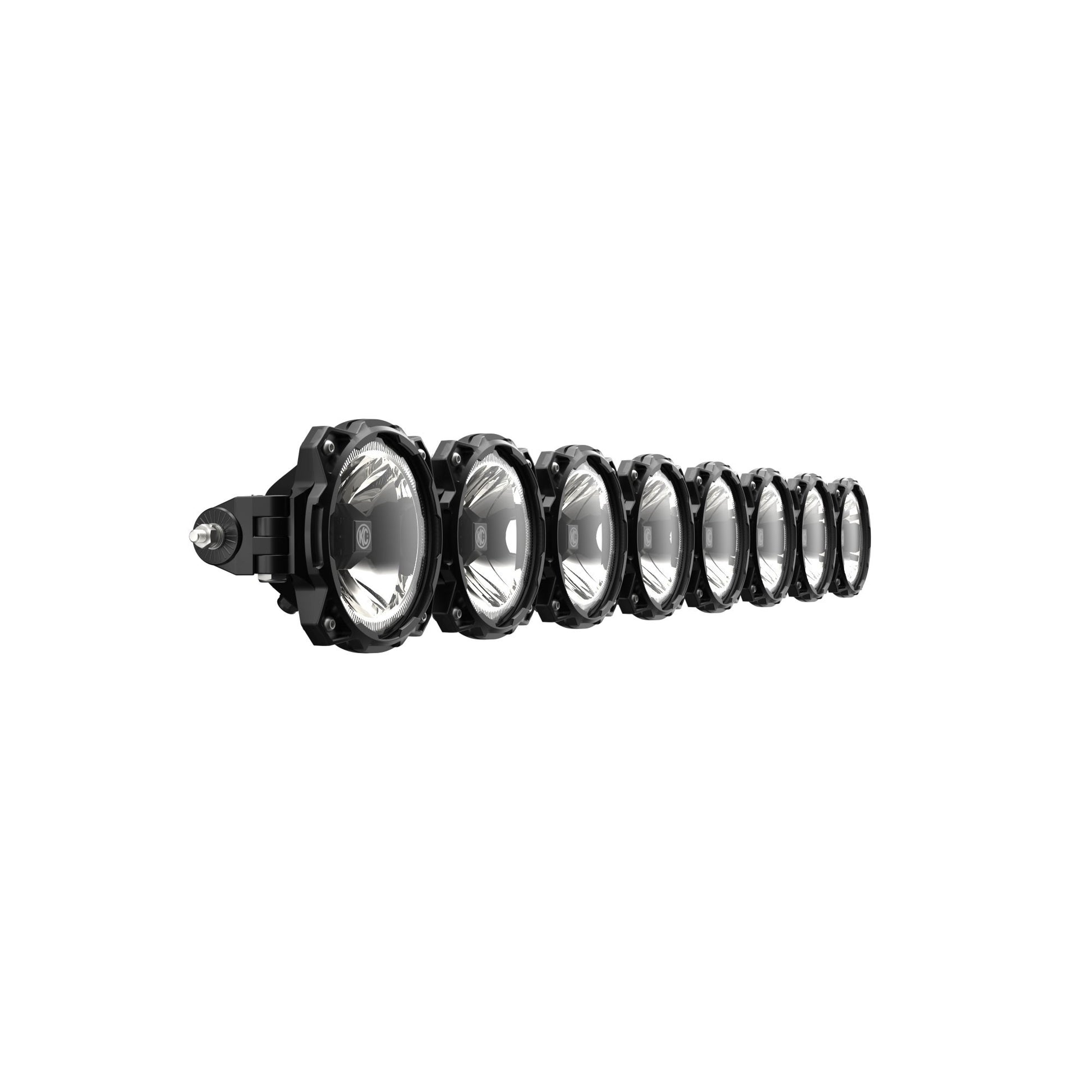

- (1) Gravity® Pro6 LED Light Bar

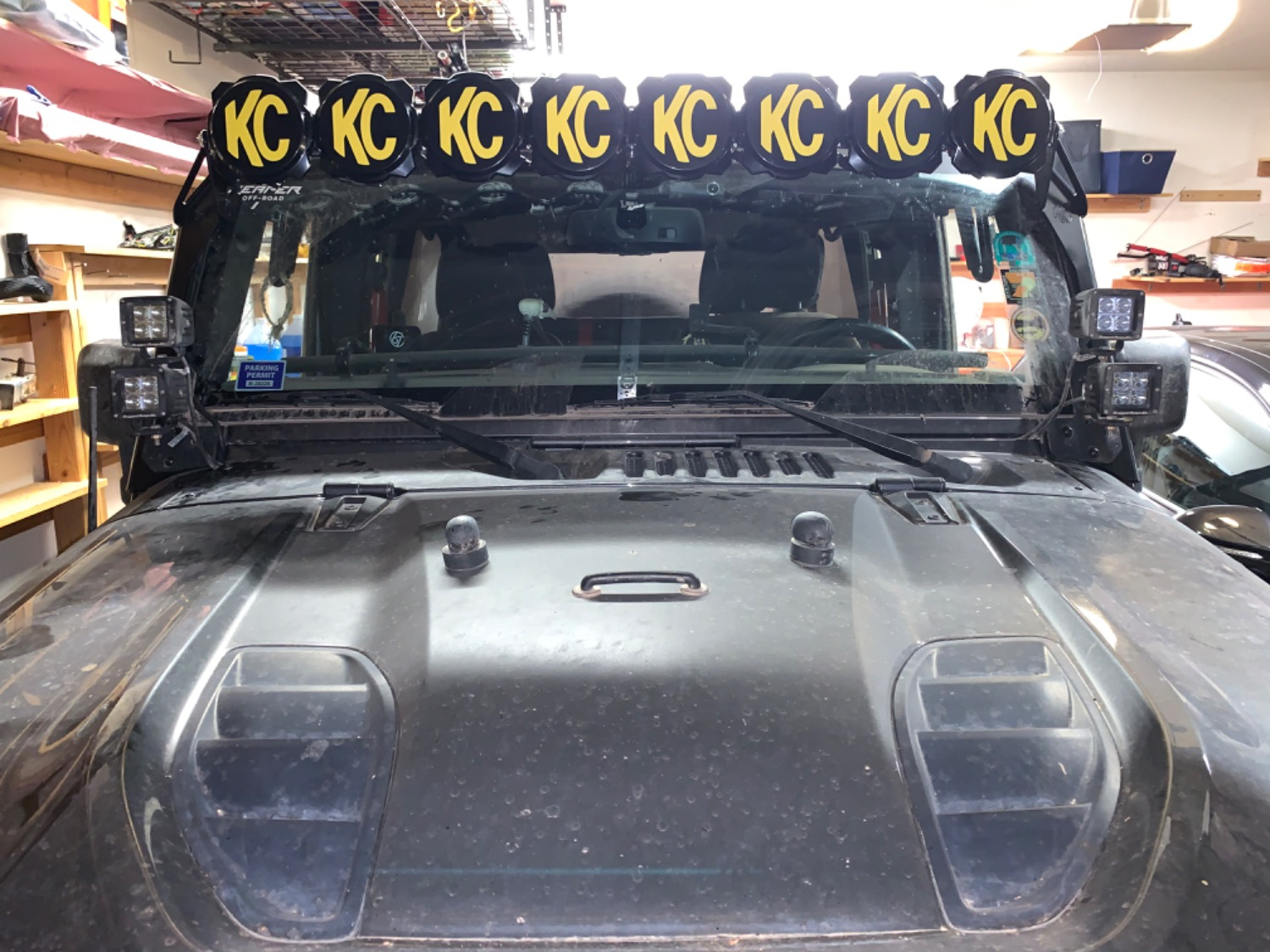

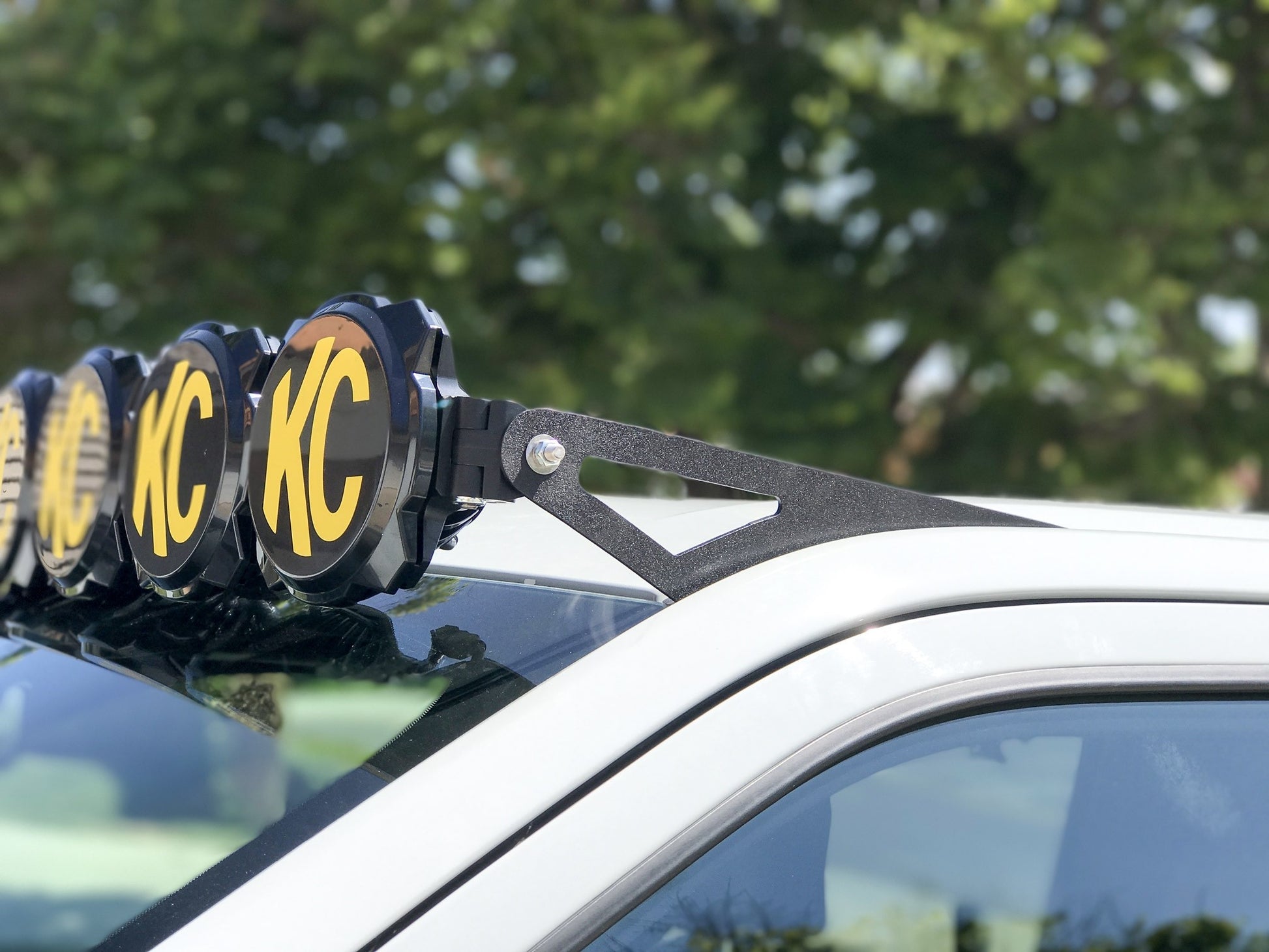

- Light Covers - Black with Yellow KC Logo
- Mounting Brackets and Hardware in Vehicle specific kits
- Performance Plug-N-Play Wiring Harness with Illuminated LED Switch
Note: Light Bar Mounting Brackets not included with Universal Light Bar Systems
PATENTED GRAVITY® REFLECTIVE DIODE TECHNOLOGY

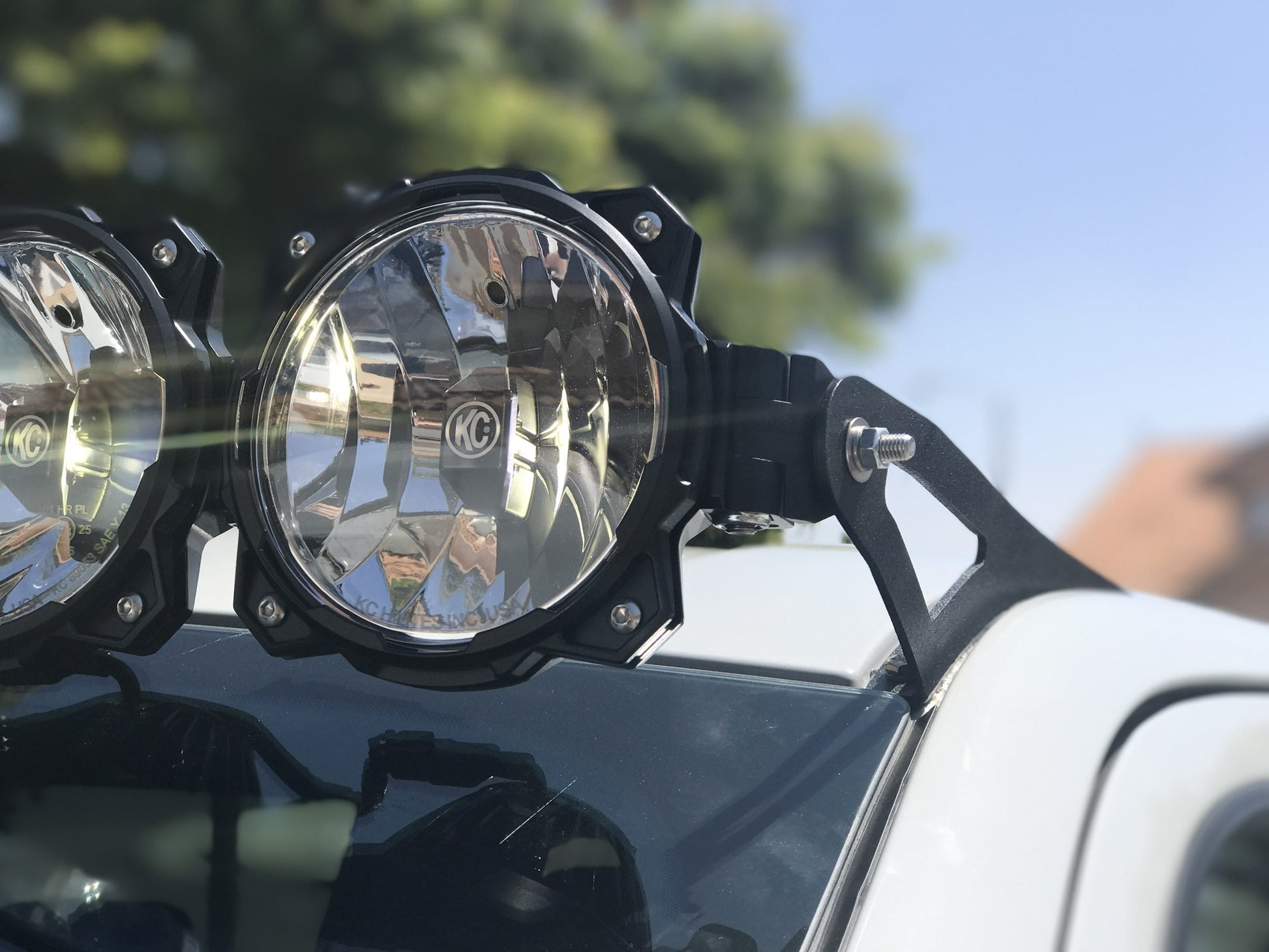

Each Gravity® LED Pro6 light is powered by KC's G6 LED optical insert, featuring patented Gravity® Reflective Diode (GRD) technology. This unique industry leading technology and reflector design assures that actual emitted light output from each LED is being maximized in creating powerful, usable light for everyday off road use. Unlike traditional forward facing reflector designs commonly found in LED lights today, KC GRD technology strategically positions LEDs inside the reflector so that the all light output is being carefully directed and aimed to deliver usable light. What you get is highly targeted light distribution, providing unparalleled clarity, performance and beam shape.
PATENTED INFINITY RING™ SYSTEM

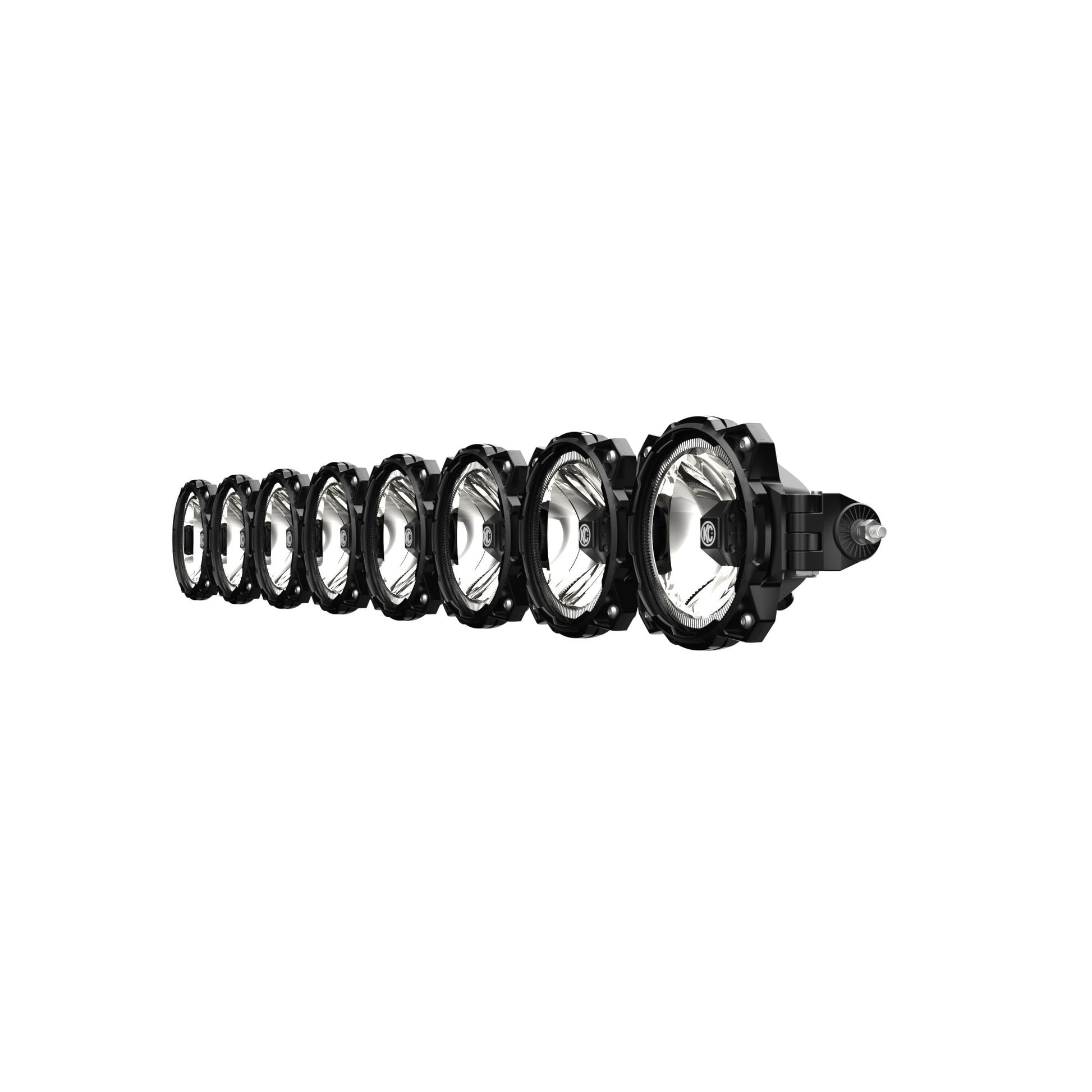

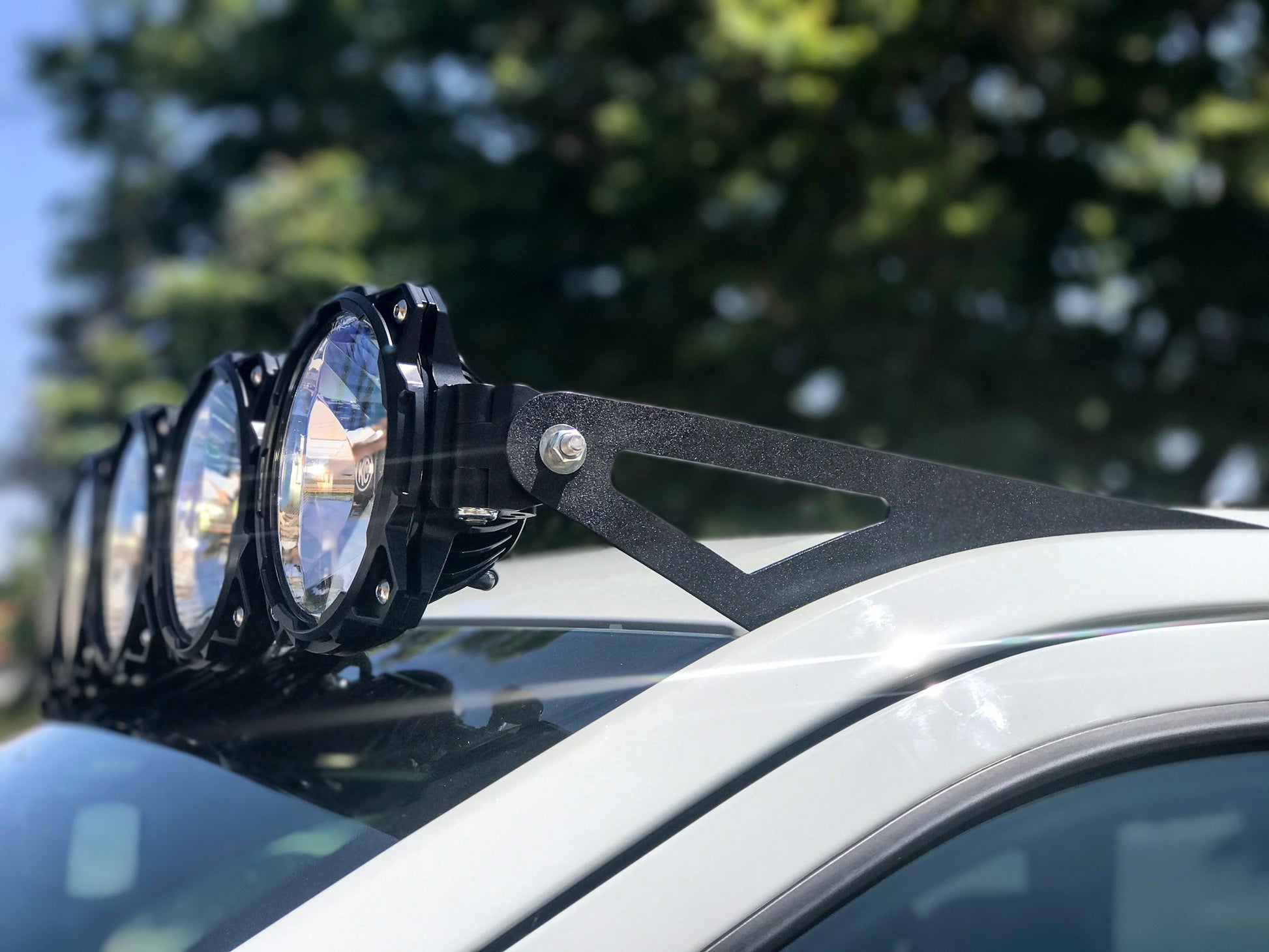

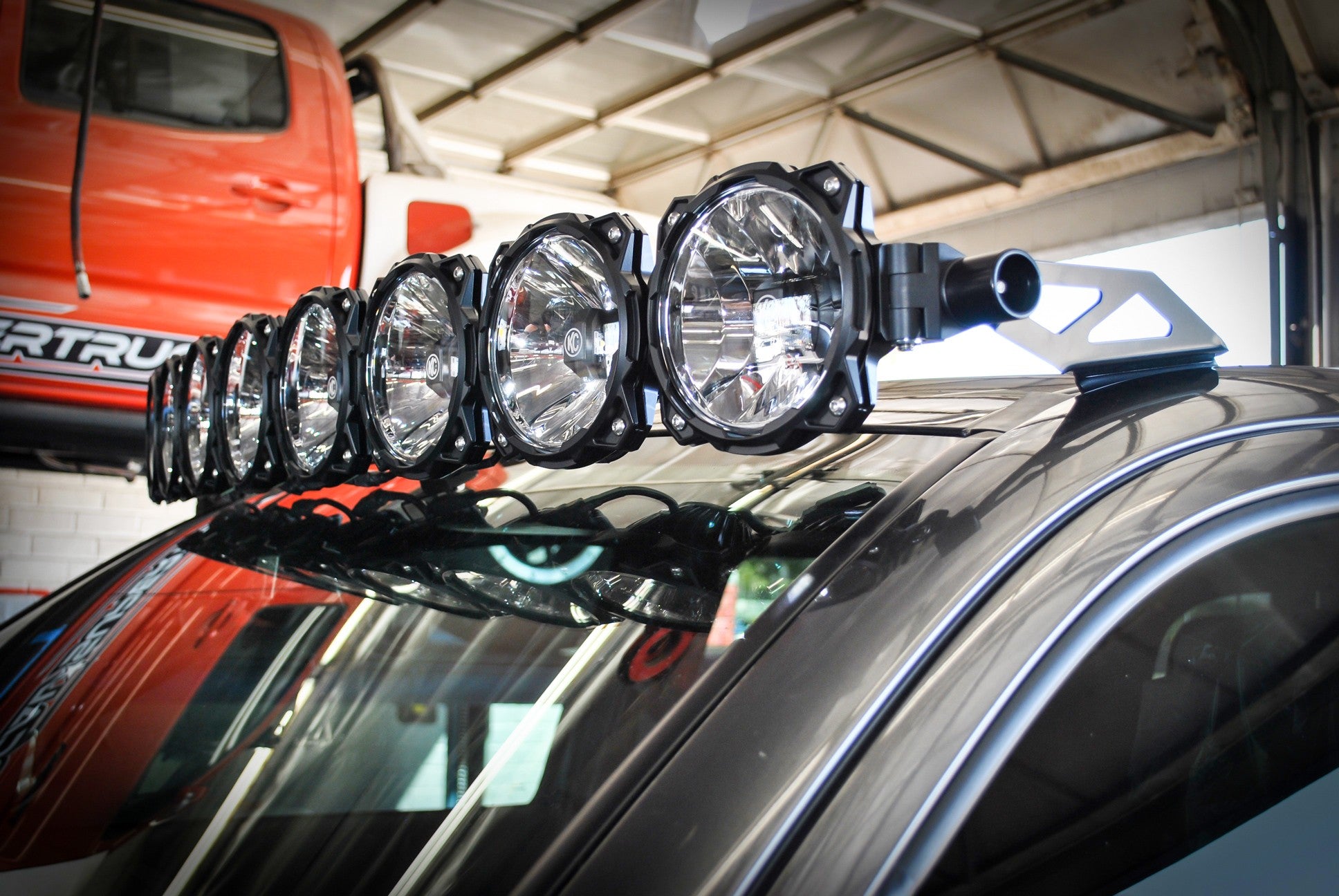

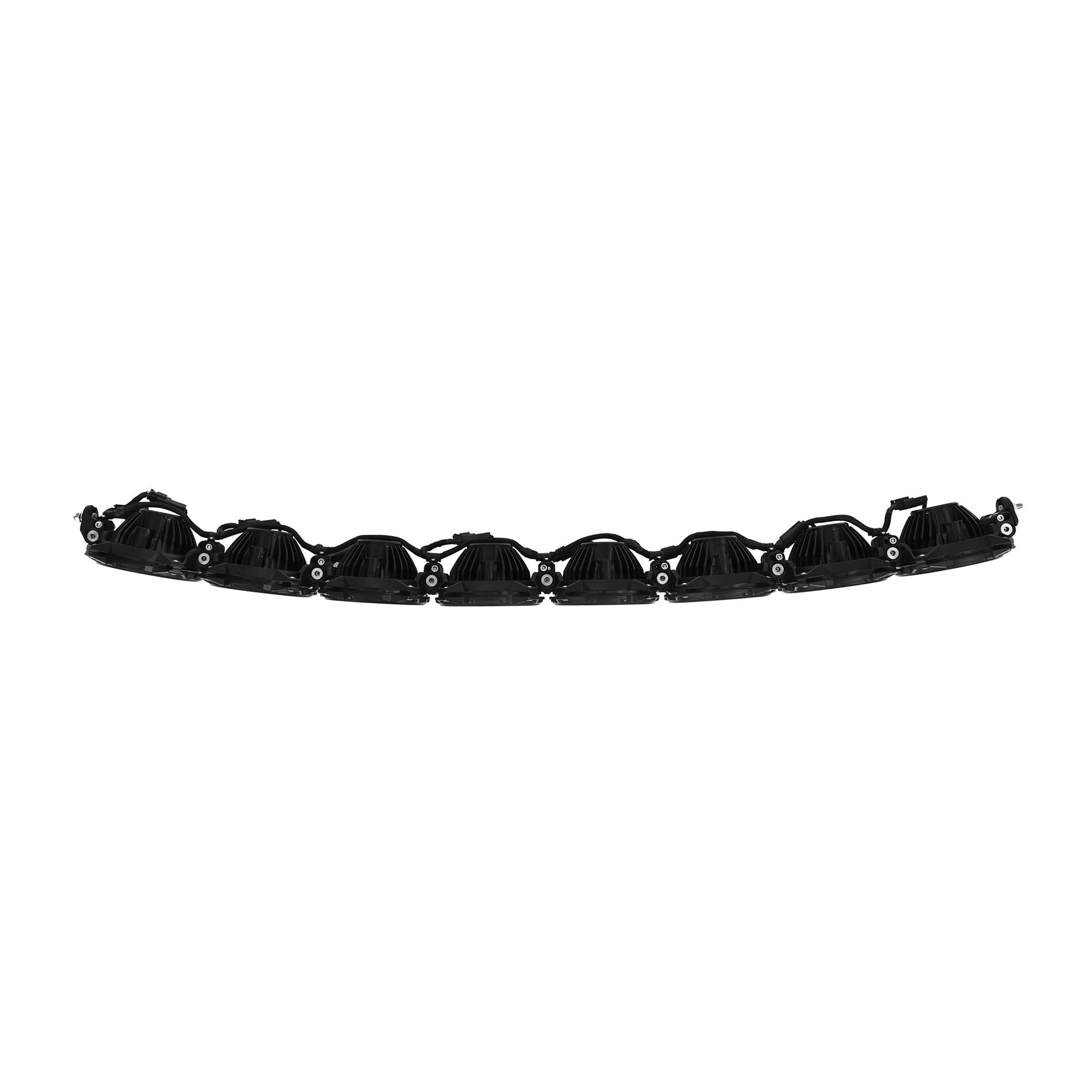

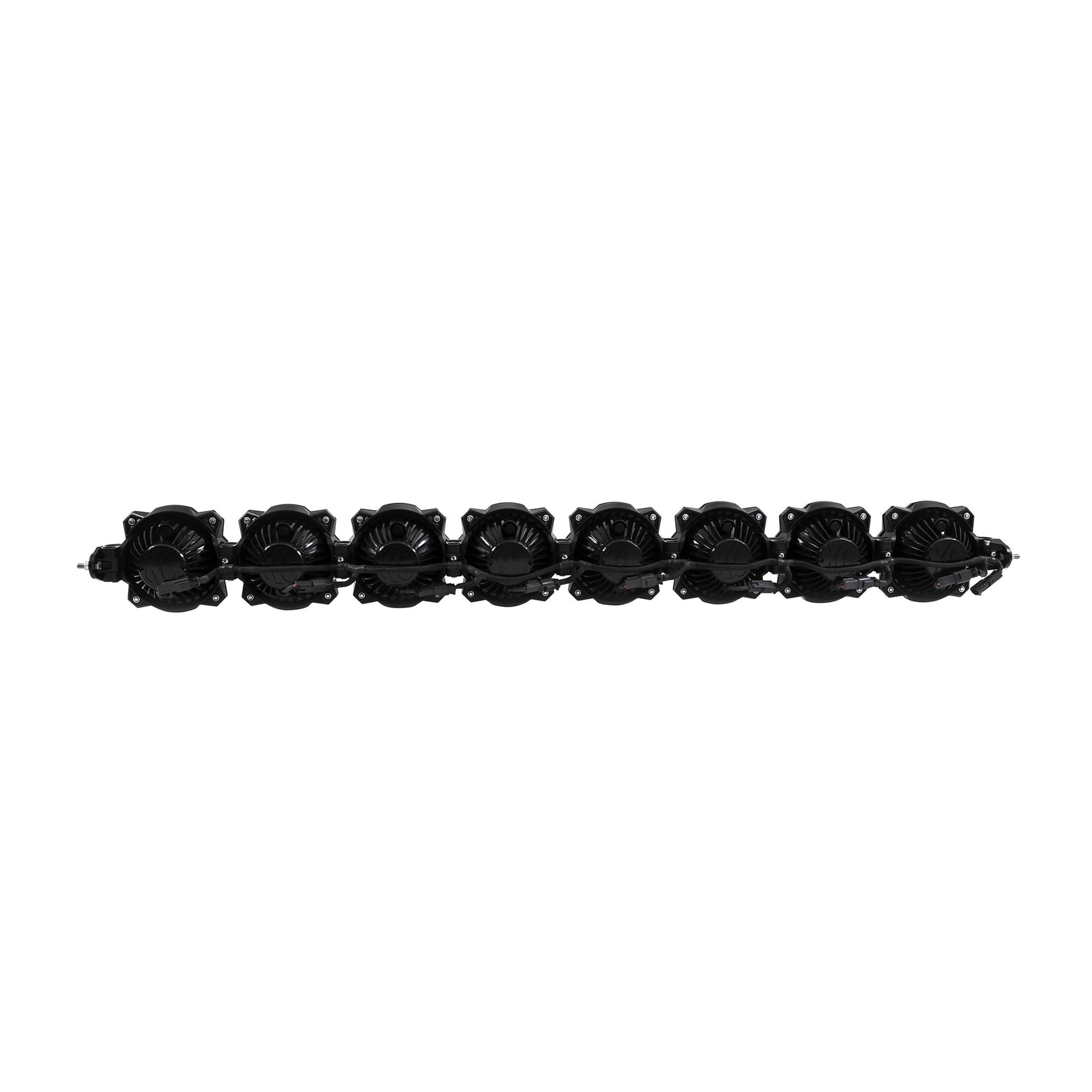

As an industry first, the Pro6 allows you to take full control of your specific lighting needs. Pro6 LED light bars feature a patented Infinity Ring™ system utilizing individual rings to securely link individual 6" Pro6 LED lights together to form a rigid, powerful LED light light bar system. The unique hinge and bolt design in every ring allows for endless modularity, expandability and adjustability to suit your lighting needs. This means seamless transition between straight, radius or hybrid radius light bar orientations to angle lights exactly how you see fit.
COMBO BEAM PATTERN FOR COMPLETE LIGHTING COVERAGE

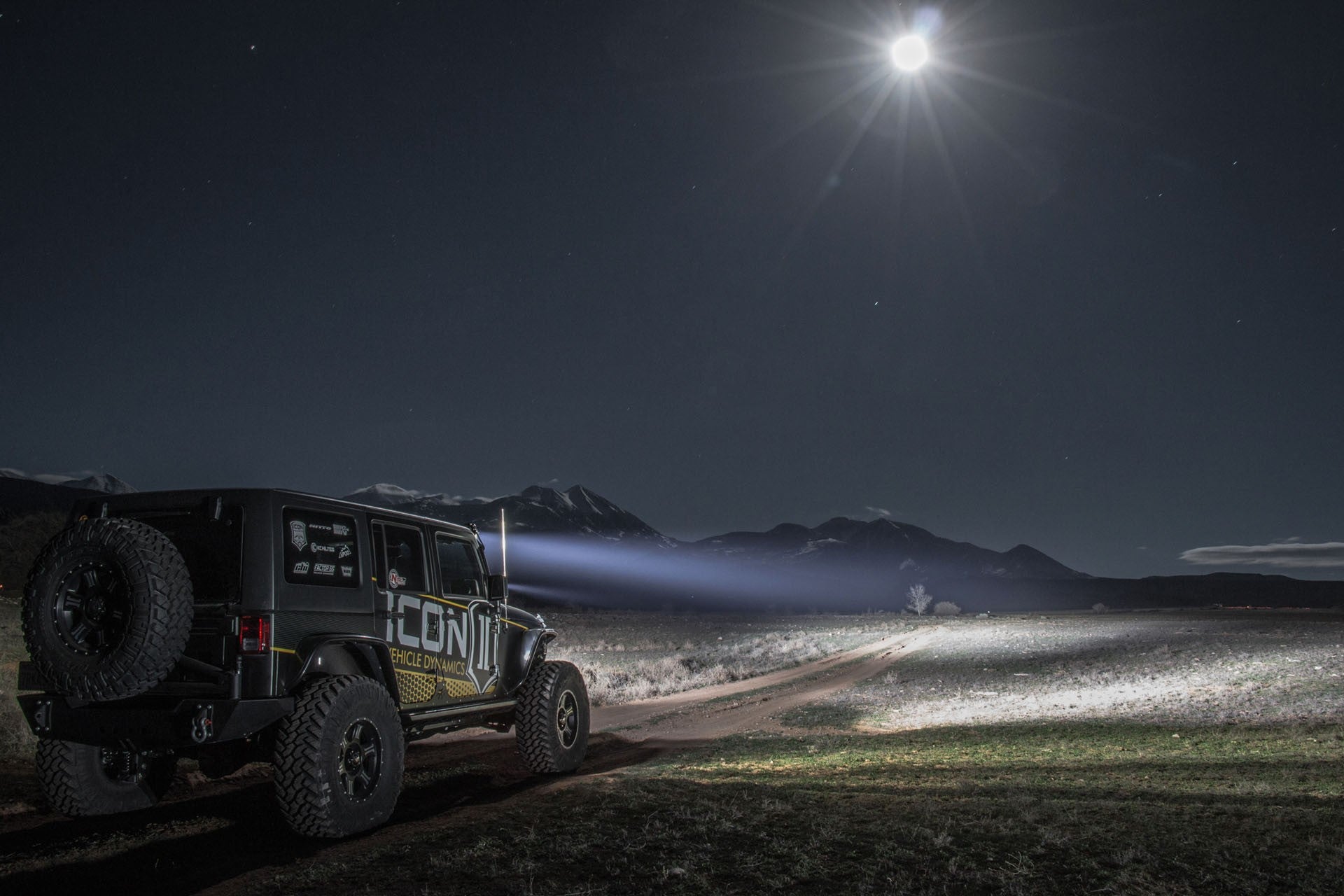

Gravity LED Pro6 light bars are specifically configured using a combination of SAE/ECE Driving and Wide-40 G6 LED optical inserts. The combination of different reflector optics provides a broader range of visibility and homogenous light beam shape, for more usable lighting coverage. Driving Beam lights provide powerful forward distance and equal beam distribution width, while the Wide-40 beam offer a wider area of coverage, increasing side to side peripheral visibility. This not only results in incredible light output distance, but also evenly balanced light distribution and beam shape that translates to light output that you can actually use for all of your off road lighting adventures.
RACE TESTED DURABILITY AND CONSTRUCTION
Inspired by endurance racing and tested by KC endurance racers worldwide, the Pro6 is set to break all performance barriers while providing the most durable, robust and scalable LED light bar design available today.
Available Part Numbers
- Gravity® LED Pro6 3-Light 20" Universal Combo LED Light Bar - #91318
- Gravity® LED Pro6 4-Light 26" Universal Combo LED Light Bar - #91319
- Gravity® LED Pro6 5-Light 32" Universal Combo LED Light Bar without Light Mounts - #91306
- Gravity® LED Pro6 6-Light 39" Universal Combo LED Light Bar without Light Mounts - #91307
- Gravity® LED Pro6 8-Light 50" Universal Combo LED Light Bar without Light Mounts - #91308

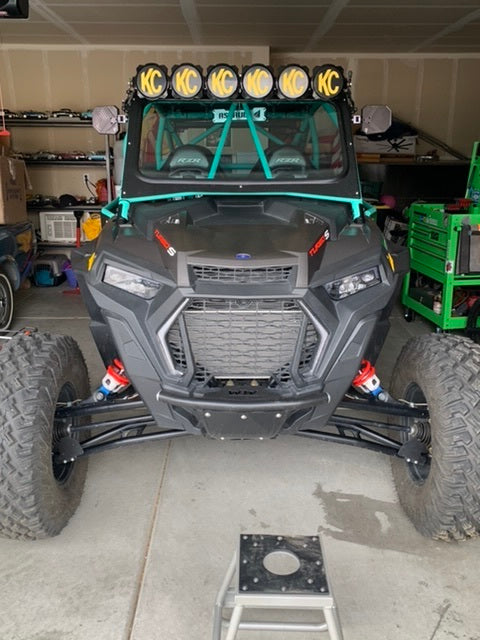

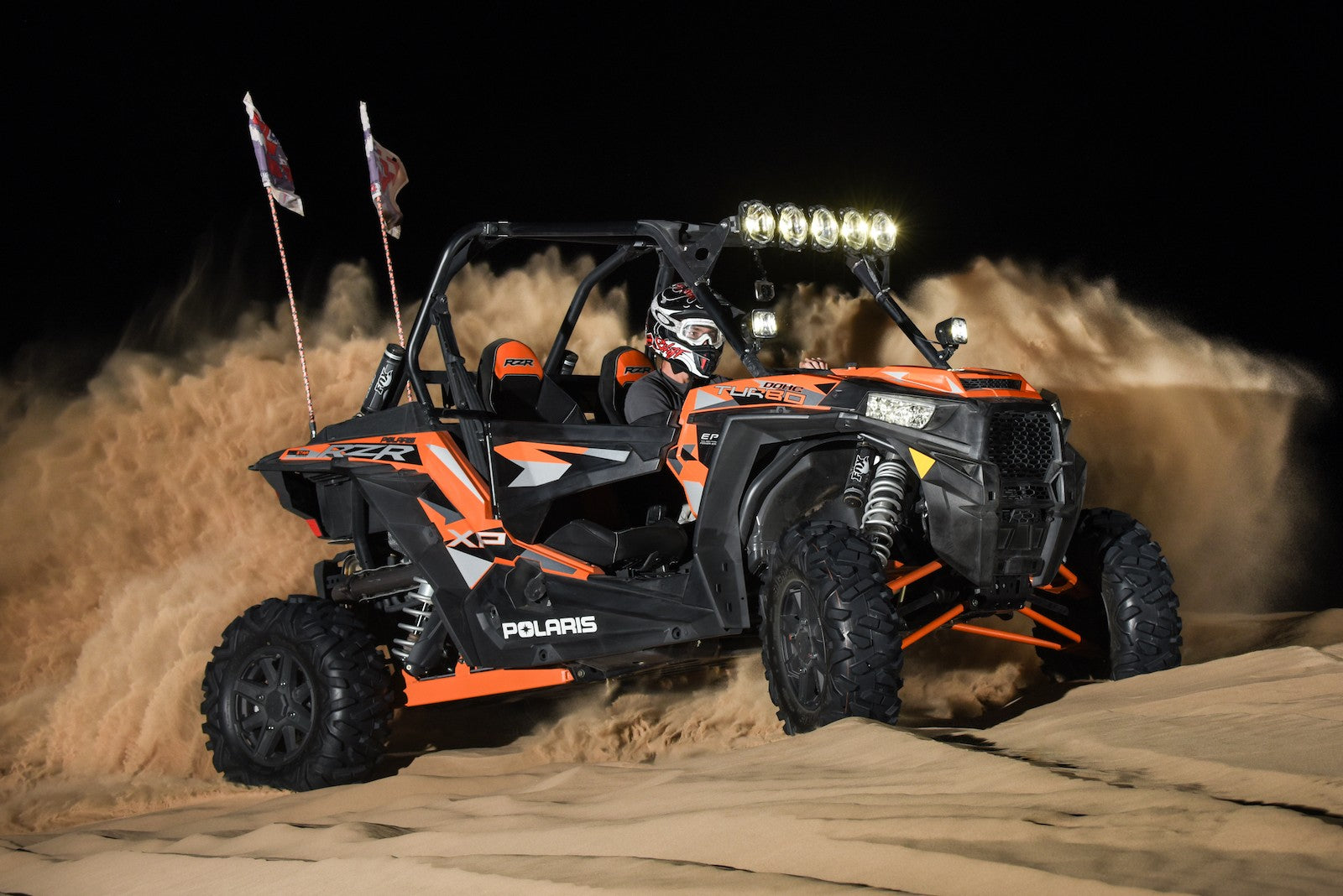

- Gravity® LED Pro6 Polaris RZR 5-Light 32" Combo LED Light Bar with Light Mounts - #91309

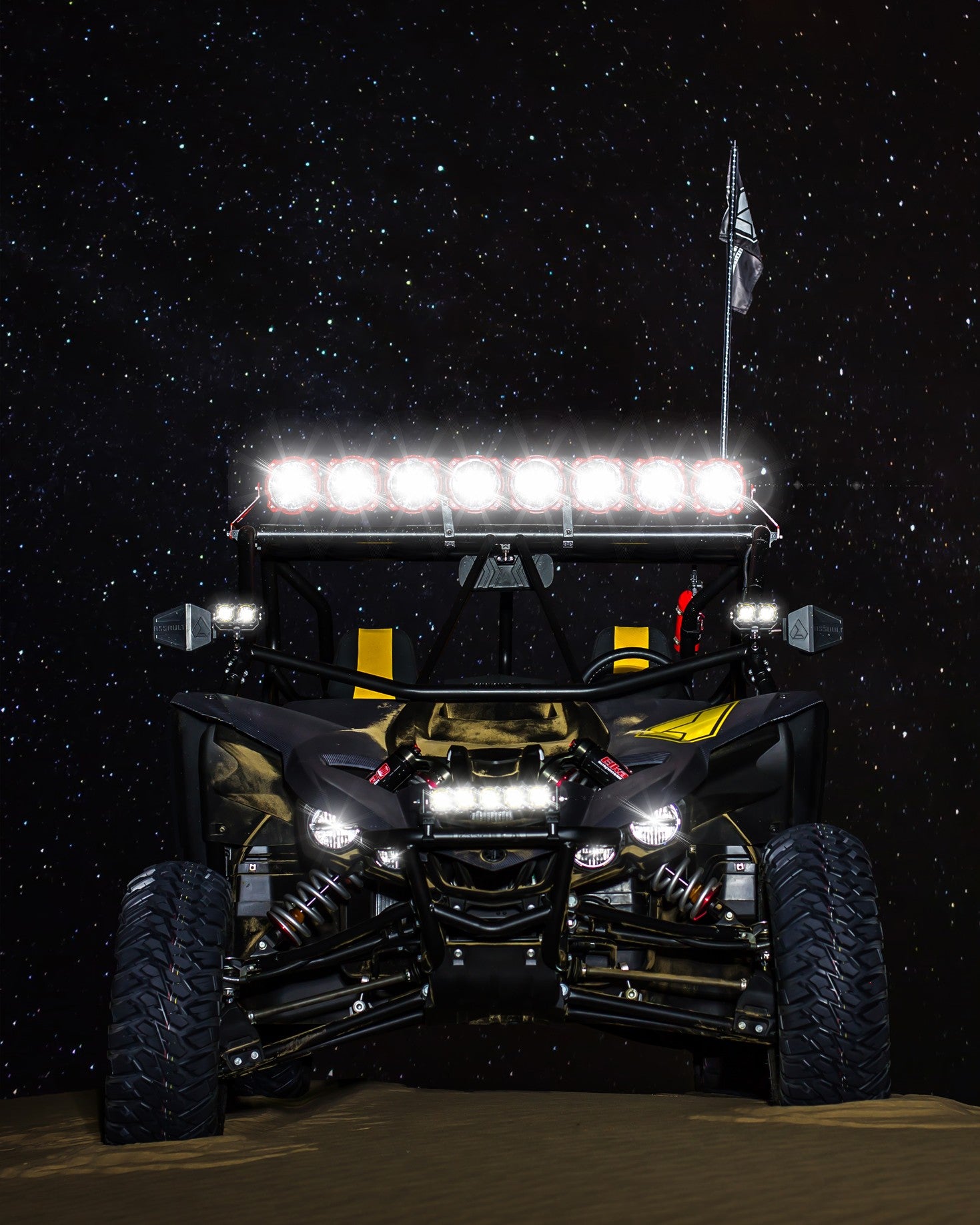

- Gravity® LED Pro6 Yamaha YXZ1000R 6-Light 39" Combo LED Light Bar with Light Mounts - #91310

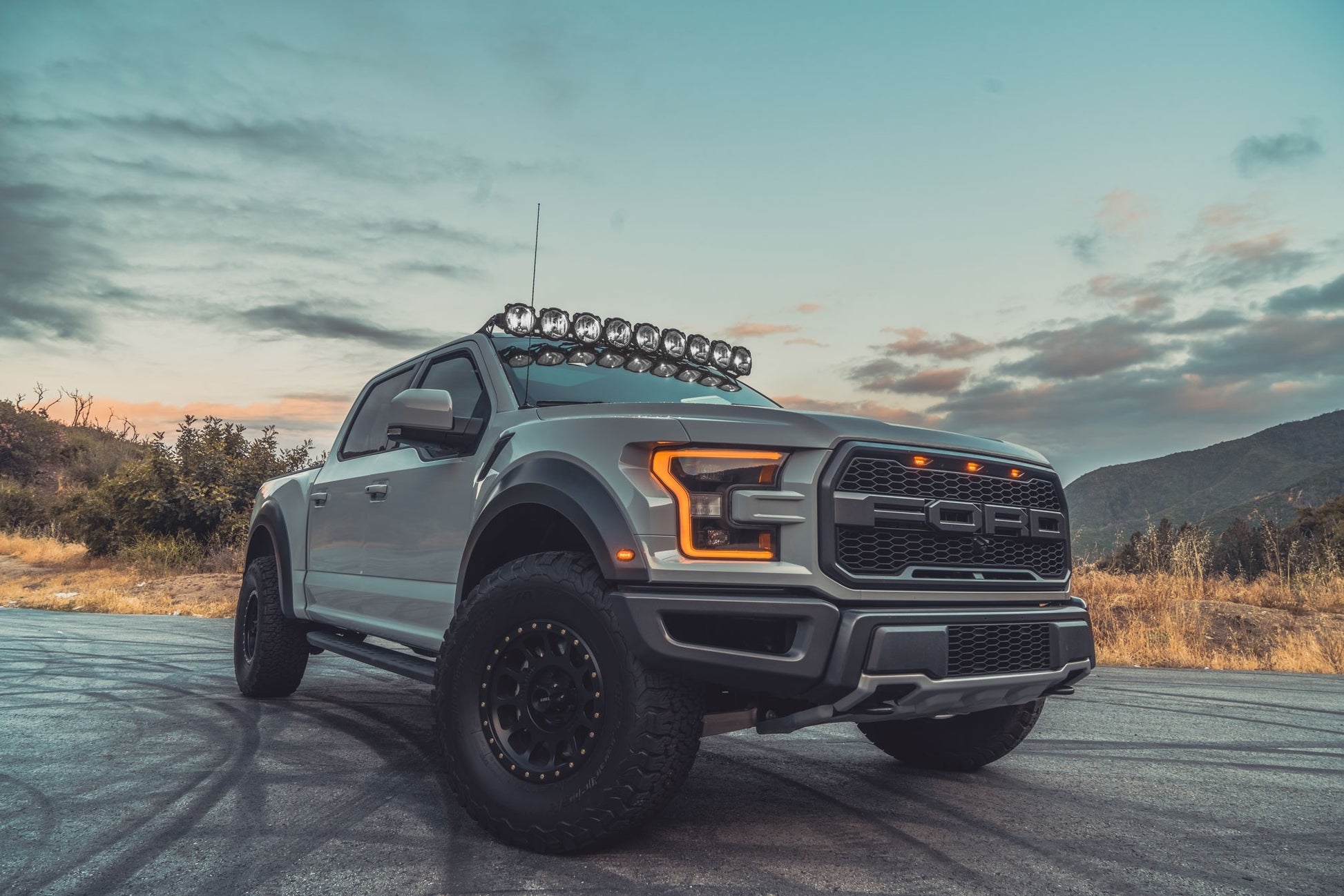

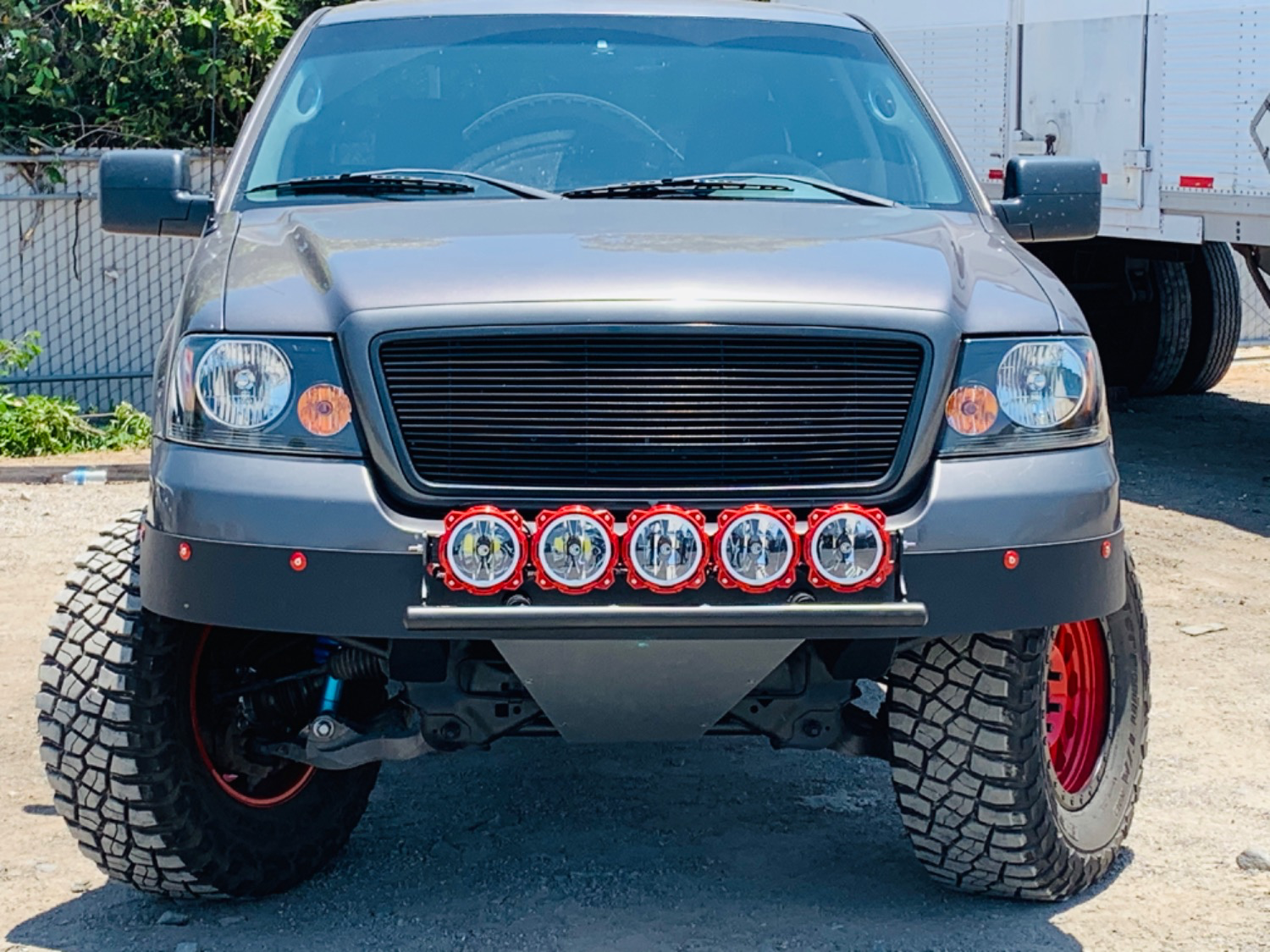

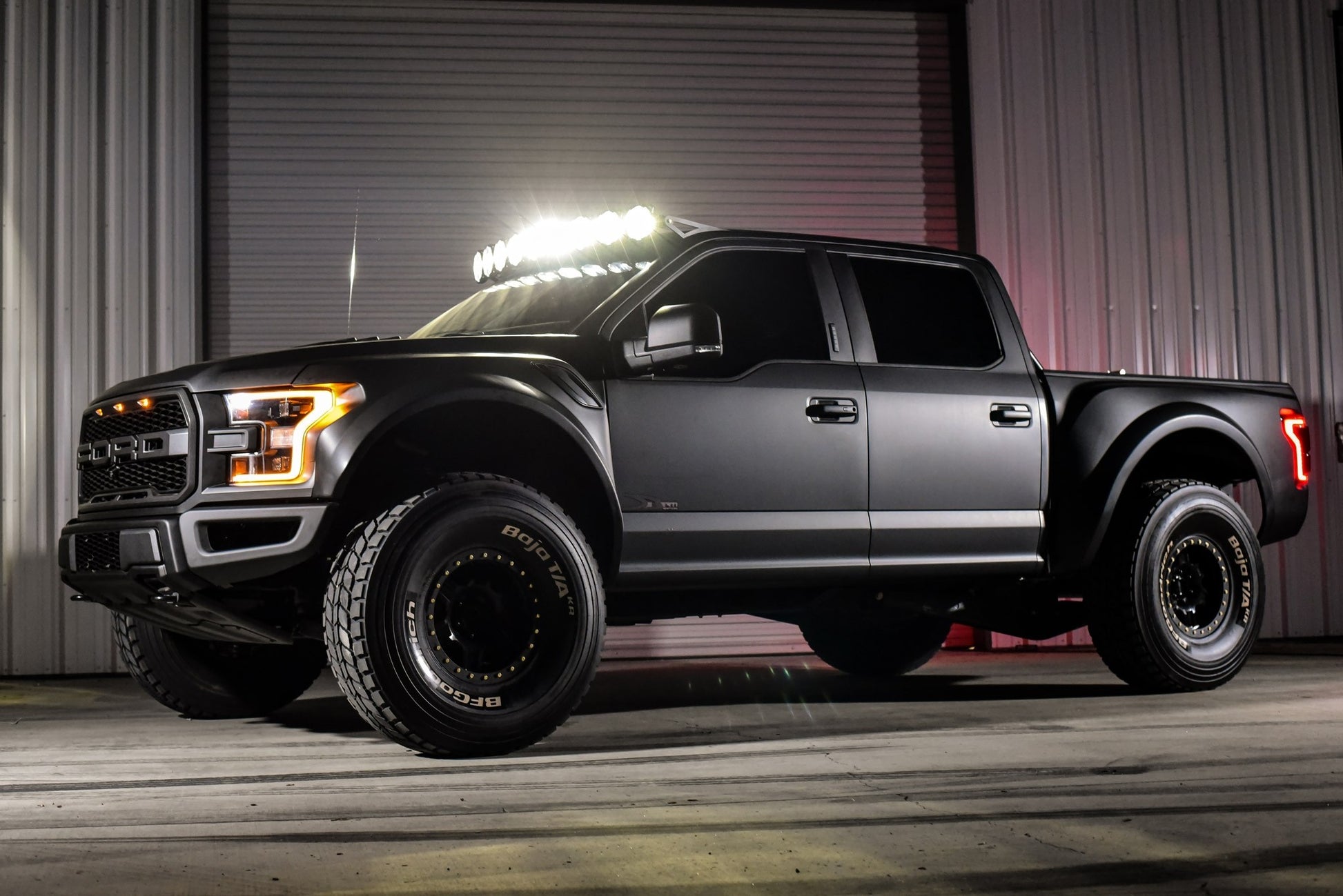

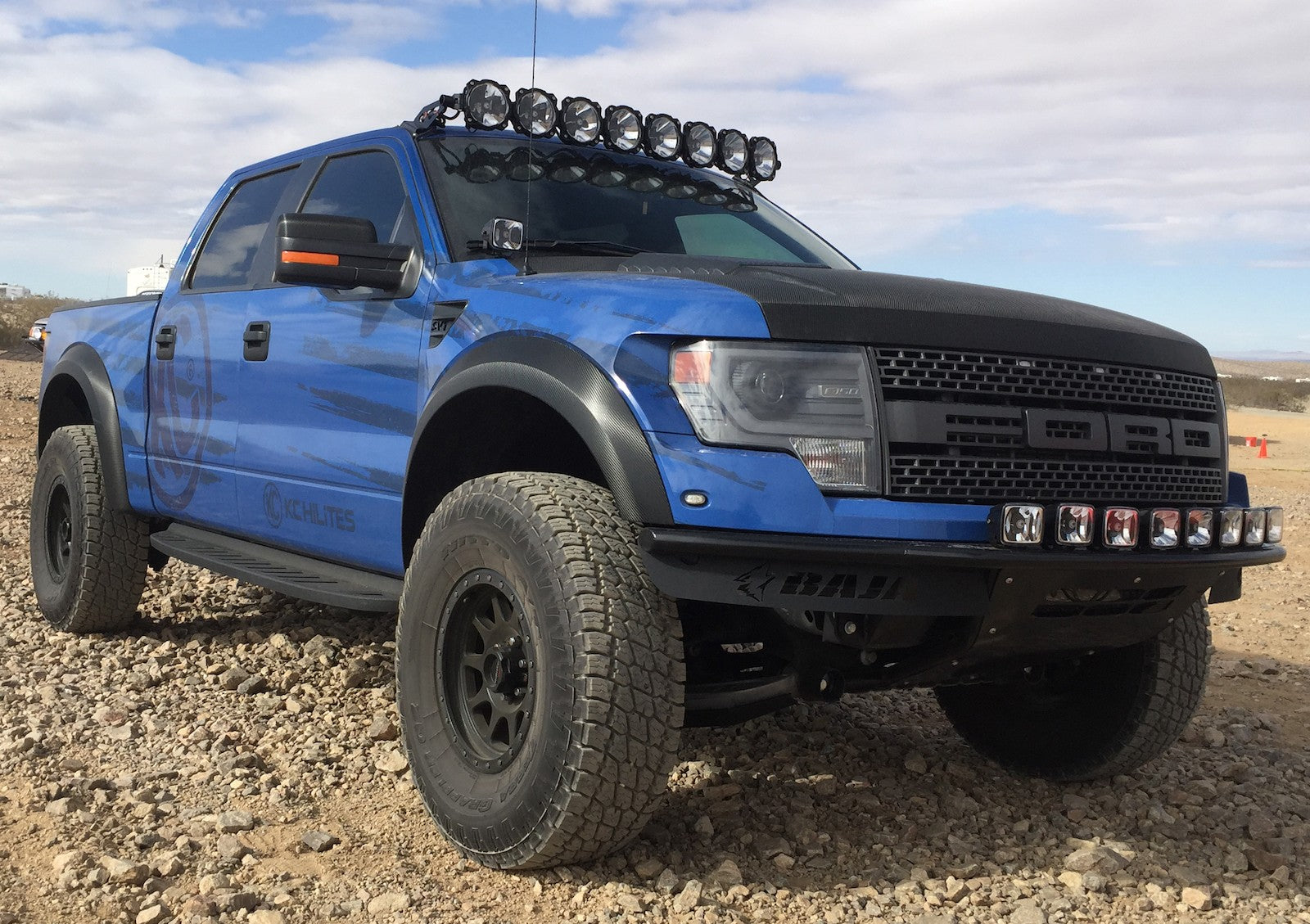

- Gravity® LED Pro6 10-14 Ford F-150/Raptor 8-light 50" Combo LED Light Bar with Light Mounts - #91311

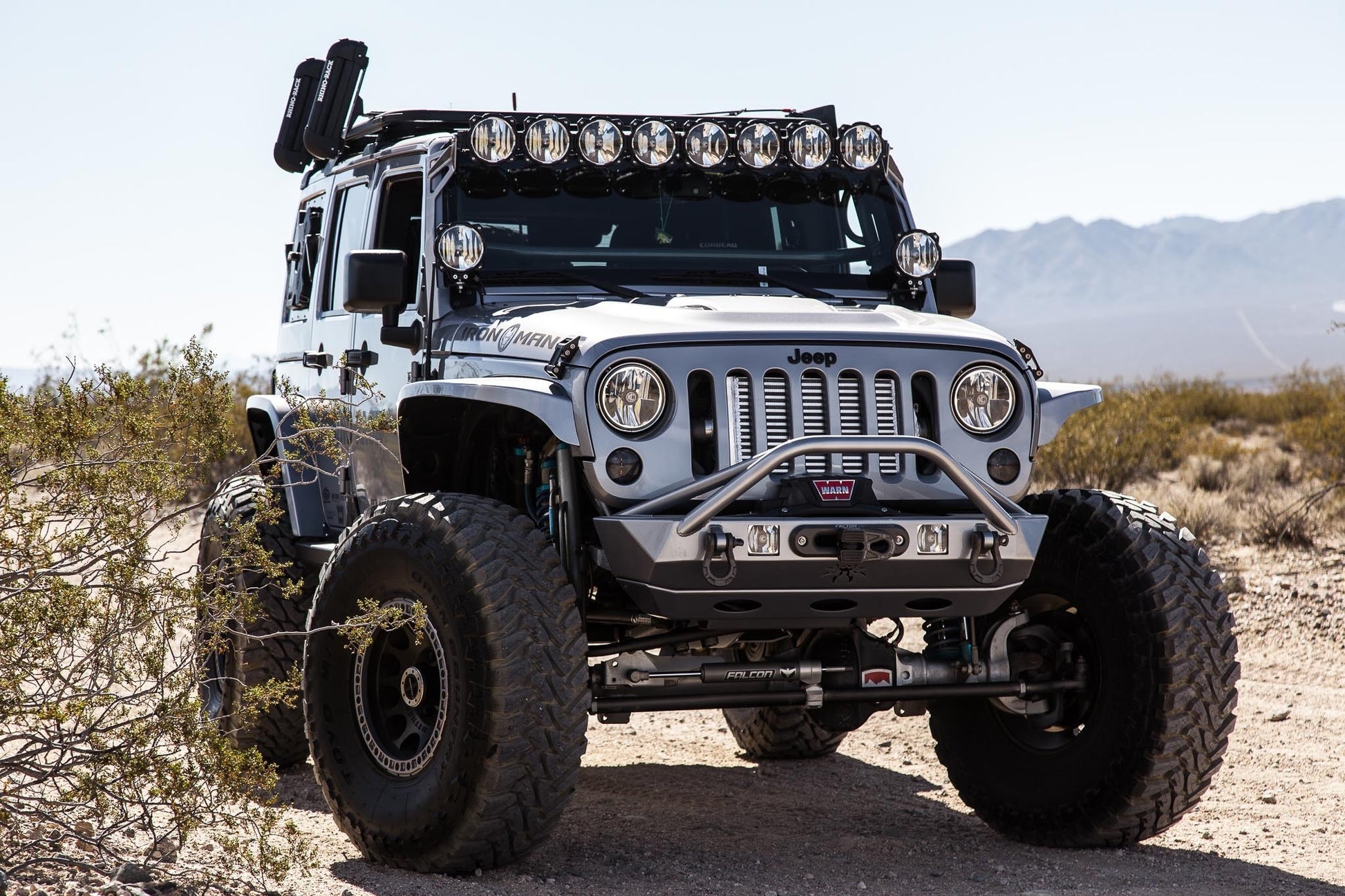

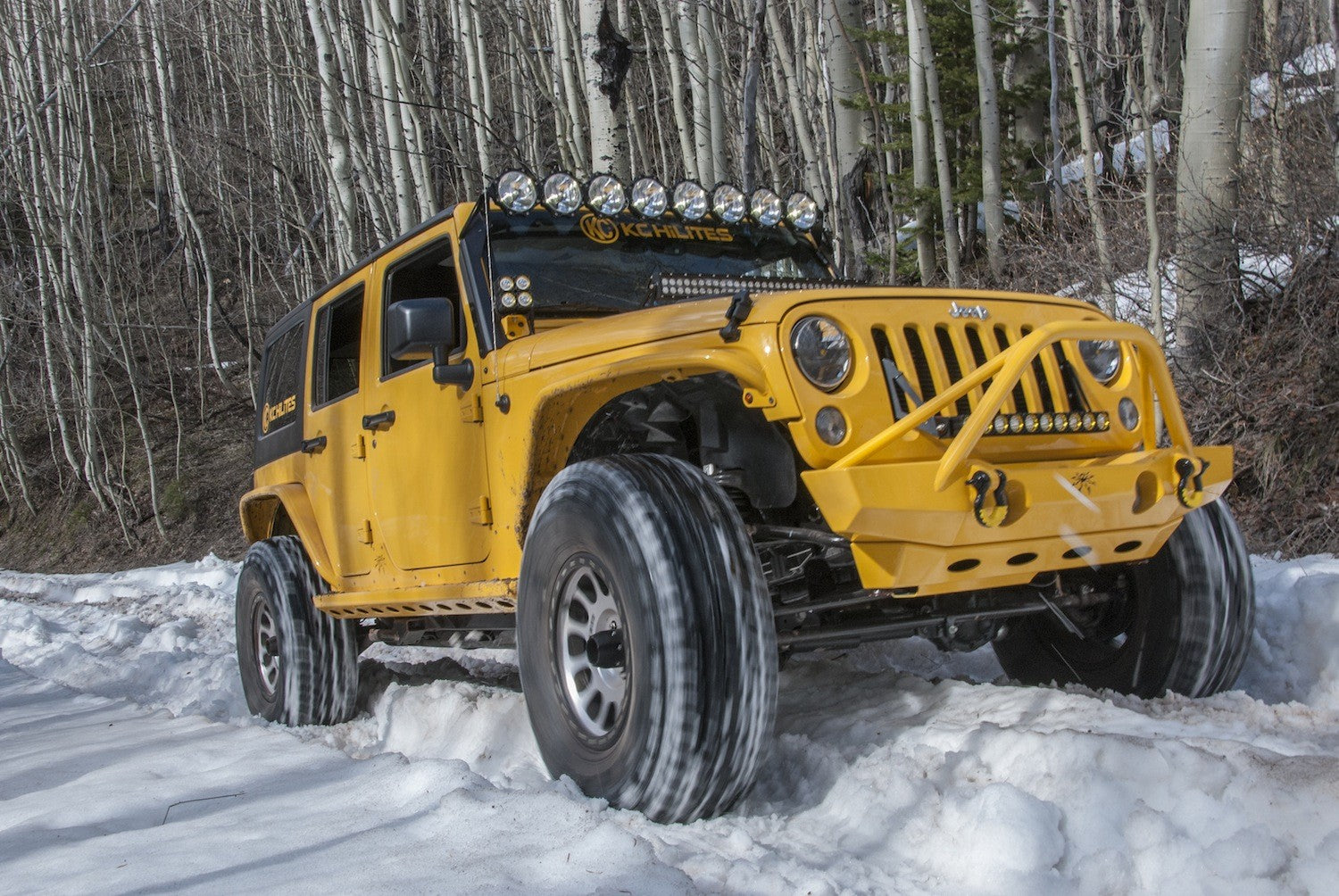

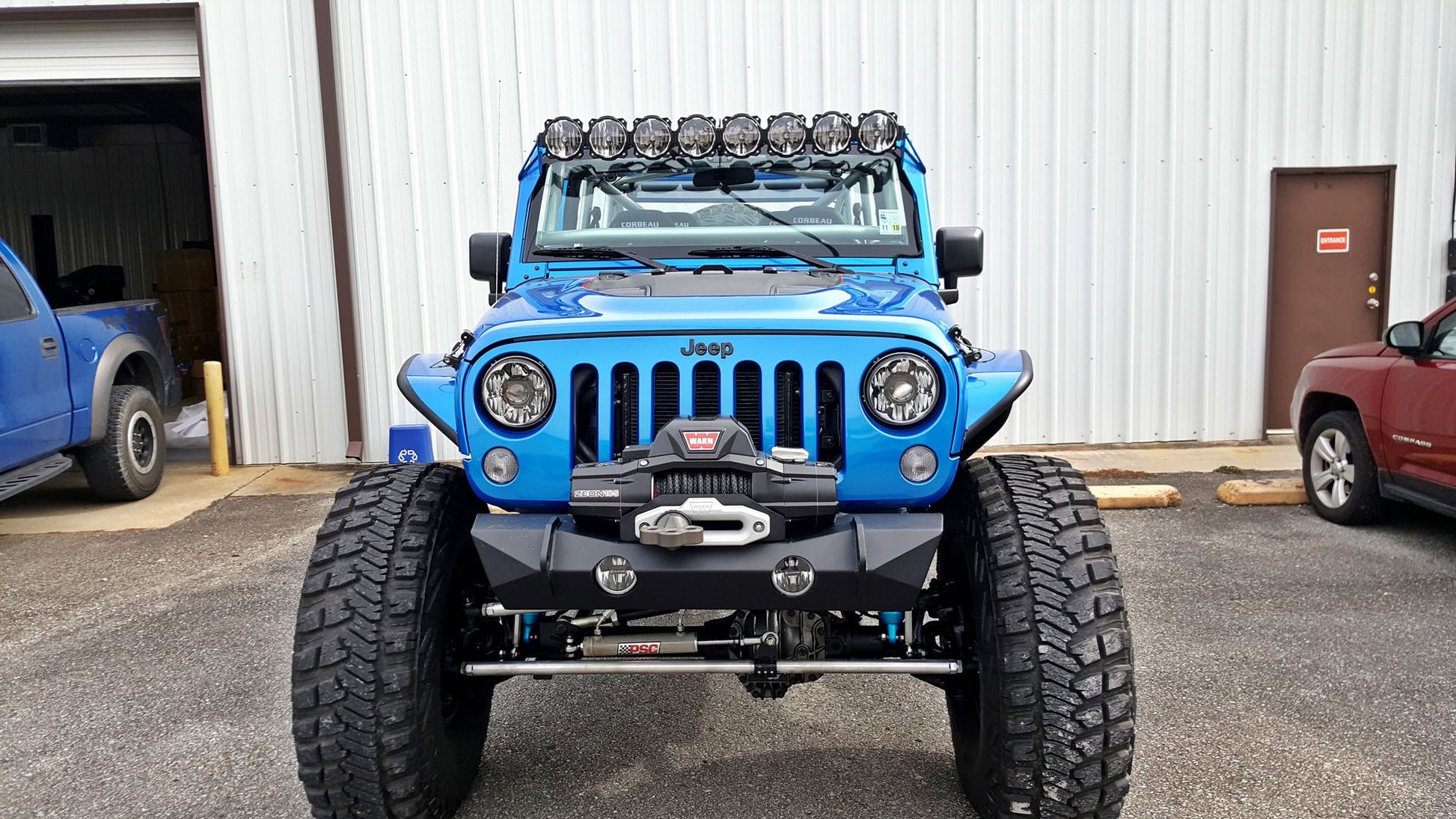

- Gravity® LED Pro6 07-18 Jeep JK 8-Light 50" Combo LED Light Bar with Light Mounts - #91313
- Gravity® LED Pro6 7-Light 45" Universal Combo LED Light Bar - #91314
- Gravity® LED Pro6 9-Light 57" Universal Combo LED Light Bar - #91315
- Gravity® LED Pro6 13-16 Can-Am Maverick/Commander 6-Light 39" Combo LED Light Bar with Light Mounts - #91316
- Gravity® LED Pro6 14-17 Arctic Cat Wildcat 6-Light 39" Combo LED Light Bar with Light Mounts - #91327

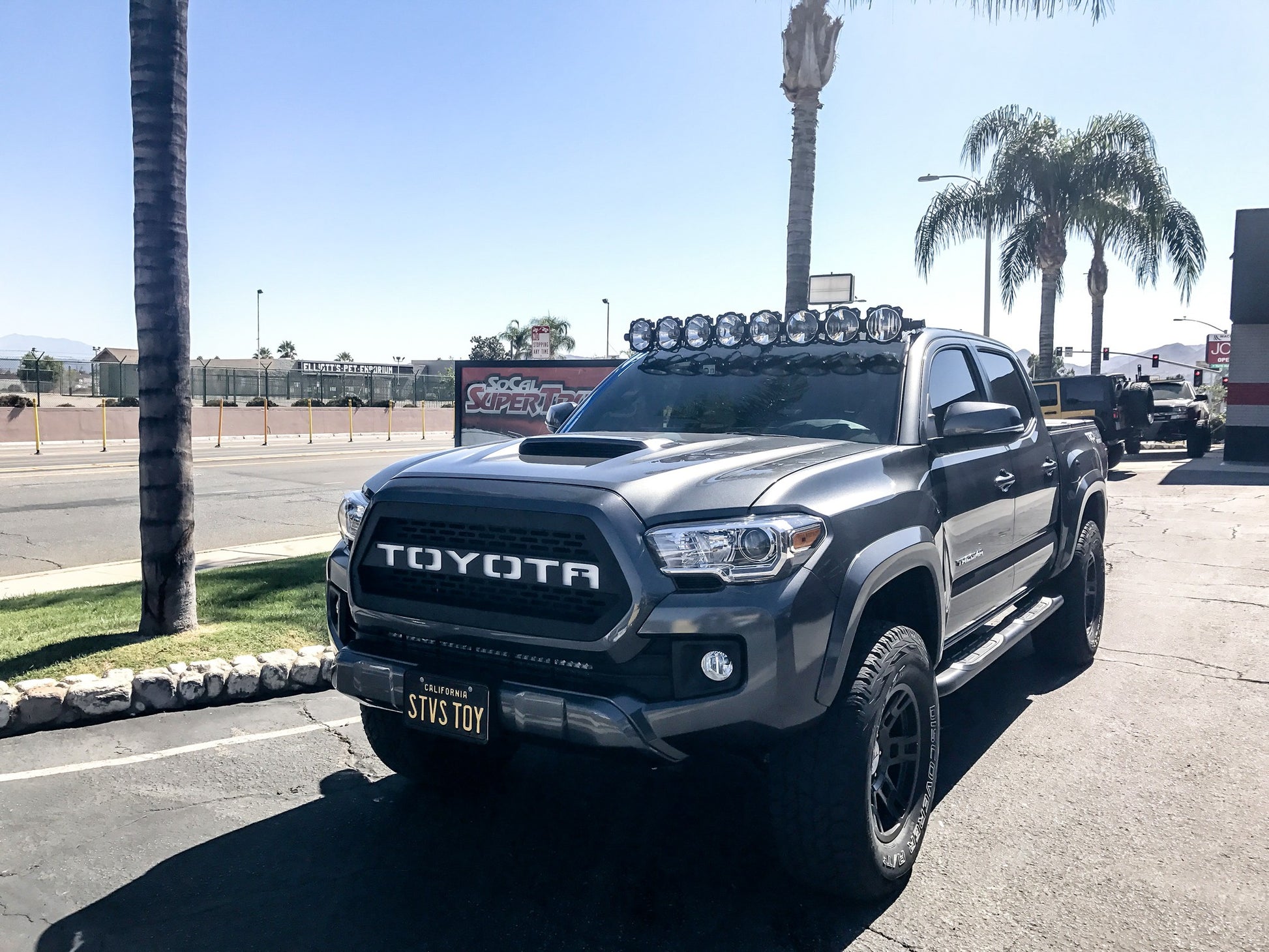

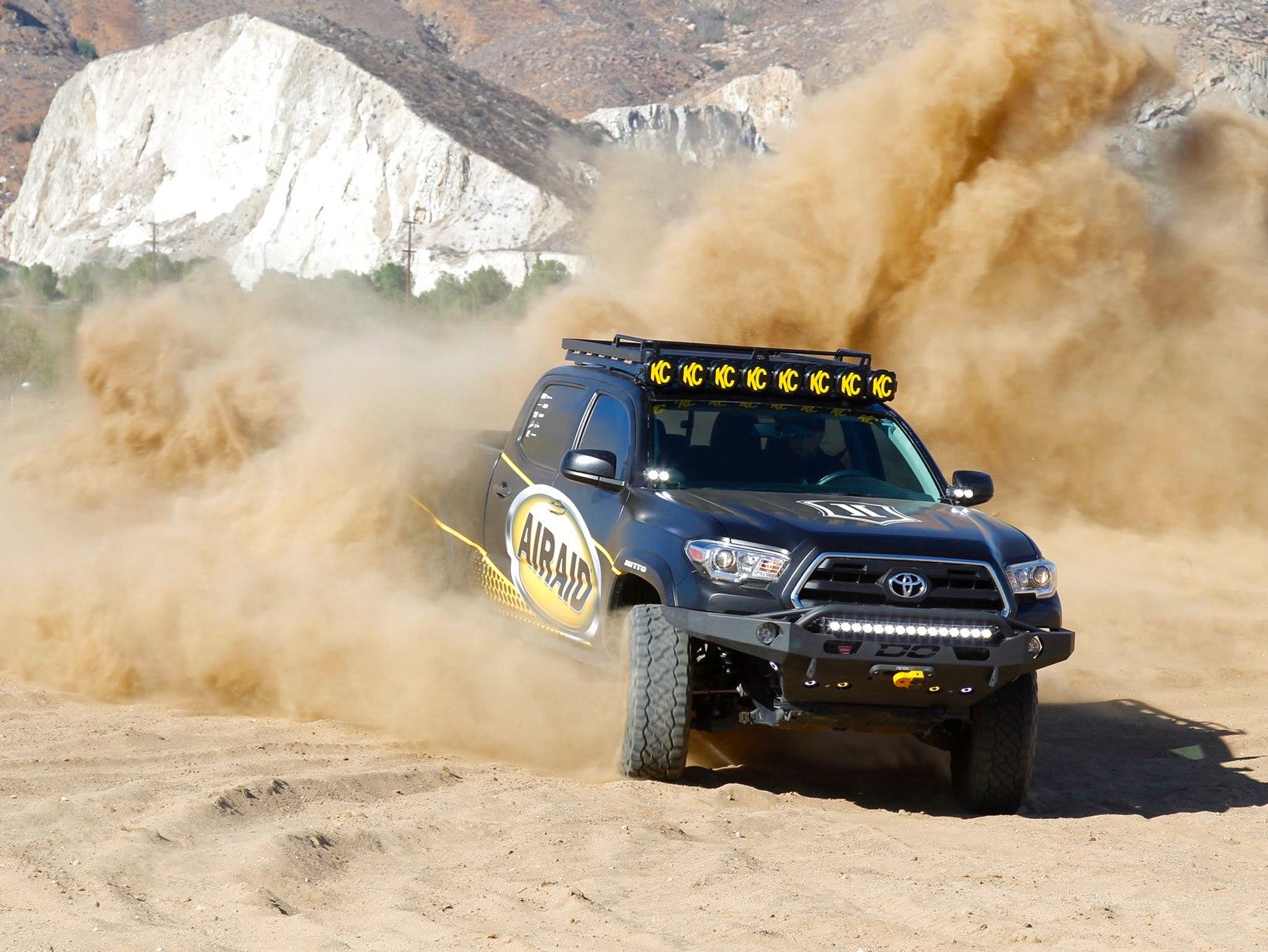

- Gravity® LED Pro6 05-18 Toyota Tacoma 8-light Combo LED Light Bar – #91331

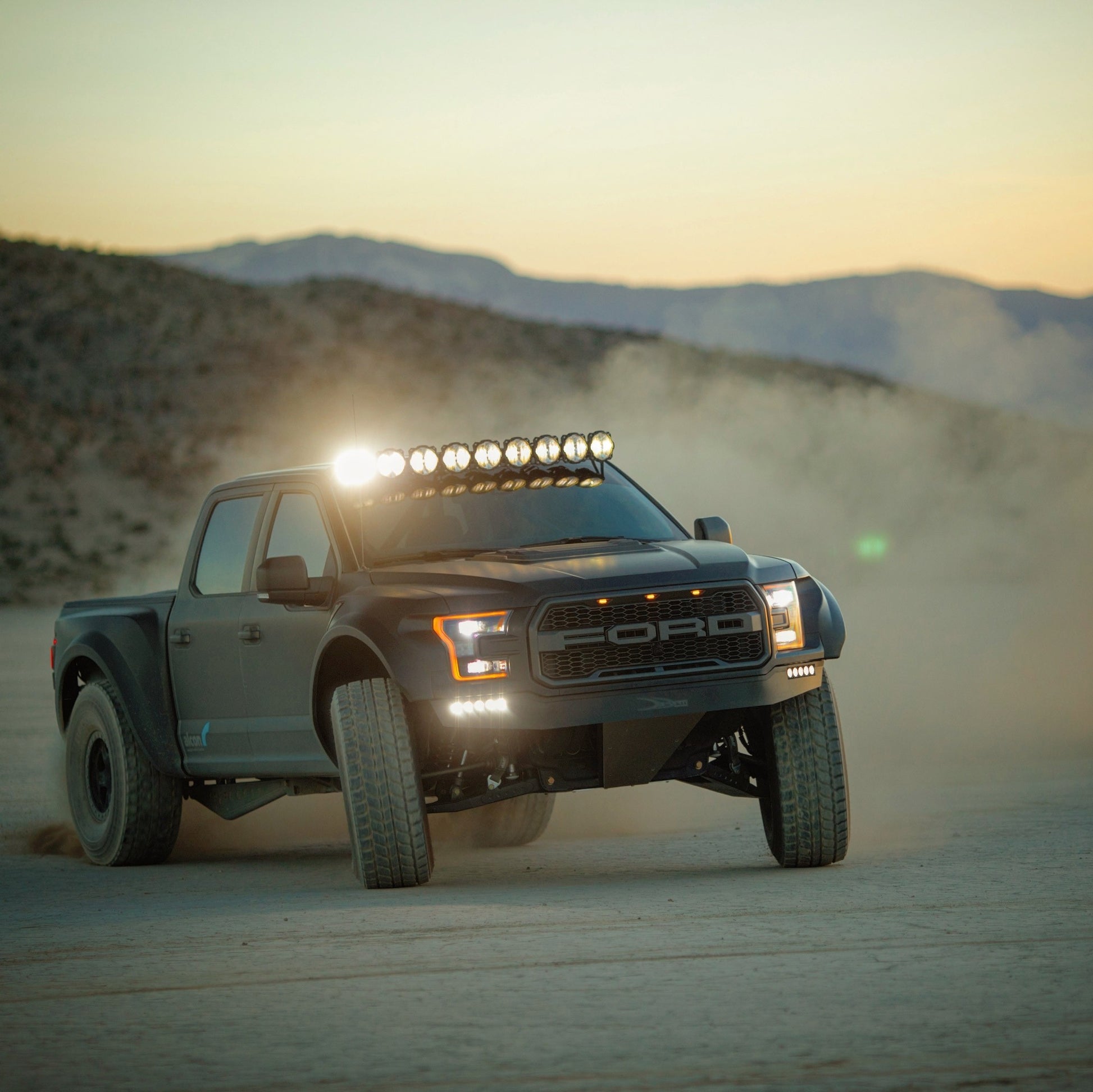

- Gravity® LED Pro6 17-18 Ford F-150/ Raptor 9-Light 57" Combo LED Light Bar - #91333
- Gravity® LED Pro6 17-18 Can-Am Maverick X3 7-Light 45" Combo LED Light Bar - #91334
- Gravity® LED Pro6 7-Light 45" Radius Universal Combo LED Light Bar - #91397
- Gravity® LED Pro6 8-Light 50" Radius Universal Combo LED Light Bar - #91398
- Gravity® LED Pro6 97-06 Jeep TJ 8-Light Combo Beam LED Light Bar - #91337

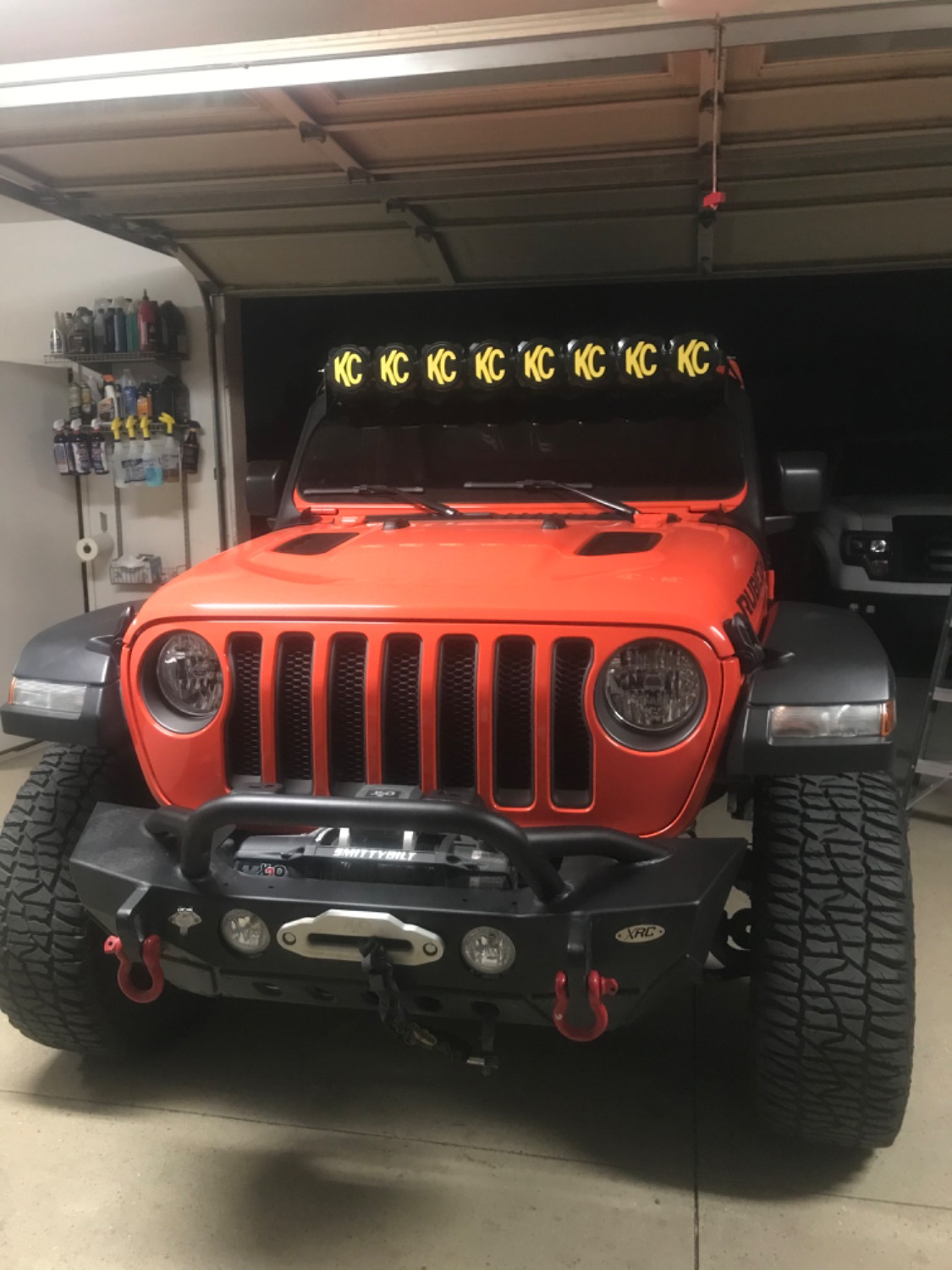

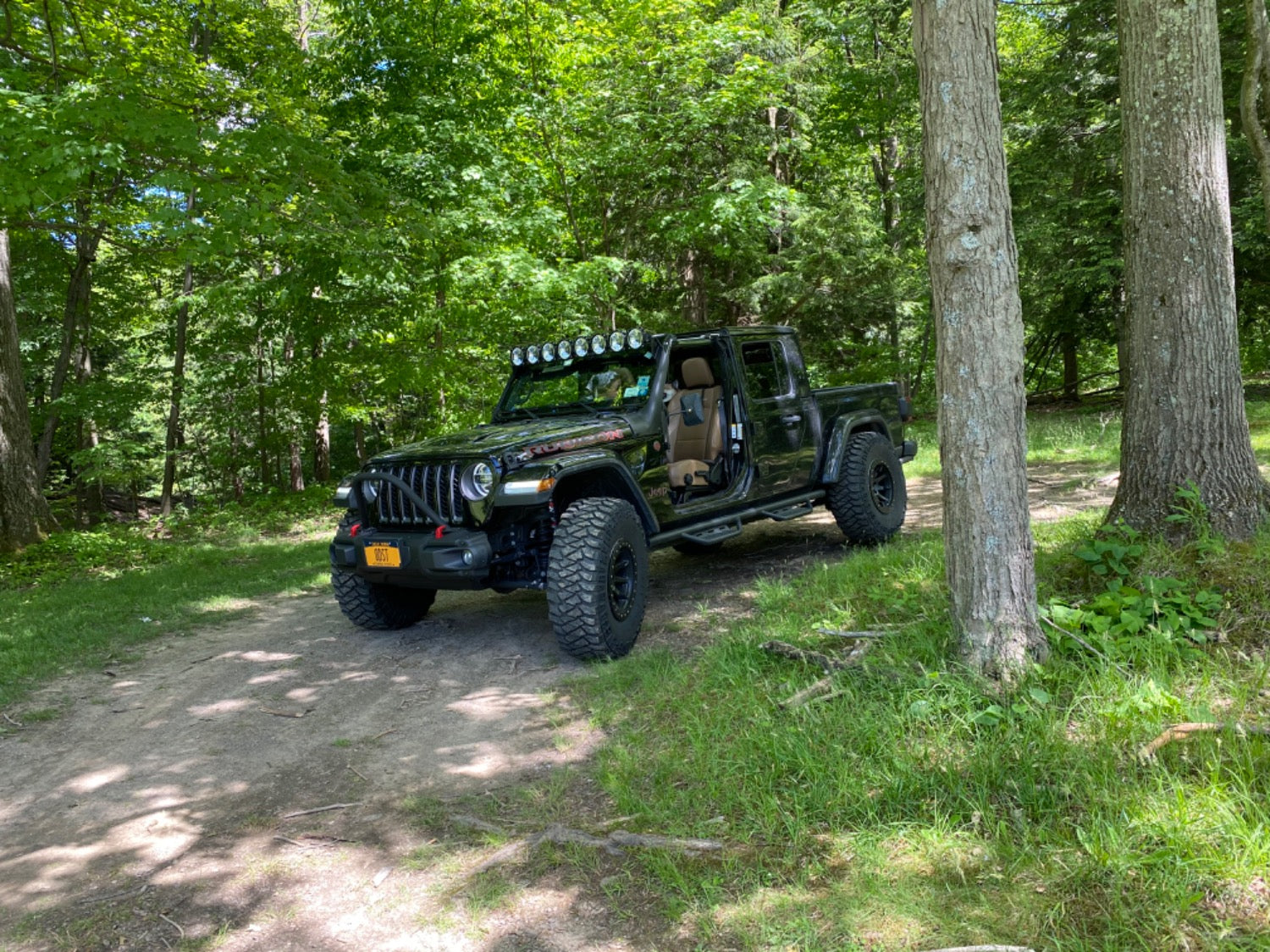

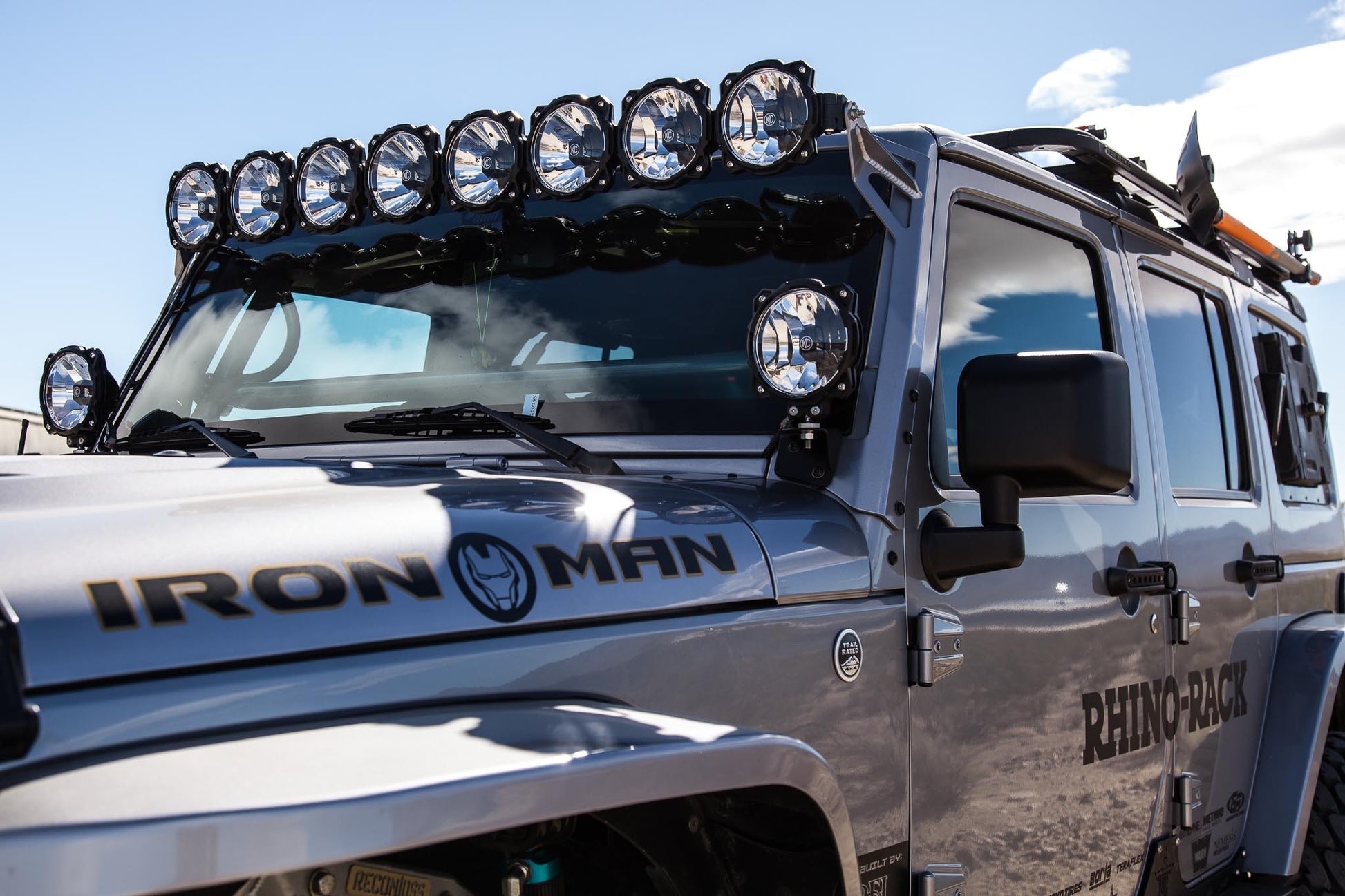

- Gravity® LED Pro6 LED Light Bar - 50" Jeep Wrangler JL & Gladiator JT 8-Ring - #91336
