| SKU |
0366 |
| Weight |
30.0 |
| Type |
LED Light |
| Collection |
C-Series LED |
| Material |
Aluminum Alloy |
| Finish |
Black |
| Location |
Overhead |
| UPC |
084709003661 |
| Color |
Black |
| Amp Draw |
25.0 a |
| Beam Distance |
1,131 m |
| Beam Pattern |
Combo |
| Candela |
320,000 cd |
| DOT Compliant |
No |
| In The Box |
50" C-Series LED Light Bar, Jeep Wrangler JK overhead mounting bracket set, Performance wiring harness with illuminated led light switch |
| IP rating |
IP67 |
| Light Color |
White |
| Lens Color |
Clear |
| Light Temperature |
6000K |
| Lumens |
27,000 lm |
| Lux |
3,200 lx |
| Product Dimensions |
W - 51.38" x H - 3.09" x D - 3.40" |
| Prop 65 |
No |
| Size |
50" |
| SAE/ECE |
No |
| Voltage |
9V-32V |
LIGHT PERFORMANCE
- Raw Lumens: 27,000 lm
- Lux @ 10 Meters: 3,200 lx
- Candela: 320,000 cd
- Beam Distance (Meters): 1,131m
SPECIFICATIONS
- Wattage: 300W
- LED Source: CREE LED
- Color Temperature: 6000K
- Amp Draw: 25.0A
- Voltage: 9V-32V
- IP Rating: IP67
- Product Dimensions: L - 51.38" x H - 3.09" x D - 3.40"

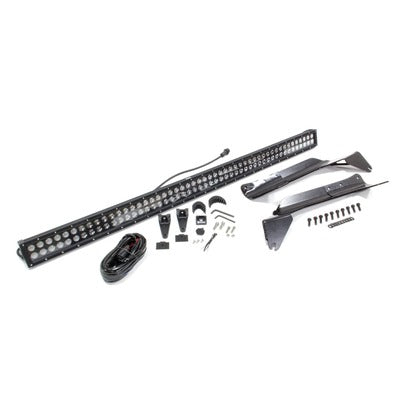

Parts Included with Jeep Wrangler JK Overhead Kit
- (1) KC 338 50" C-Series LED Light Bar
- (1) Above Windshield Mount Bracket Set with complete hardware
HIGH PERFORMANCE MEETS AFFORDABILITY
C-Series light bar features an extruded aluminum housing, aluminum core PCBs with thermal management and lexan lenses. What you get is a perfect balance of affordable performance with maximum efficiency, stability and reliability.

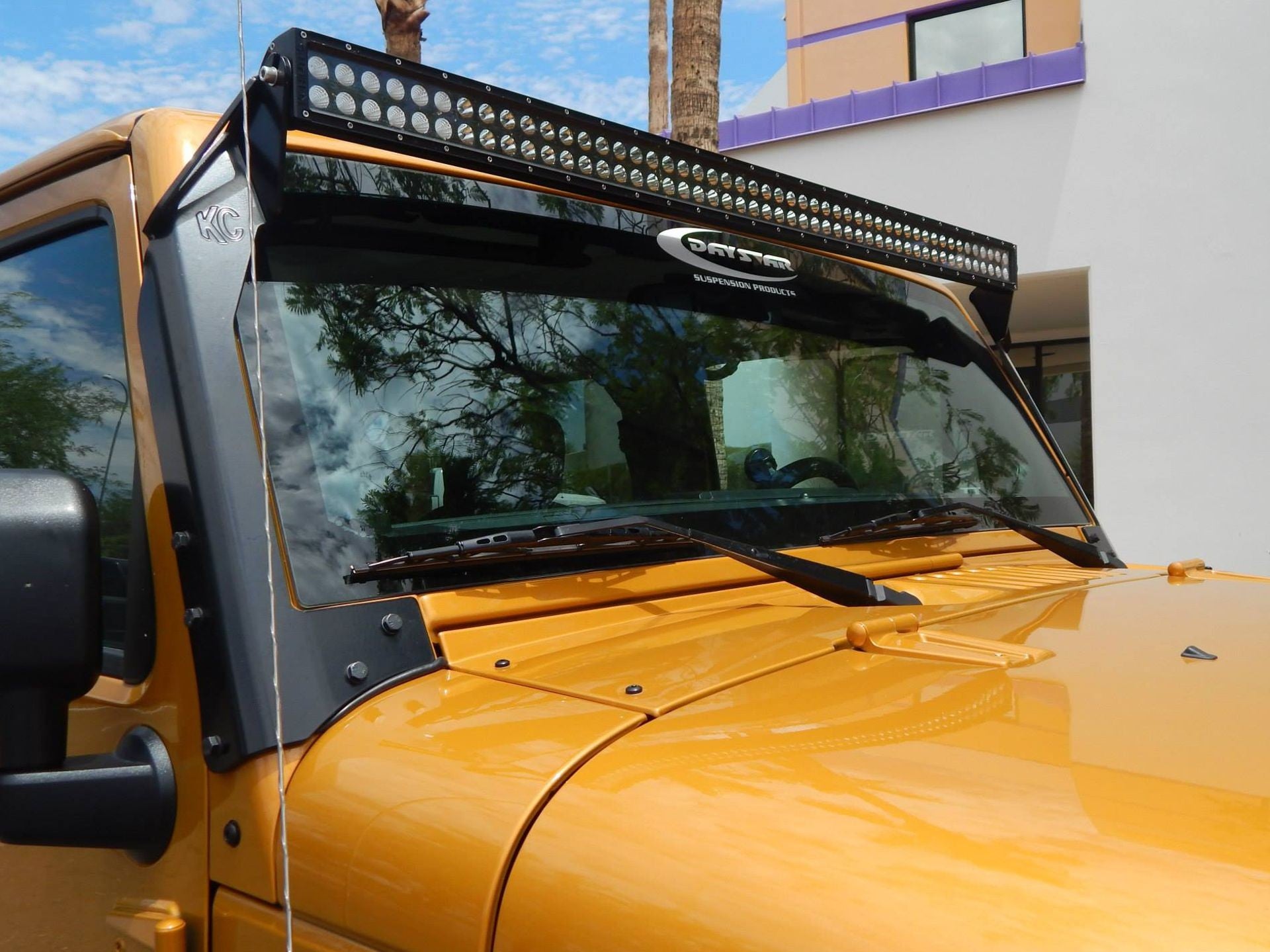

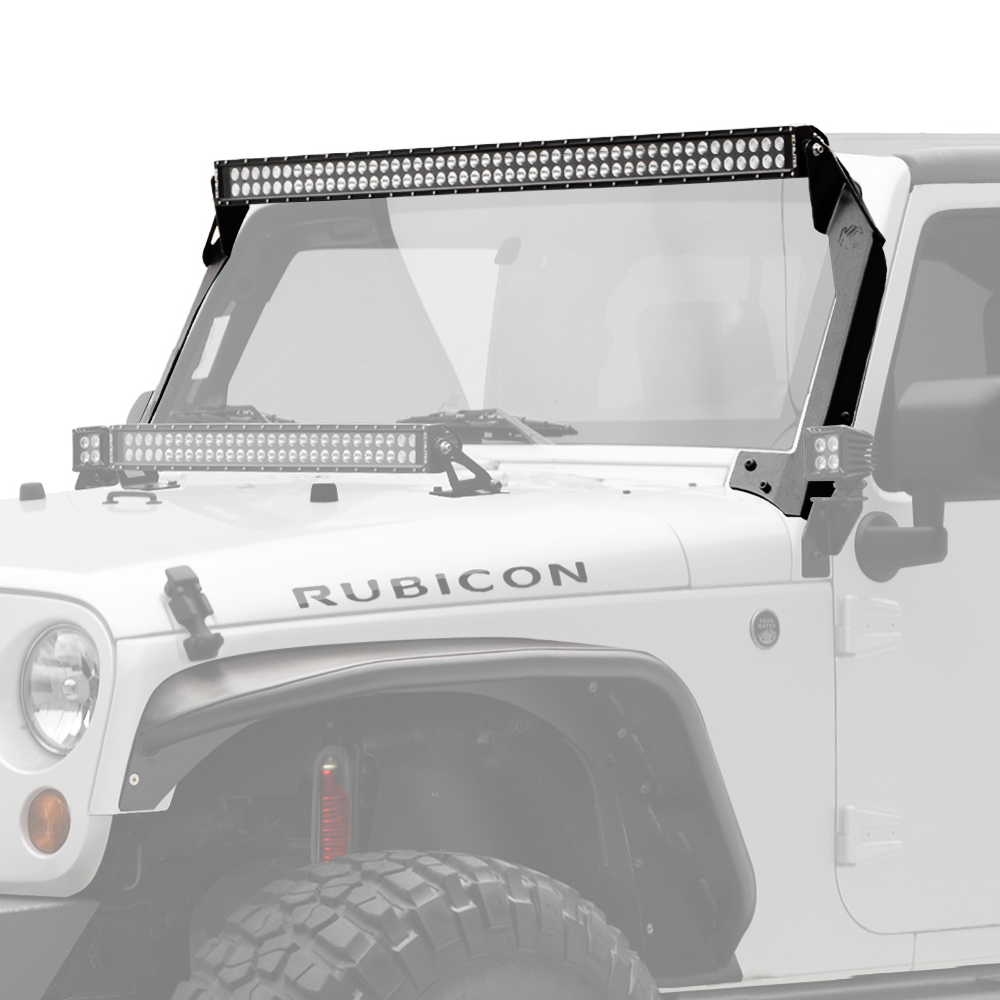

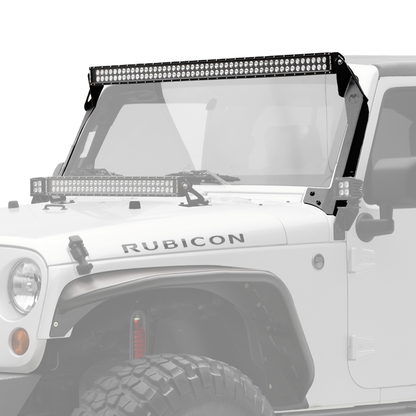

EASY INSTALL OVERHEAD MOUNT BRACKET KIT FOR JEEP WRANGLER JK
This lighting kit comes with both the 50" C Series LED Light Bar and the Overhead Mount Bracket to provide a turnkey lighting solution that's easily mounts to factory bolts on 07-16 Jeep JK vehicles.
COMBO BEAM PATTERN AND ADVANTAGES
When it comes to total road coverage the C-Series LED light bar features a combo beam with perfectly angled 12° Spot & 30° Spread reflectors, for maximum forward distance and increased peripheral illumination along road edges.
DESIGNED FOR DURABILITY
Off road race tested, the C-Series was designed to handle the harshest environments. Featuring a IP67 rated housing and GORE® Membranes, the C-Series is resistant to moisture and dust.
