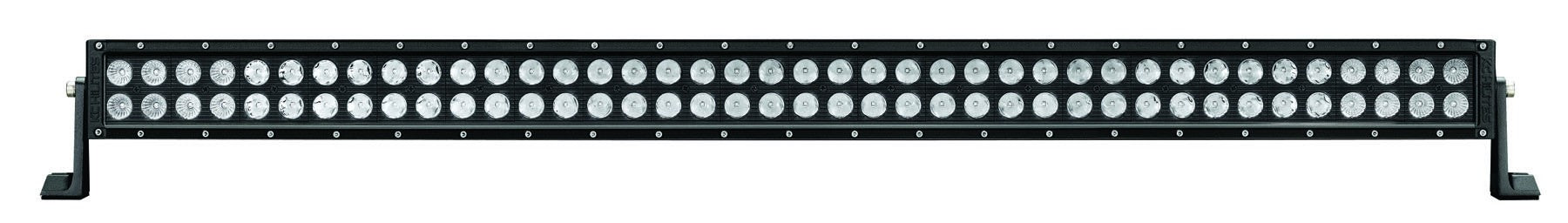

KC HiLiTES C40 40" LED Light Bar 337
KCH337 (Not in stock)KC HiLiTES
Regular price
$594.99
Sale
- 40" C-SERIES LED Dual Row Light Bar
- Precision reflectors with forward facing LEDs
- Combo Beam Pattern: 8° Spot and 90° Spread
- Extruded Aluminum Housings
- GORE® Membrane Barrier
- 40" C Series C40 LED Light Bar Combo Beam - KC #337 (Combo Spot/Spread Beam)
- MPN: 337
Specifications
| SKU | 0337 |
|---|---|
| Weight | 14.5 |
| Color | Black |
| DOT Compliant | No |
| Prop 65 | No |
| Size | 40" |
| SAE/ECE | No |
LIGHT PERFORMANCE
- RAW Lumens: 21,600 lm
- LUX @ 10 meters: 2,800 lx
- Candela: 280,000 cd
- Beam Distance (Meters): 1,058m
SPECIFICATIONS
- Wattage: 36W-300W
- LED Source: CREE LED
- Color: 6000K
- Amp Draw: 3.0A-25.0A
- Voltage: 9V-32V
- IP Rating: IP67
- Product Dimensions: 40" = L - 41.38" x H - 3.09" x D - 3.40"

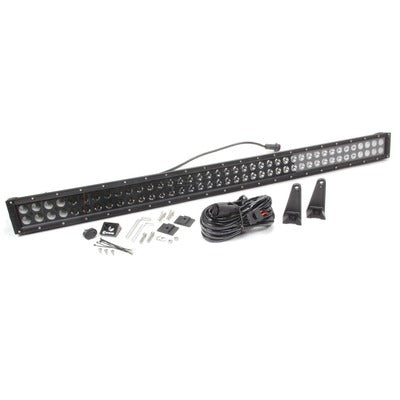

Parts Included with C-SERIES Light Bars
- Deluxe Wiring Harness w/ 2-Pin weather proof connectors
- Die-Cast Mounting Brackets with hardware
PERFORMANCE OUTPUT AND CLARITY
The C-Series uses an advanced dual row CREE LED design delivering up to 27,000 lumens of output with maximum power efficiency. Coming in various sizes KC HiLiTES C-Series LED Light bars are perfect for hood, front bumper, windshield and grille applications providing balanced and powerful light illumination.
HIGH PERFORMANCE MEETS AFFORDABILITY
C-Series light bar features an extruded aluminum housing, aluminum core PCBs with thermal management and lexan lenses. What you get is a perfect balance of affordable performance with maximum efficiency, stability and reliability.
COMBO BEAM PATTERN AND ADVANTAGES
When it comes to total road coverage the C-Series LED light bar features a combo beam with perfectly angled 8° Spot & 90° Spread reflectors, for maximum forward distance and increased peripheral illumination along road edges.
DESIGNED FOR DURABILITY
Off road race tested, the C-Series was designed to handle the harshest environments. Featuring a IP67 rated housing and GORE® Membranes, the C-Series is resistant to moisture and dust.
Available Part Numbers
- 6" C Series C6 LED Light Bar Combo Beam - KC #314 (Combo Spot/Spread Beam)
- 10" C Series C10 LED Light Bar Combo Beam - KC #334 (Combo Spot/Spread Beam)
- 20" C Series C20 LED Light Bar Combo Beam - KC #335 (Combo Spot/Spread Beam)
- 30" C Series C30 LED Light Bar Combo Beam - KC #336 (Combo Spot/Spread Beam)
- 40" C Series C40 LED Light Bar Combo Beam - KC #337 (Combo Spot/Spread Beam)
- 50" C Series C50 LED Light Bar Combo Beam - KC #338 (Combo Spot/Spread Beam)
