KC HiLiTES C20 20" LED Light Bar 335
KC HiLiTES C20 20" LED Light Bar 335
KC HiLiTES C20 20" LED Light Bar 335
KC HiLiTES C20 20" LED Light Bar 335
KC HiLiTES C20 20" LED Light Bar 335
KC HiLiTES C20 20" LED Light Bar 335
KC HiLiTES C20 20" LED Light Bar 335
KC HiLiTES C20 20" LED Light Bar 335
KC HiLiTES C20 20" LED Light Bar 335

KC HiLiTES C20 20" LED Light Bar 335

KCH335 (1 in stock)

Regular price $302.99 Sale

KC HiLiTES C-Series LED Light Bars feature bright and efficient CREE LEDs with combo 8° Spot and 90° Spread reflectors. Available in 6"-50" widths, perfect for hoods, front bumper, and grille applications on Jeeps, Trucks, UTVs and more.
  • 6"to 50" C-SERIES LED Dual Row Light Bar
  • Precision reflectors with forward facing LEDs
  • Combo Beam Pattern: 8° Spot & 90° Spread
  • Extruded Aluminum Housings
  • GORE® Membrane Barrier
  • MPN: 335

Specifications

LIGHT PERFORMANCE

  • RAW Lumens: 6"= 3,240 lm, 10"= 5,400 lm, 20"= 10,800 lm, 30"= 16,200 lm, 40"= 21,600 lm, 50"= 27,000 lm
  • LUX @ 10 meters: 6"= 230 lx, 10"= 680 lx, 20"= 1,750 lx, 30"= 2,050 lx, 40"= 2,800 lx, 50"= 3,200 lx
  • Candela: 6"= 23,000 cd, 10"= 68,000 cd, 20"= 175,000 cd, 30"= 205,000 cd, 40"= 280,000 cd, 50"= 320,000 cd
  • Beam Distance (Meters): 6" = 303m, 10"= 522m, 20"= 837m, 30"= 906m, 40"= 1,058m, 50"= 1,131m


SPECIFICATIONS

  • Wattage: 36W-300W
  • LED Source: CREE LED
  • Color: 6000K
  • Amp Draw: 3.0A-25.0A
  • Voltage: 9V-32V
  • IP Rating: IP67
  • Product Dimensions: 6" = L - 7.38" x H - 3.09" x D - 3.40"; 10" = L - 11.38" x H - 3.09" x D - 3.40"; 20" = L - 21.38" x H - 3.09" x D - 3.40"; 30" = L - 31.38" x H - 3.09" x D - 3.40"; 40" = L - 41.38" x H - 3.09" x D - 3.40"; 50" = L - 51.38" x H - 3.09" x D - 3.40"


Parts Included with C-SERIES Light Bars
-Deluxe Wiring Harness w/ 2-Pin weather proof connectors
-Die-Cast Mounting Brackets with hardware

PERFORMANCE OUTPUT AND CLARITY

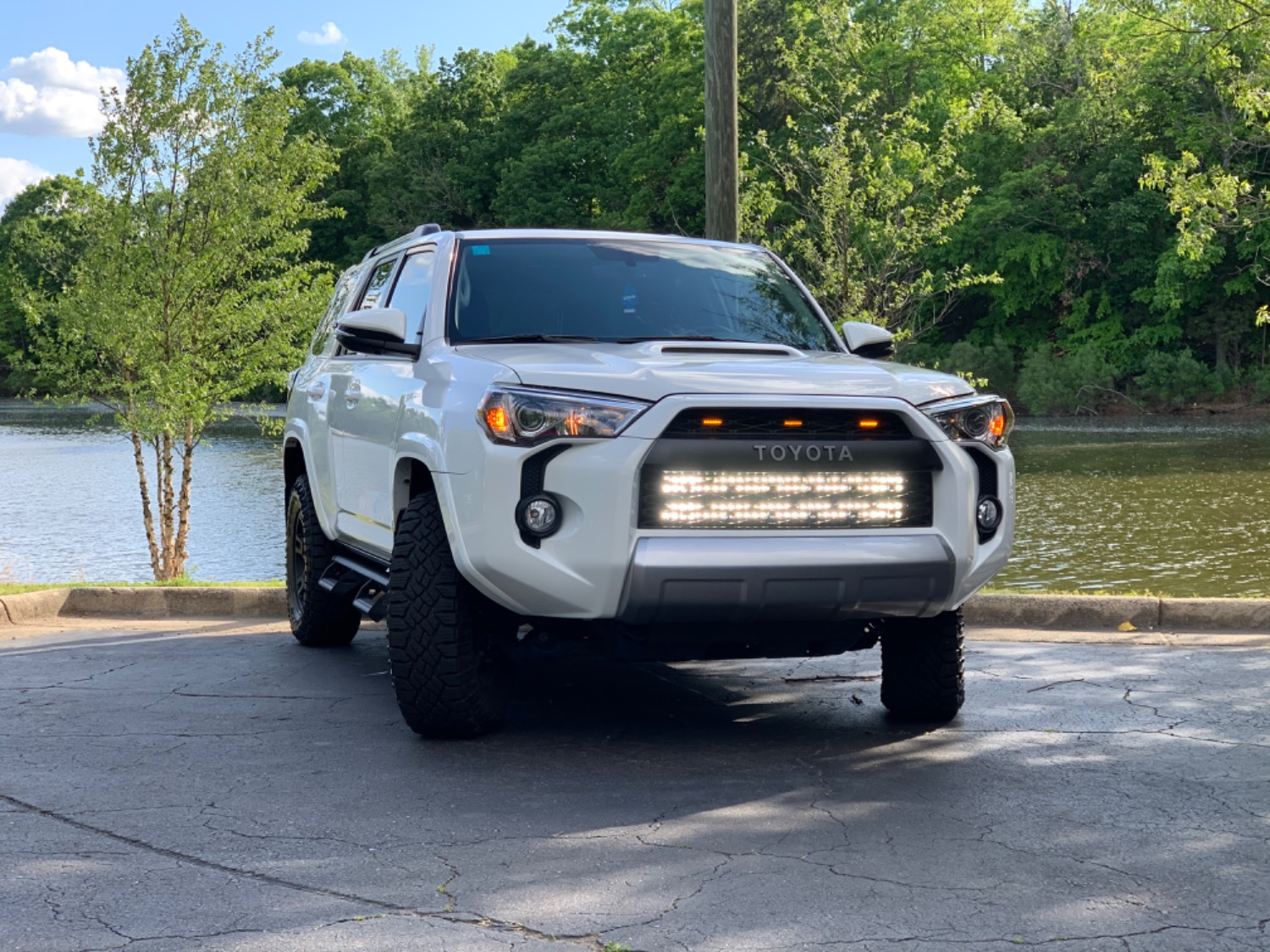

The C-Series uses an advanced dual row CREE LED design delivering up to 27,000 lumens of output with maximum power efficiency. Coming in various sizes KC HiLiTES C-Series LED Light bars are perfect for hood, front bumper, windshield and grille applications providing balanced and powerful light illumination.

HIGH PERFORMANCE MEETS AFFORDABILITY
C-Series light bar features an extruded aluminum housing, aluminum core PCBs with thermal management and lexan lenses. What you get is a perfect balance of affordable performance with maximum efficiency, stability and reliability.


COMBO BEAM PATTERN AND ADVANTAGES
When it comes to total road coverage the C-Series LED light bar features a combo beam with perfectly angled 8° Spot & 90° Spread reflectors, for maximum forward distance and increased peripheral illumination along road edges.

DESIGNED FOR DURABILITY
Off road race tested, the C-Series was designed to handle the harshest environments. Featuring a IP67 rated housing and GORE® Membranes, the C-Series is resistant to moisture and dust.

Available Part Numbers

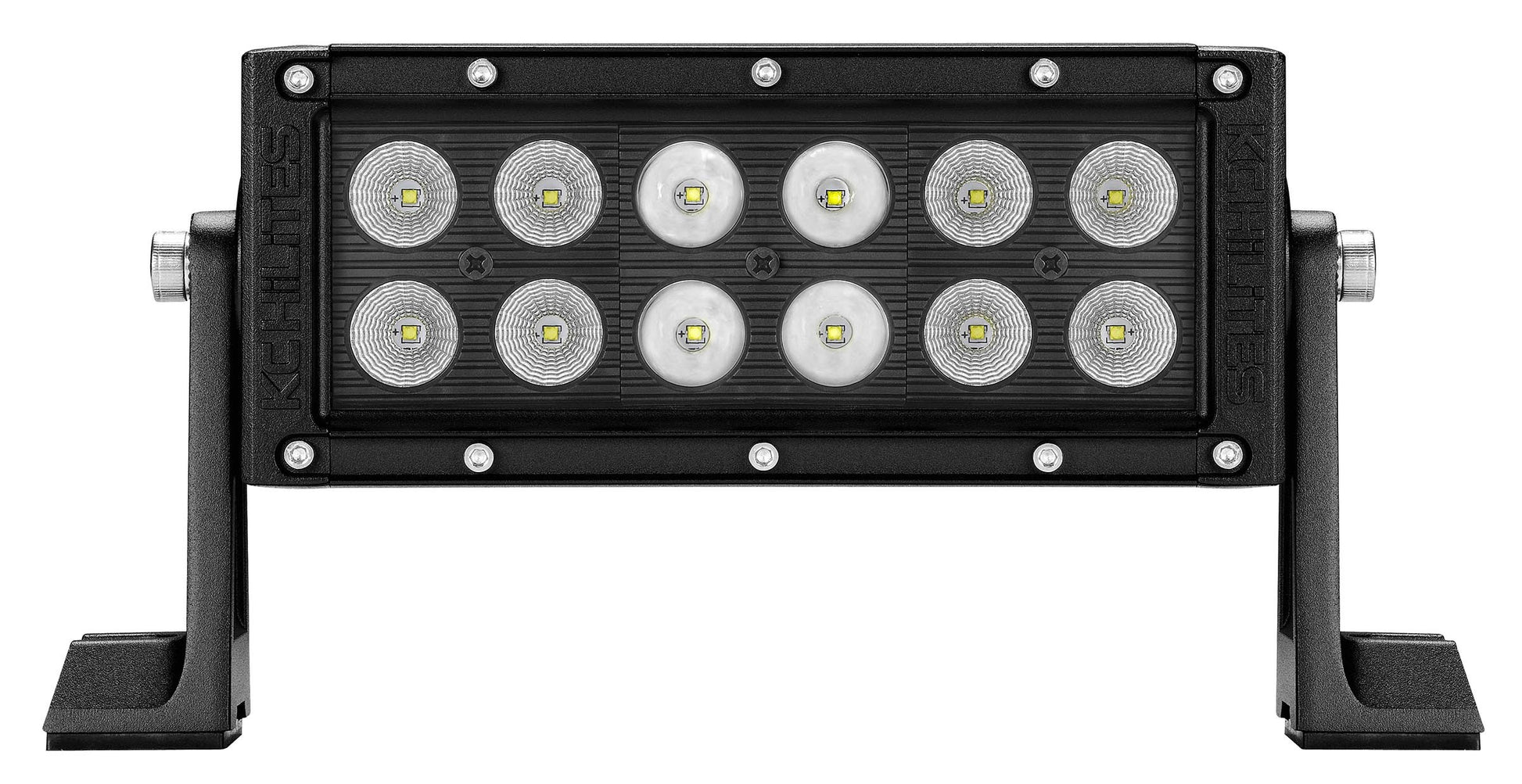

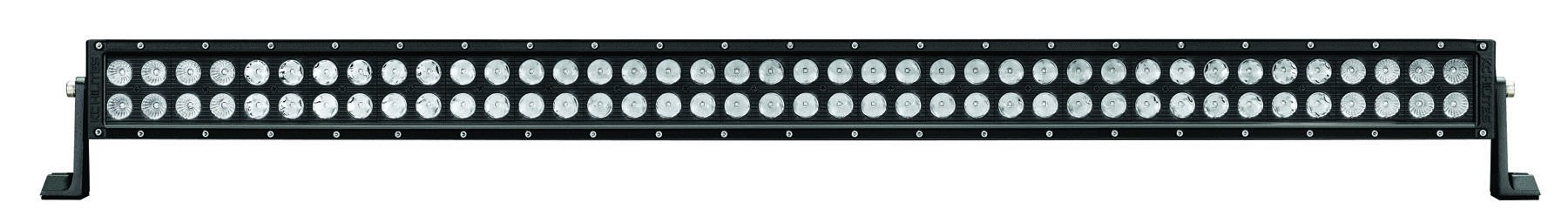

  • 6" C Series C6 LED Light Bar Combo Beam - KC #314 (Combo Spot/Spread Beam)

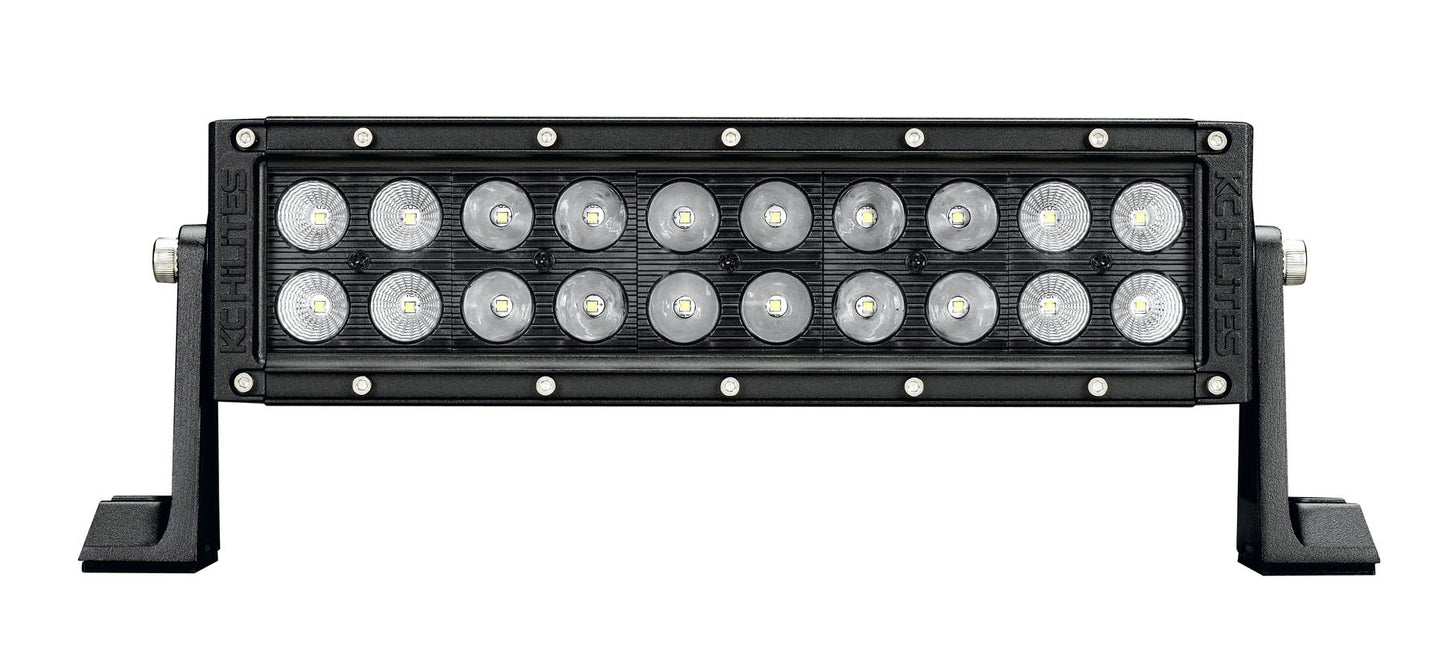

  • 10" C Series C10 LED Light Bar Combo Beam - KC #334 (Combo Spot/Spread Beam)

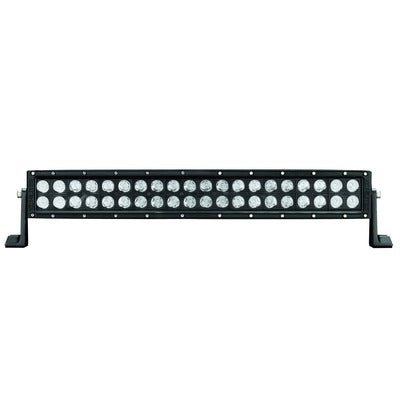

  • 20" C Series C20 LED Light Bar Combo Beam - KC #335 (Combo Spot/Spread Beam)

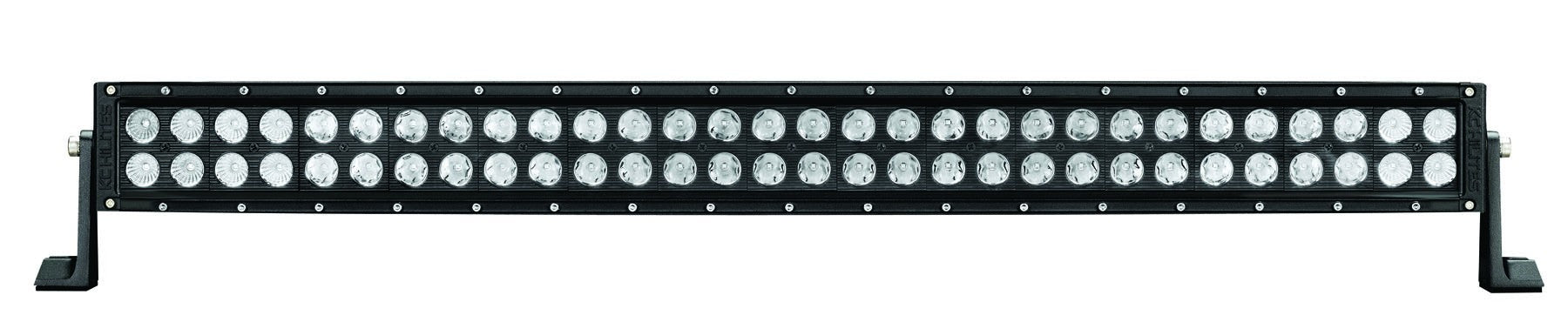

  • 30" C Series C30 LED Light Bar Combo Beam - KC #336 (Combo Spot/Spread Beam)

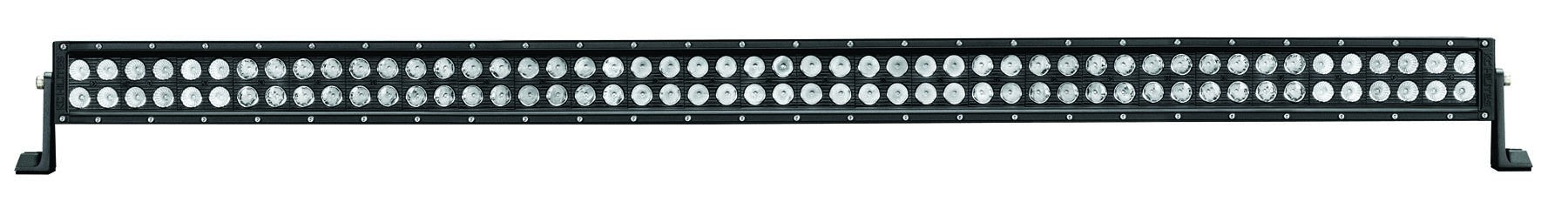

  • 40" C Series C40 LED Light Bar Combo Beam - KC #337 (Combo Spot/Spread Beam)
  • 50" C Series C50 LED Light Bar Combo Beam - KC #338 (Combo Spot/Spread Beam)
