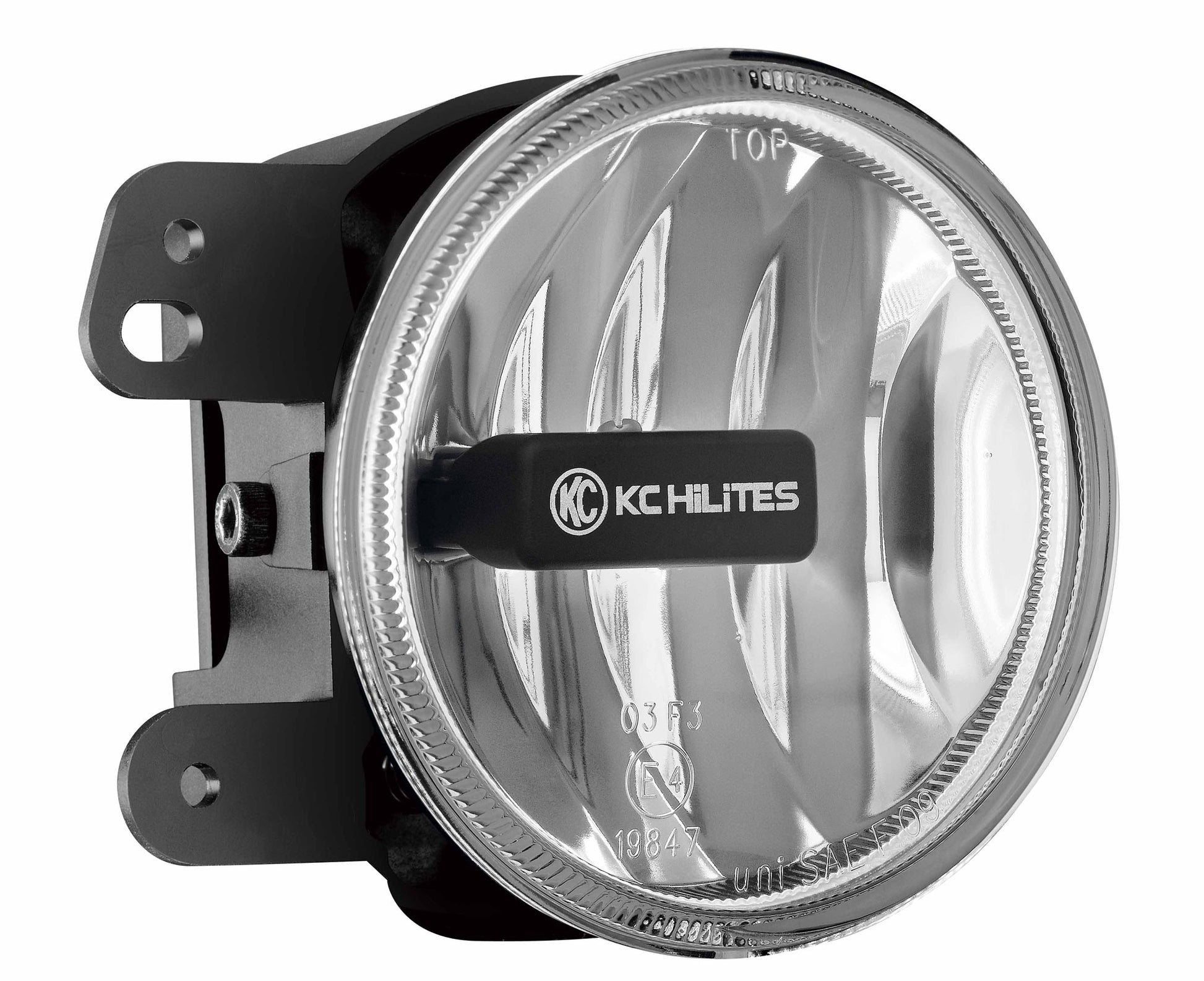

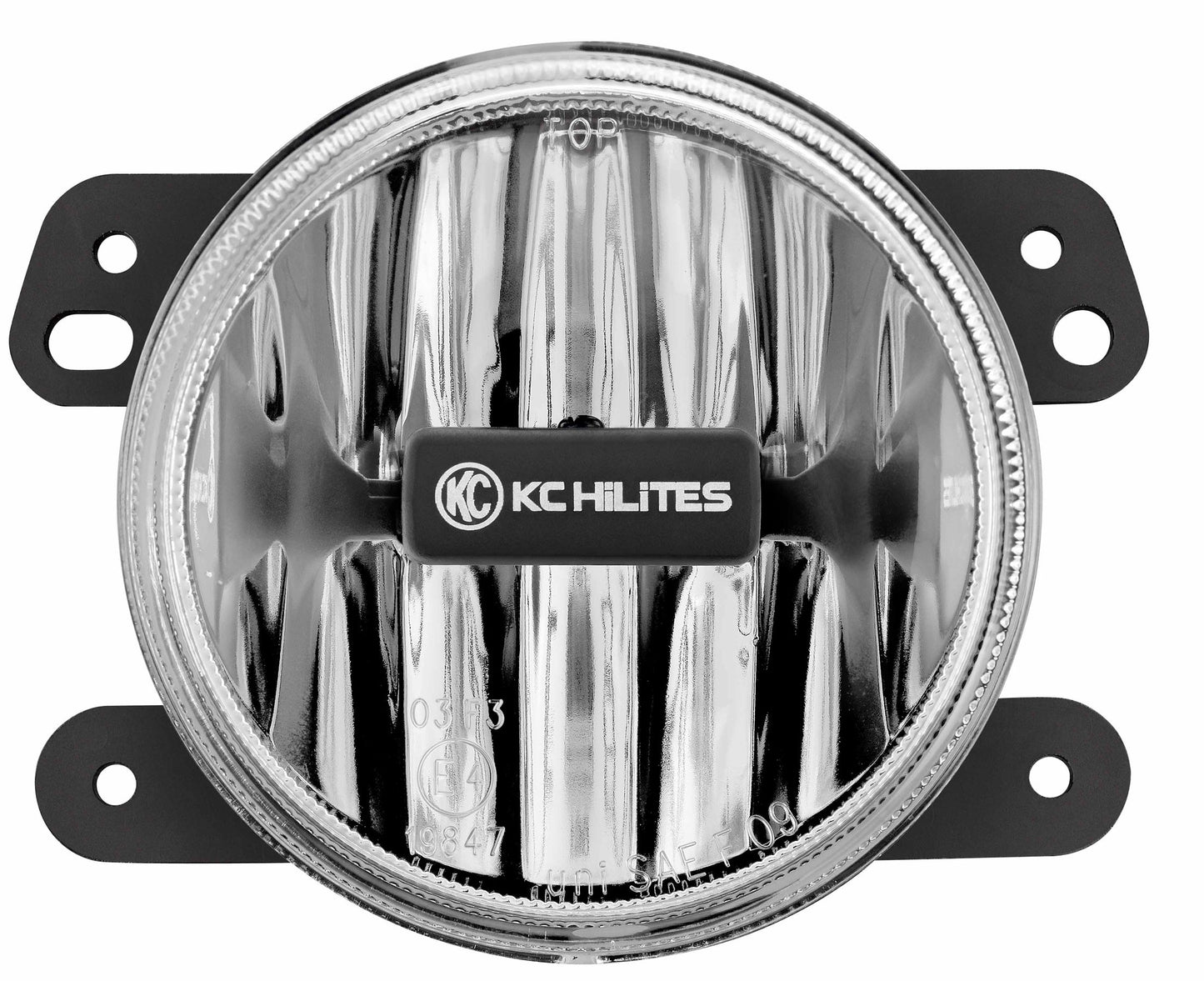

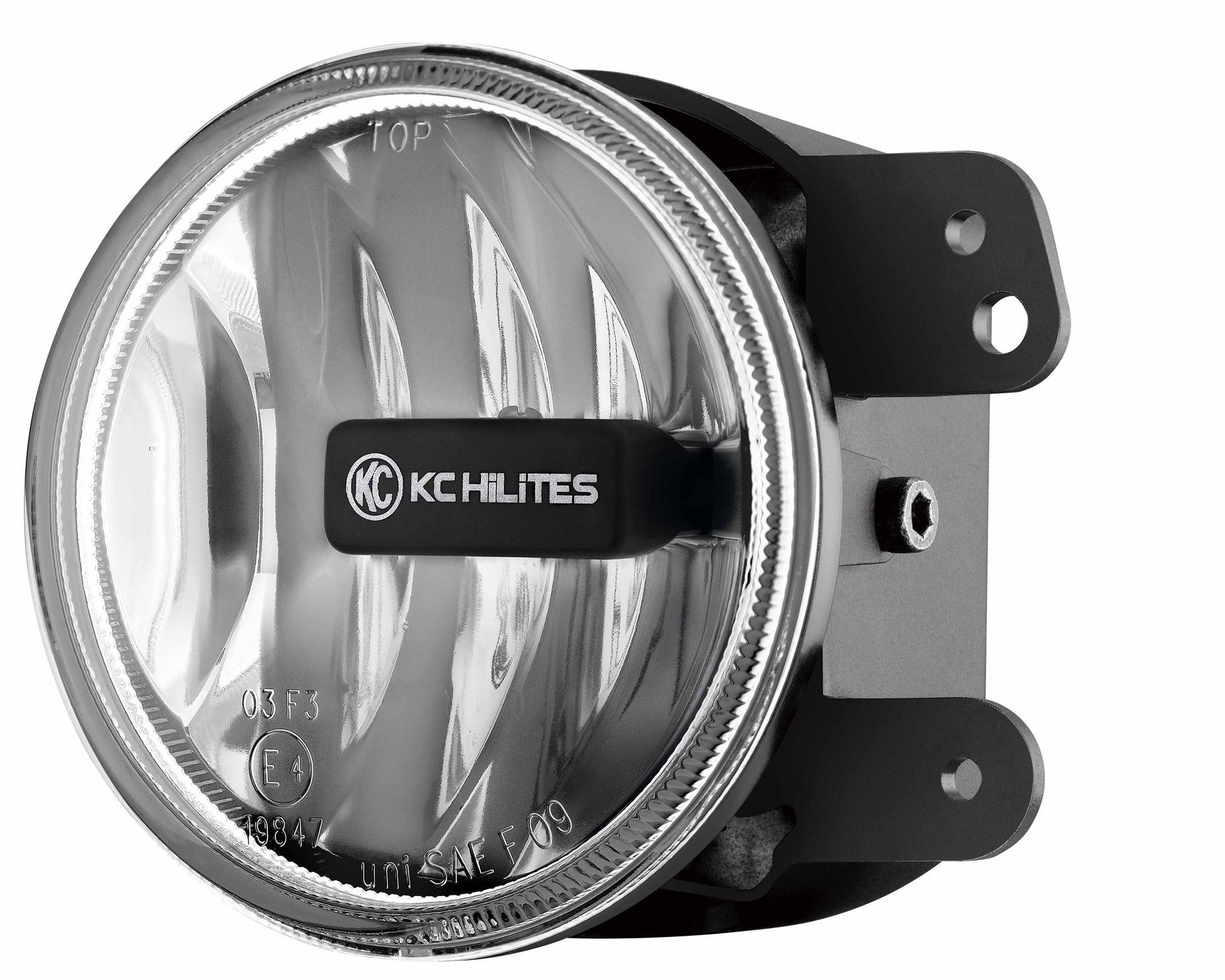

KC HiLiTES 4" Gravity LED Replacement Fog Light feature bright CREE LEDs in a Street Legal Fog Beam pattern. Magnesium housing and shatter resistant polycarbonate lens. Pair includes factory wire connectors(excludes 07-09 JK models) and bracket for easy mounting on 07-18 Jeep Wrangler JKs.
- 2 x 10W 4" Gravity® LED Fog Lights
- Lightweight Magnesium Housing for Maximum Heat Dissipation
- Street Legal 20072018 Jeep Wrangler JK Application(Excludes 2013 Anniversary Edition)

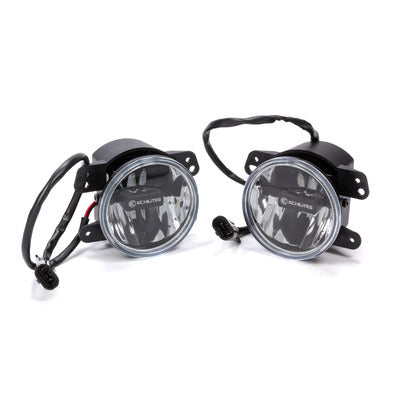

- OE Factory Connectors for PlugNPlay Install on 1018 Jeep Wrangler JK (Excludes 0709 Models)
- Clear LED
- Shatter Resistant Polycarbonate Lens
- Fog Beam Pattern (SAE & ECE Street Legal)
-
MPN: 494
Specifications
LIGHT PERFORMANCE (PER LIGHT)
- Raw Lumens: 866 lm
- Compliance: SAE J583 & ECE-R19 Street Legal
- Lux @ 10 Meters: 150 lx
- Candela: 15,000 cd
- Beam Distance (Meters): 245m
Additional information
- Wattage: 10W
- LED Source: CREE XP-G R4 LED
- Color Temperature: 5000K
- Amp Draw: .74A
- Voltage: 9V-32V
- IP Rating: IP68

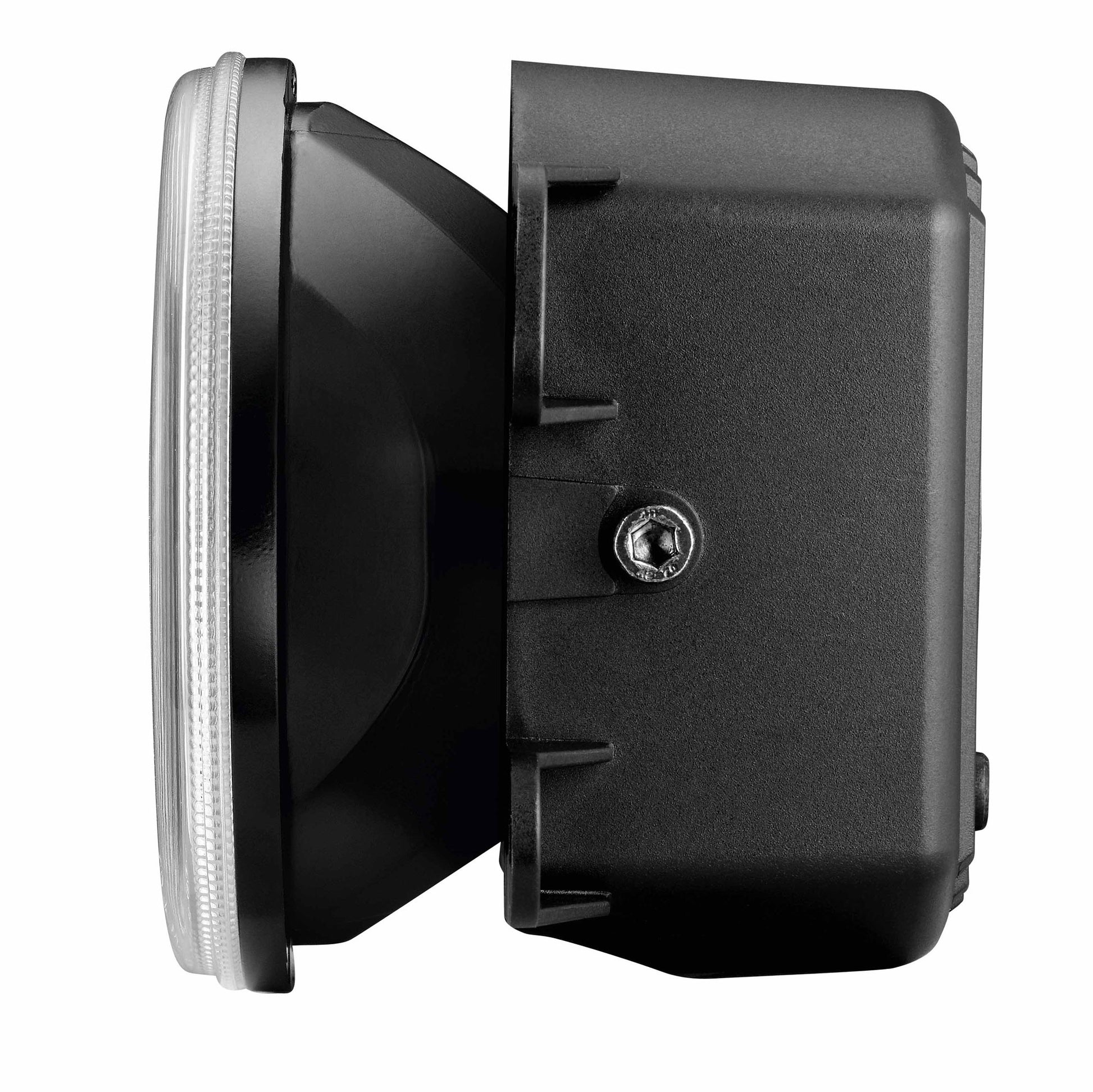

- Product Dimensions: W - 3.94" x H - 3.94" x D - 3.44"
Parts Included in Pair Pack

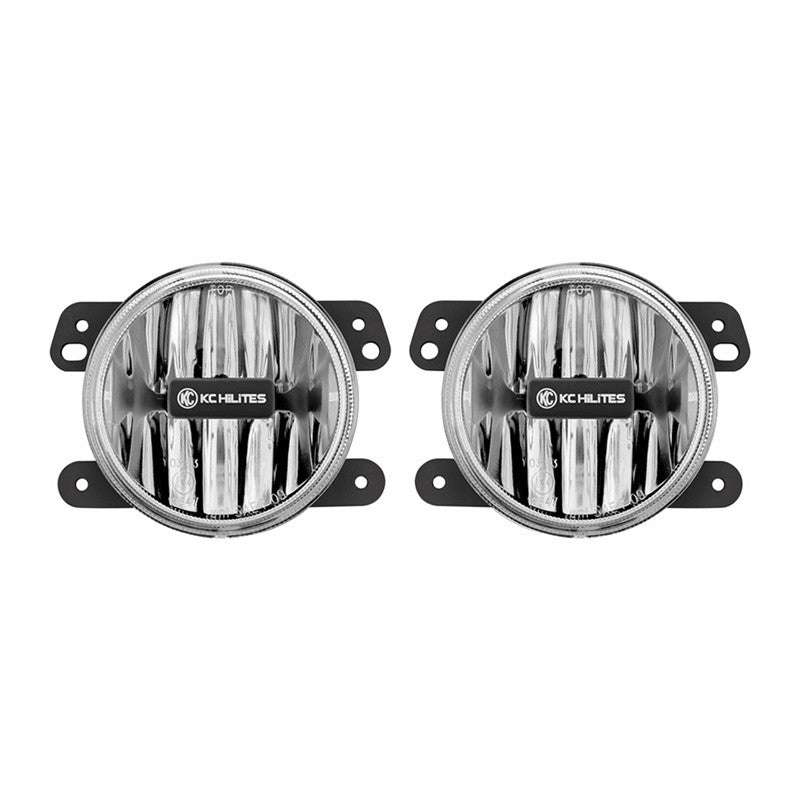

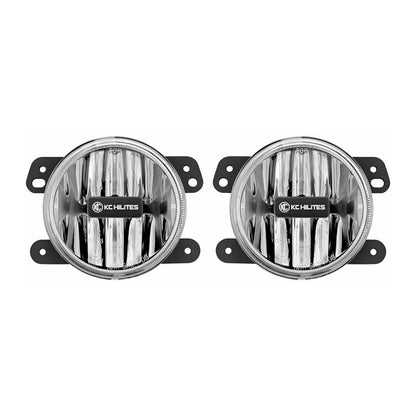

- (2) 10W 4" Gravity® G4 LED Fog lights
Gravity® EXTREME OUTPUT AND EFFICIENCY
4" Gravity® LED Fog Lights are powered by KC's patented Gravity® Reflective Diode (GRD) and optical reflectors to deliver an incredible 150 lx @10m using only .74A per light. KC's patented Gravity® Reflective Diode system aims LEDs into precision reflectors, capturing all light to project it forward.
STREET LEGAL FOG BEAM PATTERN AND ADVANTAGES

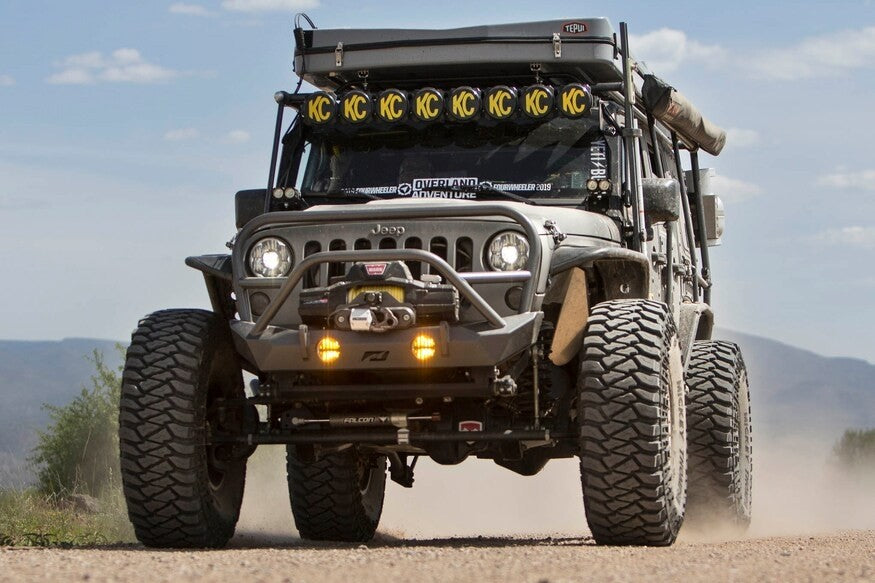

Fog Beam- Provides a low, wide angle light pattern that increases short-range visibility. Amber LEDs for ideal lighting in low visibility conditions like dust, fog, snow and rain.
ADJUSTABLE MOUNTING FOR ACCURACY AND PRECISION

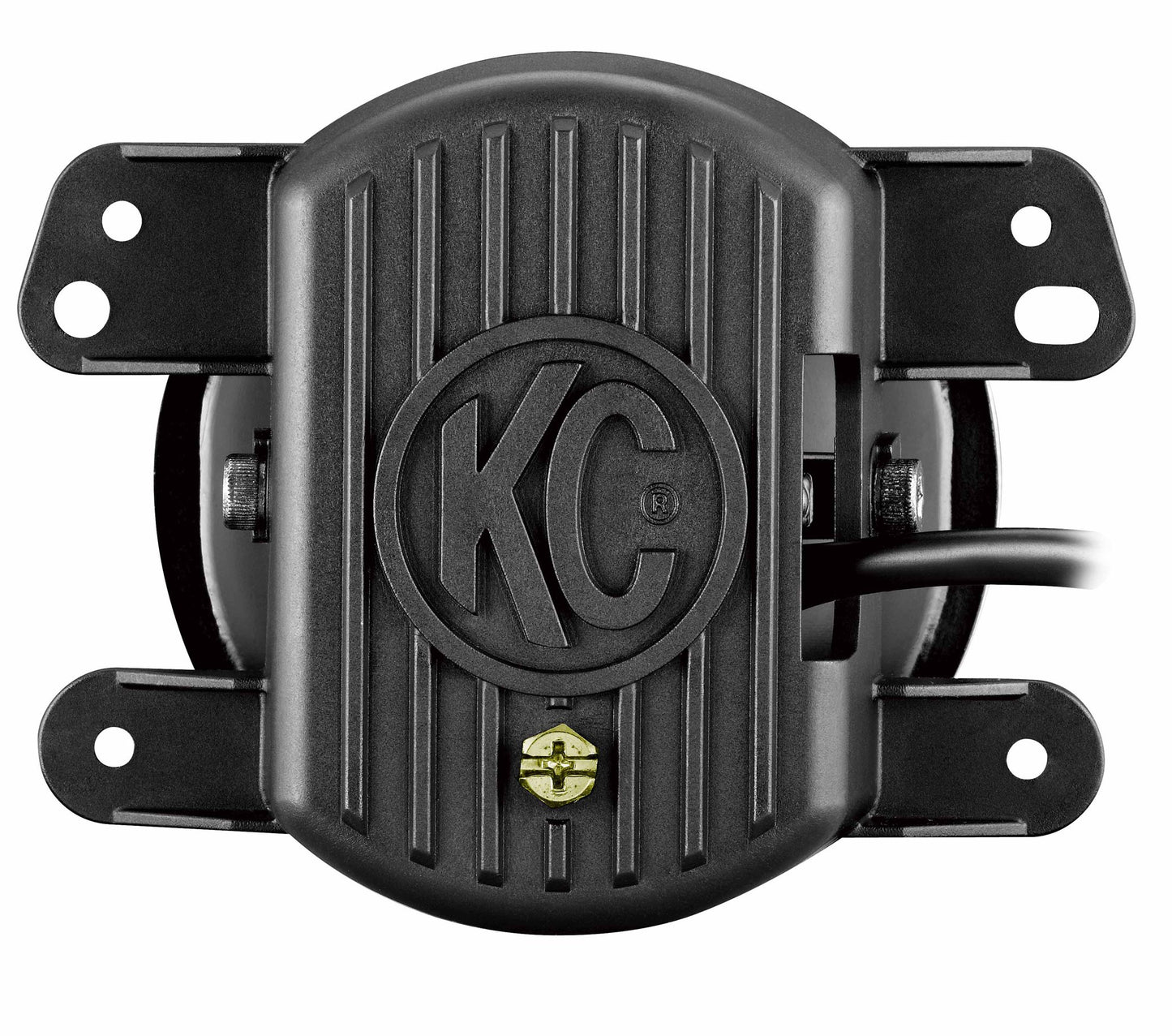

KC's Innovative adjustable mount allows users to easily adjust the aiming of lights horizontally for an optimum and consistent beam angle. KC's OE mounting system bolts directly up to OE bumper locations on 07-18 Jeep Wrangler JKs.
STRENGTH AND DURABILITY

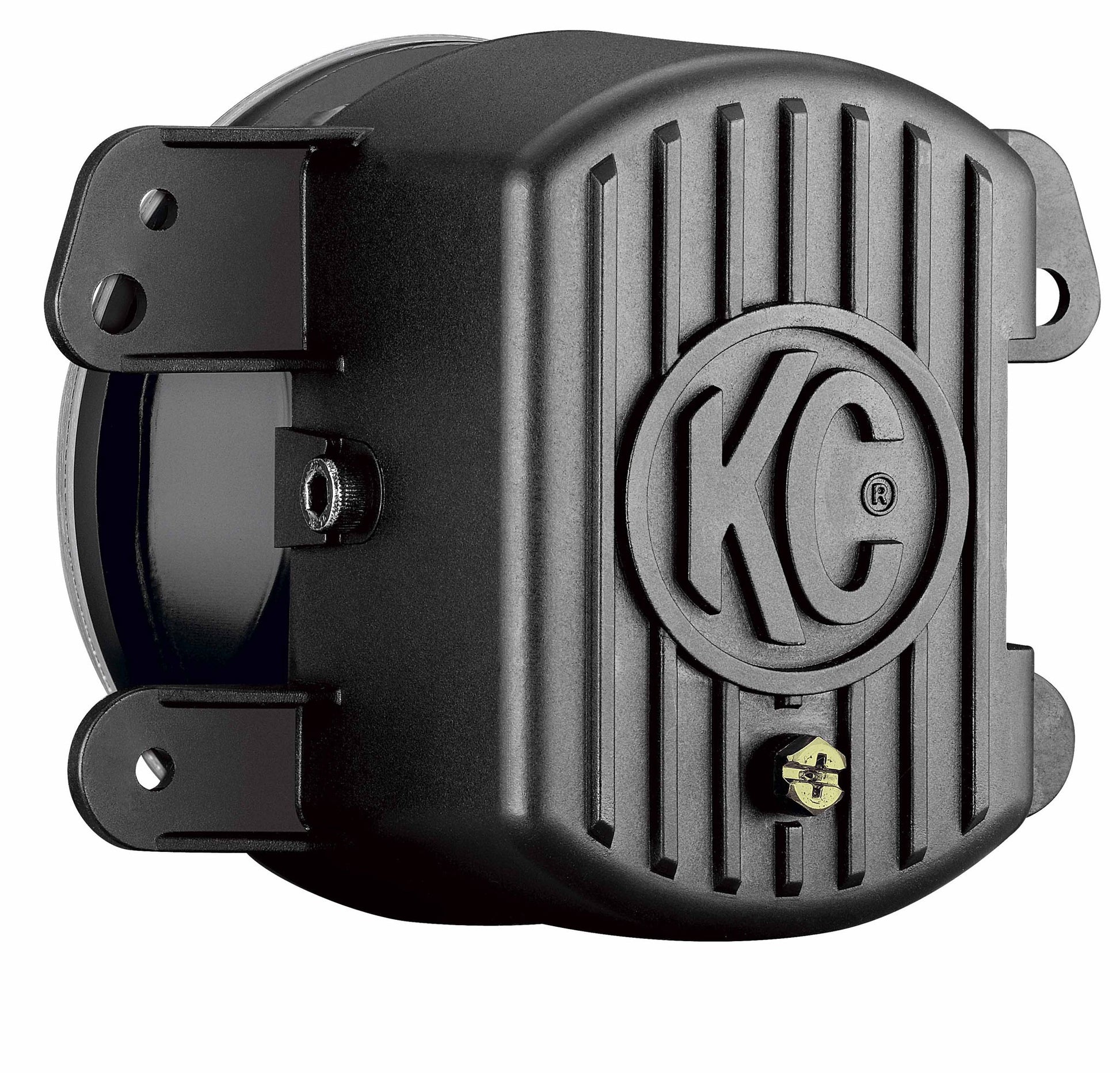

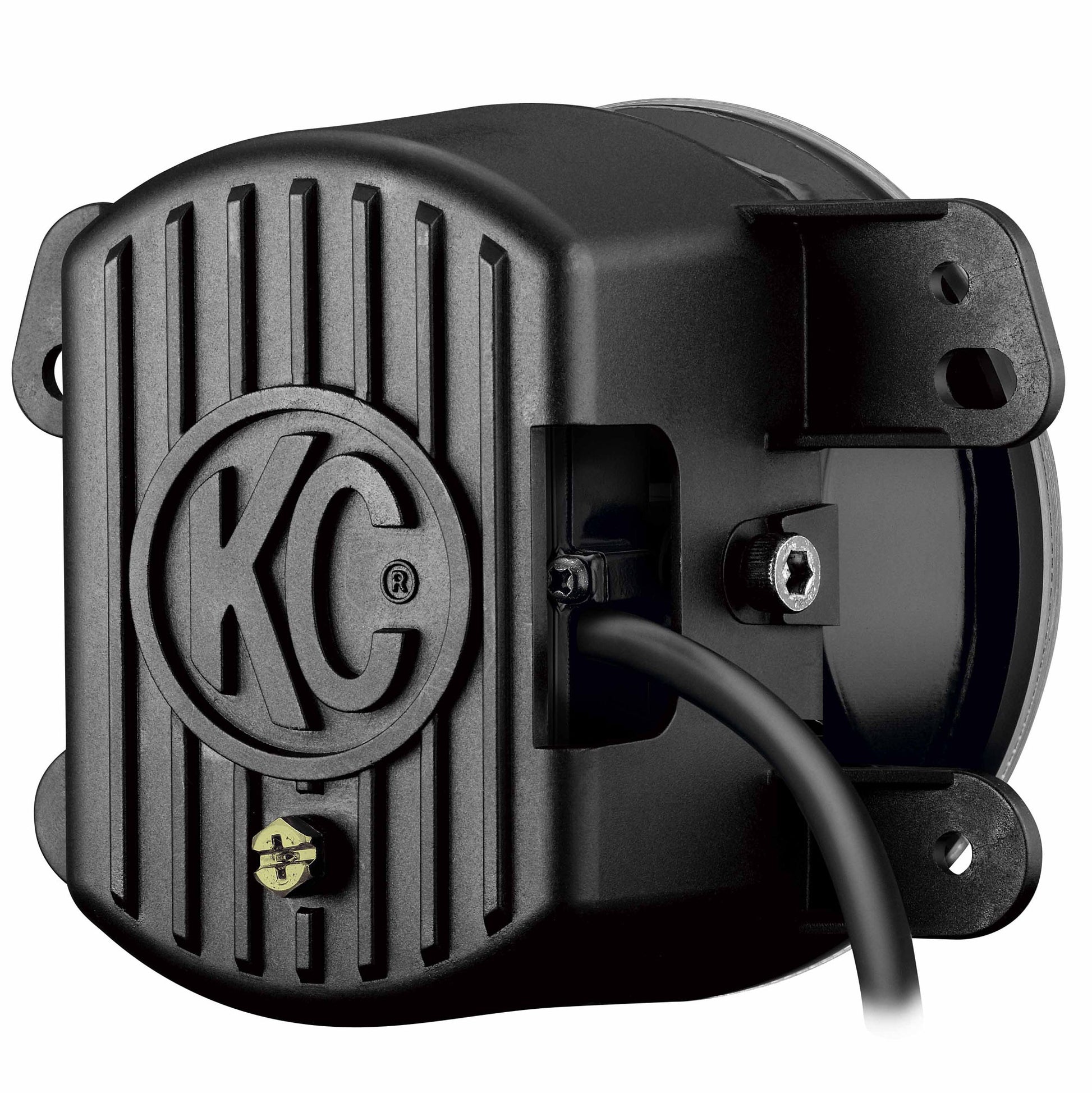

Constructed from an IP68 rated lightweight Magnesium housing and shatter resistant polycarbonate lens creating a fully self contained LED light housing.
Part Number
- 4" Gravity® LED G4 Fog Light Pair Pack System for 2007-2009 Jeep Wrangler JK - KC # 494 (Clear)
