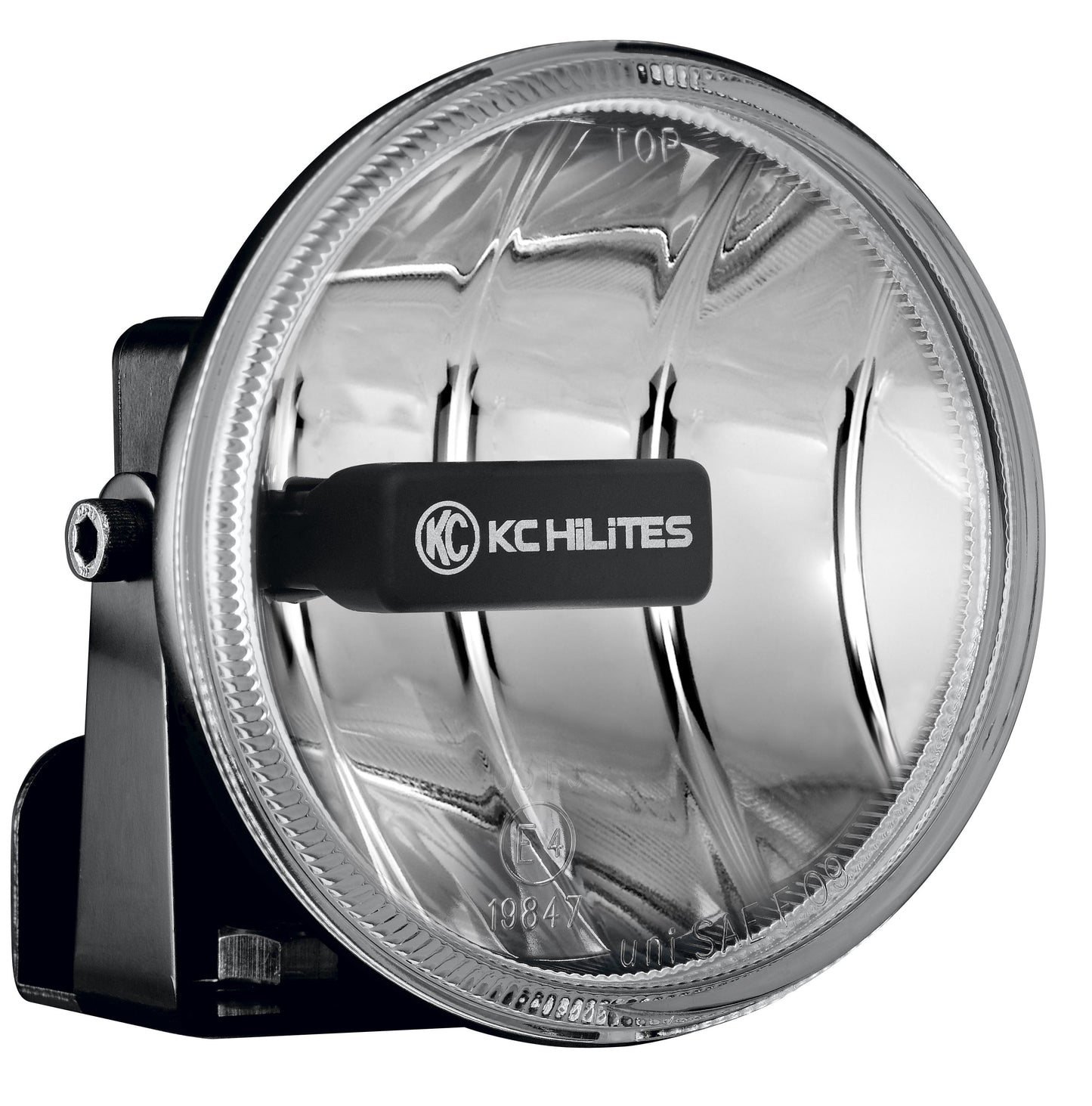

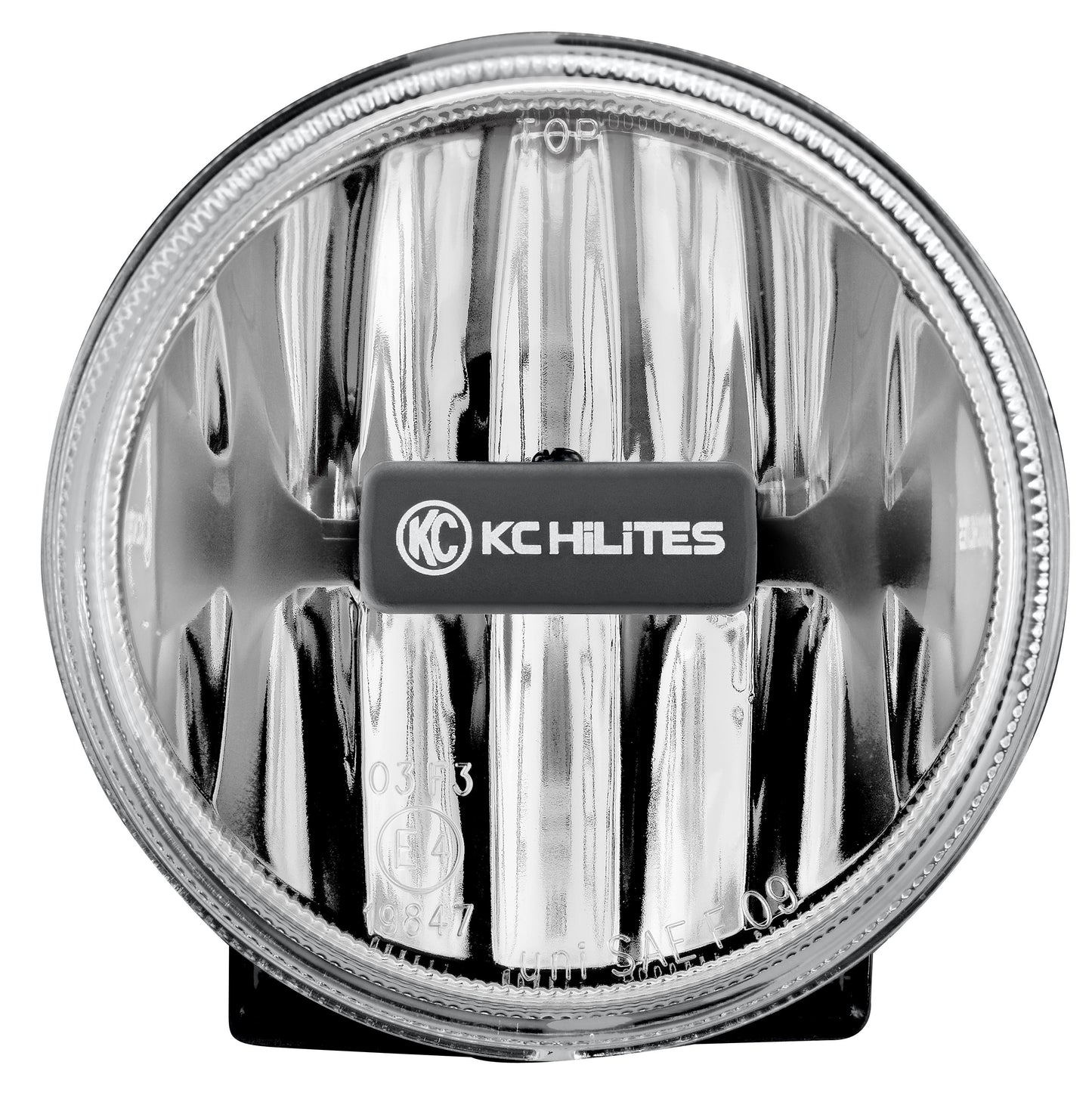

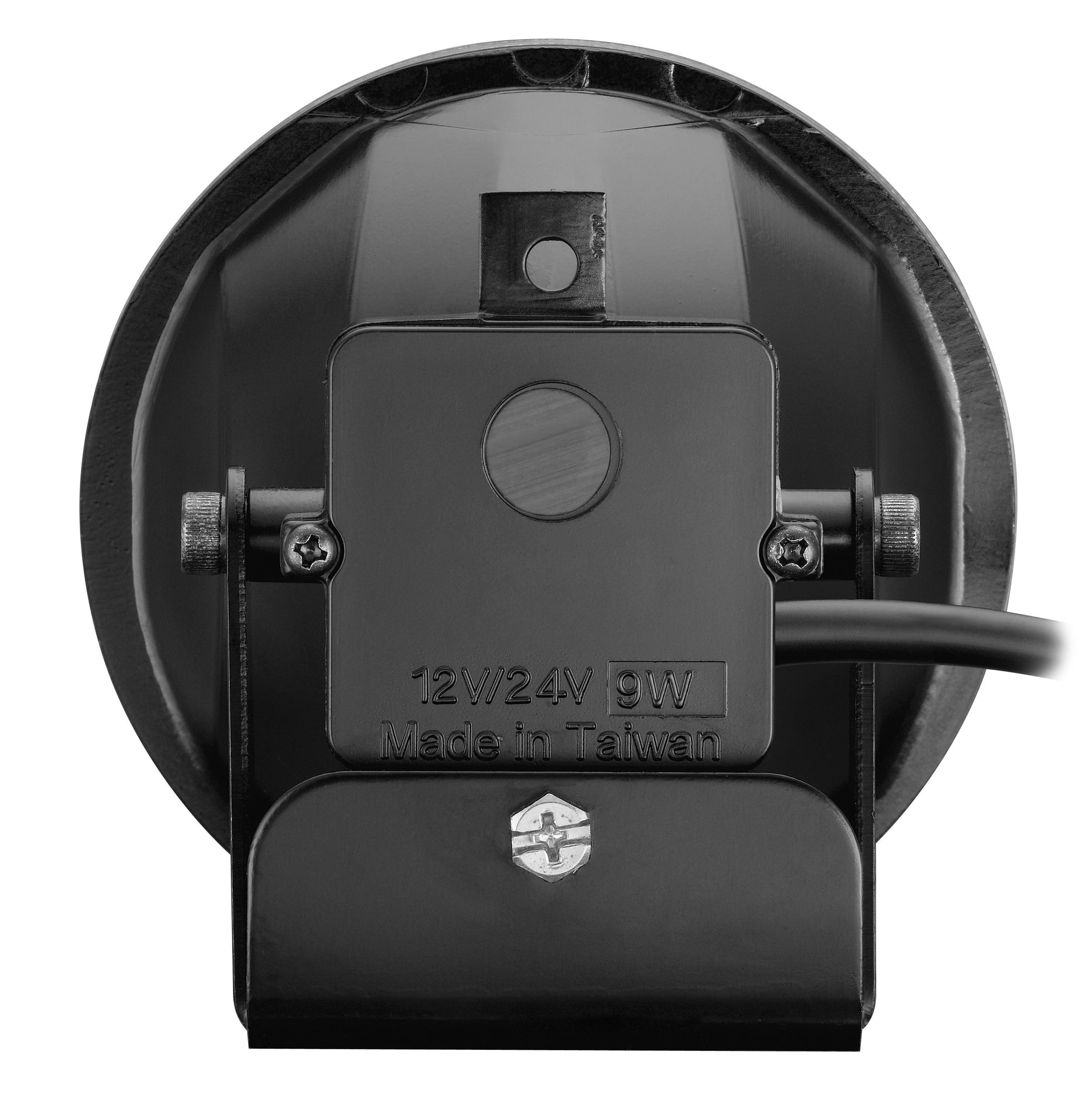

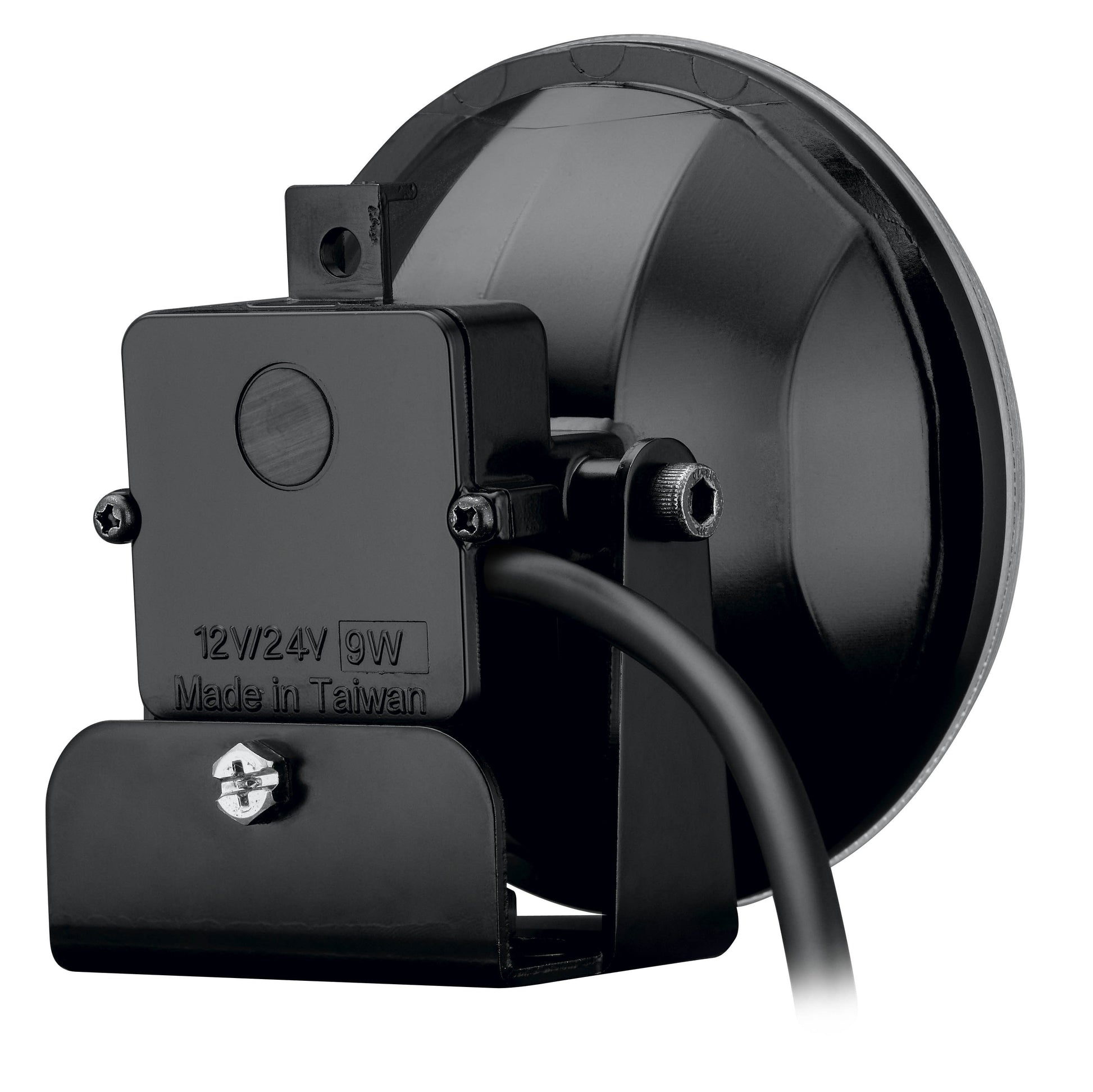

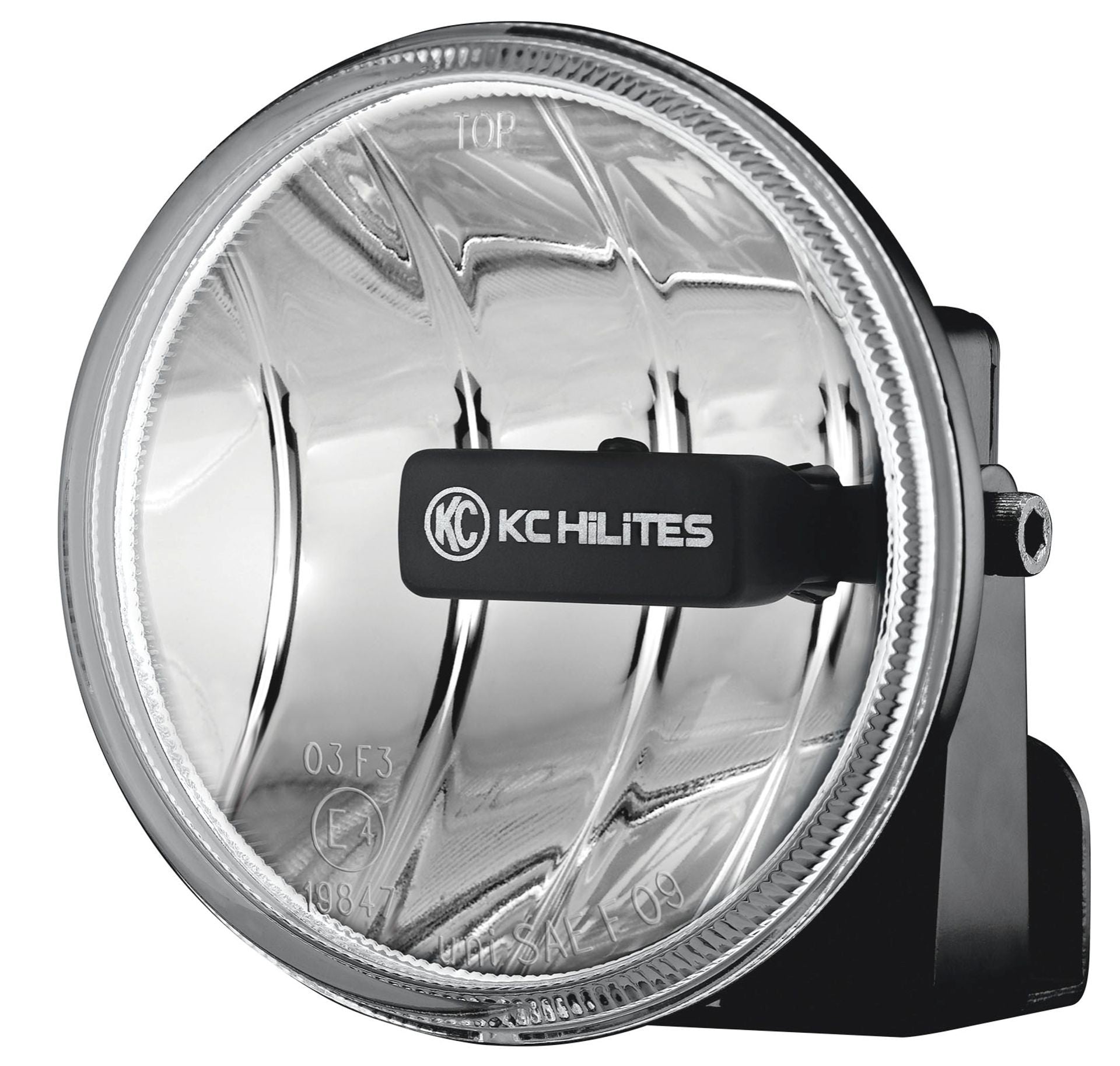

KC HiLiTES 4" Gravity LED G4 Universal LED Fog Pair Pack System 493
(6 in stock)
KC HiLiTES 4" Gravity® LED universal replacement fog lights are a street legal performance light system that meets SAE J583 and ECE-R19 specifications. At the heart of the Gravity LED is the patented Grafity Reflective Diode (GRD). The GRD LED technology combines all the benefits of LEDs such as efficiency, solid state rigidity and digital fabric with the use of optical reflectors. The combination of LEDs and optical reflectors maximizes light output while allowing precise beam pattern shaping.
G4 Universal LED Fog Light feature Clear LEDs in a street legal fog beam pattern. This light kit features a lightweight magnesium housing with optical reflectors, polycarbonate lens and an adjustable bracket for easy mounting.
4" Gravity LED
Street legal performance light system
Lightweight magnesium housing with optical reflectors and polycarbonate lens
Adjustable bracket for easy mounting
2 x 10W 4" Gravity® LED Fog Lights
Lightweight Magnesium Housing for Maximum Heat Dissipation
Shatter Resistant Polycarbonate Lens
Fog Beam Pattern (SAE & ECE Street Legal)
Light Performance (per Light)
Raw Lumens: 866 lm
Compliance: Fog beam meets SAE J583 & ECE-R19 Street Legal
Lux @ 10 Meters: 150 lx
Candela: 15,000 cd
Beam Distance (Meters): 245m
Specifications (per Light)
Wattage: 10W per light
LED Source: CREE LED
Color Temperature: 5000K
Amp Draw: .74A
IP Rating: IP69
Product Dimensions: W - 3.94" x H - 3.94" x D - 3.23"
Parts Included in Pair Pack

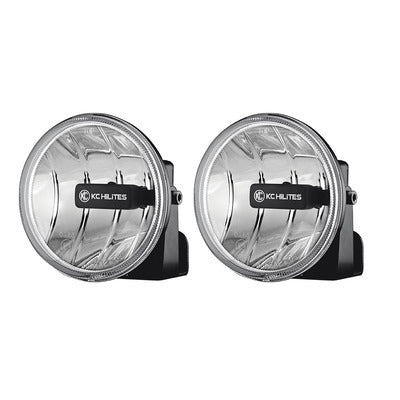

Two (2) 10W 4" Gravity® G4 LED Fog lights
Universal Adjustable Bracket
Deluxe Wiring Harness with 2-Pin weather proof connectors
30 Amp Illuminated Switch w/ Switch Panel
Gravity® Extreme Output and Efficiency
The 4" Gravity® LED Fog Lights are powered by KC's patented Gravity® Reflective Diode(GRD) and optical reflectors to deliver an incredible 150 lx @ 10m using only .74A per light. Our patented GRD (Gravity® Reflective Diode) system aims the LEDs into the precision reflectors to capture all the light and project it forward. This results in a more controlled and far reaching beam pattern than ever before.
Street Legal Fog Beam Pattern and Advantages
Fog Beam- Provides a low, wide angle light pattern that increases short-range visibility. Ideal pattern for lighting pathways close to ground in low visibility conditions like dust, fog, snow and rain.
Adjustable Mounting for Accuracy and Precision

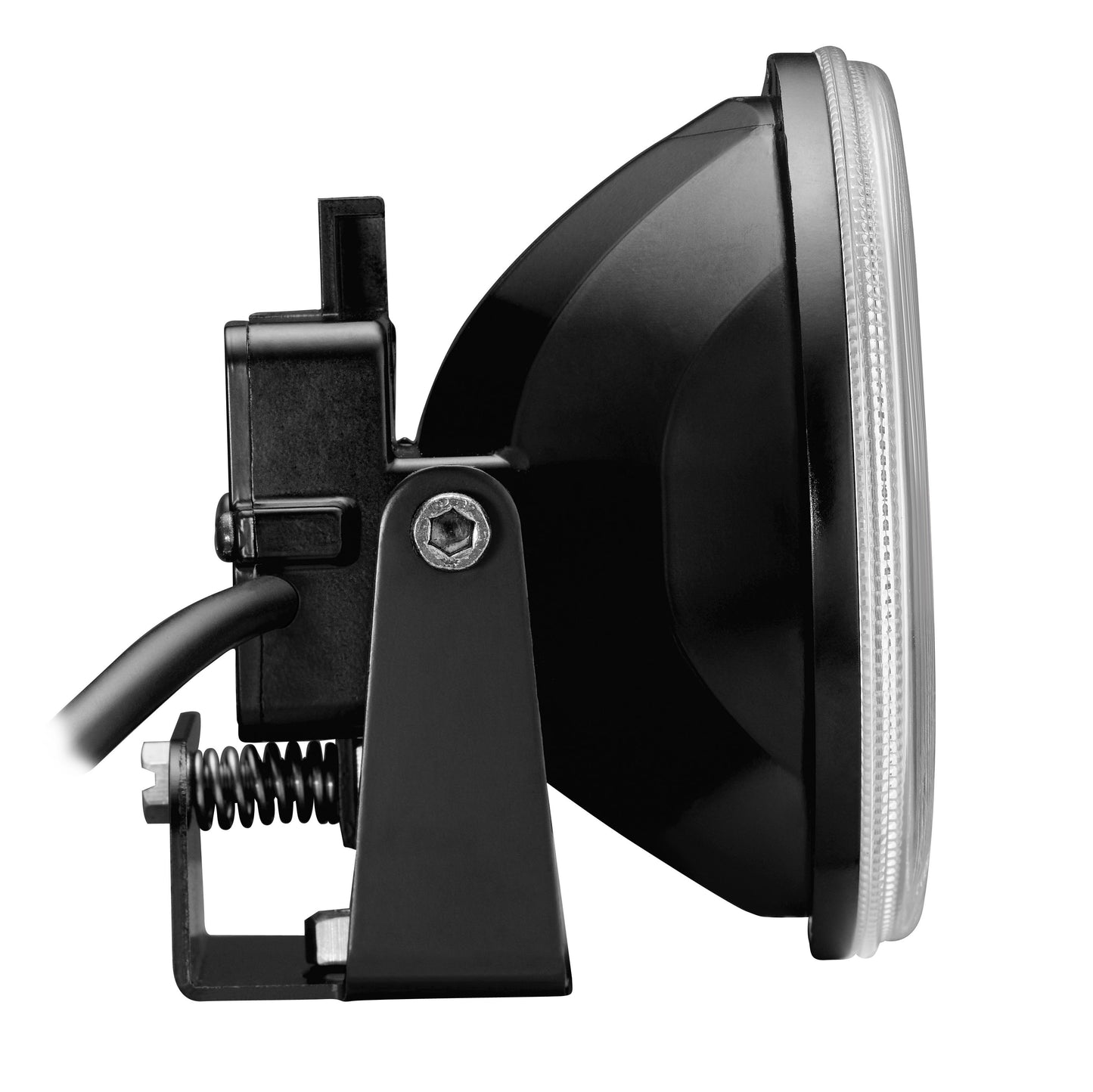

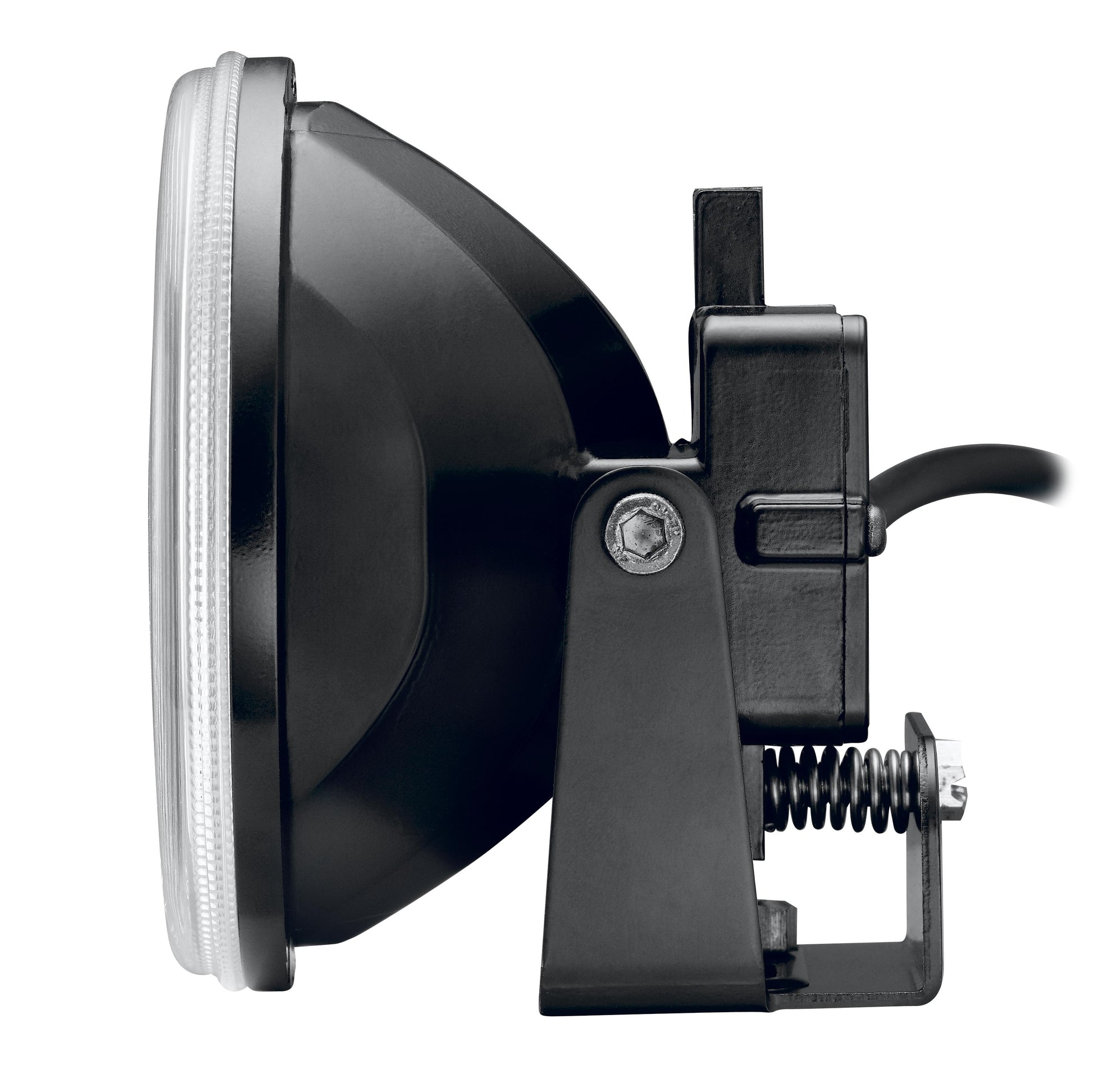

KC's Innovative adjustable mount allows users to easily adjust the aiming of lights horizontally for an optimum and consistent beam angle.
Strength and Durability
Constructed from an IP69 lightweight magnesium housing and shatter proof lens creating a fully self contained LED light housing.
4" Gravity® LED G4 Fog Light Pair Pack System - KC 493 (Universal Clear)
4" Gravity® LED G4 Fog Light Pair Pack System - KC 495 (Universal Amber) -- Amber is available as a Special Order
