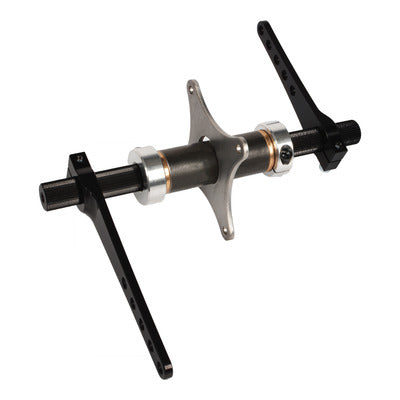

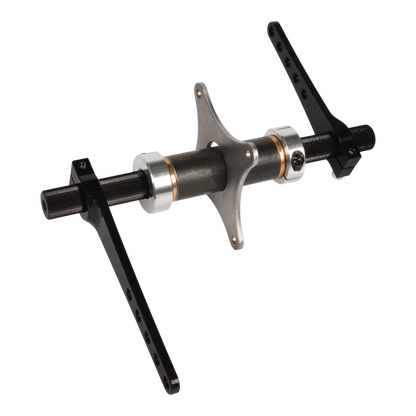

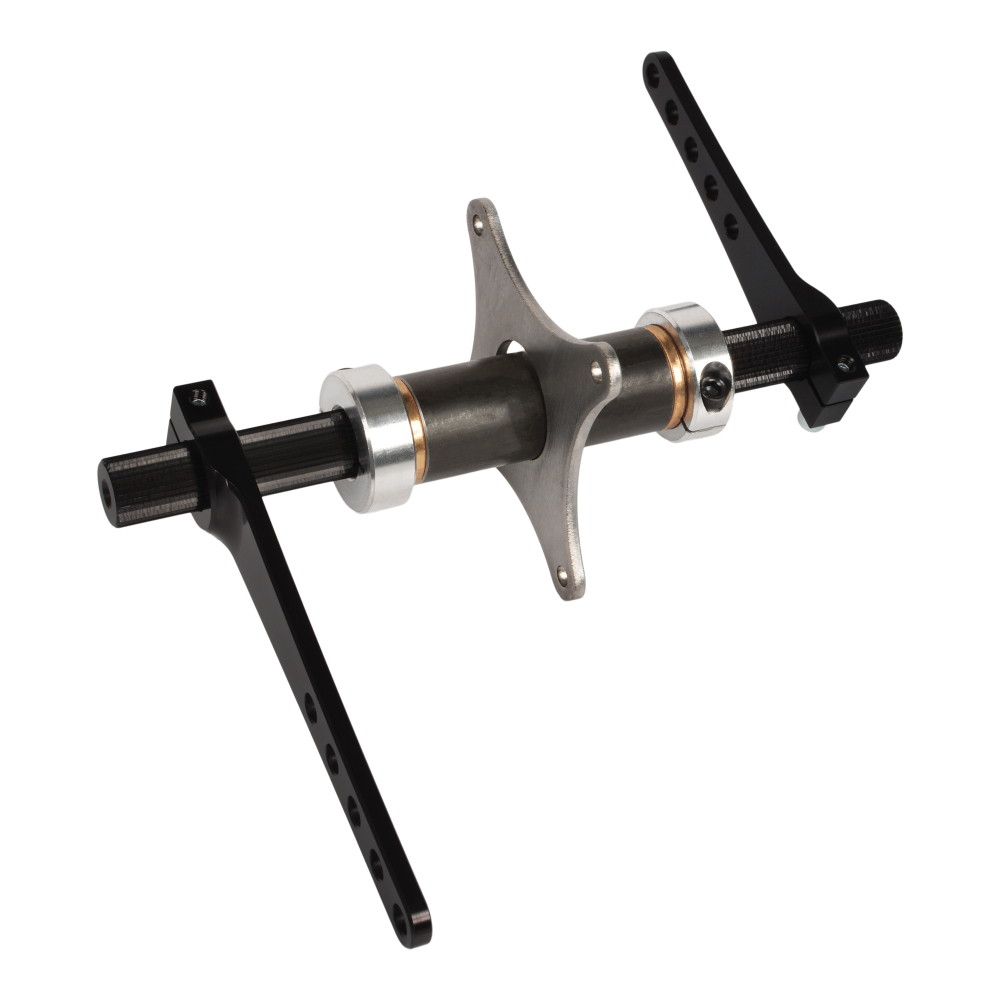

JOES Throttle Bell Crank Assembly

JOES CNC Machined Bell Crank Assembly allows you to customize the feel and speed of your throttle assembly quickly and easily while providing you a smooth pedal function that can be rebuilt if needed.

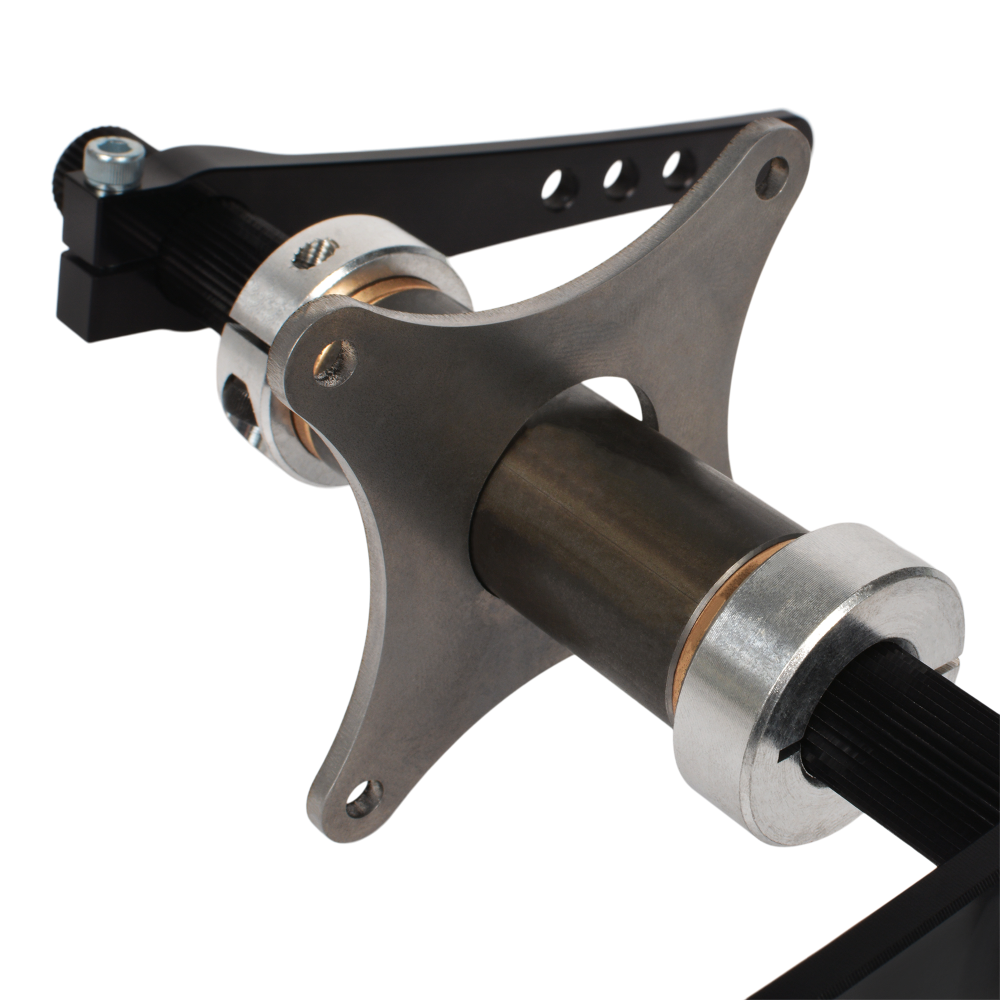

For installation, temporarily mount clover shaped mounting plate to your foot box or sheet metal interior and then set the bushing housing in place for your application and tack weld the the mounting plate to the housing. Once you have the unit tack welded together, remove it from the car for final welding and then permanently install the unit in your chassis.

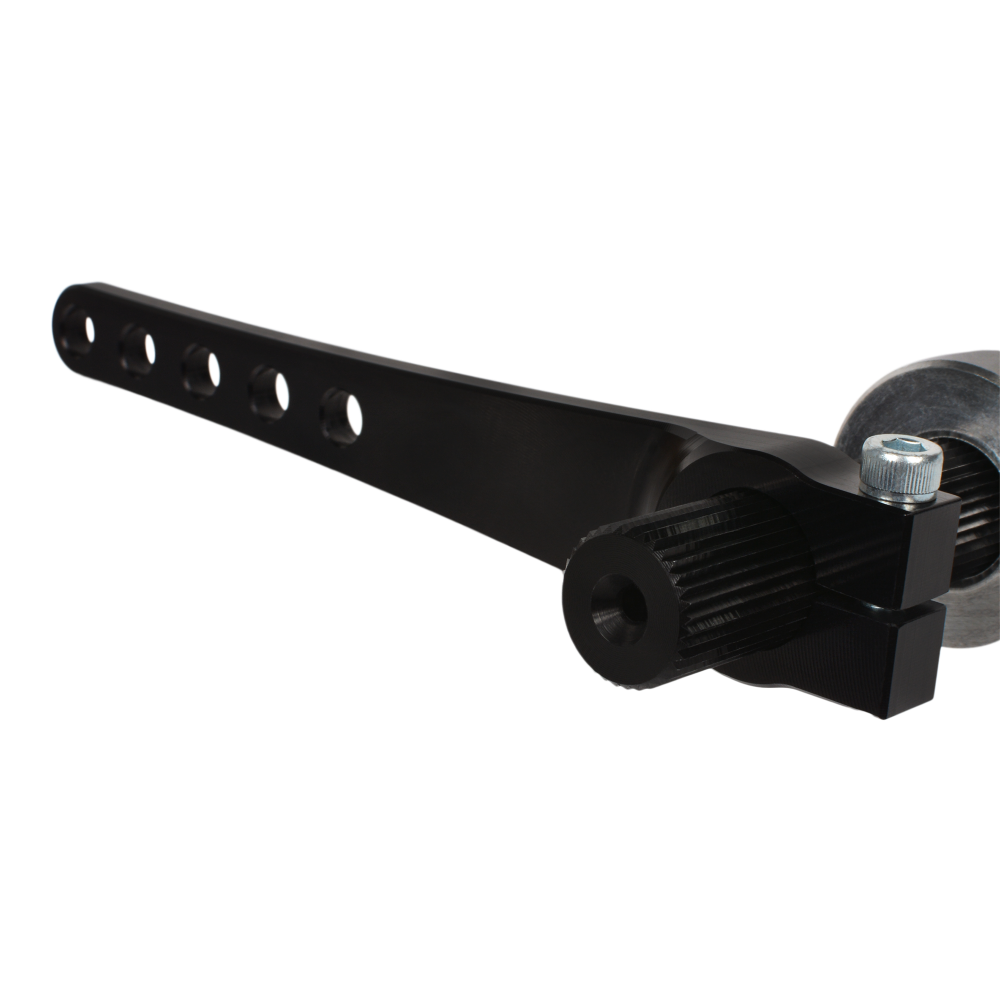

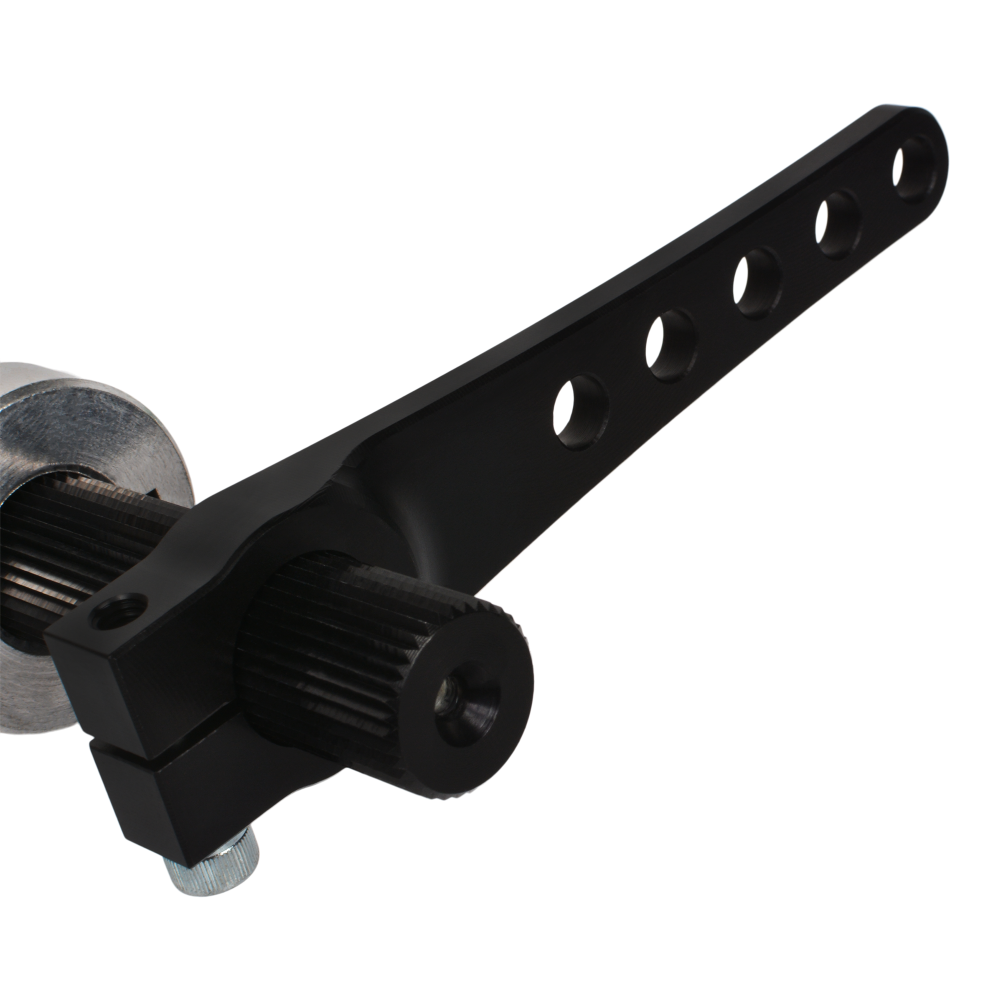

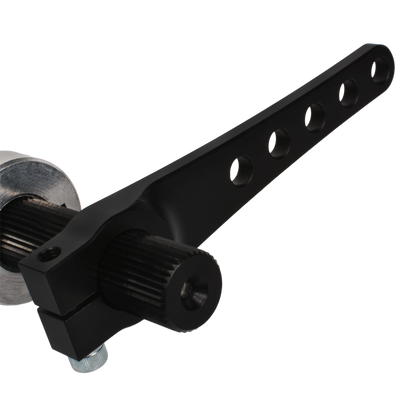

• Short Arm Length: 3.5″
• Long Arm Length: 4.5″
• Hole Spacing (Arms): .500
• Hole Diameter (Arms): .250
• Splined Shaft Overall Length: 8″
• Bushing Housing Diameter: 1.0″
