All JOES Racing Products Micro Sprint axles are built in house. They utilize CNC machined and laser cut components that are TIG welded together within CNC machined jigs/fixtures to ensure consistency and reliability that you can count on time after time.
Axles are manufactured in two different lengths for different tracks and wing/non-wing configurations.
Axle Specifications
Width
- P/N 25650 – Wing Axle = 40.0″
Tube
- DIA – 1-1/2″ Chromoly Steel DOM
- CNC Machined to ensure repeatability in production

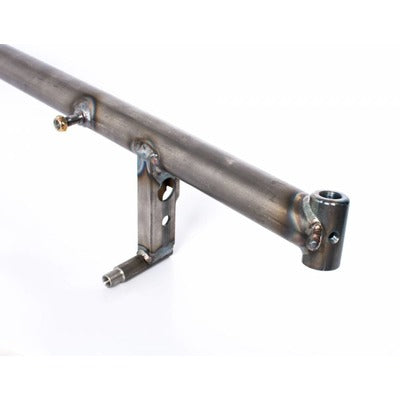

Spindle Boss / Kingpin
CNC machined Spindle Boss
Spindle Boss Diameter is 1-1/8″ x 2.080″ Height
.625 Diameter Kingpin
Axle Geometry
RT 12 Camber / 10 Caster
LT 8 Camber / 7 Caster
Designed for 10 Degree Spindles

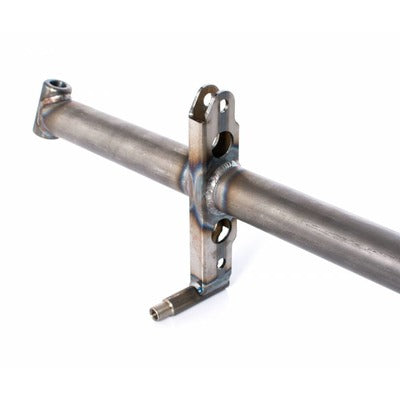

Radius Rod / Shock Mounts
10.5 Degree angle
Laser cut rectangular tube for strength
TIG Welded in a CNC machined jig for consistency

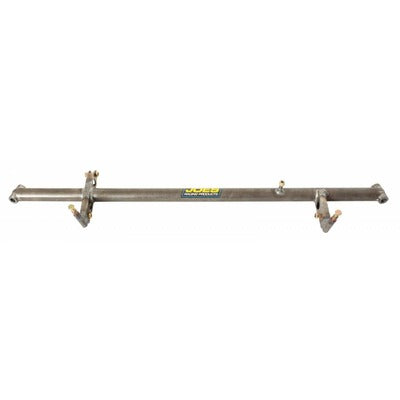

- Front Axle Assembly
- 1-1/2 in OD
- 40 in Wide
- 10 Degree Front Spindles
- Chromoly
- Natural
Specifications
|
Brand
|
JOES Racing Products
|
|
Part Number
|
25650
|
|
Width
|
40 in
|
|
Outside Diameter
|
1-1/2 in
|
|
Right Spindle Degree
|
12 Degree
|
|
Left Spindle Degree
|
8 Degree
|
|
Spindle Boss Diameter
|
1-1/8 in
|
|
Spindle Boss Height
|
2.08 in
|
|
King Pin Diameter
|
0.625 in
|
|
Panhard Bar Stud
|
Yes
|
|

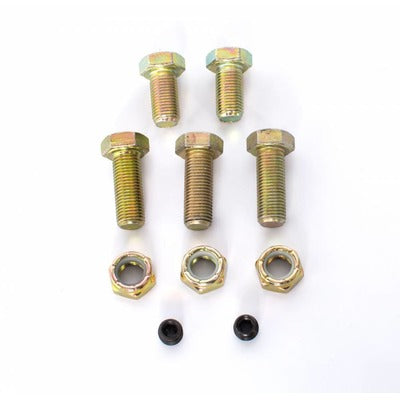

Hardware Included
|
Yes
|
|
Material
|
Chromoly
|
|
Color
|
Natural
|
|
Finish
|
Natural
|
|
Quantity
|
Each
|
