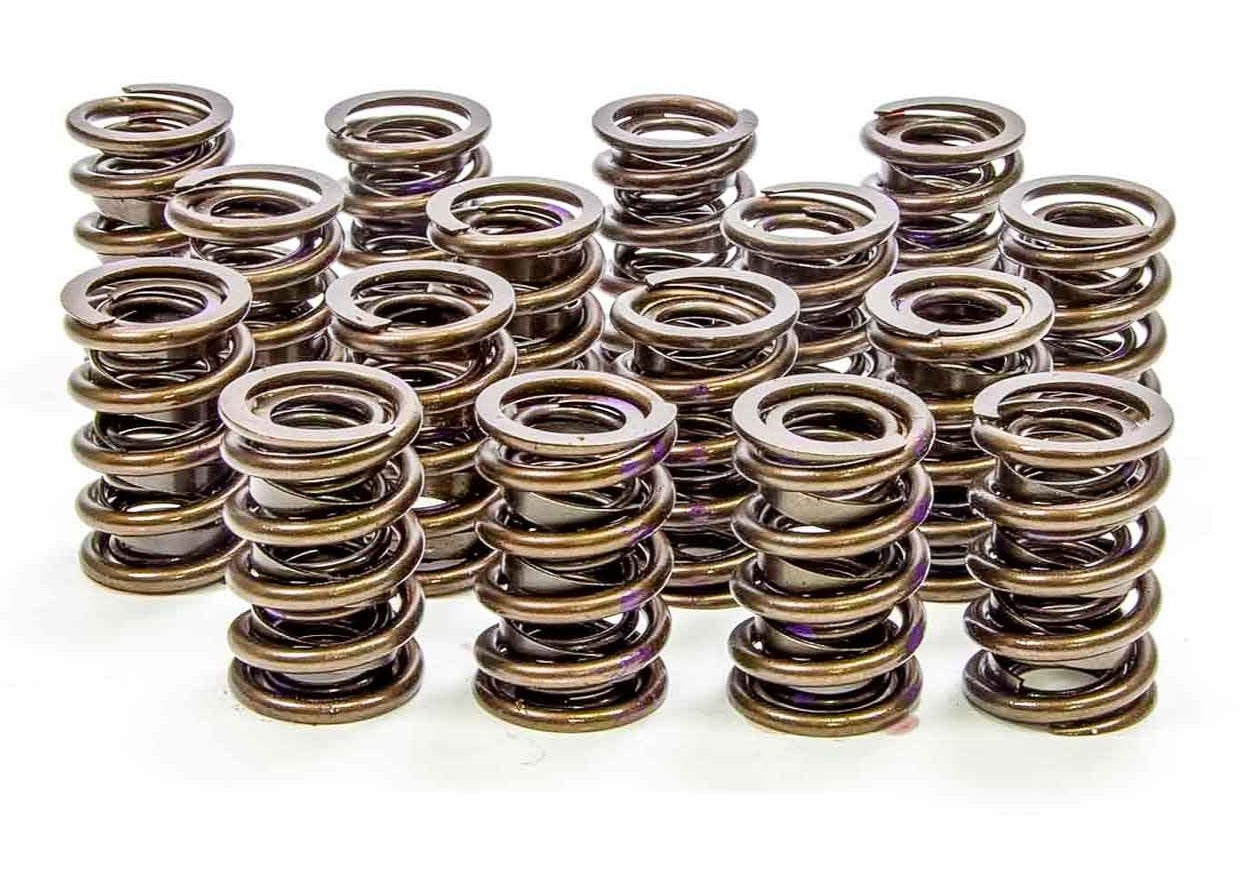

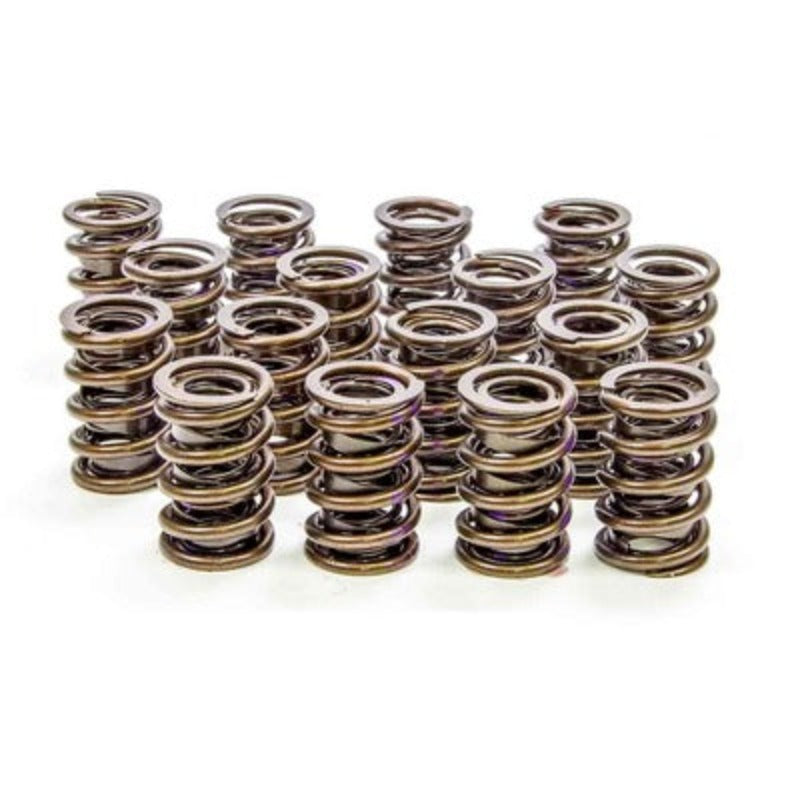

Valve Spring - Dual Spring / Damper - 430 lb/in Spring Rate - 1.160 in Coil Bind - 1.530 in OD - Set of 16 - Part Number: 9005
Specifications
| Brand |
Isky Cams |
| Part Number |
9005 |
|
Spring Style
|
Standard
|
|
Spring Quantity
|
Dual Spring
|
|
Damper
|
Yes
|
|
Spring Rate
|
430 lb/in
|
|
Coil Bind Height
|
1.16 in
|
|
Installed Height
|
1.875 in
|
|
Outside Diameter of Outer Spring
|
1.53 in
|
|
Outside Diameter of Inner Spring
|
1.11 in
|
|
Inside Diameter of Outer Spring
|
1.005 in
|
|
Inside Diameter of Inner Spring
|
0.725 in
|
|
Maximum Valve Lift
|
0.65 in
|
|
Seat Load (LBS)
|
185 lbs
|
|
Seat Load At (in)
|
1.875 in
|
|
Open Load (LBS)
|
465 lbs
|
|
Open Load At (in)
|
1.225 in
|
|
Alloy
|
Chrome Silicone Wire
|
|
Material
|
Steel
|
|
Quantity
|
Set of 16
|
