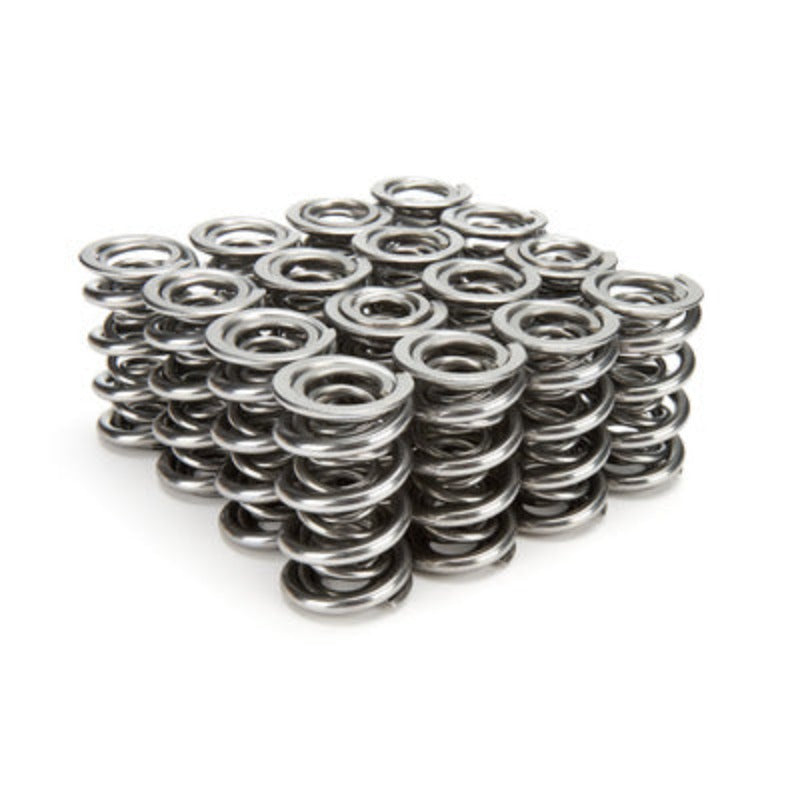

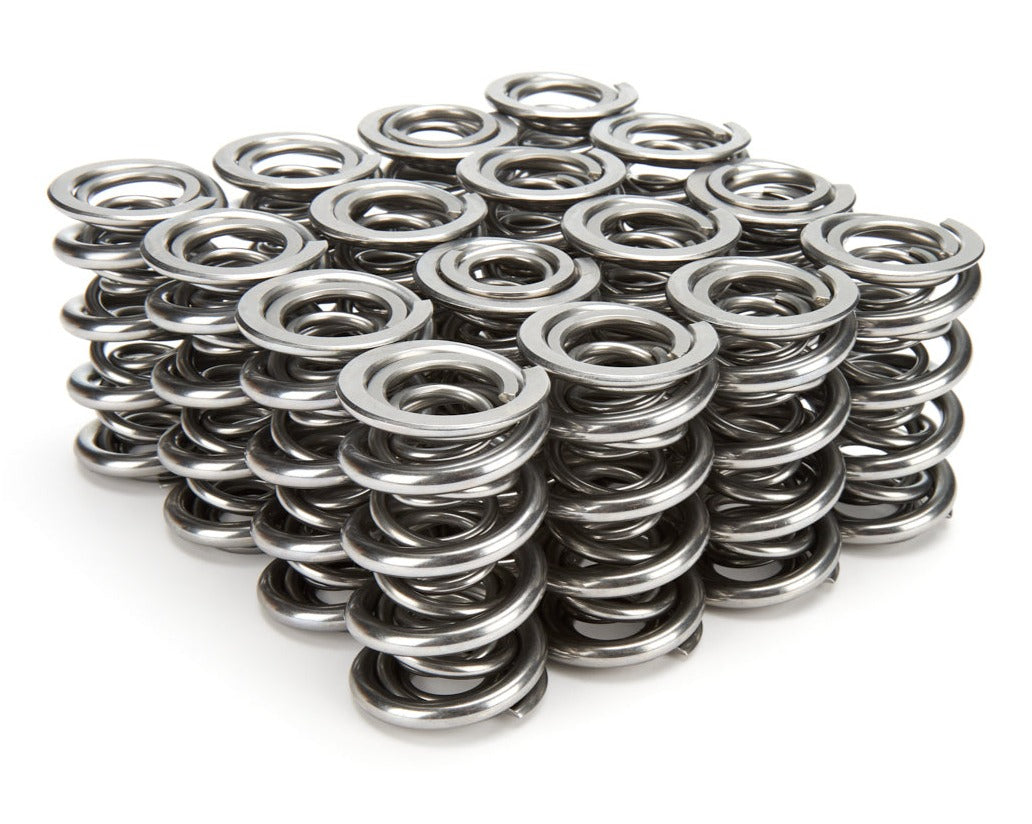

Valve Spring - Max-Life - Tripe Spring - 725 lb/in - 1.130 in Coil Bind - 1.660 in OD - Set of 16 - Part Number: 1249ML
Specifications
|
Brand
|
Isky Cams
|
|
Part Number
|
1249ML
|
|
Product Line
|
Max-Life
|
|
Spring Style
|
Standard
|
|
Spring Quantity
|
Triple Spring
|
|
Damper
|
No
|
|
Spring Rate
|
725 lb/in
|
|
Coil Bind Height
|
1.13 in
|
|
Installed Height
|
2.2 in
|
|
Outside Diameter of Outer Spring
|
1.66 in
|
|
Inside Diameter of Outer Spring
|
1.195 in
|
|
Inside Diameter of Middle Spring
|
0.87 in
|
|
Inside Diameter of Inner Spring
|
0.63 in
|
|
Maximum Valve Lift
|
1 in
|
|
Seat Load (LBS)
|
385 lbs
|
|
Seat Load At (in)
|
2.2 in
|
|
Open Load (LBS)
|
1110 lbs
|
|
Open Load At (in)
|
1.2 in
|
|
Material
|
Steel
|
|
Quantity
|
Set of 16
|
