Intercomp RFX Suspension Load Stick Wireless with Indicator Single 174000

RFX® Suspension Load Stick Wireless with Indicator Single 174000

• RFX® Wireless Communication Eliminates Cumbersome Cables
• Rate from 1 to 4 Corners Simultaneously with One RFX® Wireless Indicator
• Quickly Determine Static Load at Ride Height for Each Wheel
• Ideal Where a Pull-Down Rig is Not Feasible
• Non-Binding Design for Precise Readings

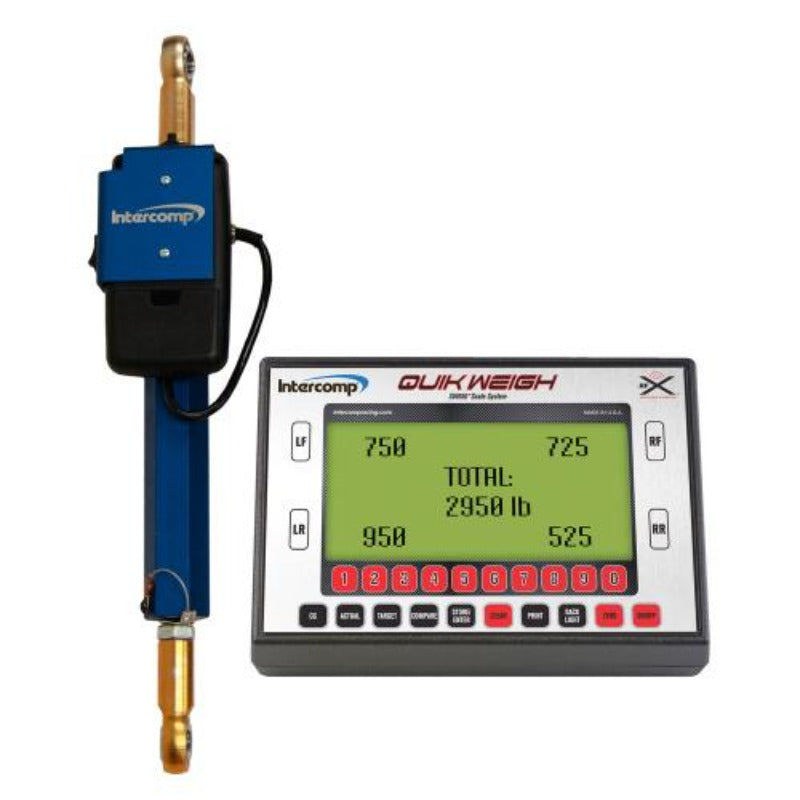

Includes: (1)-Load Stick Assembly with (1)-SHORT body & SW650RFX Quik Weigh Wireless Indicator

• Shows Spring Strength Needed to Get a Racecar in
• Preferred Cornering Attitude
• Wire Included on Load Stick Body for Safe Adjustments
• Anodized for Durability and High Visibility
• PTFE-Embedded Heim Joint Insert for Smooth,
• Lubricant-Free Operation

Specifications

• Load Cell Capacity: 3,000 lb (1,300 kg)
• Full Range of Adjustment: 15"–20.25" (381–514 mm)
• Width (Including Radio & Battery Pack): 3.25" (83 mm)
• Depth (Including Radio & Battery Pack): 2.5" (64 mm)
• Heim Joint Inner Diameter: 0.5" (13 mm)
