Icon Pistons

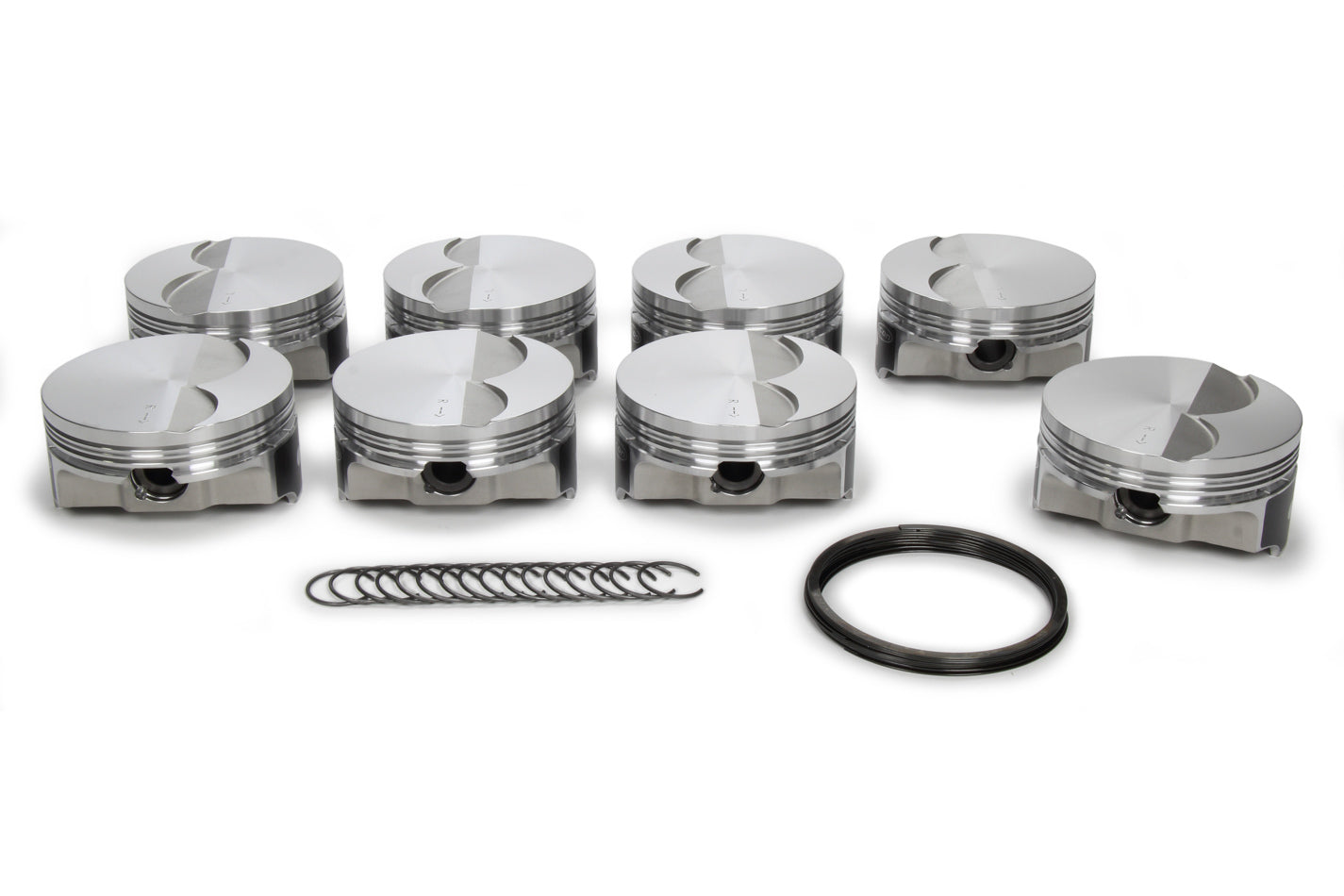

Icon LS 6.0L/6.2L FT Forged Piston Set 4.000 Bore
Icon LS 6.0L/6.2L FT Forged Piston Set 4.000 Bore
Regular price
$409.99 USD
Regular price
Sale price
$409.99 USD
Unit price
/
per
SKU:ICNIC9991C.STD
23 in stock
Couldn't load pickup availability
Affordable and durable, Forged Head Relief (FHR) 4032 alloy street/strip pistons accept 5/64" top, 5/64" second, and 3/16" oil rings (unless noted). Sets of eight include wrist pins and Tru-Arc lock rings.
- Small Block Chevrolet LS Gen. III/IV 5.3-6.2L
- Flat Top 6.0/6.2L
Note: Small block Chevrolet Gen. III/IV LS compression ratios are based on a 68.4cc combustion chamber. Pistons machined for 1.5mm (top), 1.5mm (second), and 3.0mm (oil) rings.
Piston - FHR - Forged - 4.000 in Bore - 1.5 x 1.5 x 3.0 mm Ring Groove - Minus 3.30 cc - GM LS-Series - Set of 8 - Brand: Icon Pistons - Part Number: IC9991C.STD
|
Brand
|
Icon
|
|
Part Number
|
IC9991C.STD
|
|
Product Line
|
FHR
|
|
Bore
|
4.000 in
|
|
Style
|
Flat Top
|
|
Material Style
|
Forged
|
|
Valve Angle
|
15 Degree
|
|
Coated
|
Skirt
|
|
Compression Height
|
1.115 in
|
|
Volume
|
Minus 3.30 cc
|
|
Wrist Pin Included
|
Yes
|
|
Wrist Pin Style
|
Floating/Press
|
|
Wrist Pin Diameter
|
0.927 in
|
|
Wrist Pin Length
|
2.250 in
|
|
Piston Weight
|
426 g
|
|
Gas Ported
|
No
|
|
Top Ring Groove Thickness
|
1.5 mm
|
|
2nd Ring Groove Thickness
|
1.5 mm
|
|
Oil Ring Groove Thickness
|
3 mm
|
|
Rings Included
|
No
|
|
Alloy
|
4032
|
|
Material
|
Aluminum
|
|
Finish
|
Natural
|
|
Quantity
|
Set of 8
|
