Howards Racing Components
Howards Beehive Valve Spring Kit 1.280" Beehive 98113-K1
Howards Beehive Valve Spring Kit 1.280" Beehive 98113-K1
Regular price
$185.99 USD
Regular price
Sale price
$185.99 USD
Unit price
/
per
SKU:HRC98113-K1
Inventory: 6 in stock
Couldn't load pickup availability
Beehive Valve Spring Kit

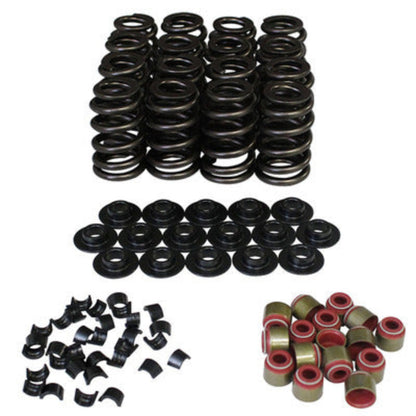

All-in-one kit includes matched components for applications with up to .600" lift. Includes set of (16) bee-hive valve springs, 4140 chrome moly retainers, alloy steel bead lock 8mm valve locks, and valve seals.

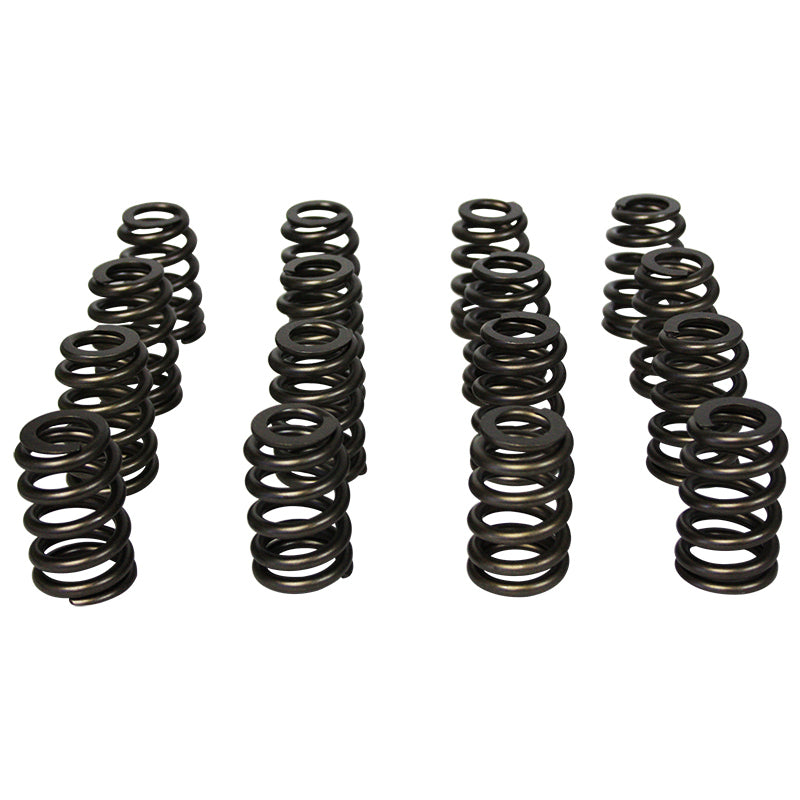

Valve Spring Kit - Ovate Beehive Spring - 412 lb/in Spring Rate - 1.150 in Coil Bind - 1.035 in / 1.280 in OD - Locks / Chromoly Retainers / Seals - Kit - Brand: Howards Racing Components - Part Number: 98113-K1
|
Spring Style
|
Beehive
|
|
Spring Quantity
|
Single Spring
|
|
Damper
|
No
|
|
Spring Rate
|
412 lb/in
|
|
Coil Bind Height
|
1.15 in
|
|
Installed Height
|
1.8 in
|
|
Outside Diameter of Outer Spring
|
1.035 in / 1.28 in
|
|
Inside Diameter of Outer Spring
|
0.65 in / 0.9 in
|
|
Maximum Valve Lift
|
0.6 in
|
|
Seat Load (LBS)
|
115 lbs
|
|
Seat Load At (in)
|
1.8 in
|
|
Open Load (LBS)
|
332 lbs
|
|
Open Load At (in)
|
1.265 in
|
|
Valve Spring Material
|
Steel
|
|
Valve Spring Quantity
|
16
|
|
Retainers Included
|
Yes
|
|
Retainers Material
|
Chromoly
|
|
Retainers Quantity
|
16
|
|
Valve Locks Included
|
Yes
|
|
Valve Lock Degree
|
7 degree
|
|
Valve Lock Intended Stem Diameter
|
8 mm
|
|
Valve Locks Material
|
Steel
|
|
Valve Locks Quantity
|
16
|
|
Valve Seals Included
|
Yes
|
|
Valve Seal Material
|
Viton
|
|
Valve Seal Style
|
Positive Stop
|
|
Valve Seal Quantity
|
16
|
|
Quantity
|
Kit
|
