Howards Valve Spring Kit 1.207" GM LS Beehive Design 98112-K1
Howards Valve Spring Kit 1.207" GM LS Beehive Design 98112-K1
Regular price
$298.99 USD
Regular price
Sale price
$298.99 USD
Unit price
/
per
SKU:HRC98112-K1
Inventory: 3 in stock
Couldn't load pickup availability
Performance Valve Spring Kit

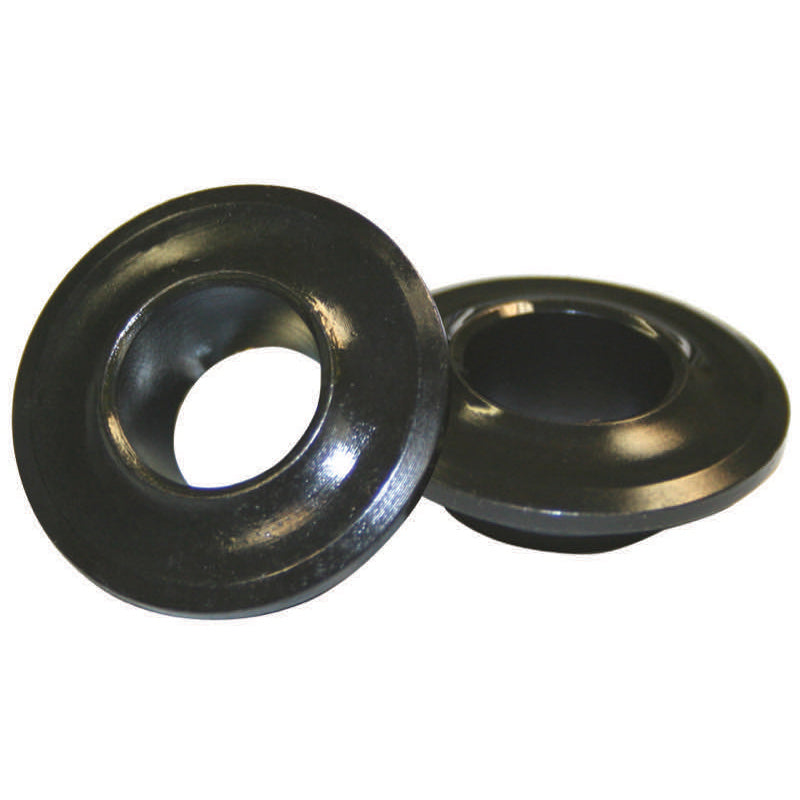

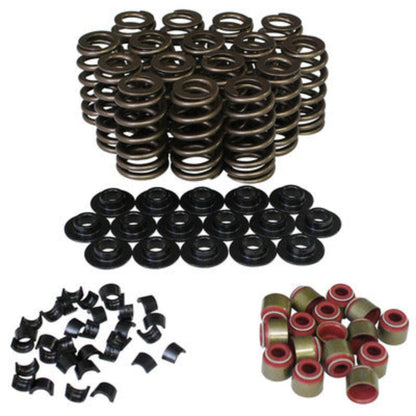

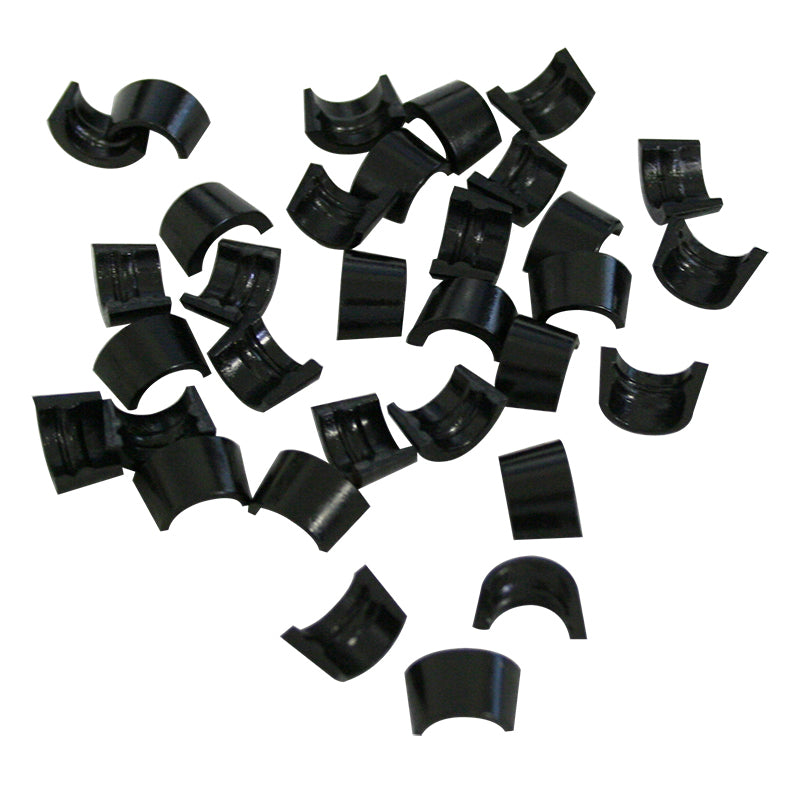

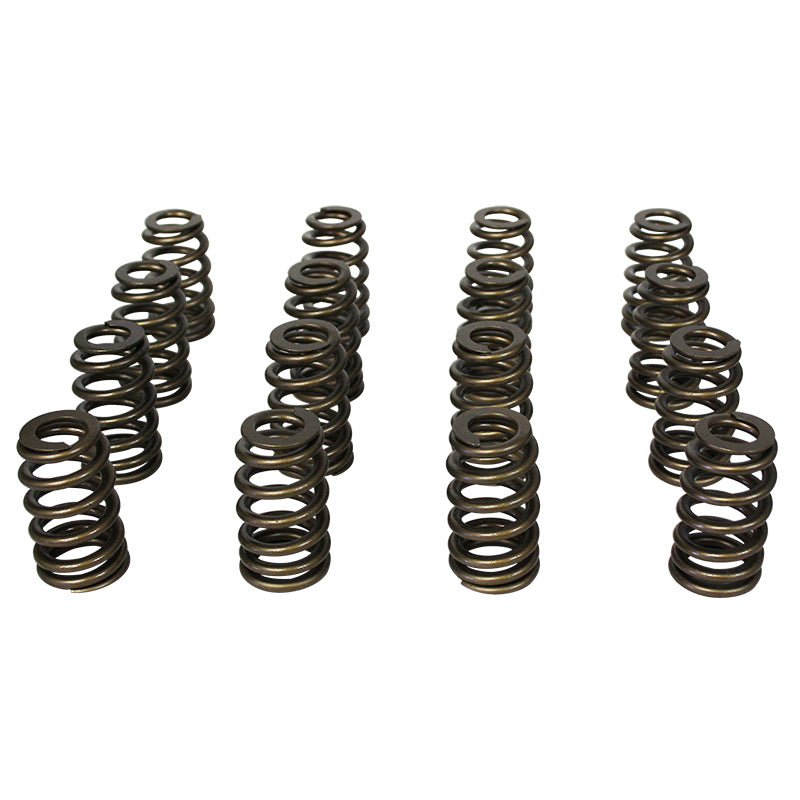

All-inclusive kits includes (16) high RPM-capable valve springs, (16) 4140 chrome moly steel valve spring retainers, (16 pair) 7° alloy steel valve locks, and (16) valve seals. Designed for applications with up to 0.625" valve lift.
- LS1 Beehive Kit
Valve Spring Kit - Ovate Beehive Spring - 340 lb/in Spring Rate - 1.100 in Coil Bind - 1.072 in / 1.207 in OD - Locks / Chromoly Retainers - Kit - Brand: Howards Racing Components - Part Number: 98112-K1
|
Product Line
|
Ovate Beehive
|
|
Spring Style
|
Beehive
|
|
Spring Quantity
|
Single Spring
|
|
Damper
|
No
|
|
Spring Rate
|
340 lb/in
|
|
Coil Bind Height
|
1.1 in
|
|
Installed Height
|
1.8 in
|
|
Outside Diameter of Outer Spring
|
1.072 in / 1.207 in
|
|
Inside Diameter of Outer Spring
|
0.65 in / 0.885 in
|
|
Maximum Valve Lift
|
0.625 in
|
|
Seat Load (LBS)
|
135 lbs
|
|
Seat Load At (in)
|
1.8 in
|
|
Open Load (LBS)
|
348 lbs
|
|
Open Load At (in)
|
1.175 in
|
|
Valve Spring Material
|
Steel
|
|
Valve Spring Quantity
|
16
|
|
Retainers Included
|
Yes
|
|
Retainers Material
|
Chromoly
|
|
Retainers Quantity
|
16
|
|
Valve Locks Included
|
Yes
|
|
Valve Lock Degree
|
7 degree
|
|
Valve Lock Intended Stem Diameter
|
8 mm
|
|
Valve Locks Material
|
Steel
|
|
Valve Locks Quantity
|
16
|
|
Valve Seals Included
|
Yes
|
|
Valve Seal Material
|
Rubber
|
|
Valve Seal Style
|
Positive Stop
|
|
Valve Seal Quantity
|
16
|
|
Quantity
|
Kit
|
