Holley Crank Trigger Kit - SBC 8in 36-1 Tooth

36-1 Tooth Crank Trigger System for Small Block Chevy

Holley's EFI Crank Trigger Kit is engineered to provide an accurate crank speed & position signal to Holley EFI systems in the most-demanding, high horsepower, racing applications. Crank position is measured every 10 degrees as opposed to every 45 degrees for a standard 4-Magnet, MSD "style" Crank trigger. It is designed for use on early model small block Chevy applications using a standard ATI or Fluidamper "style" balancer up to 7-1/4" in diameter.

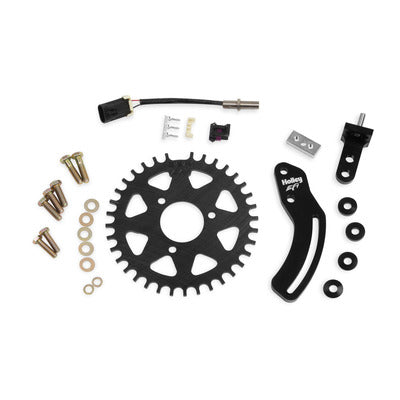

• 8” diameter, 1/4” thick, billet steel, 36-1 tooth, crank wheel with Black Zinc Oxide finish for superior corrosion resistance and striking good looks
• Crank wheel centers off of the balancer’s hub, eliminating the need for a centering ring
• All billet, 6061-T6 aluminum sensor mounting brackets with “bright-dipped” black anodized finish and Laser etched Holley EFI logo
• Custom 3-wire, ferrous-target, Hall-effect sensor with M12X1mm threads for finer gap adjustment
• All Grade 8 and Mil. Spec mounting hardware
• Crank Trigger Kit - Flying Magnet - Trigger Wheel / Pickup - 8.000 in Balancer - Small Block Chevy - Kit
• MPN: 556-116
