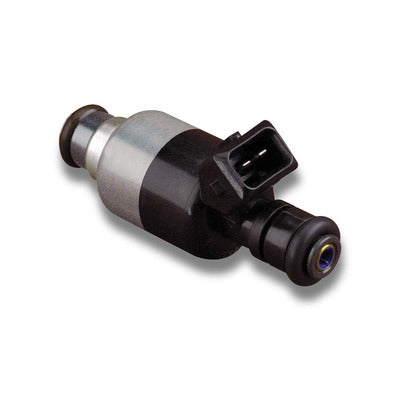

Holley EFI Performance Fuel Injectors 48PPH

Holley EFI Fuel Injectors feature a precision lapped disc valve, high-quality brass windings, and high-temp O-rings. These injectors provide excellent linearity with no discernible "bounce" at low pulse widths as commonly found in other injectors. They are available from 19 to 160 lb/hr flow rates to accommodate a variety of vehicles. Holley EFI Fuel Injectors provide precision fuel delivery you can depend on.

• Bosch/EV1 style performance injectors - Set of 8
• High impedance (12.2 Ohms) for use with saturated drivers
• Rated injector flow: 48 lb/hr @ 43 PSI
• Supports up to 765 horsepower
• Tri-cone spray pattern
• Fuel Injector - 48 lb/hr - High Impedance - EV1 / Minitmer Connector - Universal - Set of 8
• MPN: 522-488


Home /Air & Fuel Delivery /EFI - Fuel Injection /Injectors /Fuel Injectors - High Impedance /Holley EFI Performance Fuel Injectors - Set of Eight

HOLLEY EFI PERFORMANCE FUEL INJECTORS - SET OF EIGHT

Bosch/EV1 - 48 lb/hr - High Impedance

Emissions

This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles.

About Holley EFI

Holley is the new standard in EFI! Whether you're engine swapping your classic car or need to manage 4000 horsepower in your twin-turbocharged drag radial race car, Holley EFI has the solutions you need to get your project up and running better than ever!

• Body Diameter 0.970
• Body Length 2.85"
• Body Style EV1
• Brand Holley EFI
• Connector Series EV1 - Jetronic - (Bosch Style)
• Emission Code 3
• Fuel Type E-85, Gasoline
• Impedance High (12.2 Ohm)
• O-Ring to O-Ring 2.415"
• Product Type Fuel Injector
• Rated Injector Flow 48 lb/hr
• UPC 090127666654
• Part Number: 522-488

Emissions

This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles.

The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles:

• 1965 and older U.S. manufactured California Certified vehicles
• 1967 and older U.S. manufactured Federally Certified vehicles
• 1967 and older Foreign manufactured vehicle

WARNING: It is against the law to install this part on an Emissions Controlled Vehicle.

The following vehicles are considered Emissions Controlled Vehicles:

• 1966 and newer U.S. manufactured California Certified vehicles
• 1968 and newer U.S. manufactured Federally Certified vehicles
• 1968 and newer Foreign manufactured vehicle
