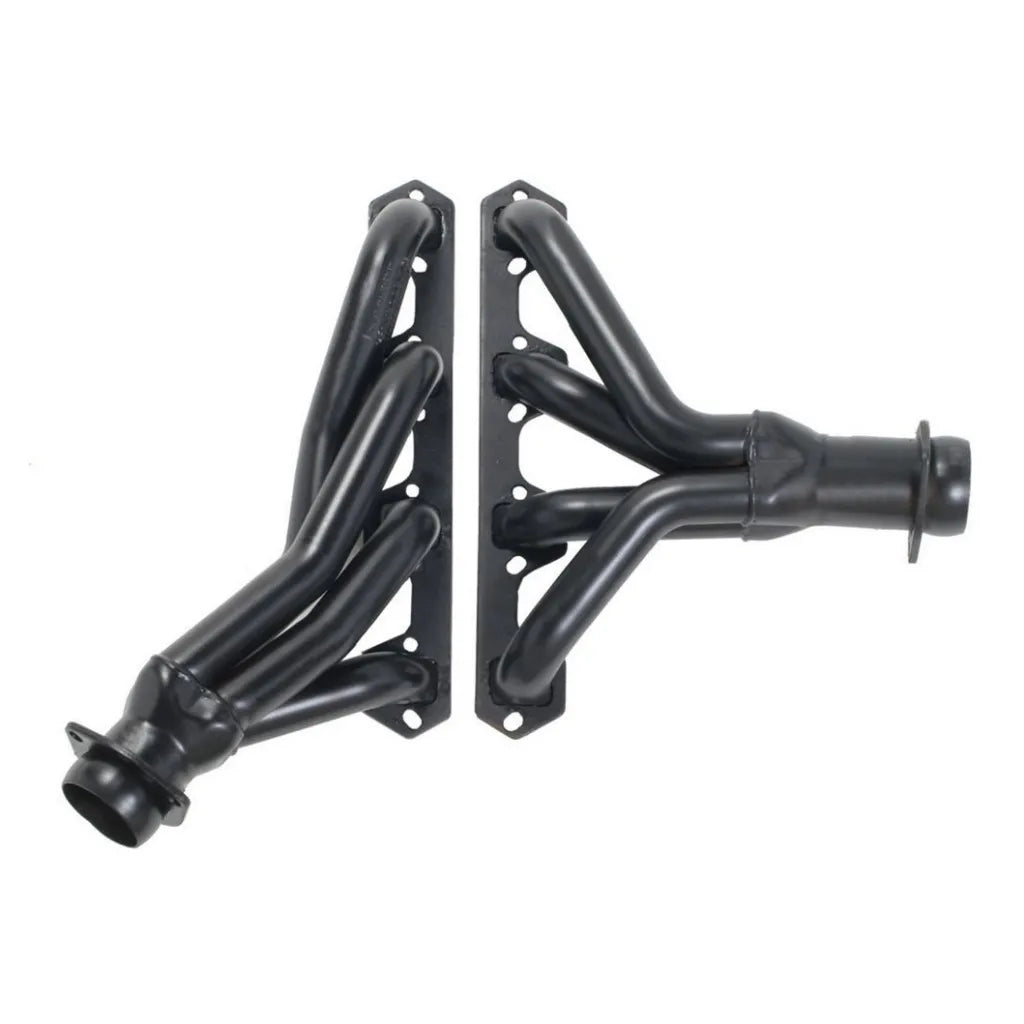

Hedman Headers - SB V8 Ford Ranger

Headers - Street - 1.5 in Primary - 2.5 in Collector - Steel - Black Paint - Small Block Ford - Ranger 1982-97 - Pair - Brand: Hedman - Part Number: 89500

Engine Swap Headers for SB Ford 260-302 into FORD RANGER; 1-1/2 in. MID-LENGTH Tube, 2-1/2 in. Ball/Socket Collector- UNCOATED Mild Steel

Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing Ford truck headers decades. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your exhaust system to bolt up to these SB Ford, Ranger swap headers, even if it is not perfectly aligned with the header collectors.

These uncoated mild steel, MID-LENGTH TUBE headers are designed specifically for swapping a Ford Small Block 260-302W engine into a 1982-1997 Ford Ranger 2WD (only) truck. These headers fit both automatic and manual, floor-shift transmissions. The smooth 1-1/2 in., tube design provides good exhaust flow to let your Ford Windosor Block engine breathe better, and produce excellent low-end torque and horsepower.

These headers are uncoated, and ship from the factory with a temporary black paint that will burn off when submitted to normal operating temperatures. For protection against the element and lower under-hood temperatures, these headers are also available with a silver or black ceramic-metallic finish.

Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.

Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty.

•
  TUBE DIAMETER    1-1/2 in.
  TUBE STYLE    Mid-Length
  AIR CONDITIONING    Yes
  AUTOMATIC TRANSMISSION - COLUMN    No
  AUTOMATIC TRANSMISSION - FLOOR    Yes
  MANUAL TRANSMISSION - COLUMN    No
  MANUAL TRANSMISSION - FLOOR    Yes
  COLLECTOR ATTACHMENT    2-1/2 in.
  COLLECTOR DIAMETER    2-1/2 in.
  COLLECTOR SIZE    2-1/2 in.
  COLLECTOR STYLE    BALL and SOCKET Style (Gasketless)
  REDUCER OUTLET SIZE    2 in.
  EXHAUST SYSTEM DIA    2 in.
  CONTENTS    headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware
  E.O. #    No
  EMISSIONS NOTES    Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only.
  ENGINE VERSION    Ford Windsor Block (W)
  FINISH    Uncoated
  FINISH TYPE    UNCOATED Mild Steel! Shipped with Temporary Paint.
  FLANGE STYLE    Standard
  FLANGE THICKNESS    0.3125 in.
  HEADER PORT SHAPE    Square
  HEADER STYLE    Mid-Length Tube
  NOTES    82-97 Ford Ranger V8 Swap 2WD 260-302
  PORT SHAPE    Square
  POWER STEERING    Yes
  PRODUCT INFO    Not for use with Smog Injection or Injection Heads
  MATERIAL    Mild Steel
  TUBE DESIGN    Standard
  TUBE LENGTH    Mid-Length Tubes
  TUBE MATERIAL THICKNESS    16g
  TUBE SIZE    1-1/2 in.
  VARIATIONS    89506, 89508
  WITH A.I.R. SYSTEM    No
  WITH EGR    No
  WELD-UP    No
  TUNED    No
  BOLTS/STUDS INCLUDED    Yes
  CATALYTIC CONVERTER(S) INCLUDED    No
  COLLECTOR BOLTS INCLUDED    Yes
  CROSSOVER PIPE INCLUDED    No
  GASKET OR SEAL INCLUDED    Yes
  HEADER FASTENERS INCLUDED    Yes
  INSTALLATION HARDWARE INCLUDED    Yes
  MOTOR MOUNTS INCLUDED    No
  MOUNTING HARDWARE INCLUDED    Yes
  REDUCERS INCLUDED    Yes
  Y-PIPE INCLUDED    No
  QUANTITY    Sold as a pair.
  PRIMARY TUBE GAUGE    16g
  PRIMARY TUBE DIAMETER (IN)    1.50 in.
  PACKAGE CONTENTS    Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
  HEADER MATERIAL    Mild Steel
  HEADER FINISH    Uncoated
  CYLINDER HEAD PORT SHAPE    Square
  CYLINDER HEAD    Stock Profile Heads
  HEADER CONSTRUCTION    MILD STEEL- Standard-Duty
  REPLACEMENT GASKET    27340
  REPLACEMENT HEAD FLANGE GASKET    27340
  CALIFORNIA PROPOSITION 65    WARNING: Cancer. For more info visit www.P65Warnings.ca.gov
