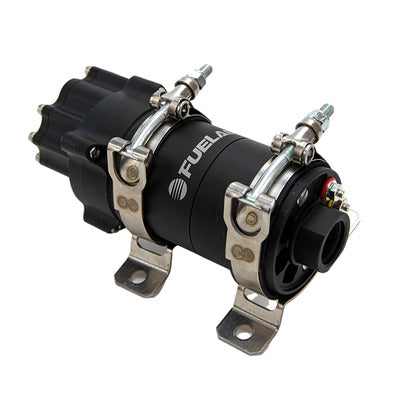

Fuelab Fuel Pump Brushless EFI PRO Series In-Line 6 gpm

40501 Pro Series 6 GPM Spur Gear Fuel Pump

5.5 GPM @ 45PSI, 100 PSI Max - Rated up to 2500+HP - Power and efficiency at its best!

Pump Features:

• Compatible with gasoline, diesel, ethanol and methanol
• High precision spur gear pumping mechanism
• -12AN Inlet and -10AN outlet Ports
• Backed by a limited lifetime warranty

Motor Features:

• Lightweight super-efficient DC brushless motor reduces current draw
• Low mass rotor for high speed reaction to changes in speed and flow
• Powerful high flux Neodymium rare earth magnets
• No motor brushes to wear out or corrode (low-Sulfur diesel, no problem)
• Wet motor design, no dynamic shaft seals that can wear out

Electronic Features:

• Internal Speed Controller for Variable flow operation
• 12 to 24 volt vehicle electrical system compatibility
• Accepts PWM input for speed control
• No expensive add-on voltage regulators or pump controllers required!
• Continuous duty - motor speed can be adjusted to meet fuel demand
• Construction Features
• Compact, powerful and lightweight - 3.5lbs, overall length 7.2", diameter 3.31"
• Billet Aluminum construction with Anodize per MIL-A-8625, Type II
• High quality T-Style Mounting Brackets included
• Long Life multi-fuel compatible Fluorosilicone static seals

Pulse Width Modulation Compatibility (PWM):

• Compatible with most aftermarket ECU's with PWM output frequency
• Compatible from 100Hz to 5000Hz
• AEM
• ECU Masters
• Fueltech
• Haltech
• Holley
• Link Engine Management
• Megasquirt

Fuel Pump - PRO Series - Electric - Inline - Brushless - 5.5 gpm - 12 AN Female Inlet / 10 AN Female Outlet - Gas / Diesel / E85 / Methanol - Mounting Hardware Included - Aluminum - Black Anodized - Each - Part Number: 40501

Specifications
