Fuel Safe

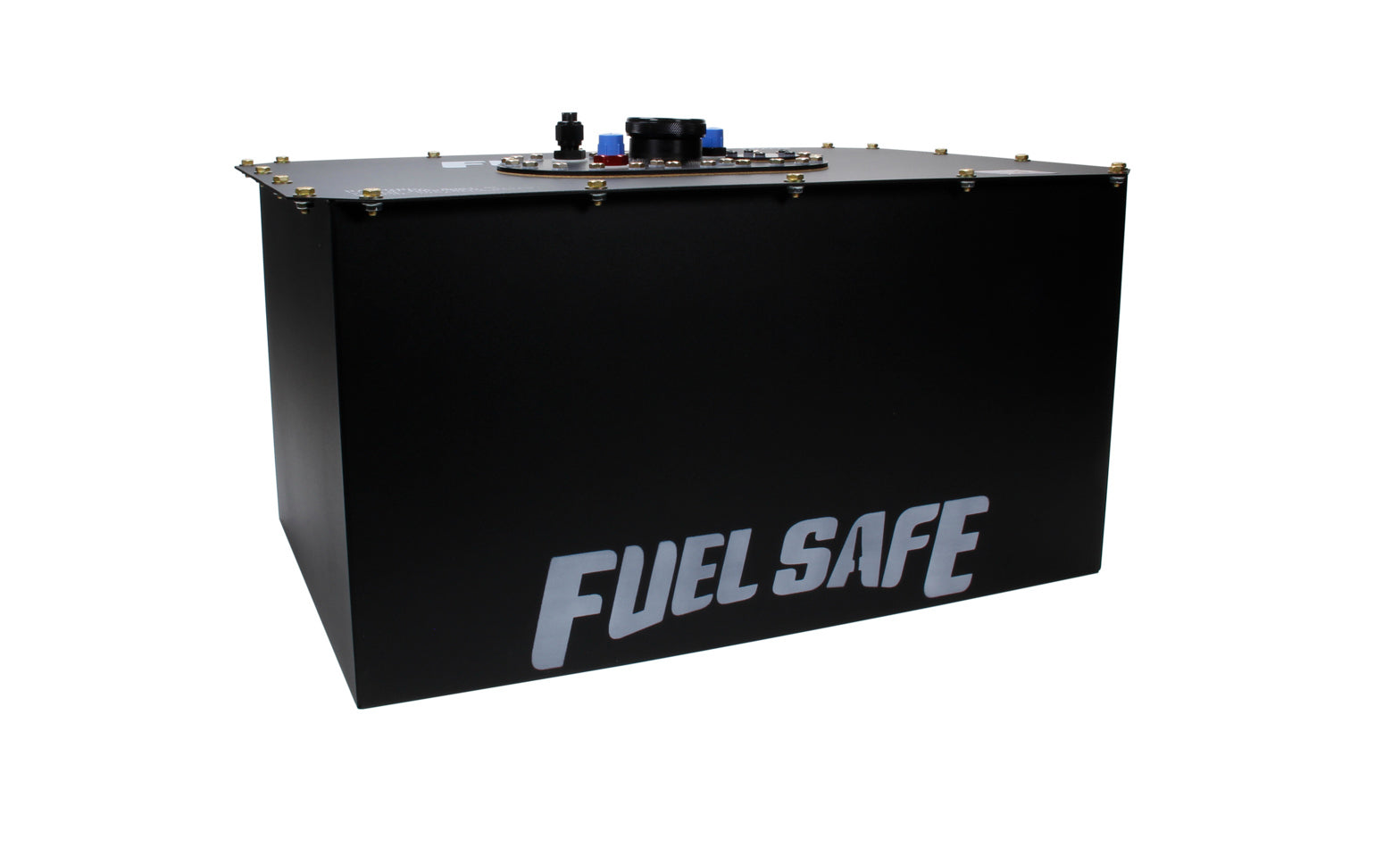

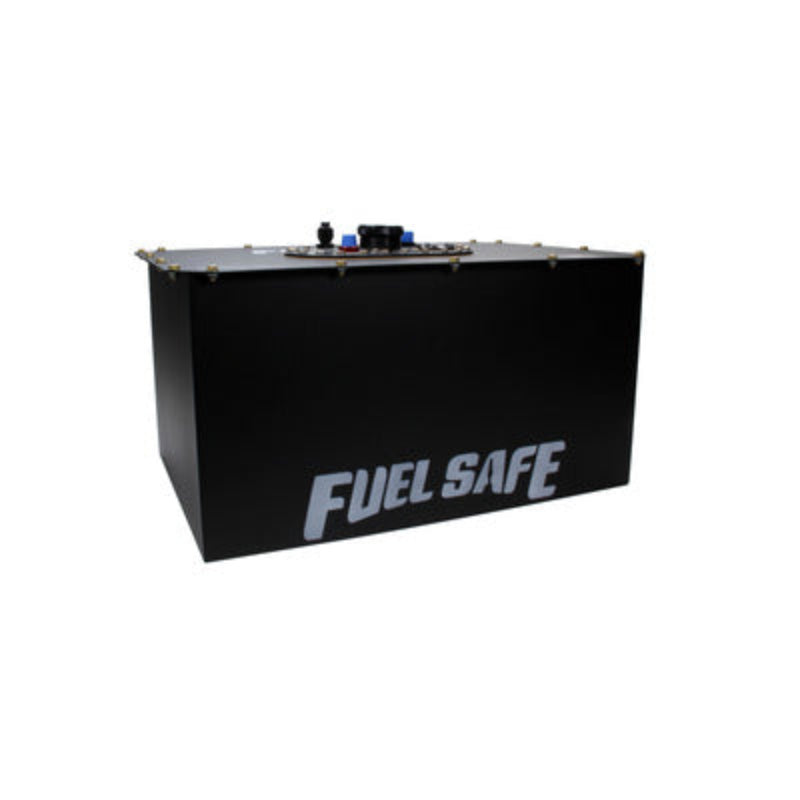

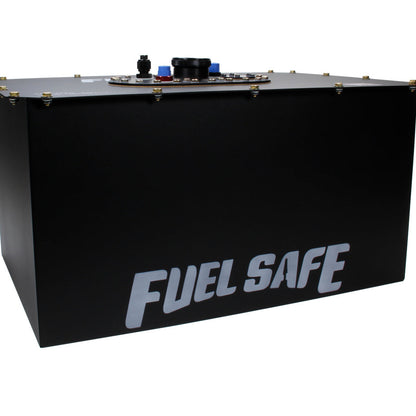

Fuel Safe RS222B Economy Complete Fuel Cell 22 Gal
Fuel Safe RS222B Economy Complete Fuel Cell 22 Gal
SKU:FUERS222B
Inventory: 2 in stock
Couldn't load pickup availability
Race Safe Racing Cell

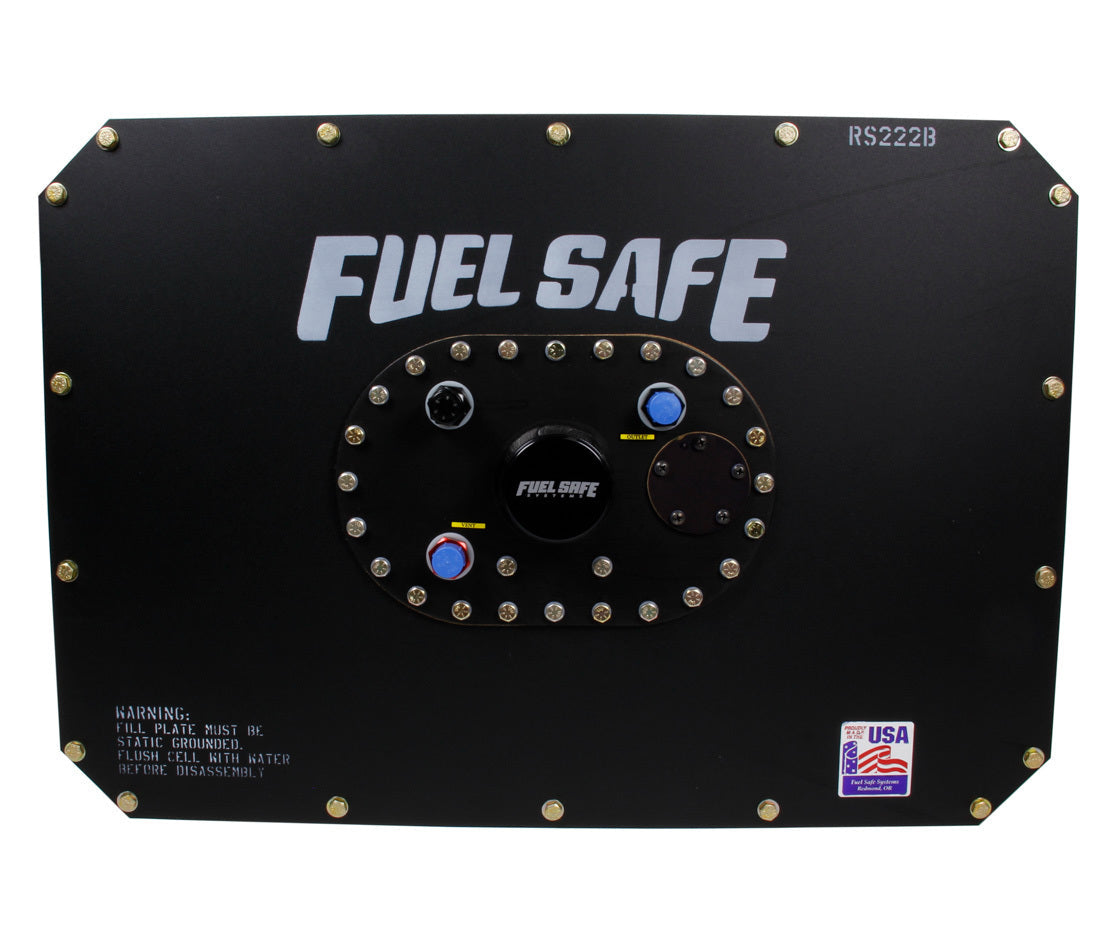

Ideal for hobby stock, vintage, and road course. Cell has formulated polymer bladder, full foam baffling, standard fill plate with 2-1/2" threaded cap and rollover valve, internal fuel strainer, and dual, -6AN inlet/-6AN return, -8AN vent,. Compatible with alcohol if foam is removed. Sold complete with steel container.
The Fuel Safe RS222B has the same construction as the Enduro® and Core® Cell lines. It is built for safety, minus the FIA certification. This fuel cell is perfect for racers who don’t need the certification but want serious protection.
- Volume: 22 Gallons
- Dimensions (L x W x H): 25.5" x 17.13" x 13.75" (25-1/2" x 17-1/8" x 13-3/4")
- Dimensions do not include the 1.0” mounting flange or any plates attached to the fuel cell.
Note: This fuel cell is not FIA-FT3 certified.
Fuel Cell and Can - Race Safe - 22 gal - 25.5 x 17.125 x 13.75 in Tall - 6 AN Male Outlet / Return - 8 AN Male Vent - Foam - Steel - Black Powder Coat - Sold as Each - Brand: Fuel Safe - Part Number: RS222B
|
Product Line
|
Race Safe
|
|
Style
|
Cell
|
|
Shape
|
Rectangle
|
|
Horizontal / Vertical
|
Horizontal
|
|
Foam
|
Yes
|
|
Capacity
|
22 gal
|
|
Width
|
25.5 in
|
|
Depth
|
17.125 in
|
|
Height
|
13.75 in
|
|
Bladder
|
Yes
|
|
Bladder Material
|
Plastic
|
|
Outlet Location
|
Top
|
|
Outlet Quantity
|
1
|
|
Outlet Size
|
6 AN
|
|
Outlet Style
|
Male
|
|
Return Quantity
|
1
|
|
Return Size
|
6 AN
|
|
Return Style
|
Male
|
|
Vent Quantity
|
1
|
|
Vent Size
|
8 AN
|
|
Vent Style
|
Male
|
|
Rollover Valve Included
|
Yes
|
|
Pickup Included
|
Yes
|
|
Pickup Size
|
6 AN
|
|
Cap Style
|
Knurled
|
|
Cap Attachment Method
|
Screw-On
|
|
Cap Raised / Flush
|
Raised Mount
|
|
Fill Plate Included
|
Yes
|
|
Fill Plate Shape
|
Oval
|
|
Fill Plate Mounting Bolt Quantity
|
24
|
|
Material
|
Steel
|
|
Color
|
Black
|
|
Finish
|
Powder Coat
|
|
Quantity
|
Each
|
|
Notes
|
Sending Unit Provision
|
