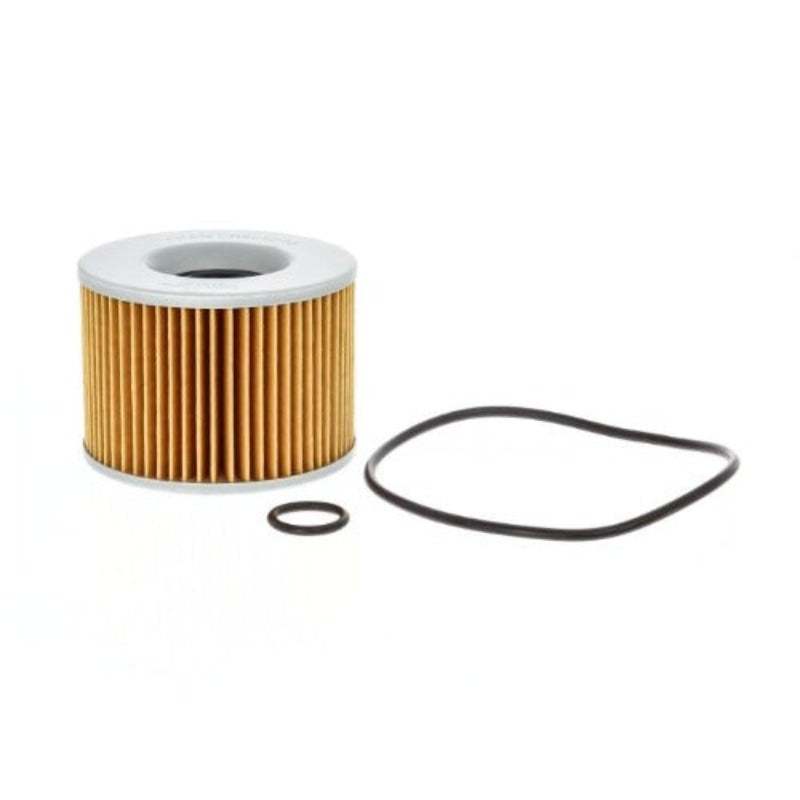

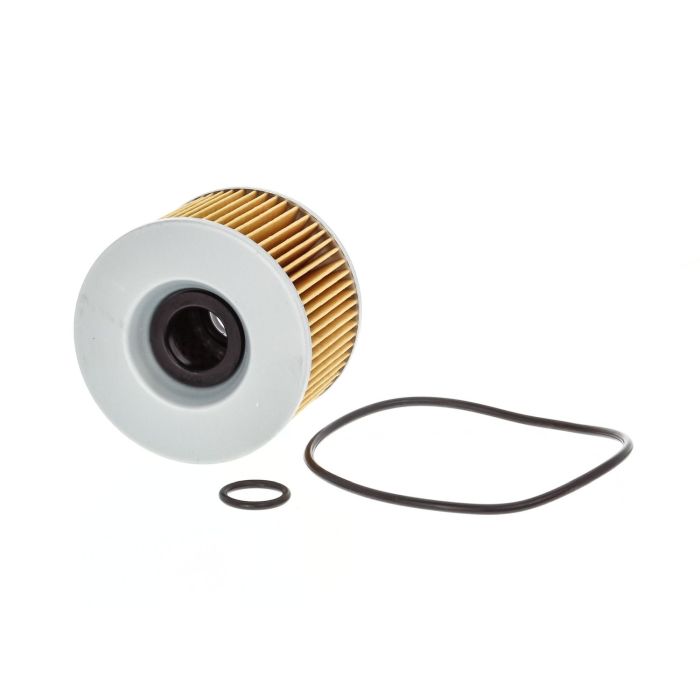

Fram Extra Guard® Oil Filter Cartridge CH6012
Fram Extra Guard® Oil Filter Cartridge CH6012
Regular price
$7.95 USD
Regular price
Sale price
$7.95 USD
Unit price
/
per
SKU:FRACH6012
Out of stock
Couldn't load pickup availability
This Fram Extra Guard® Oil Filter Cartridge is good for all oil types. It features a special blend of fibers and resin creating a proprietary filter media that captures 95% of the dirt particles that can cause harmful engine wear.
- Start-up engine protection is delivered through a precision molded silicone anti drain back valve.
- The perfect balance of dirt-trapping efficiency and dirt-holding capacity.
- Sure Grip® coating provides a non-slip finish for easier installation and removal.
- Engineered for conventional and synthetic oil types.
- Internally lubricated sealing gasket for easier filter removal.
- FRAM Group testing of average filter efficiency of PH8A, 3387A and 4967 or equivalent FRAM TG or XG models under ISO 4548-12 for particles greater than 20 microns.
- Greater than 3X the functional life of Nitrile ADB when tested per SAE HS806 hot oil and Anti-drain-back test.
- Part Number: CH6012
Note: Not all features are available on every part number in the product line. Check the package for specific features of individual filters.
Height | 2.218 (in.) |
---|---|
Inside Diameter Bottom | 0.765 (in.) |
O-ring (1) Inside Diameter | 0.609 (in.) |
O-ring Inside Diameter | 3.516 (in.) |
O-ring (1) Outside Diameter | 0.813 (in.) |
Non Slip Grip | No |
O-ring (1) Thickness | 0.109 (in.) |
O-ring Outside Diameter | 3.765 (in.) |
Torque Nut | No |
Top Inside Diameter | 0.765 (in.) |
Outer Diameter Top | 3.031 (in.) |
Outer Diameter Bottom | 3.031 (in.) |
O-rings Included | Yes |
O-ring Thickness | 0.125 (in.) |
Anti-drain Back Valve | No |
Bypass Relief Valve | No |
Filter Media Material | Cellulose/Synthetic Blend |
Brand | Fram |
Part Number | CH6012 |
