Equus 8000 Series 5-Piece Gauge Kit E8500

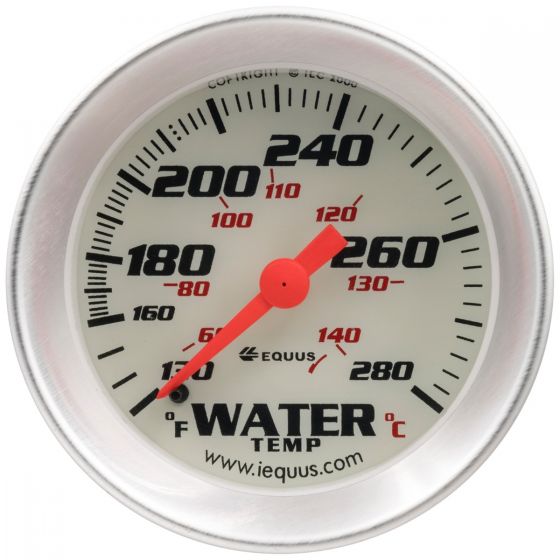

Equus Water Temperature Gauge E8242

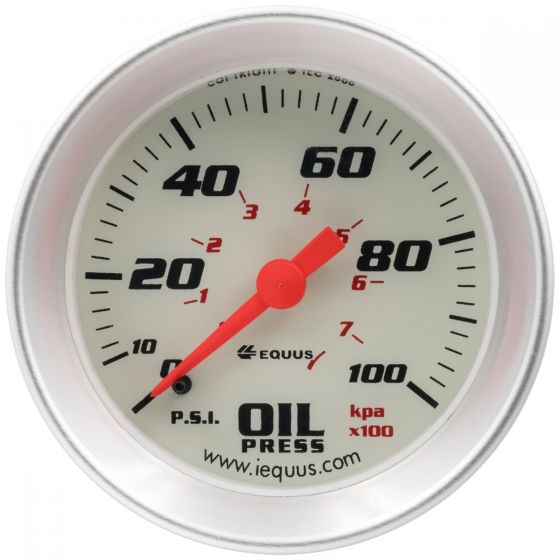

Equus Oil Pressure Gauge E8244

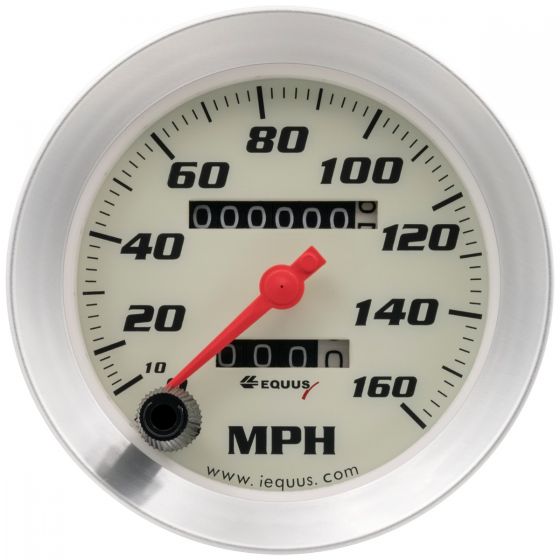

Equus Speedometer E8076

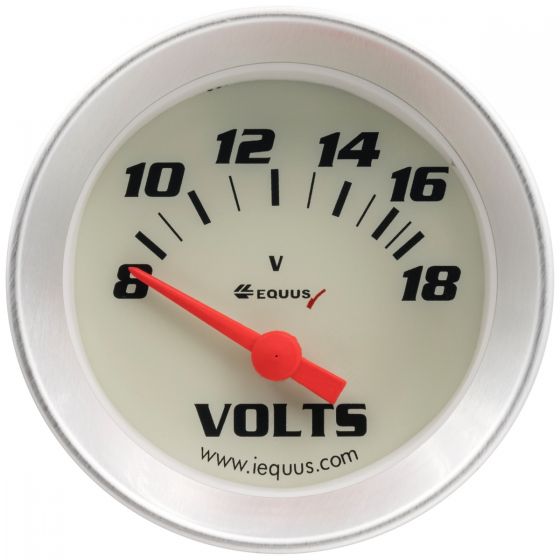

Equus Volt Meter E8268

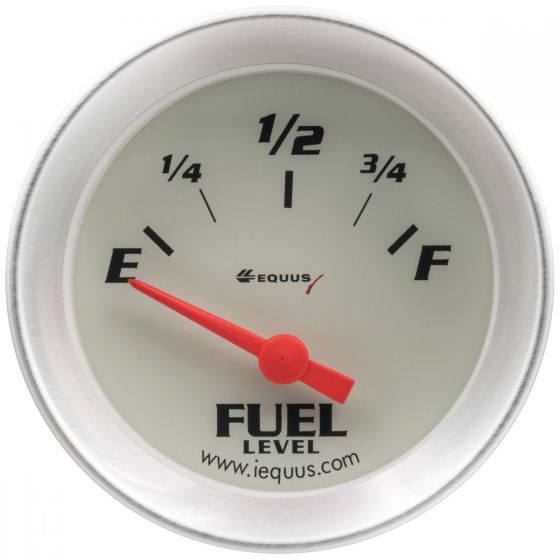

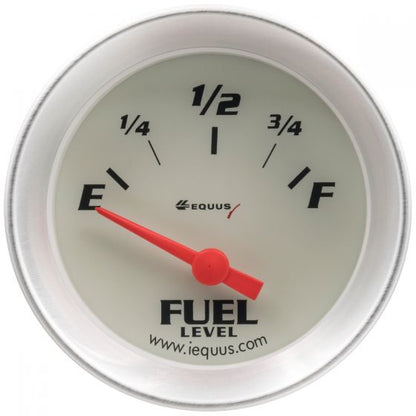

Equus Fuel Gauge E8362

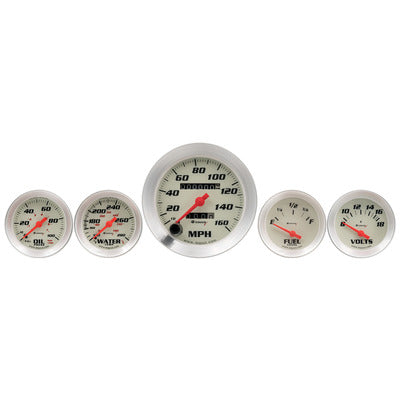

Equus 8000 Series 5-Piece Gauge Kit E8500

EQUE8500 (Not in stock)

Regular price $230.99 Sale

This accurate, durable, and simple to install iEquus 8000 Performance series 5-piece mechanical gauge set features white dial, satin silver aluminum bezel, backlit instruments using super lightweight construction and race inspired styling for monitoring speed, oil pressure, water temperature, voltage and fuel level. Installation hardware included. Additional adapters sold separately. Perfect for a variety of applications from hot rods to trucks and off road vehicles.

  • Set includes 3 3/8 inch 160 mph mechanical speedometer, 2 inch 100 PSI / 70 kPA mechanical oil pressure, 2 inch 280 degree F / 140 degree C mechanical water temperature, 2 inch 18V electric voltmeter, and 2 inch electric 0-90 ohm fuel level gauges
  • Back-Lit™ illumination for night use. Includes red, green, blue and yellow bulb covers.
  • Includes the following installation hardware: 3/8 inch and 1/2 inch NPT brass adapter fittings for temperature gauge, 6 ft nylon tubing with 1/8 compression fittings and 1/8 inch NPT female to 1/4 inch NPT male brass adapter for pressure gauge, 1/4 female spade terminals for voltmeter, and universal 5 bolt fuel level sensor which is adjustable for 5-24 inches of tank depth.
  • One million mile odometer with one thousand mile resettable trip meter
  • Configured for 1:1 Drive Ratio (1,000 cable rpm at 60 mph)
  • 5/8 x 18 male thread attachment point for 0.104" square drive speedometer cables. Additional adapters sold separately.
  • Matching tachometer is available in Equus model 8068
  • Includes installation instructions in English, French, and Spanish

Specifications

Brand Equus
Part Number E8500
Product Line
8000 Performance Series
Gauge Diameter
2 in
Gauge Face Color
White
Gauge Bezel Color
Silver
Gauge Pointer Color
Red
Fuel Level Gauge
Yes
Fuel Level Gauge Electric/Mechanical
Electric
Oil Pressure Gauge Included
Yes
Oil Pressure Gauge Electric/Mechanical
Mechanical
Water Temperature Gauge Included
Yes
Water Temperature Gauge Electric/Mechanical
Mechanical
Volt Meter Included
Yes
Speedometer Included
Yes
Speedometer Electric/Mechanical
Mechanical
Speedometer Diameter
3-3/8 in
Quantity
Kit
