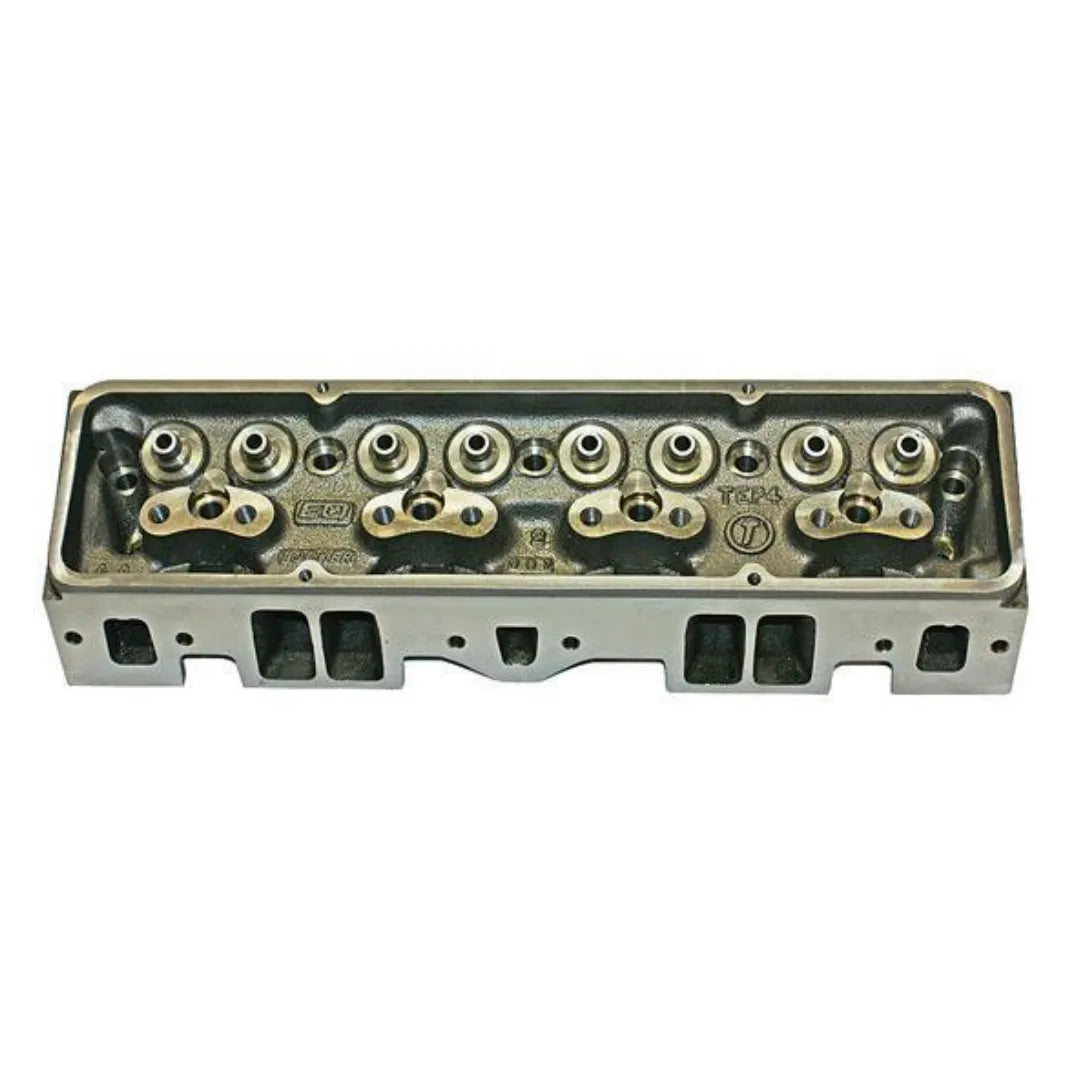

EngineQuest Cylinder Head SBC (IMCA Spec/UMP Legal)
ENQCH350I (Not in stock)EngineQuest
Regular price
$456.99
Sale
Engine Quest Vortec Bolt-On Performance for 350 CID 23°Cylinder Heads - SB Chevy IMCA-Legal Cast Iron Cylinder Head
The sole legal spec head option for small block Chevy-powered IMCA Sport Mods and Hobby Stocks. Cast iron cylinder head is a direct replacement for OEM Chevy 350 heads and includes 176cc intake ports, 76cc combustion chambers, 1.94" intake and 1.50" exhaust valves. Heads feature a superior port finish for increased air flow, redesigned water passages for improved cooling, thicker decks, and a three-angle valve job. Head is serial numbered and includes the IMCA logo. Sold individually as bare castings.
All EQ performance cylinder heads have AS-CAST combustion chambers, Dura-Bond exhaust seats, 3-angle valve job, thick deck surfaces for angle milling, phosphorus-bronze intake and exhaust guides, are machined for guide plate use, and feature raised intake runner ports for increased performance.
- IMCA Sanctioned Sport Mod Head
- SBC Cast Iron Head
- 178cc S/P 76cc
- Cylinder Head - Bare Head
- 1.940 / 1.500 in Valves
- 178 cc Intake
- 76 cc Chamber
- Straight Plug
- Iron
- Small Block Chevy
- Sold as Each
- MPN: EQ-CH350I
Specifications
|
Product Line
|
IMCA Sport Mod
|
|
Brand
|
Engine Quest
|
|
Part Number
|
EQ-CH350I / EQCH350I
|
|
Assembled/Bare
|
Bare
|
|
Chamber Volume
|
76 cc
|
|
Plug Angle
|
Straight
|
|
Intake Runner Volume
|
176 cc
|
|
Exhaust Runner Volume
|
67 cc
|
|
Intake Port Shape
|
Rectangle
|
|
Intake Port Location
|
Stock
|
|
Intake Port Height
|
2.025 in
|
|
Intake Port Width
|
1.200 in
|
|
Exhaust Port Shape
|
Square
|
|
Exhaust Port Location
|
Stock
|
|
Exhaust Port Height
|
1.350 in
|
|
Exhaust Port Width
|
1.400 in
|
|
Exhaust Port Bolt Pattern
|
Stock
|
|
Intake Valve Size
|
1.940 in
|
|
Intake Valve Included
|
No
|
|
Exhaust Valve Size
|
1.500 in
|
|
Exhaust Valve Included
|
No
|
|
Valve Spring Included
|
No
|
|
Valve Seal Included
|
No
|
|
Rocker Studs Included
|
No
|
|
Pushrod Guide Plate Included
|
No
|
|
Valve Guide Included
|
Yes
|
|
Valve Guide Material
|
Cast
|
|
Center Mount Valve Cover
|
Yes
|
|
Valve Seat Included
|
Yes
|
|
Intake Valve Seat Material
|
Ductile Iron
|
|
Exhaust Valve Seat Material
|
Ductile Iron
|
|
Valve Seat Finish
|
Machined
|
|
Combustion Chamber Finish
|
As Cast
|
|
Intake Runner Finish
|
As Cast
|
|
Exhaust Runner Finish
|
As Cast
|
|
Intake Valve Angle
|
23 Degree
|
|
Exhaust Valve Angle
|
23 Degree
|
|
Accessory Bolt Holes
|
Drilled and Tapped
|
|
Material
|
Cast Iron
|
|
Color
|
Natural
|
|
Finish
|
Natural
|
|
Quantity
|
Each
|
