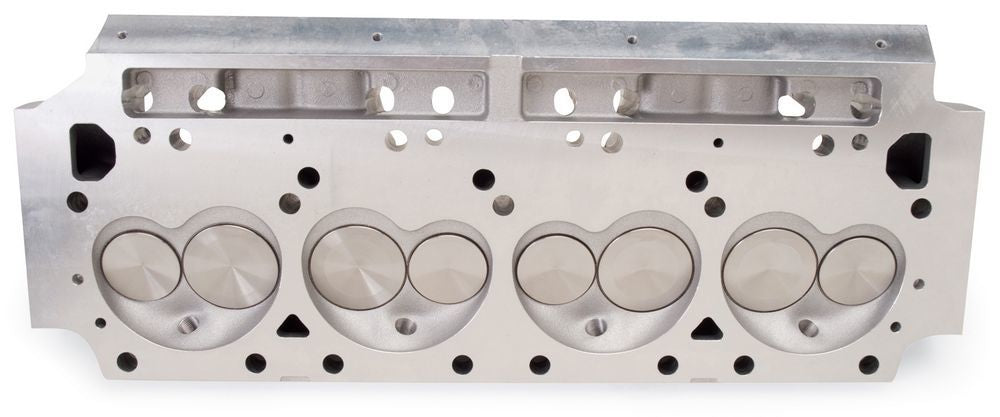

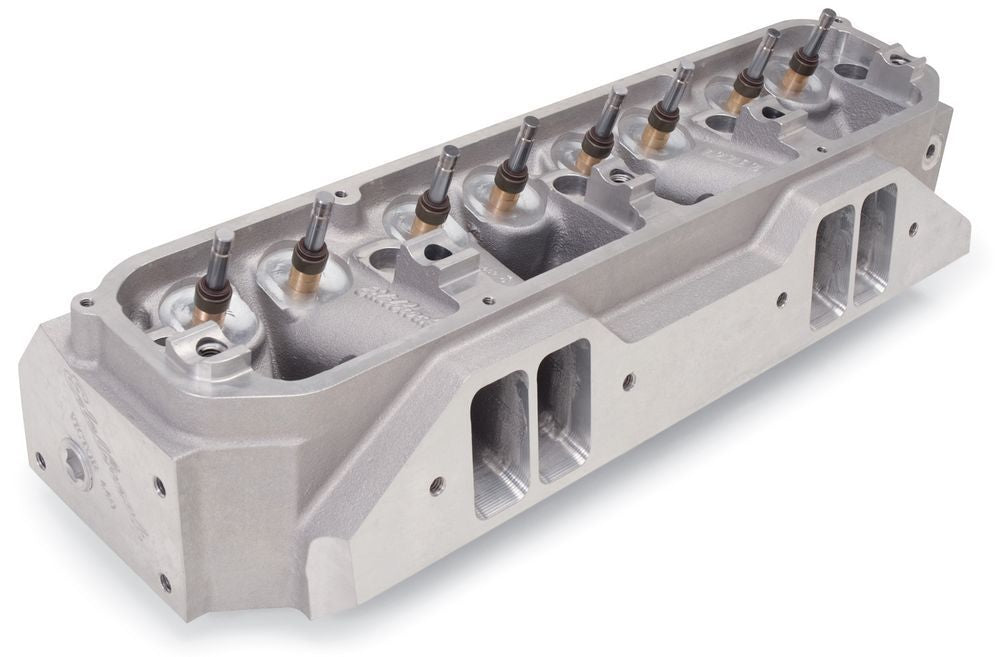

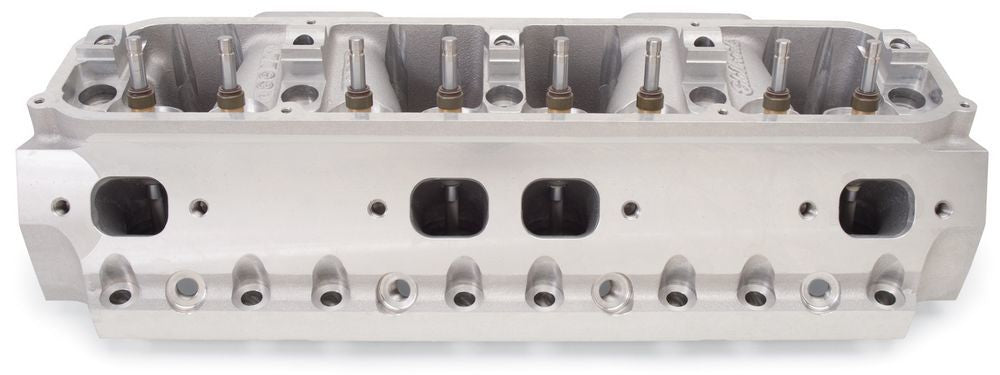

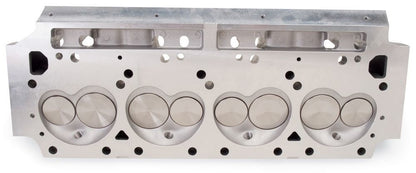

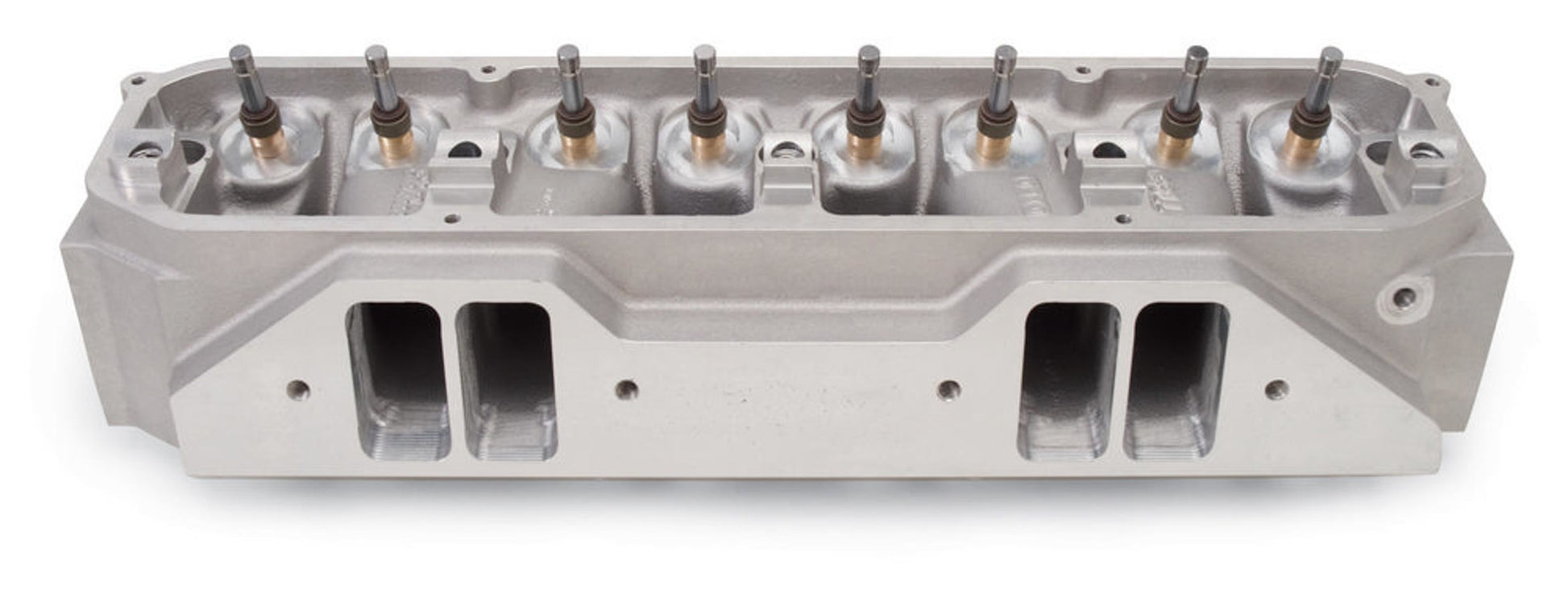

Victor Cylinder Head features .650" raised intake ports and .250" raised exhaust ports for substantially improved performance over Performer RPM heads. Offered in standard or Max Wedge versions, head is ideal for use on large-displacement, high-compression drag race engines. Head is sold individually, bare with valves.
- Bare, Max Wedge, w/Valves
- Cylinder Head
- Victor
- Bare
- 2.200 / 1.810 in Valve
- 290 cc Intake
- 72 cc Chamber
- Aluminum
- Valves
- Mopar B / RB-Series
- Sold as Each
- Brand: Edelbrock
- Part Number: 77949
Specifications
|
Brand
|
Edelbrock
|
|
Part Number
|
77949
|
|
Product Line
|
Victor
|
|
Assembled/Bare
|
Bare
|
|
Chamber Volume
|
72 cc
|
|
Plug Angle
|
Angle
|
|
Intake Runner Volume
|
290 cc
|
|
Exhaust Runner Volume
|
100 cc
|
|
Intake Port Shape
|
Rectangle
|
|
Intake Port Location
|
Stock
|
|
Exhaust Port Shape
|
Square
|
|
Exhaust Port Location
|
Stock
|
|
Exhaust Port Bolt Pattern
|
Stock
|
|
Intake Valve Size
|
2.200 in
|
|
Intake Valve Included
|
Yes
|
|
Intake Valve Material
|
Stainless
|
|
Exhaust Valve Size
|
1.810 in
|
|
Exhaust Valve Included
|
Yes
|
|
Exhaust Valve Material
|
Stainless
|
|
Valve Spring Included
|
No
|
|
Valve Seal Included
|
No
|
|
Rocker Studs Included
|
No
|
|
Pushrod Guide Plate Included
|
No
|
|
Valve Guide Included
|
Yes
|
|
Valve Guide Material
|
Bronze
|
|
Perimeter Mount Valve Cover
|
Yes
|
|
Valve Seat Included
|
Yes
|
|
Intake Valve Seat Material
|
Ductile Iron
|
|
Exhaust Valve Seat Material
|
Ductile Iron
|
|
Valve Seat Finish
|
Machined
|
|
Combustion Chamber Finish
|
As Cast
|
|
Intake Runner Finish
|
As Cast
|
|
Exhaust Runner Finish
|
As Cast
|
|
Intake Valve Angle
|
15 Degree
|
|
Exhaust Valve Angle
|
15 Degree
|
|
Accessory Bolt Holes
|
Drilled and Tapped
|
|
Material
|
Aluminum
|
|
Color
|
Natural
|
|
Finish
|
Natural
|
|
Quantity
|
Each
|
