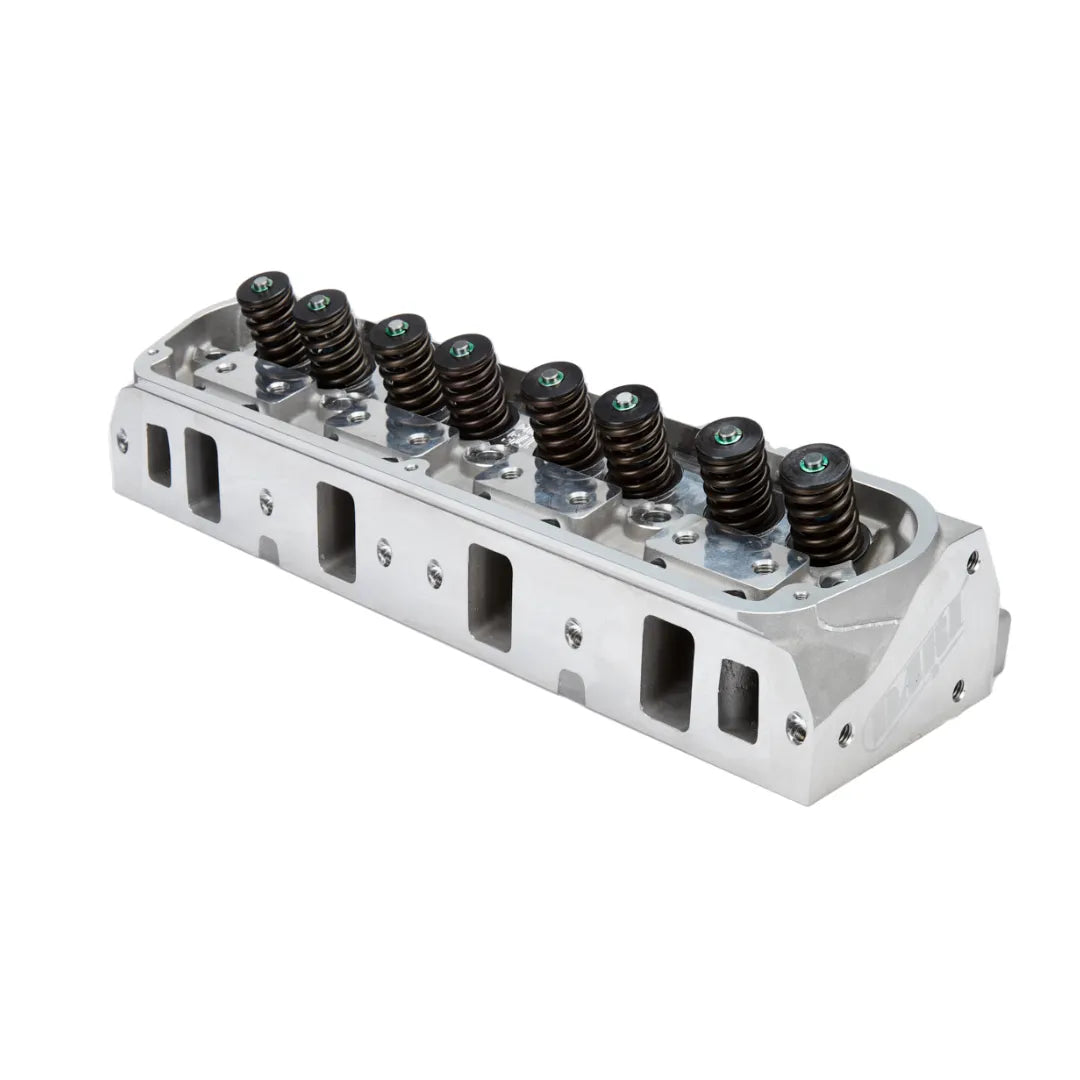

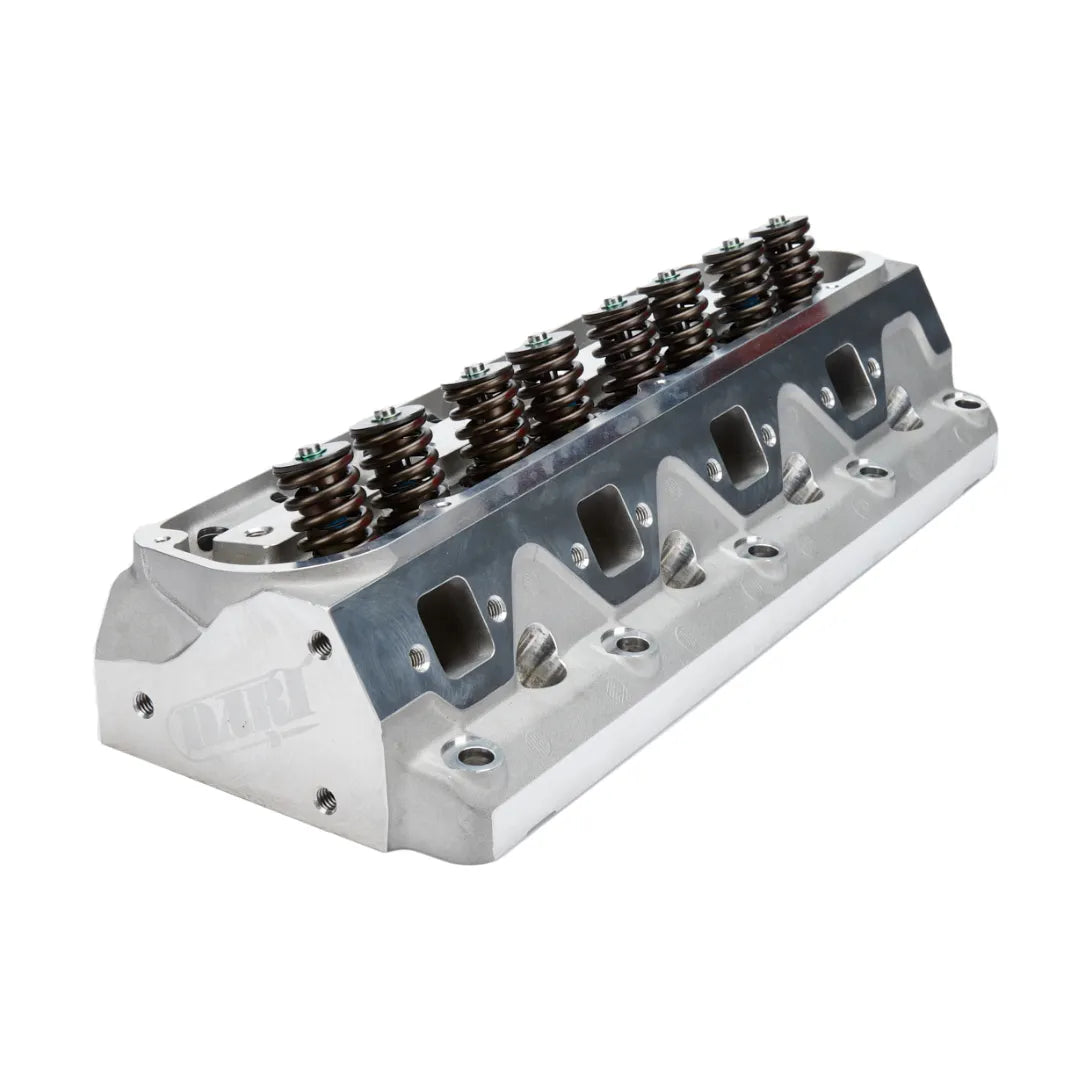

Dart SBF SHP Cylinder Head 128121 - 175cc/58cc (Assembled)
Dart SBF SHP Cylinder Head 128121 - 175cc/58cc (Assembled)
Regular price
$599.99 USD
Regular price
Sale price
$599.99 USD
Unit price
/
per
SKU:DRT128121
Out of stock
Couldn't load pickup availability
SHP Cylinder Head for SB Ford (175cc/58cc - Assembled)
Affordable, aluminum cylinder heads for small block Fords feature stock intake port location and .135" raised exhaust ports for improved flow. Cylinder heads are offered with 175cc or 205cc intake runners with 58cc or 62cc combustion chambers. Engineered for use with 3/8" or 7/16" stud mount rockers, heads are sold individually, bare or completely assembled.
Cylinder Head, SHP, 2.020 in / 1.600 in Valve, 175 cc Intake, 58 cc Chamber, 1.250 in Springs, Angle Plug, Aluminum, Small Block Ford
|
Brand
|
Dart
|
|
Part Number
|
128121
|
|
Product Line
|
SHP
|
|
Assembled/Bare
|
Assembled
|
|
Chamber Volume
|
58 cc
|
|
Plug Angle
|
Angle
|
|
Intake Runner Volume
|
175 cc
|
|
Intake Port Shape
|
Rectangle
|
|
Intake Port Location
|
Stock
|
|
Intake Port Height
|
1.936 in
|
|
Intake Port Width
|
1.125 in
|
|
Exhaust Port Shape
|
Square
|
|
Exhaust Port Location
|
Stock
|
|
Exhaust Port Height
|
1.270 in
|
|
Exhaust Port Width
|
1.270 in
|
|
Intake Valve Size
|
2.020 in
|
|
Intake Valve Included
|
Yes
|
|
Intake Valve Material
|
Stainless
|
|
Intake Valve Length
|
4.890 in
|
|
Exhaust Valve Size
|
1.600 in
|
|
Exhaust Valve Included
|
Yes
|
|
Exhaust Valve Material
|
Stainless
|
|
Exhaust Valve Length
|
4.890 in
|
|
Valve Spring Included
|
Yes
|
|
Valve Spring Diameter
|
1.250 in
|
|
Valve Spring Number
|
Single
|
|
Valve Spring Damper
|
No
|
|
Valve Spring Retainers Included
|
Yes
|
|
Valve Spring Retainer Material
|
Steel
|
|
Valve Locks Included
|
Yes
|
|
Valve Lock Material
|
Steel
|
|
Valve Seal Included
|
Yes
|
|
Valve Seal Style
|
Positive Stop
|
|
Rocker Studs Included
|
Yes
|
|
Rocker Stud Size
|
3/8-24 in
|
|
Pushrod Guide Plate Included
|
Yes
|
|
Guide Plate Pushrod Size
|
5/16 in
|
|
Valve Guide Included
|
Yes
|
|
Valve Guide Material
|
Bronze
|
|
Perimeter Mount Valve Cover
|
Yes
|
|
Valve Seat Included
|
Yes
|
|
Intake Valve Seat Material
|
Powdered Metal
|
|
Exhaust Valve Seat Material
|
Powdered Metal
|
|
Valve Seat Finish
|
Machined
|
|
Combustion Chamber Finish
|
As Cast
|
|
Intake Runner Finish
|
As Cast
|
|
Exhaust Runner Finish
|
As Cast
|
|
Accessory Bolt Holes
|
Drilled and Tapped
|
|
Material
|
Aluminum
|
|
Logo
|
Dart
|
|
Color
|
Natural
|
|
Finish
|
Natural
|
|
Quantity
|
Each
|
