DMI 4.86 Mod Rear w/GN Tubes Billet Hubs & Rotors
DMI 4.86 Mod Rear w/GN Tubes Billet Hubs & Rotors
SKU:DMI4.86MODPKG4
Inventory: 3 in stock
Couldn't load pickup availability

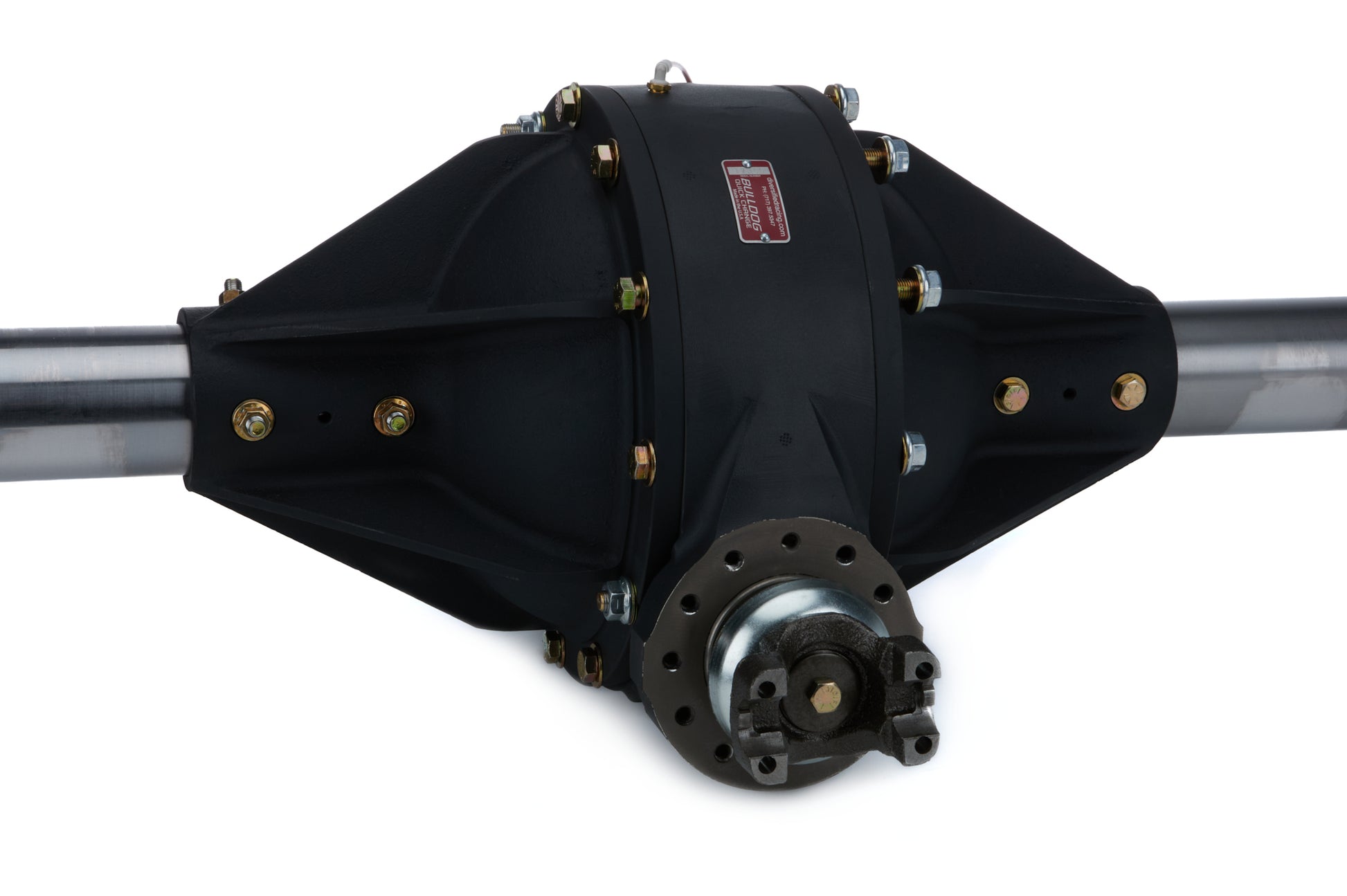

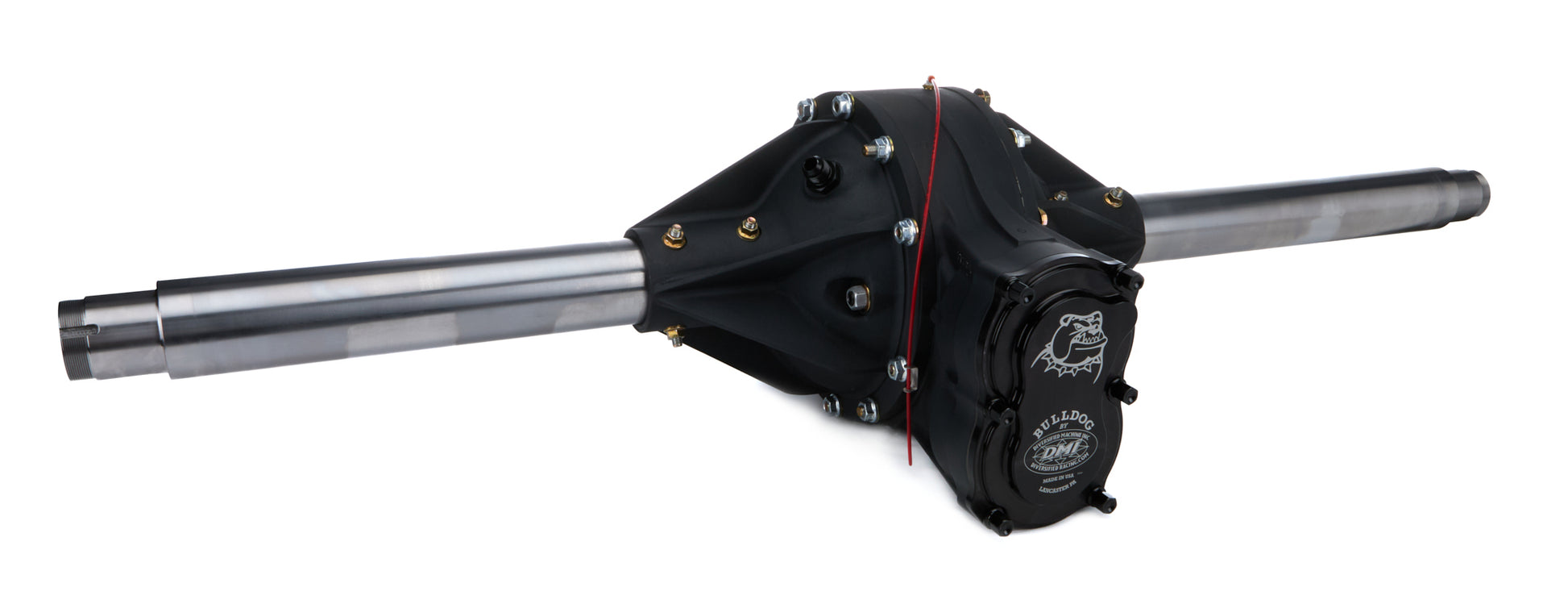

CT-1 Professional Series Quick-Change Rear
The Professional Series rears include many of the same components as the Saturday Night Special with the addition of many performance and durability enhancing features. Quick changes include a black thermal coating, REM-finished ring and pinion, gun-drilled lower shaft, low-drag seals, Ultralight aluminum spool, Pro Glide treated bearings, and includes 5 quarts of Bulldog Blood gear oil. 60" hub to hub width.

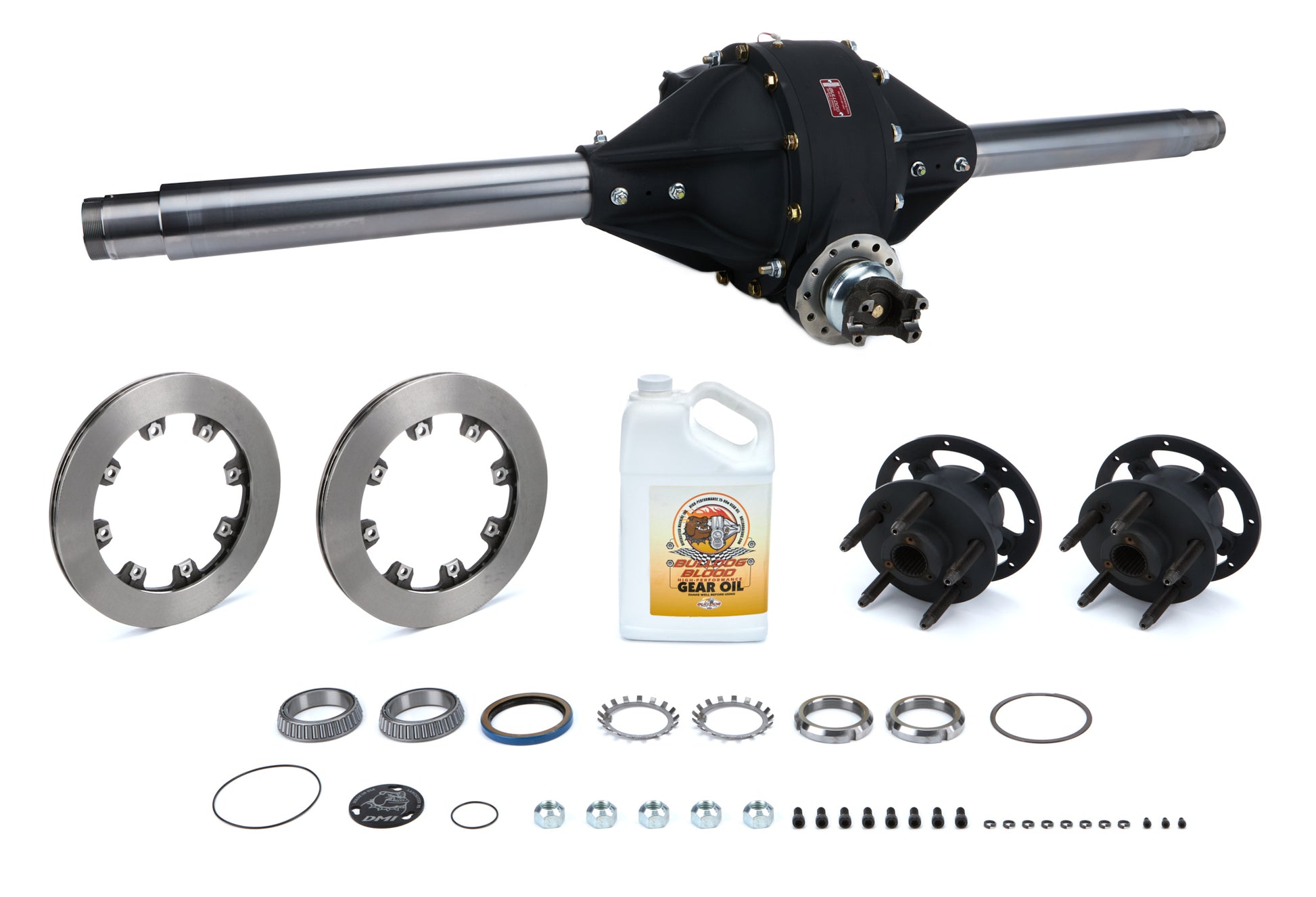

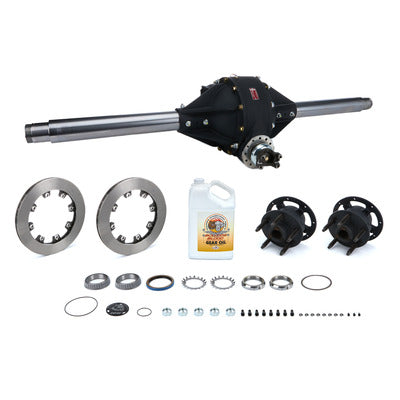

- Quick Change Rear with 4.86 Ring & Pinion
- Rear with Tubes, Hubs, Rotors, and Hollow Axles
Rear Axle Assembly - Pro Series - 10 in Ring Gear - 4.86 Ratio Standard - Hubs / Rotors - 60 in Wide - Magnesium Center - Kit - Brand: Diversified Machine (DMI) - Part Number: 4.86MODPKG4
Ships via Truck Freight Only (additional shipping charges will apply)
|
Brand
|
Diversified Machine (DMI)
|
|
Part Number
|
4.86MODPKG4
|
|
Product Line
|
Pro Series
|
|
Overall Width
|
60 in
|
|
Tubes Included
|
Yes
|
|
Tube Diameter
|
2-1/2 in
|
|
Tube 1 Length
|
19.25 in
|
|
Tube 2 Length
|
19.25 in
|
|
Tube Material
|
Steel
|
|
Tube Color
|
Polished
|
|
Tube Finish
|
Polished
|
|
Axles Included
|
Yes
|
|
Axles Gundrilled / Solid
|
Gundrilled
|
|
Axle 1 Length
|
30.5 in
|
|
Axle 2 Length
|
31.5 in
|
|
Ring Gear Diameter
|
10 in
|
|
Ring And Pinion Included
|
Yes
|
|
Ring and Pinion Ratio
|
4.86
|
|
Wheel Studs Included
|
Yes
|
|
Wheel Stud Thread
|
5/8-11 in
|
|
Hubs Included
|
Yes
|
|
Hub Material
|
Billet Steel
|
|
Hub Style
|
5x5
|
|
Races Included
|
Yes
|
|
O-Rings Included
|
Yes
|
|
Dust Cap Included
|
Yes
|
|
Bearings Included
|
Yes
|
|
Seals Included
|
Yes
|
|
Brake Rotors Included
|
Yes
|
|
Brake Rotor Diameter
|
11.750 in
|
|
Brake Rotor Thickness
|
0.810 in
|
|
Fill Hole
|
Yes
|
|
Fill Hole Thread
|
10 AN
|
|
Drain Hole
|
Yes
|
|
Vent
|
Yes
|
|
Gear Oil Included
|
Yes
|
|
Gear Oil Product Line
|
Bulldog Blood
|
|
Gear Oil Type
|
Synthetic
|
|
Gear Oil Weight
|
75W-90
|
|
Gear Oil Volume
|
1 gal
|
|
Gear Oil Quantity
|
Each
|
|
Hardware Included
|
Yes
|
|
Thermal Coated
|
Yes
|
|
Material
|
Magnesium
|
|
Color
|
Black
|
|
Finish
|
Natural
|
|
Quantity
|
Kit
|
