Derale Premium Remote TransmissIon Filter Kit

Single Mount 3/8" NPT Ports Up Remote Transmission Filter Kit, Premium

The Derale universal remote transmission filter kit enables quick and efficient filter changes and filters out contaminants that pass through OE-screen type filters. This premium version also includes Derale's temperature gauge package with sending unit, mounting brackets and hardware. The increased fluid capacity also cools fluid temperatures helping to extend the life of the transmission.

• Extends life of transmission
• Filters out contaminants more efficiently than OE screen type filters
• Universal - fits all automatic transmissions
• Increases fluid capacity

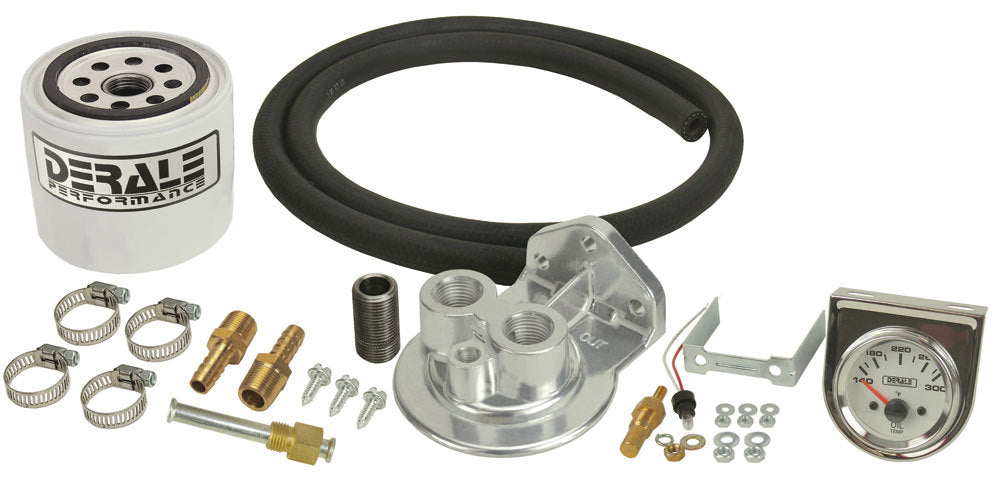

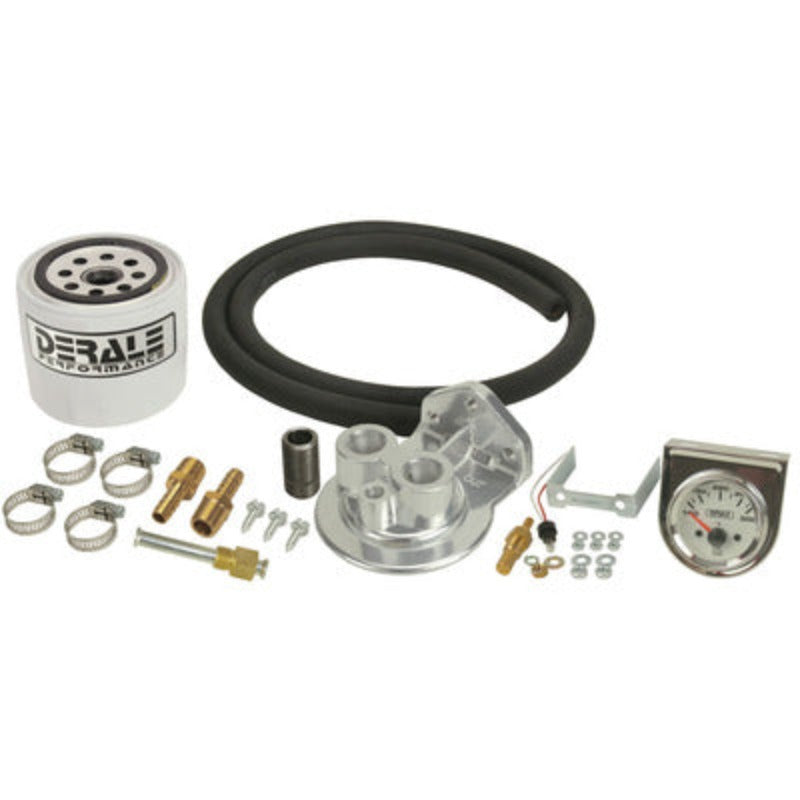

• Premium kit includes all remote filter mount, premium gauge kit, 4' hose, filter and mounting hardware
• Specifications
• Filter Nominal Micron Rating: 21
• By-Pass Valve Setting-PSI: 8-11
• Anti-Drain Back Valve: Yes
• Burst Pressure-PSI: 340
• Max Flow Rate: 7-9 GPM
• Filter Dimensions: 3-1/2" OD x 3-7/8"
• Filter thread size: 3/4"-16
• Filter landing: 2-1/2" to 3-1/2"
• Inlet size: 3/8" NPT
• Barb size: 3/8"
• Hose size: 3/8"
• Hose length: 4'
• Gauge temperature range: 140-300°F
• Gauge size: 2-1/16"
• Sending unit thread size: 1/8" NPT
• Part Number: 13091

Remote Transmission Filter Kit - Fittings / Filter / Filter Mount / Gauge / Hardware / Hose - Universal - Kit.
