Dart
Dart SB Chevy SHP Iron Block 31162211 - 9.025 4.125/400
Dart SB Chevy SHP Iron Block 31162211 - 9.025 4.125/400
Regular price
$2,299.99 USD
Regular price
Sale price
$2,299.99 USD
Unit price
per
SKU:DRT31162211
Out of stock
Couldn't load pickup availability

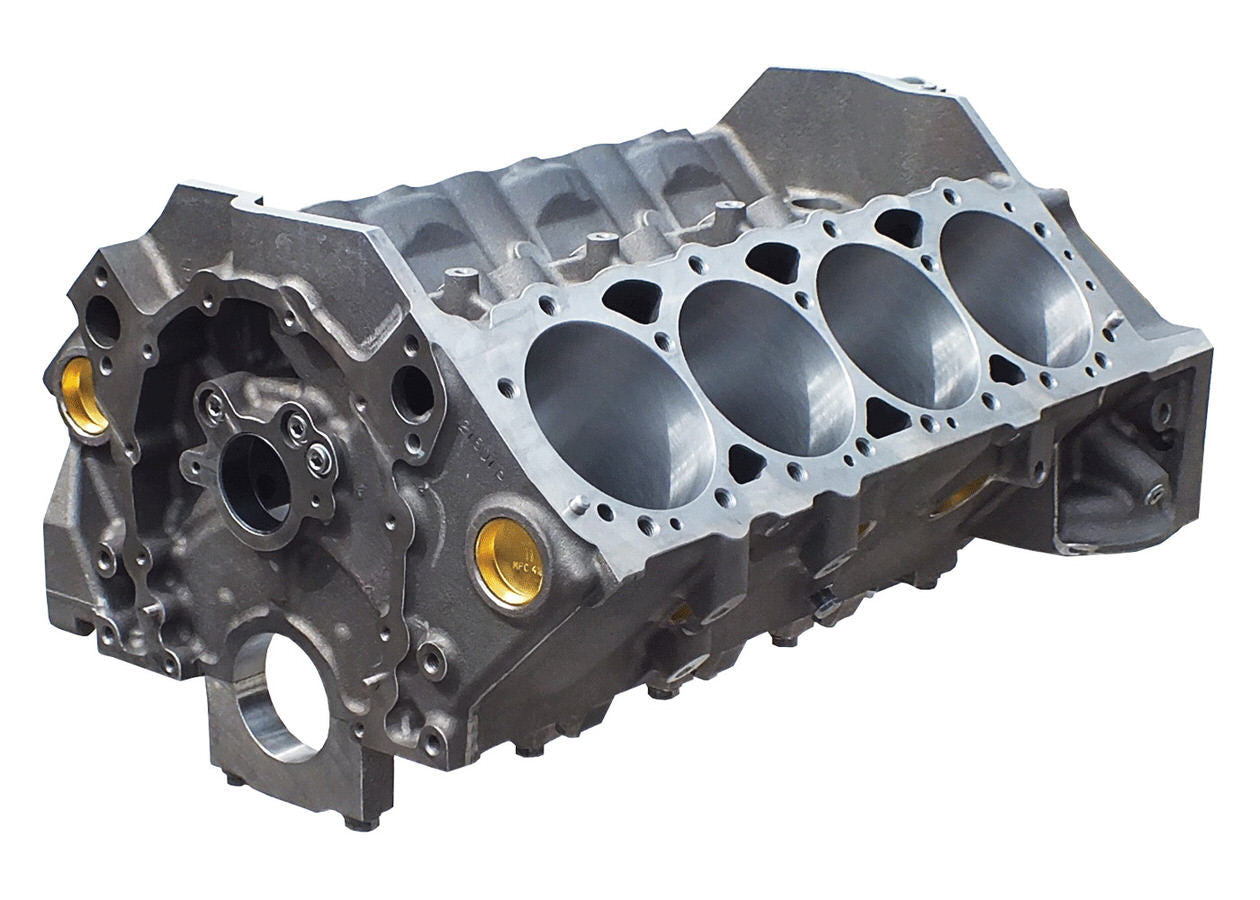

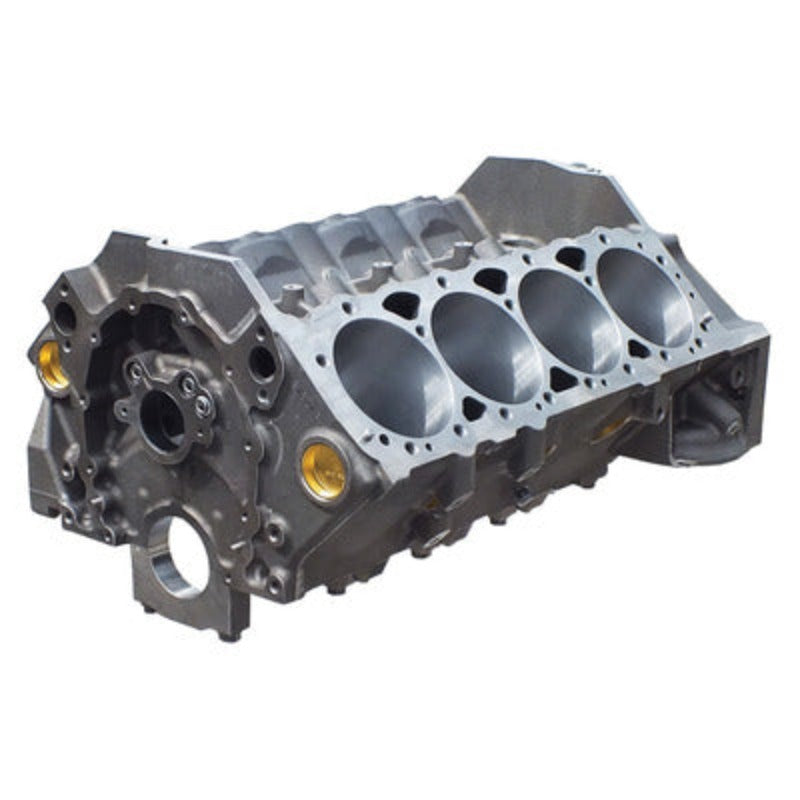

All new “SHP” (Special High Performance) cast iron blocks are affordable, durable and precisely machined. Capable of handling up to 600 horsepower, heavy-duty blocks have 5/8" thick decks, .230" minimum wall thickness cylinder walls, stock 9.025" deck height, ductile iron main caps, and full compatibility with most standard OEM components. This block has a 4.125" cylinder bore.
- Engine - SHP - Bare Block - 4.125 in Bore - 9.025 Deck - 400 Main - 4-Bolt Mains - 2 Piece Seal - Iron - Small Block Chevy
- Sold as Each
- MPN: 31162211
Technical Data Sheet for Dart SBC Block 31162211
Oversized
Air Restricted
Ships via Truck Freight only (additional shipping charges apply; see our Truck Freight policy for additional information)
| Brand | Dart |
| Part Number | 31162211 |
|
Product Line
|
SHP
|
|
Cylinder Bore
|
4.125 in
|
|
Cylinder Bore as Shipped
|
4.115 in
|
|
Intended Minimum Finish Bore
|
4.125 in
|
|
Intended Maximum Finish Bore
|
4.165 in
|
|
Maximum Stroke
|
4.000 in
|
|
Deck Height
|
9.025 in
|
|
1-Piece / 2-Piece Rear Main Seal
|
2 Piece
|
|
4 Bolt / 2 Bolt Mains
|
4 Bolt
|
|
Raised Cam Location
|
No
|
|
Main Caps Included
|
Yes
|
|
Main Cap Material
|
Ductile Iron
|
|
Main Style
|
400 Main
|
|
Main Bearing Diameter
|
2.650 in
|
|
Main Cap Fasteners Included
|
Yes
|
|
Cam Journal Diameter
|
2.000 in
|
|
Cam Bearings Included
|
No
|
|
Mechanical Fuel Pump Provision
|
Yes
|
|
Lifter Bore Diameter
|
0.847 in
|
|
Wet Sump / Dry Sump
|
Wet Sump
|
|
Freeze Plugs Included
|
No
|
|
Cam Plug Diameter
|
2.106 in
|
|
Oil Filter Provision
|
Yes
|
|
Material
|
Cast Iron
|
|
Color
|
Natural
|
|
Finish
|
Natural
|
|
Quantity
|
Each
|
