Dana Spicer 2019752 Ring & Pinion - JK Dana 44 Front 5.13
DAN2019752 (2 in stock)Dana - Spicer
Regular price
$529.99
Sale
DescriptionSpecifications
Fitment

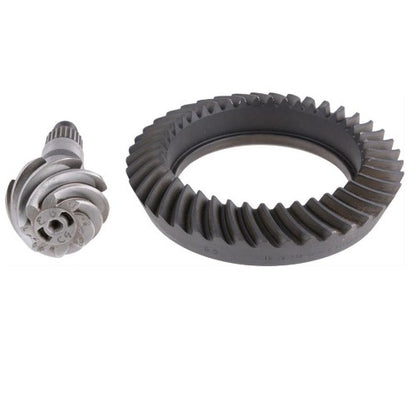

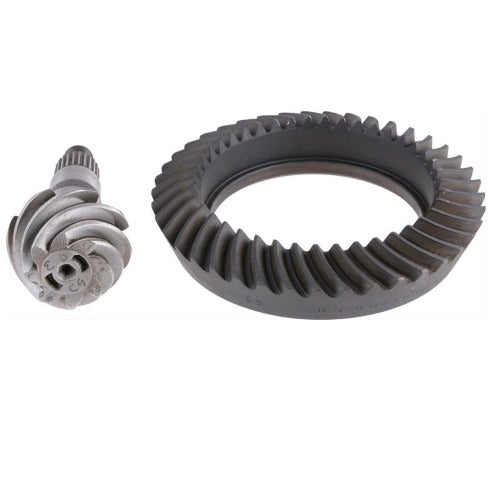

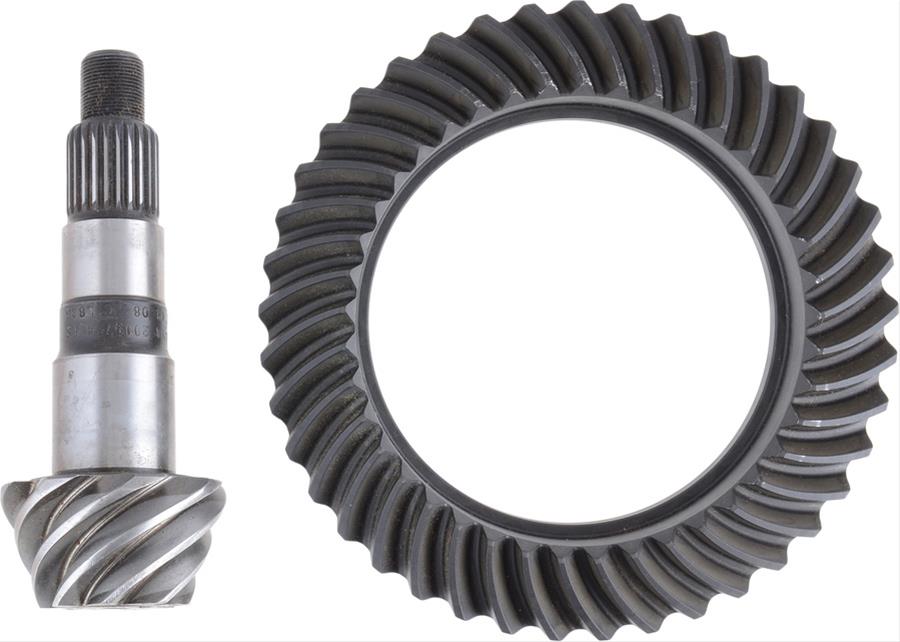

Differential Ring and Pinion - Dana 44 5.13 Ratio
All Spicer ring and pinion gears are designed and tested to meet original equipment specifications. When you purchase genuine Spicer ring and pinion gear sets, you can be confident the ring and pinion set will meet or exceed the exact Dana standards that original equipment manufacturers have relied upon for more than a hundred years.
- Ring and Pinion - Performance - 5.13 Ratio - 24 Spline Pinion - Front - Dana 44 - Kit - MPN: 2019752
| Brand | Spicer |
| Part Number | 2019752 |
| Axle Model | DANA 44 |
| Gear Ratio | 5.13 |
| Ring Teeth Count | 41 |
| Pinion Gear Tooth Quantity | 8 |
| Ring Gear Diameter (In.) | 8.500 |
| Carrier Breaks | 3.92 and up |
| Ring Gear Bolt Qty | 10 |
| Ring Gear Rotation | Reverse |
| On Vehicle Location | Front |
| Ring Gear Bolt Thread In. | .437-20 |
| Cover Bolt Quantity | 10 |
| Pinion Shaft Diameter | 1.635 |
| Pinion Spline Count | 24 |
| Include Installation Kit | N |
| Pinion Gear Included | Y |
| Ring Gear Included | Y |
| New Or Remanufactured | New |
| Pinion Nut Included | N |
| Package Type | Each |
| Package Qty | 1 |
| Weight | 13.4 lb |
| Country of Origin | United States |
| California Residents | Proposition 65 warning |
| Year | Make | Model | Location | Fitment Notes |
|---|---|---|---|---|
| 2007 | Jeep | Wrangler | Front | with Dana 44 Front Axle; JK with Ultimate Dana 44; with 5.13 Gear Ratio |
| 2008 | Jeep | Wrangler | Front | with Dana 44 Front Axle; JK with Ultimate Dana 44; with 5.13 Gear Ratio |
| 2009 | Jeep | Wrangler | Front | with Dana 44 Front Axle; JK with Ultimate Dana 44; with 5.13 Gear Ratio |
| 2010 | Jeep | Wrangler | Front | with Dana 44 Front Axle; JK with Ultimate Dana 44; with 5.13 Gear Ratio |
| 2011 | Jeep | Wrangler | Front | with Dana 44 Front Axle; JK with Ultimate Dana 44; with 5.13 Gear Ratio |
| 2012 | Jeep | Wrangler | Front | with Dana 44 Front Axle; JK with Ultimate Dana 44; with 5.13 Gear Ratio |
| 2013 | Jeep | Wrangler | Front | JK; with Ultimate Dana 44 Axle; with 5.13 Gear Ratio |
| 2013 | Jeep | Wrangler | Front | with Dana 44 Axle; with 5.13 Gear Ratio |
| 2014 | Jeep | Wrangler | Front | JK; with Ultimate Dana 44 Axle; with 5.13 Gear Ratio |
| 2014 | Jeep | Wrangler | Front | with Dana 44 Axle; with 5.13 Gear Ratio |
| Year | Make | Model | Location | Fitment Notes |
|---|---|---|---|---|
| 2015 | Jeep | Wrangler | Front | JK; with Ultimate Dana 44 Axle; with 5.13 Gear Ratio |
| 2015 | Jeep | Wrangler | Front | with Dana 44 Axle; with 5.13 Gear Ratio |
| 2016 | Jeep | Wrangler | Front | JK; with Ultimate Dana 44 Axle; with 5.13 Gear Ratio |
| 2016 | Jeep | Wrangler | Front | with Dana 44 Axle; with 5.13 Gear Ratio |
| 2017 | Jeep | Wrangler | Front | JK; with Ultimate Dana 44 Axle; with 5.13 Gear Ratio |
| 2017 | Jeep | Wrangler | Front | with Dana 44 Axle; with 5.13 Axle |
| 2018 | Jeep | Wrangler JK | Front | with Ultimate Dana 44 Axle; with 5.13 Gear Ratio |
| 2018 | Jeep | Wrangler JK | Front | with Dana 44 Axle; with 5.13 Gear Ratio |
