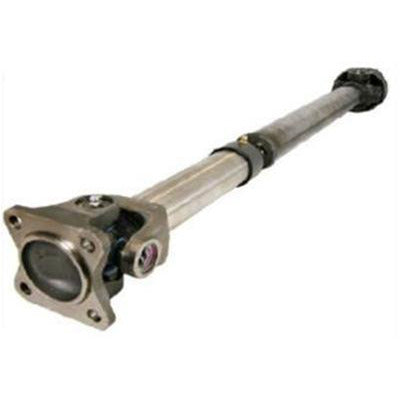

Dana-Spicer Driveshaft Assembly Kit 10020345 - Jeep Wrangler JK
DAN10020345 (Not in stock)Dana - Spicer
Regular price
$544.99
Sale
Drive Shaft Assembly Kit - Jeep Wrangler JK Dana 30/44 Front, Wrangler JL/Gladiator JT Dana 30/44 AdvanTEK Front - 1310 Series
Wherever limits are pushed, Dana is there. Spicer performance driveshafts for the Jeep Gladiator have been specifically designed off road punishment. Fitting Gladiators with 0 to 6 inch lifts these shafts yield better balance, greater strength and less vibration than other aftermarket alternatives. Features 50% thicker tubing for added strength and small diameter design to eliminate exhaust clearance issues on lifted vehicles. We engineer our parts to deliver peak performance and optimum strength so you can hit the road, the track, or the trail with confidence that comes from knowing you are backed by the industry leader in driveline technology.
- Drive Shaft
- Spicer
- 35.945 in Long
- 2 in OD
- 1310 U-Joints
- Chromoly
- Jeep Wrangler 2007-20
- Sold as each
Specifications
| Brand | Spicer |
| Part Number | 10020345 |
| Series | 1310 |
| Material | Steel |
| Tube Size (Mm) | 50.7 X 3.04 |
| Tube Size (In) | 2 X .120 |
| Slip (Mm) | 115 |
| Slip (In) | 4.527 |
| Cl Yoke To Cl Yoke(MM) - COLL. | 913 |
| Cl Yoke To Cl Yoke(IN) - COLL. | 35.945 |
| Note | Transfercase Double Cardan Yoke Included |
| VMRS | 024000000 |
| Package Type | Each |
| Package Qty | 1 |
| Weight | 28 lb |
| Country of Origin | United States |
Fitment
| Year | Make | Model | Location | Fitment Notes |
| 2007 | Jeep | Wrangler | Front | with Dana 1310 Series Drive Shaft; Used with 2in to 4in Lift; with Transfer Case Yoke Conversion Included |
| 2008 | Jeep | Wrangler | Front | with Dana 1310 Series Drive Shaft; Used with 2in to 4in Lift; with Transfer Case Yoke Conversion Included |
| 2009 | Jeep | Wrangler | Front | with Dana 1310 Series Drive Shaft; Used with 2in to 4in Lift; with Transfer Case Yoke Conversion Included |
| 2010 | Jeep | Wrangler | Front | with Dana 1310 Series Drive Shaft; Used with 2in to 4in Lift; with Transfer Case Yoke Conversion Included |
| 2011 | Jeep | Wrangler | Front | with Dana 1310 Series Drive Shaft; Used with 2in to 4in Lift; with Transfer Case Yoke Conversion Included |
| 2012 | Jeep | Wrangler | Front | with Dana 1310 Series Drive Shaft; Used with 2in to 4in Lift; with Transfer Case Yoke Conversion Included |
| 2013 | Jeep | Wrangler | Front | with Dana 1310 Series Drive Shaft; Used with 2in to 4in Lift; with Transfer Case Yoke Conversion Included |
| 2014 | Jeep | Wrangler | Front | with Dana 1310 Series Drive Shaft; Used with 2in to 4in Lift; with Transfer Case Yoke Conversion Included |
| 2015 | Jeep | Wrangler | Front | with Dana 1310 Series Drive Shaft; Used with 2in to 4in Lift; with Transfer Case Yoke Conversion Included |
| 2016 | Jeep | Wrangler | Front | with Dana 1310 Series Drive Shaft; Used with 2in to 4in Lift; with Transfer Case Yoke Conversion Included |
| 2017 | Jeep | Wrangler | Front | with Dana 1310 Series Drive Shaft; Used with 2in to 4in Lift; with Transfer Case Yoke Conversion Included |
| 2018 | Jeep | Wrangler |
Front | with Dana 1310 Series Drive Shaft; Used with 2in to 4in Lift; with Transfer Case Yoke Conversion Included |
| 2018 | Jeep | Wrangler JK | Front | with Dana 1310 Series Drive Shaft; Used with 2in to 4in Lift; with Transfer Case Yoke Conversion Included |
| 2019 | Jeep | Wrangler | Front | with Dana 1310 Series Drive Shaft; Used with 2in to 4in Lift; with Transfer Case Yoke Conversion Included |
| 2020 | Jeep | Wrangler | Front | with Dana 1310 Series Drive Shaft; Used with 2in to 4in Lift; with Transfer Case Yoke Conversion Included |
