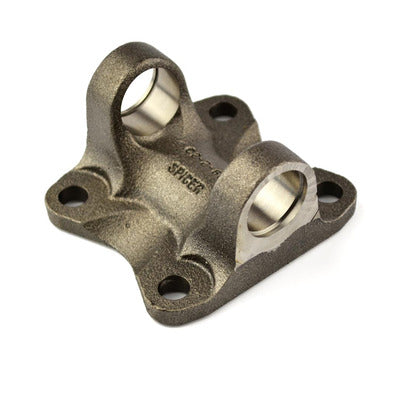

Dana Driveshaft Flange Yoke 3.75 Diameter 2-2-479

Dana Spicer 2-2-479 Driveshaft Flange Yoke

DAN2-2-479 (6 in stock)

Dana - Spicer

Regular price $29.99 Sale

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.

  • Driveshaft Flange Yoke:  1310 Series
  • 3.750 inch Diameter
  • MPN:  2-2-479

Specifications

Brand Spicer
Part Number 2-2-479
Series 1310
Flange Or Swing Dia. In. (A) 4.625
Bolt Circle Dia. In. (B) 3.750
Bolt Hole Dia. In (B) .438 - Drilled
Number Of Bolt Holes 4
Pilot Dia. M=Male F=Female (C) 2.750 - Male
Flange Face To C/L In. (G) 1.375
Material Steel
Outside Yoke Dimension In.(E) 3.469
Yoke Bearing Dimension In. (D) 1.062
Design Rectangular
Joint Angle #1 2
VMRS 024002016
Package Type Each
Package Qty 1
Weight 1.46 lb
Country of Origin Mexico
