Dana - Spicer

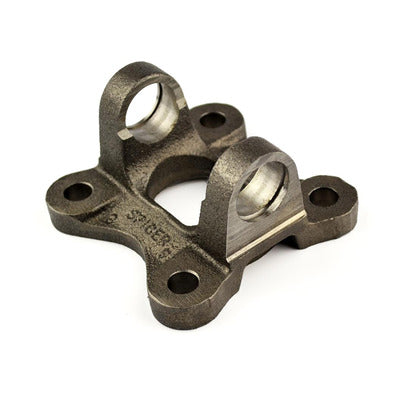

Dana Spicer 2-2-1379 Driveshaft Flange Yoke 5.219 in Diameter
Dana Spicer 2-2-1379 Driveshaft Flange Yoke 5.219 in Diameter
Regular price
$72.59 USD
Regular price
Sale price
$72.59 USD
Unit price
/
per
SKU:DAN2-2-1379
Inventory: 2 in stock
Couldn't load pickup availability
Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.
- Drive Shaft Flange Yoke: 1310 Series
- 5.219 inch Diameter
- MPN: 2-2-1379
| Brand | Spicer |
| Part Number | 2-2-1379 |
| Series | 1310 |
| Flange Or Swing Dia. In. (A) | 5.219 |
| Bolt Circle Dia. In. (B) | 4.250 |
| Bolt Hole Dia. In (B) | .484 - Drilled |
| Number Of Bolt Holes | 4 |
| Pilot Dia. M=Male F=Female (C) | 2.000 - Female |
| Flange Face To C/L In. (G) | 1.625 |
| Material | Steel |
| Outside Yoke Dimension In.(E) | 3.469 |
| Yoke Bearing Dimension In. (D) | 1.062 |
| Design | Rectangular |
| Joint Angle #1 | 19 |
| VMRS | 024002016 |
| Package Type | Each |
| Package Qty | 1 |
| Weight | 1.85 lb |
| Country of Origin | Mexico |
