Currie Enterprises 32in Cut to Fit Axle w/Seal Retainer Studs

Currie Enterprises Cut-to-Fit Axle 32in w/Seal Retainer Studs

CUECE-CTFLB32 (2 in stock)

Regular price $289.99 Sale

Currie Cut-To-Fit axles for large bearing housing ends allow you to attain the axle length needed and still have adequate spline engagement into your 3rd member. These 9 in. axles are available in four different lengths. They all feature a 4 in. spline length in which up to 3 in. of the spline length may be cut off.

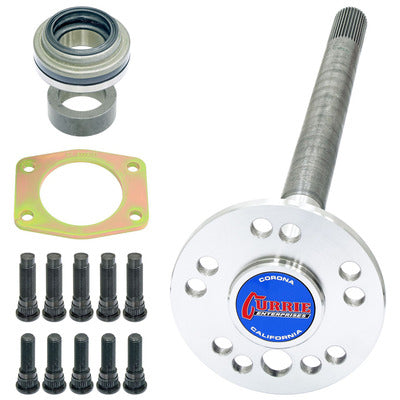

Currie's 31 spline CTF (Cut To Fit) 9" axles provide you with 4 axle lengths, all with 4" of spline length. Up to 3" of this spline length may be cut off so that you may attain an axle length anywhere between 23" and 35" and still have adequate spline engagement into your 3rd. member. All CTF axles feature high performance induction heat treated forged alloy steel construction, and are ABCS (Aftermarket Brake Configuration Standard) compliant. Wheel bolt patterns are dual drilled for 5 on 4 1/2" Ford and 5 on 4 3/4" Chevy, and an access hole is drilled. All CTF axles come with a full installation package which includes one set of five 1/2"-20 Ford style wheel studs, one set of five 7/16"-20 Chevy style wheel studs, one set-20 tapered roller bearing with race, seal, & collar, and one heavy duty late model large bearing style retainer plate. NOTES: 1) ABCS specifications are 2.500" brake spacing offset, Torino or late model large bearing housing end type, and 2.800" axle register diameter. 2) Axle bearing does not come pressed onto the axle shaft, and wheel studs are not installed.

  • Single 31-Spline Induction Heat Treated Axle
  • Available In 26, 29, 32 and 35-inch lengths
  • 4-Inch Spline Length, Up To 3-Inches Can Be Removed
  • Dual Drilled with Ford and Chevy Wheel Bolt Patterns
  • Includes one set of five 7/16 and 1/2 in. studs
  • Includes: Wheel Bearing, Seals and Heavy-Duty Retaining Plates
  • Axle Shaft - Cut to Fit - 32 in Long - 31 Spline Carrier - 5 x 4.50 / 5 x 4.75 in Bolt Pattern - Bearing / Plate / Seal / Studs - Steel - Natural - Ford 9 in - Kit

Specifications

Brand
Currie Enterprises
Part Number
CE-CTFLB32
Product Line
Cut-to-Fit Axles
Axle Length
32 in
Differential Case Design Type Ford 9 inch
Inside Spline
31
Spline Length
4 in
Axle Style
Flange
Wheel Bolt Pattern
5 x 4.5 in | 5 x 4.75 in
Wheel Bearing Included
Yes
Wheel Studs Included
Yes
Wheel Stud Thread
1/2-20 in | 7/16-20 in
Axle Seal Included
Yes
Bearing Plate Included
Yes
Location
Rear
Material
Steel
Color
Natural
Finish
Natural
Quantity
Kit
