CSF Motorsport Dual-Pass Radiator 8374
CSF Motorsport Dual-Pass Radiator 8374
Regular price
$2,295.00 USD
Regular price
Sale price
$2,295.00 USD
Unit price
/
per
SKU:CSF8374
Out of stock
Couldn't load pickup availability

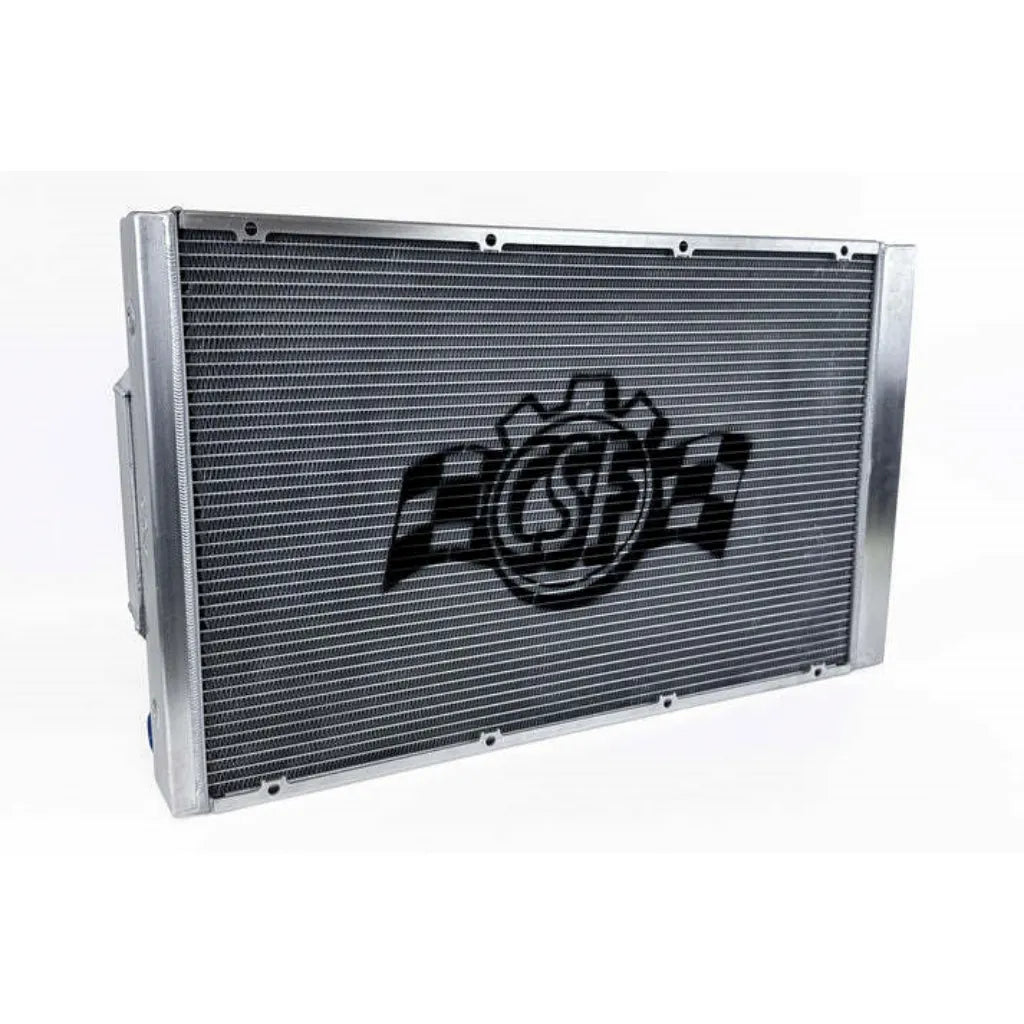

The new Motorsport Dual-Pass Radiator is the largest and most efficient cooler CSF manufactures. It features a mammoth 705mm x 448mm (27x75" x 17.5") core that is 68mm thick. The 68mm core is 24% thicker than the nearest competitor which uses a 55mm core. It offers more heat transfer and thermal capacity than any other radiator on the market.
- 27.75 in W x 18.661 in H x 3.543 in D, Dual Pass
- Driver Side Inlet
- Driver Side Outlet

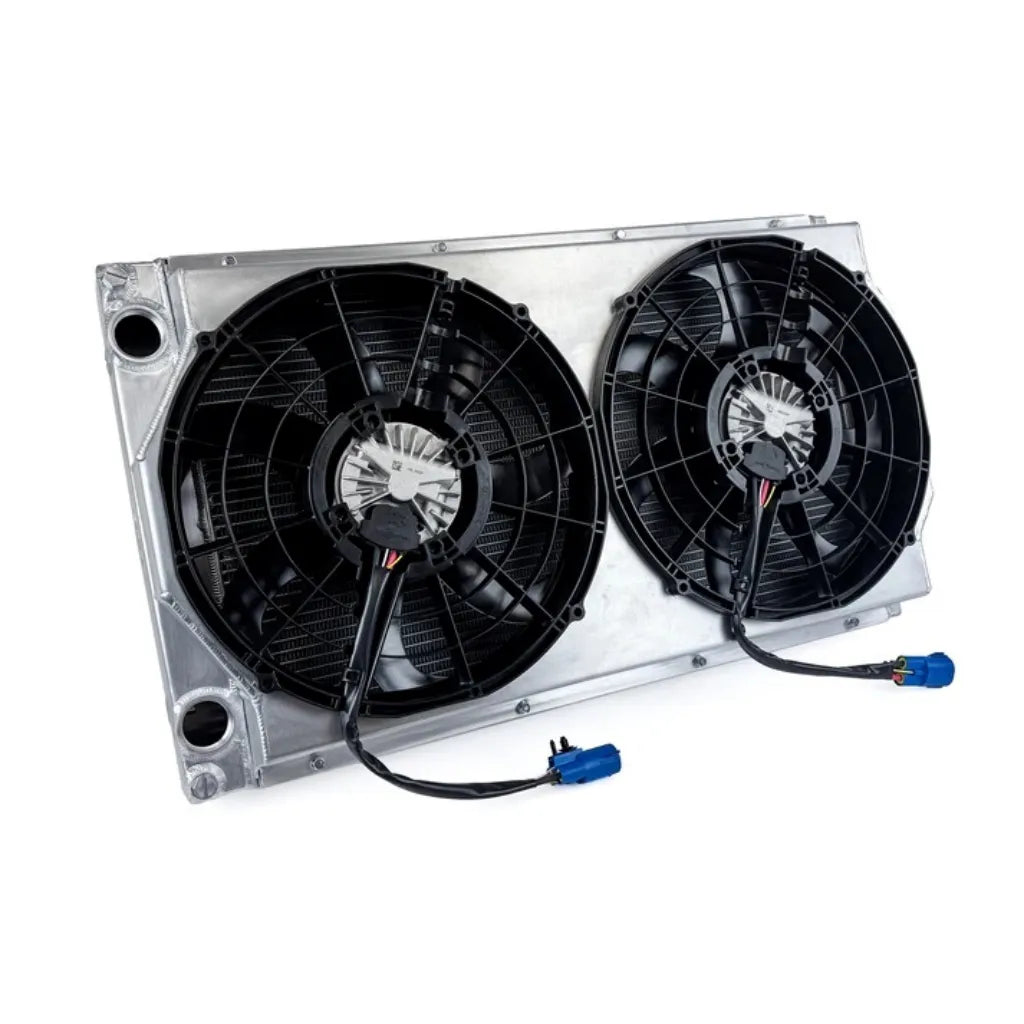

- Fan / Shroud Included
- Aluminum, Brushed
- Universal
| Brand |
CSF Cooling
|
| Part Number |
8374
|
| Universal |
Yes
|
| Pass |
Dual
|
| Row Number |
2
|
| Overall Width |
31.264 in
|
| Overall Height |
18.661 in
|
| Overall Depth |
3.543 in
|
| Core Width |
27.75 in
|
| Core Height |
17.5 in
|
| Core Depth |
2.677 in
|
| Inlet Side |
Driver Side
|
| Inlet Upper/Lower |
Upper
|
| Inlet A Size |
20 AN
|
| Inlet A Style |
Female
|
| Inlet Quantity |
1
|
| Outlet Side |
Driver Side
|
| Outlet Upper/Lower/Middle |
Lower
|
| Outlet A Size |
20 AN
|
| Outlet A Style |
Female
|
| Outlet Quantity |
1
|
| Sensor Port Size |
12 AN
|
| Sensor Port Style |
Female
|
| Sensor Port O-Ring |
Yes
|
| Sensor Port Quantity |
2
|
| Flow Direction |
Crossflow
|
| Filler |
No
|
| Fan Included |
Yes
|
| Fan Quantity |
2
|
| Fan Diameter |
14 in
|
| Fan CFM |
4790 cfm
|
| Blade Material |
Plastic
|
| Blade Color |
Black
|
| Shroud Material |
Aluminum
|
| Shroud Color |
Natural
|
| Material |
Aluminum
|
| Color |
Brushed
|
| Finish |
Brushed
|
| Quantity |
Each
|
