CSF Cooling
CSF Radiator 8258, BMW F8X M3/M4/M2
CSF Radiator 8258, BMW F8X M3/M4/M2
SKU:CSF8258
Out of stock
Couldn't load pickup availability

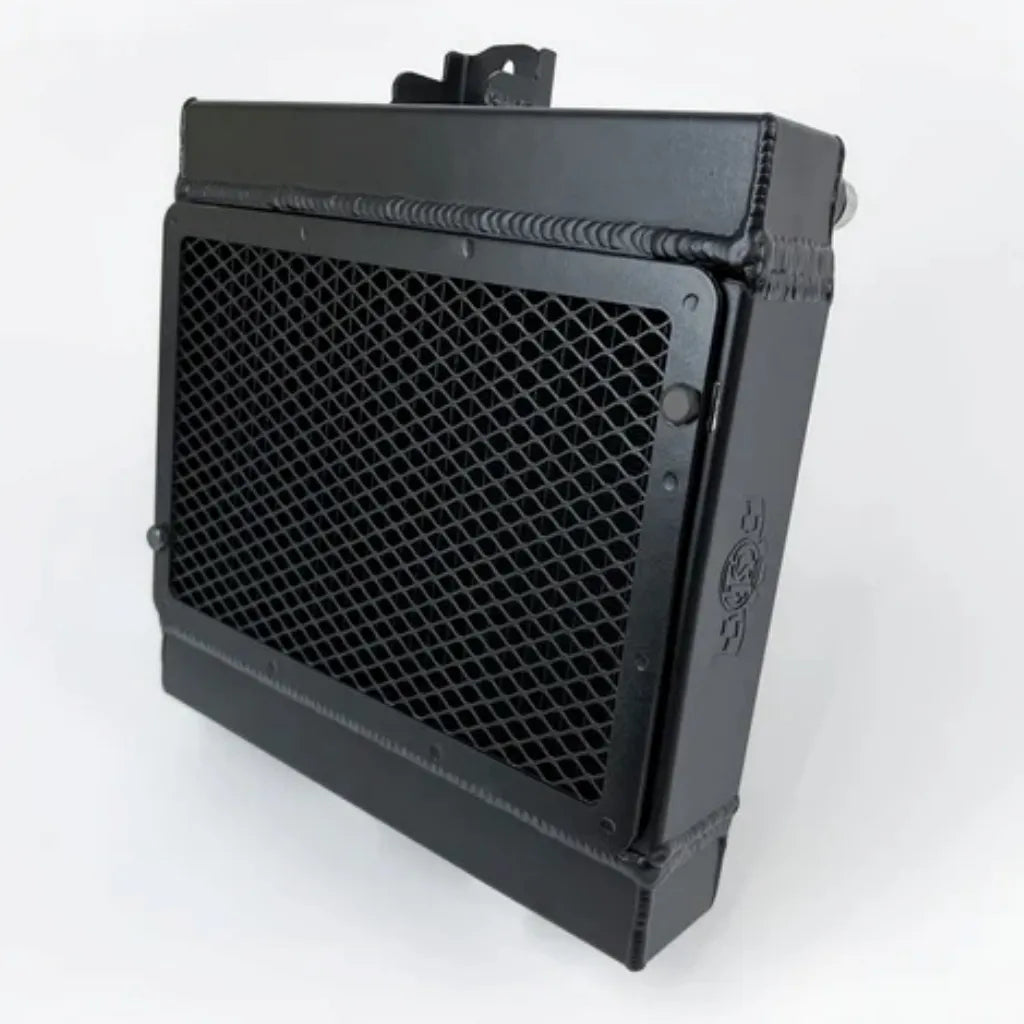

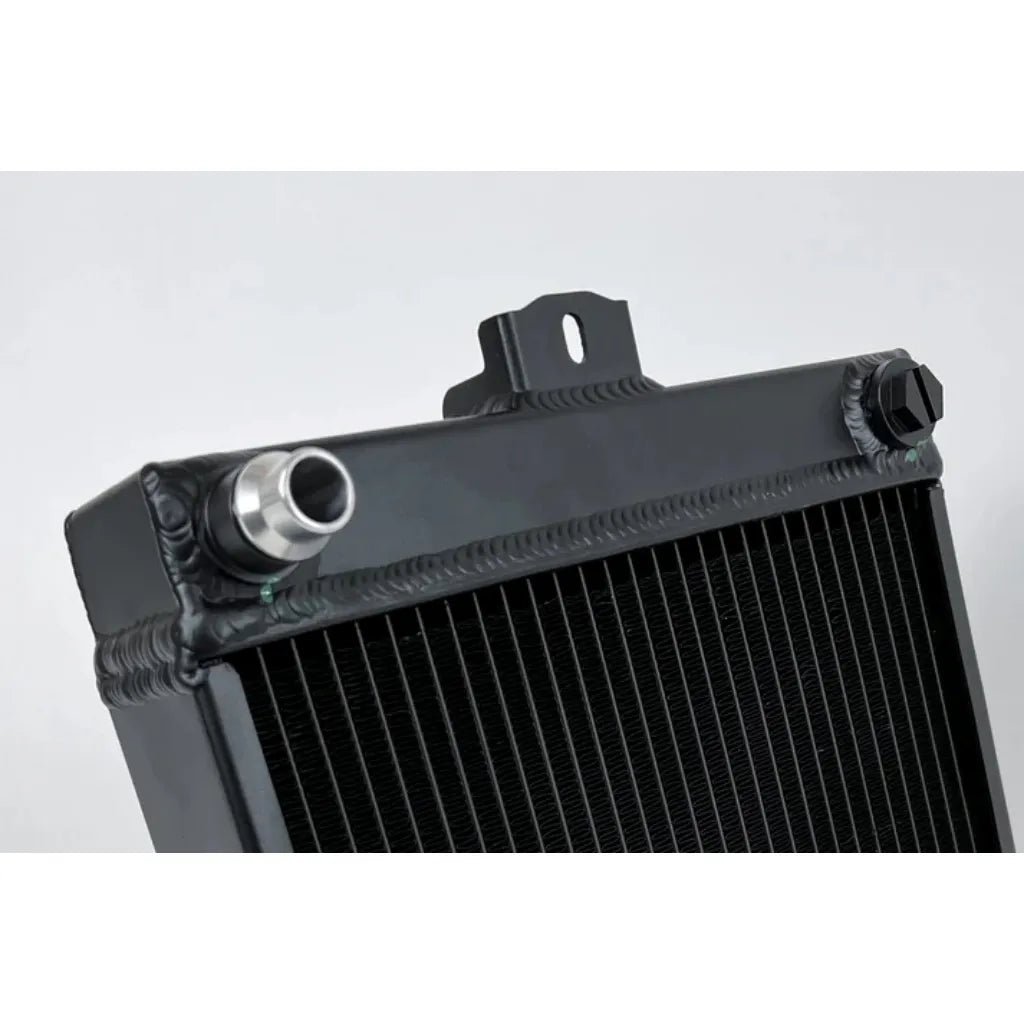

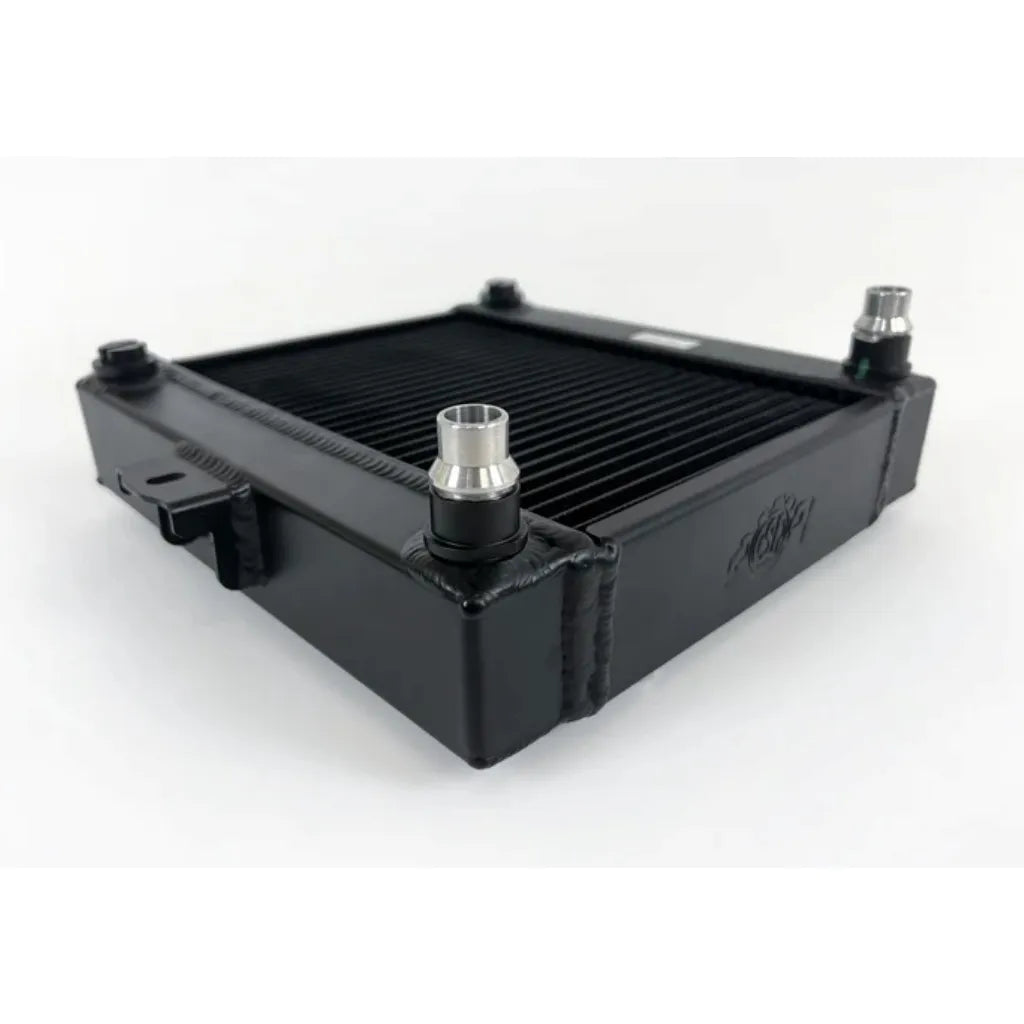

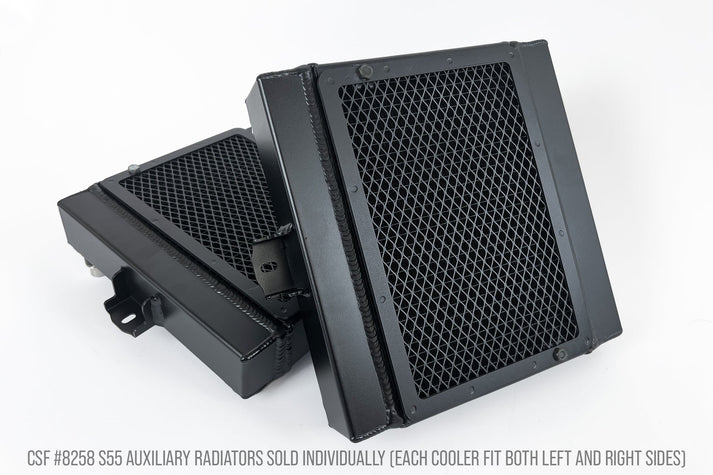

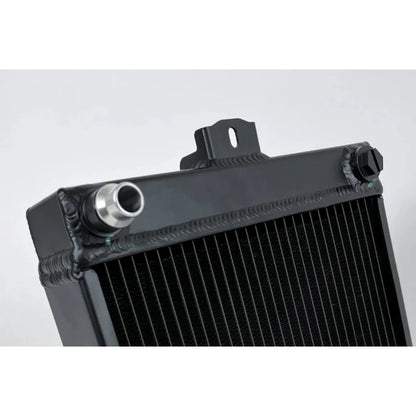

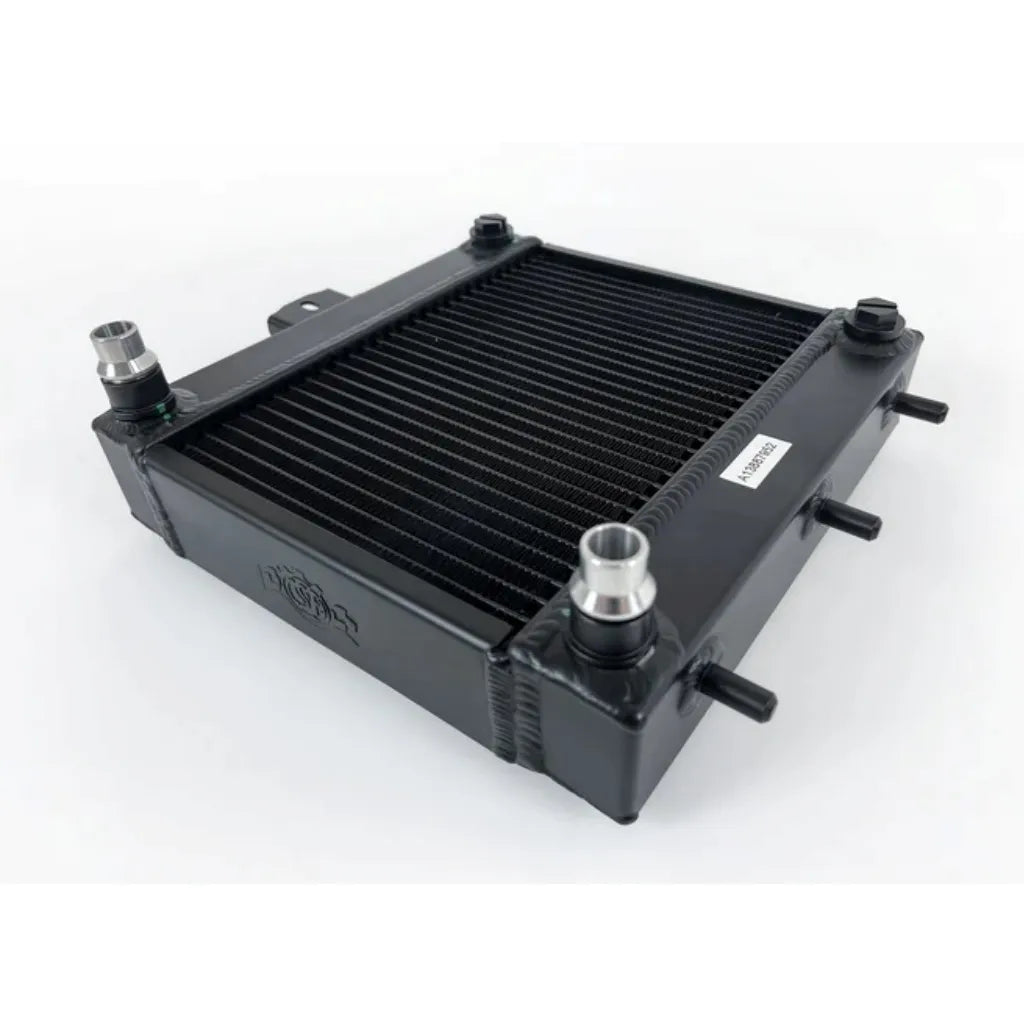

BMW F8X M3/M4/M2 Comp High-Performance Auxiliary Radiator
CSF designed the coolers to be a true "Drop-in Fit" for easy installation. Each cooler mounts in the factory location and uses the OEM quick connections. The High-Performance Auxiliary Radiators work in conjunction with the rest of the cooling system to reduce temperatures. They not only help keep temperatures in optimal ranges, but prolong the heat soak threshold. There's nothing worse than having your track session cut short because you need to do a cooldown lap.
Radiator, Auxiliary, 9.291 in W x 6.969 in H x 1.65 in D, Driver Side Inlet, Passenger Side Outlet, Aluminum, Black Powder Coat, BMW M2 2019-21 / M3 2015-18 / M4 2015-18
| Year | Make | Chassis | Model | Trim | Engine/Trans |
|---|---|---|---|---|---|
| 2019-2021 | BMW | F87 | M2 | Competition | Turbocharged 3.0L L6 |
| 2020-2021 | BMW | F87 | M2 | CS | Turbocharged 3.0L L6 |
| 2015-2018 | BMW | F80 | M3 | - | Turbocharged 3.0L L6 |
| 2015-2020 | BMW | F82/F83 | M4 | - | Turbocharged 3.0L L6 |
| 2018-2020 | BMW | F82/F83 | M4 | CS | Turbocharged 3.0L L6 |
| 2016 | BMW | F82/F83 | M4 | GTS | Turbocharged 3.0L L6 |
|
Brand
|
CSF Cooling
|
|
Part Number
|
8258
|
|
Application Specific
|
Yes
|
|
Pass
|
Dual
|
|
Row Number
|
2
|
|
Core Width
|
9.291 in
|
|
Core Height
|
6.969 in
|
|
Core Depth
|
1.65 in
|
|
Inlet Side
|
Driver Side
|
|
Inlet Upper/Lower
|
Upper
|
|
Inlet A Size
|
0.642 in
|
|
Inlet A Style
|
Quick Connect
|
|
Inlet Quantity
|
1
|
|
Outlet Side
|
Driver Side
|
|
Outlet Upper/Lower/Middle
|
Lower
|
|
Outlet A Size
|
0.642 in
|
|
Outlet A Style
|
Quick Connect
|
|
Outlet Quantity
|
1
|
|
Heat Exchanger Inlet Size
|
10 mm x 1.0
|
|
Heat Exchanger Inlet Style
|
Female
|
|
Heat Exchanger Outlet Size
|
10 mm x 1.0
|
|
Heat Exchanger Outlet Style
|
Female
|
|
Fittings Included
|
Yes
|
|
Fitting End 1 Size
|
10 mm x 1.0
|
|
Fitting End 1 Style
|
Male Plug
|
|
Fitting Quantity
|
2
|
|
Flow Direction
|
Downflow
|
|
Material
|
Aluminum
|
|
Color
|
Black
|
|
Finish
|
Powder Coat
|
|
Quantity
|
Each
|
