CSF Radiator 8094, Ford Raptor / F-150
CSF Radiator 8094, Ford Raptor / F-150
SKU:CSF8094
Inventory: 1 in stock
Couldn't load pickup availability

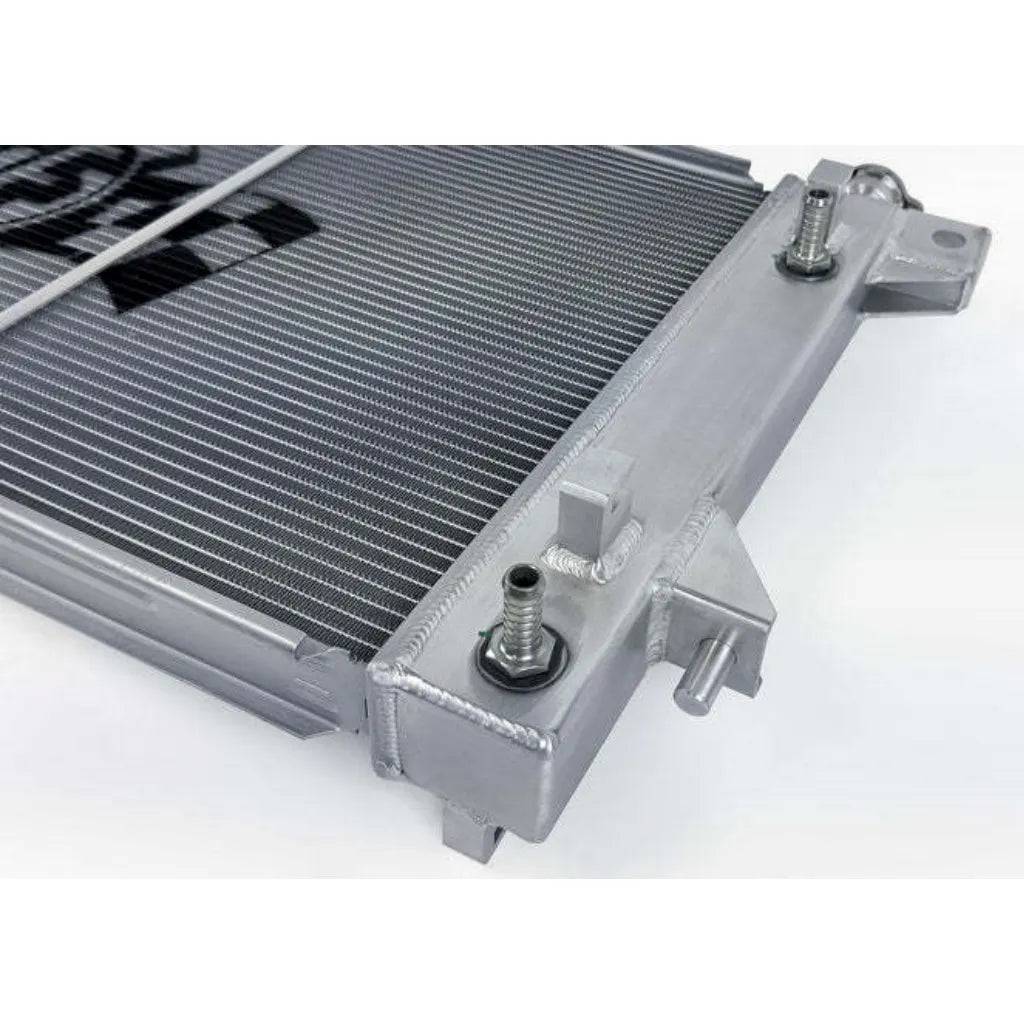

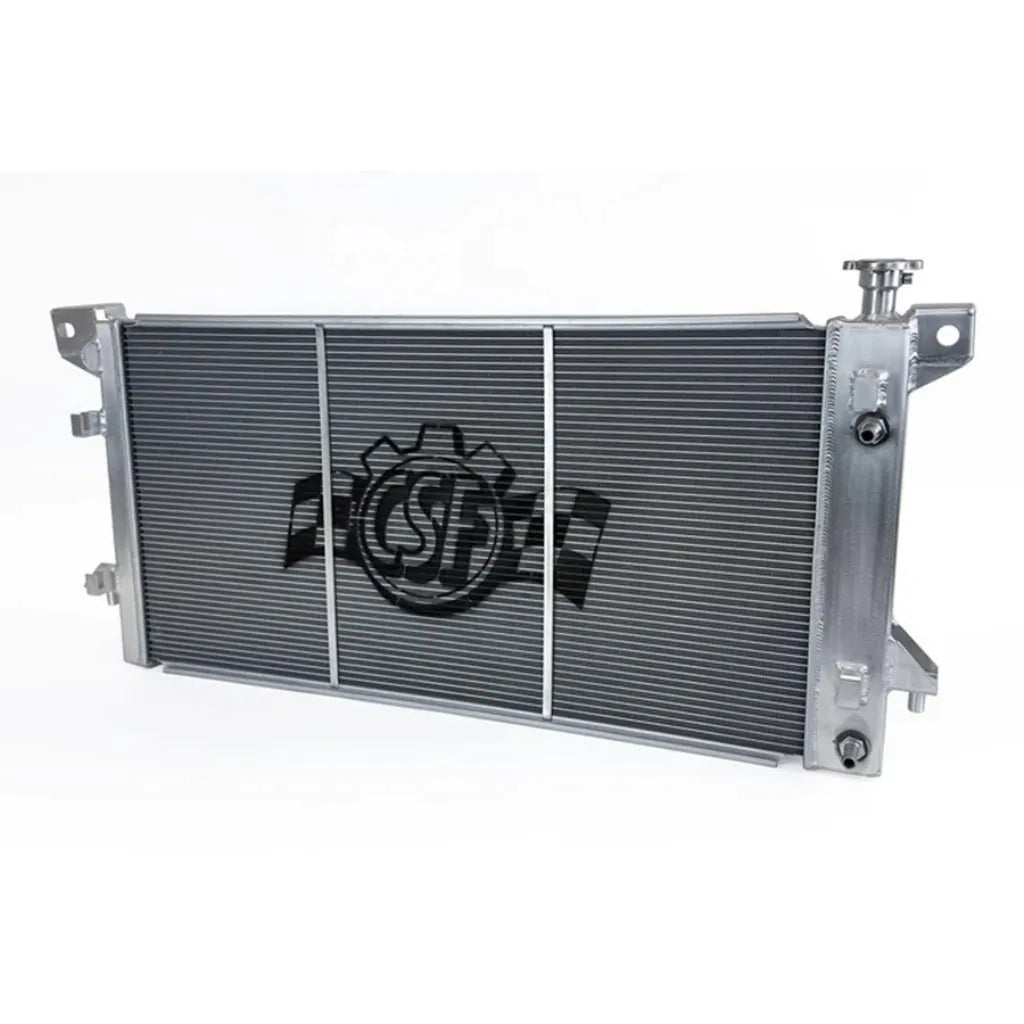

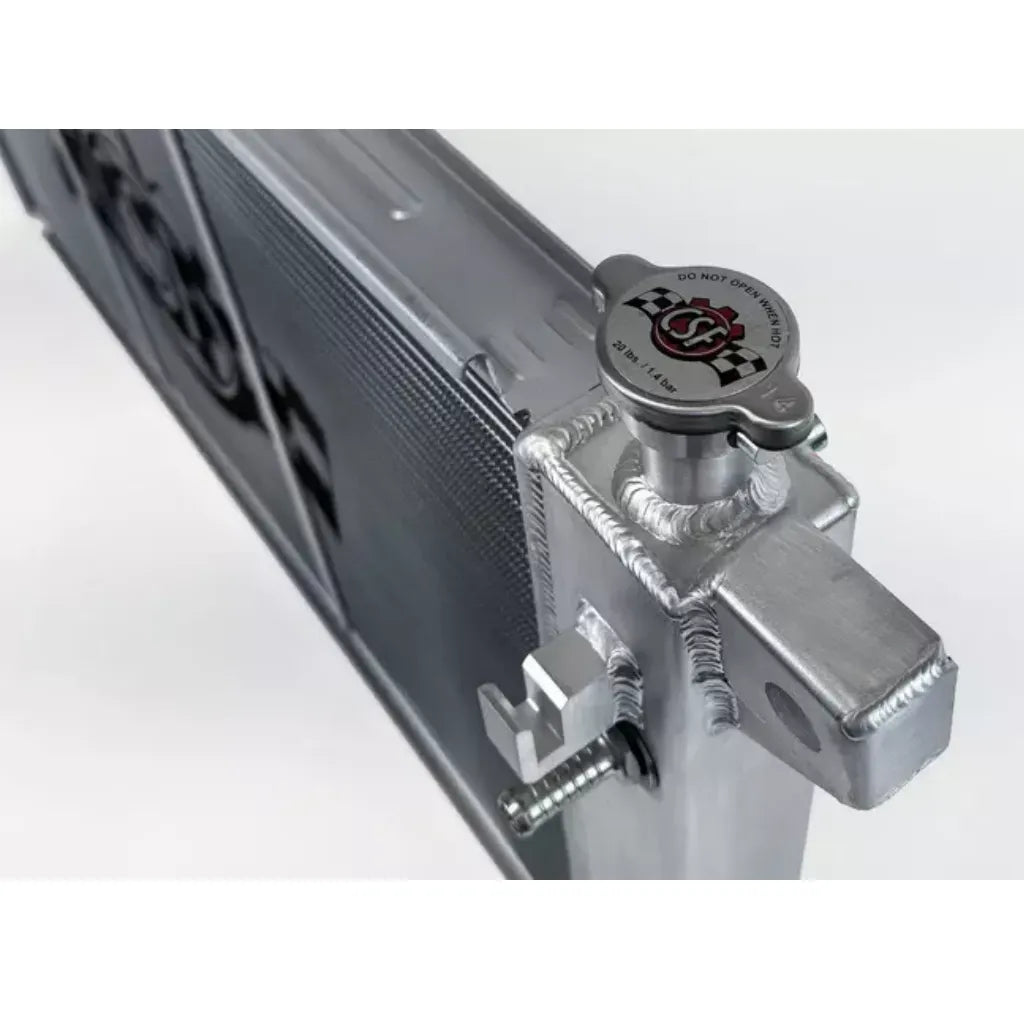

1st Gen Raptor & 12th Gen F-150 Heavy-Duty All-Aluminum Radiator
An upgraded radiator helps eliminate the concern of overheating. These advanced designs feature larger 2-Row, 42mm aluminum cores which increase the fluid capacity of the radiators, and greatly improves heat dissipation. CSF's Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. In addition, the ultra-efficient multi-louvered fins maximize airflow through the core for the best possible performance. The result is a dramatic temperature reduction under all driving conditions.
- 2-Row - 42mm Ultra-High-Performance Core
- Cooling Tubes with CSF's Exclusive B-Tube Technology
- 6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact

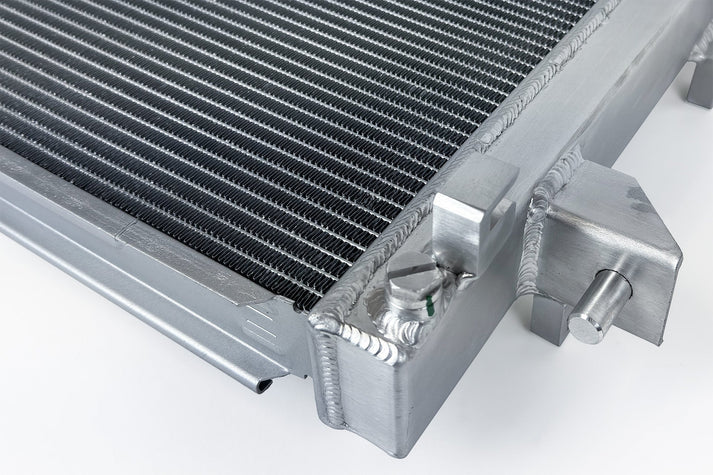

- CNC Machined Mounting Pins and Brackets

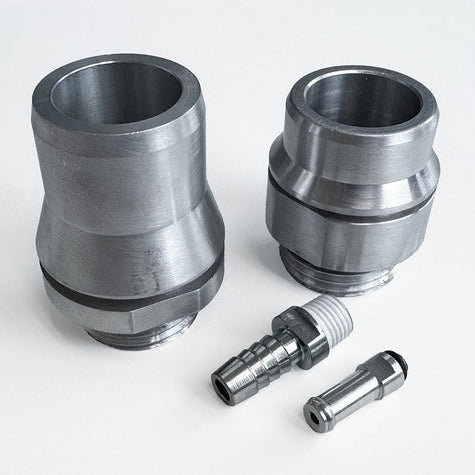

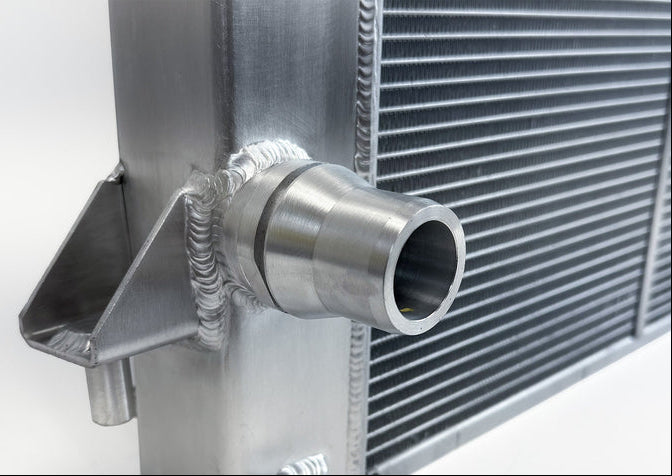

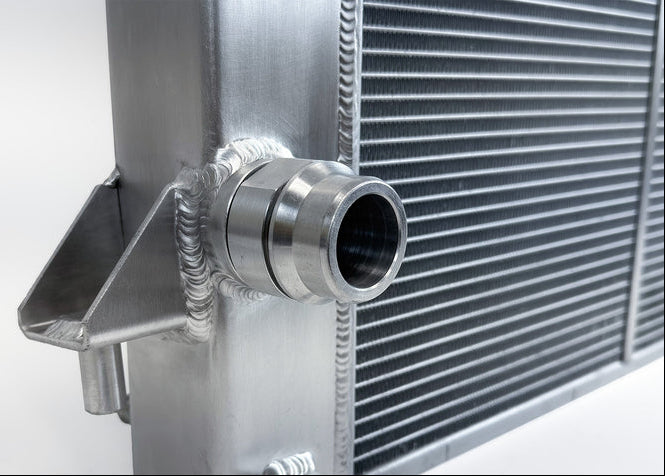

- OEM Style Inlet/Outlet with modular fittings for multi-application fitment
- Core straps for strength and added rigidity
- 100% All Aluminum TIG-Welded Construction
- True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
- Individually Leak and Pressure Tested
- 2-Year Limited Warranty
Radiator, 31.44 in W x 16.3 in H x 1.65 in D, Passenger Side Inlet, Driver Side Outlet, Aluminum, Polished
| Year | Make | Chassis | Model | Trim | Engine/Trans |
|---|---|---|---|---|---|
| 2015-2017 | Ford | 3rd Gen | Expedition | - | Turbocharged 3.5L V6 |
| 2010-2014 | Ford | 12th Gen | F-150 | SVT Raptor | 6.2L V8 |
| 2011-2014 | Ford | 12th Gen | F-150 | - | Turbocharged 3.5L V6 |
| 2010-2014 | Ford | 12th Gen | F-150 | - | 6.2L V8 |
| 2011-2014 | Ford | 12th Gen | F-150 | - | 3.7L V6 |
| 2011-2014 | Ford | 12th Gen | F-150 | - | 5.0L V8 |
| 2015-2017 | Lincoln | 3rd Gen | Navigator | - | Turbocharged 3.5L V6 |
|
Brand
|
CSF Cooling
|
|
Part Number
|
8094
|
|
Application Specific
|
Yes
|
|
Pass
|
Single
|
|
Row Number
|
2
|
|
Core Width
|
31.44 in
|
|
Core Height
|
16.3 in
|
|
Core Depth
|
1.65 in
|
|

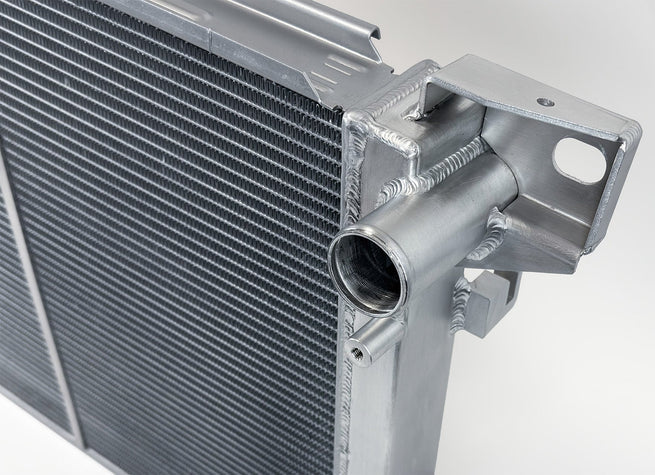

Inlet Side
|
Passenger Side
|
|
Inlet Upper/Lower
|
Upper
|
|
Inlet A Size
|
1.5 in
|
|
Inlet A Style
|
Hose Barb
|
|
Inlet Quantity
|
1
|
|
Outlet Side
|
Driver Side
|
|
Outlet Upper/Lower/Middle
|
Lower
|
|
Outlet A Size
|
1.5 in
|
|
Outlet A Style
|
Hose Barb
|
|
Outlet Quantity
|
1
|
|
Fluid Cooler
|
Yes
|
|
Fluid Cooler Line Inlet Style
|
Hose Barb
|
|
Fluid Cooler Line Outlet Style
|
Hose Barb
|
|
Flow Direction
|
Crossflow
|
|

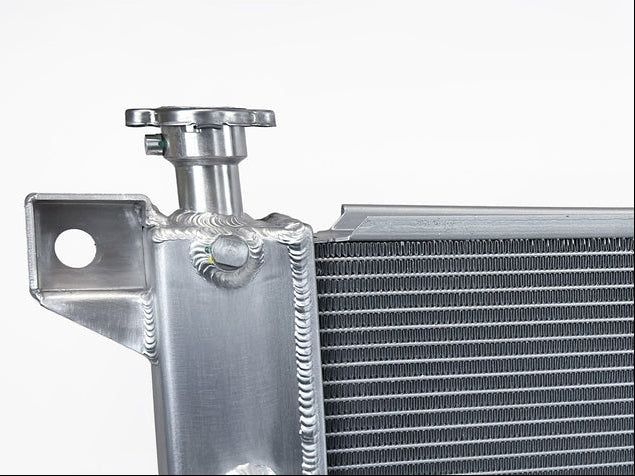

Filler
|
Yes
|
|
Material
|
Aluminum
|
|
Color
|
Polished
|
|
Finish
|
Polished
|
|
Quantity
|
Each
|
