CSF Heat Exchanger 8131, BMW F3X/F2X B58/B48

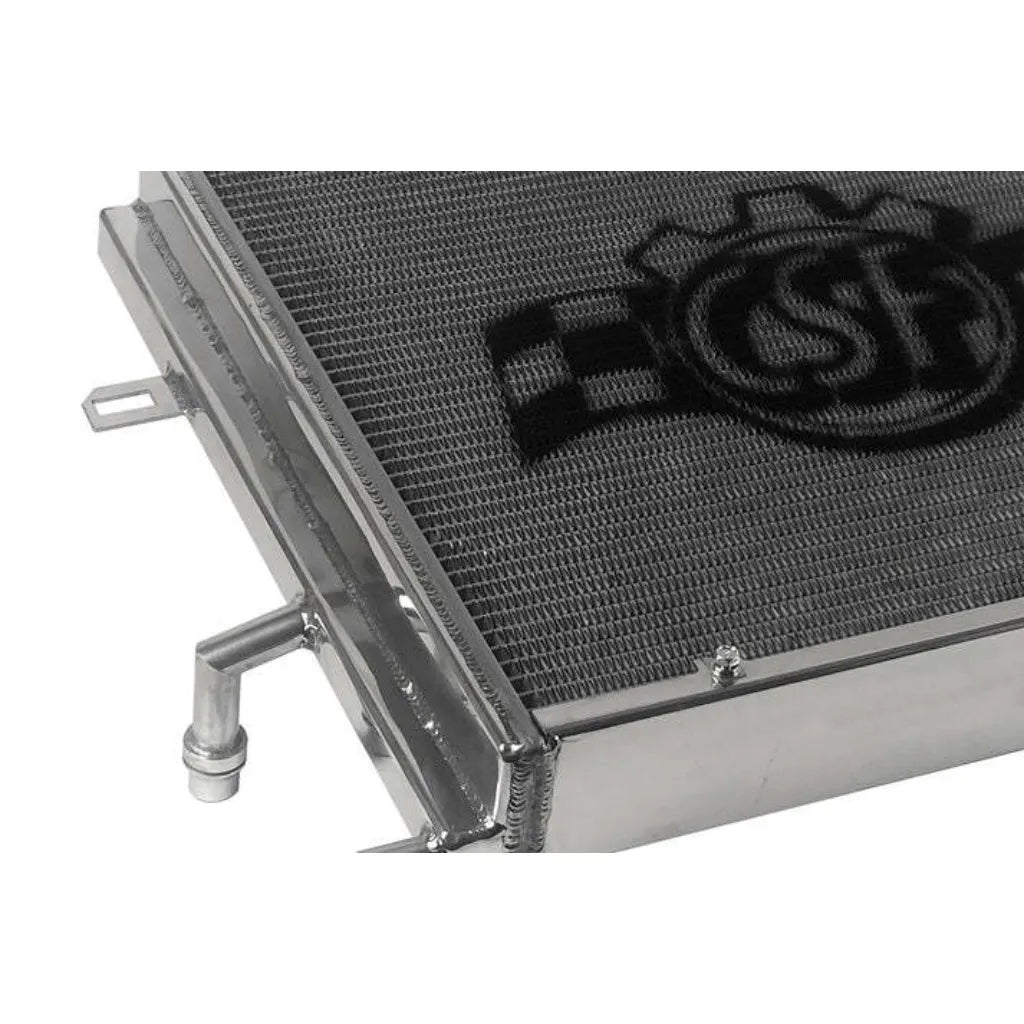

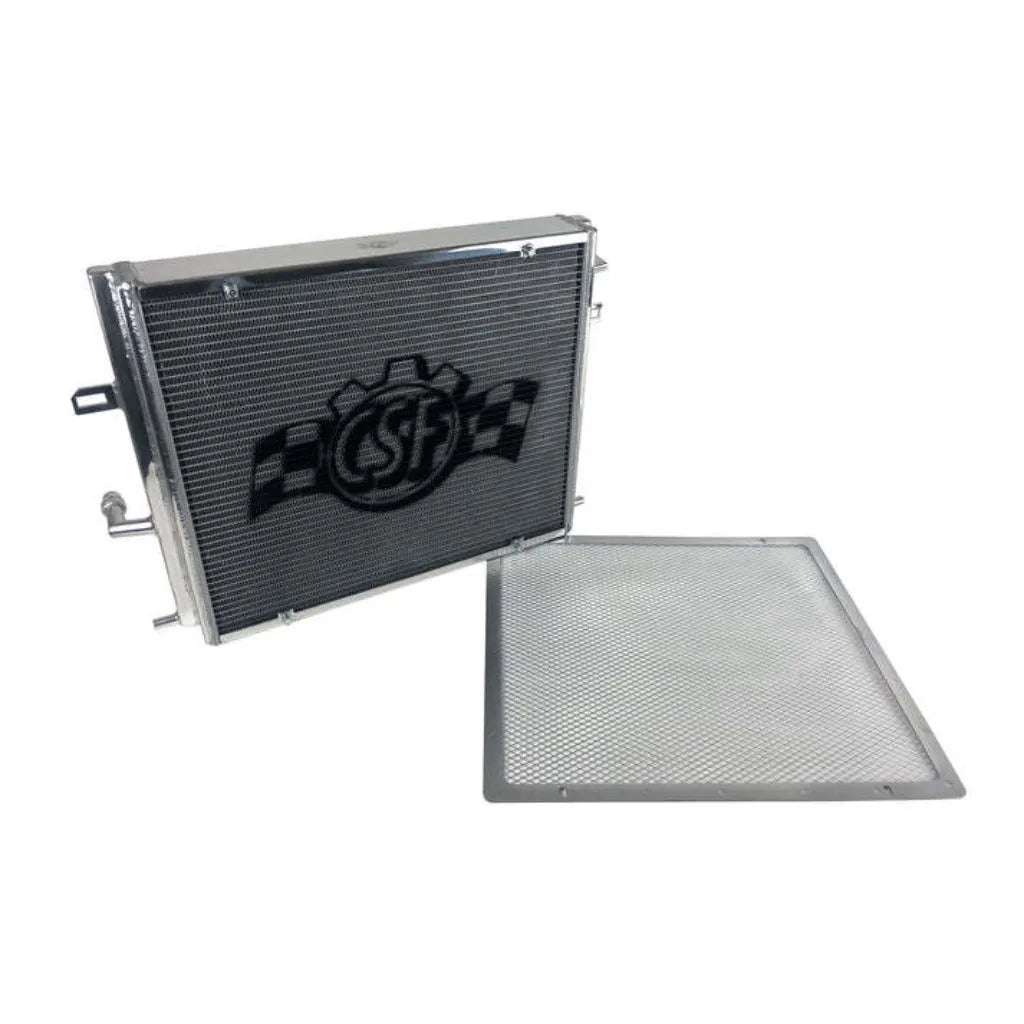

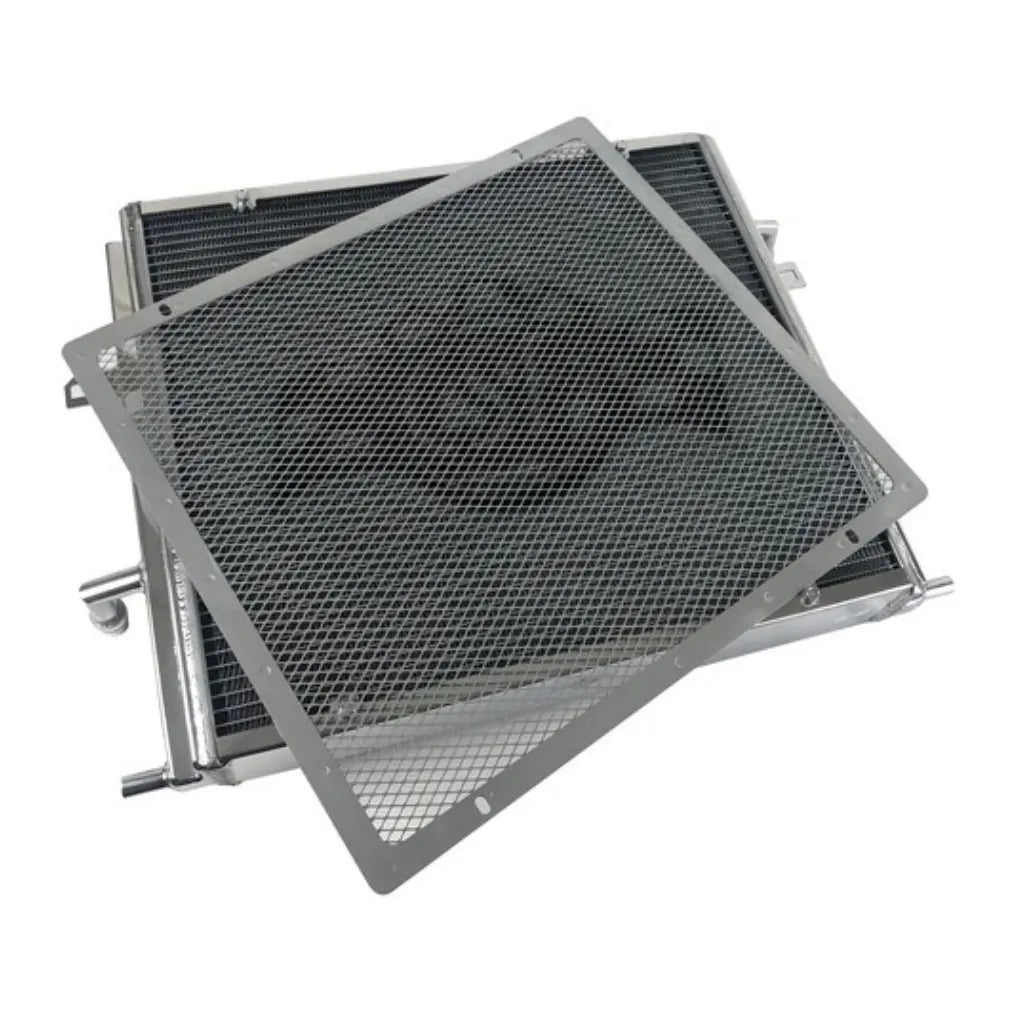

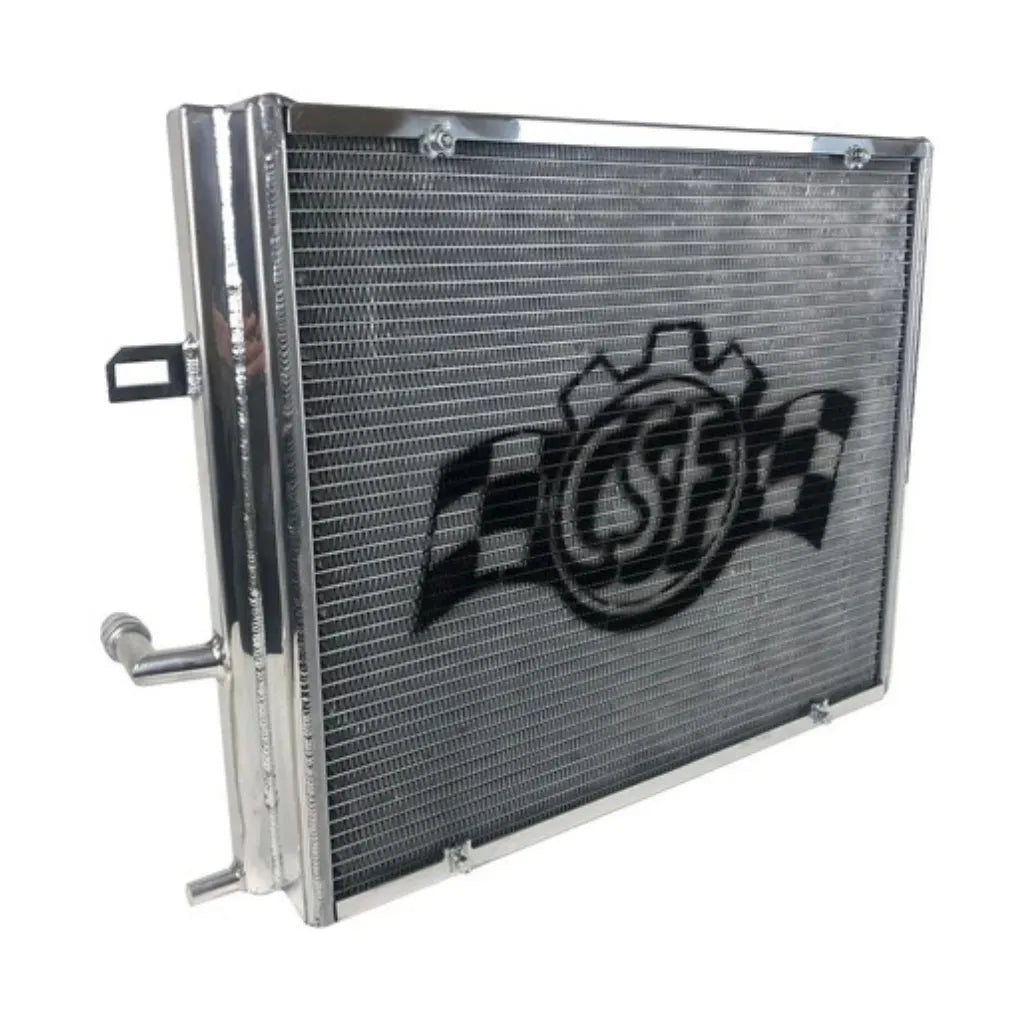

BMW F3X/F2X B58/B48 Triple-Pass Heat Exchanger w/ Rock Guard - Silver

Heat The original OEM B58 heat exchanger is a 1-row unit that is 27mm thick. In comparison, CSF has used its industry-exclusive world's largest 2-row core (68mm) with CSF's B-Tube technology. A unique tank design allows the larger CSF core to still fit into the OEM cooling system housing. Another critical feature of the CSF BMW B58 high-performance heat exchanger is its unique triple-pass flow design. The water traveling through the upgraded heat exchanger flows through the radiator three times before exiting the cooler and flowing back into the manifold charge cooler. This ensures that the outlet water temperature of the heat exchanger is the absolute lowest it can be. The OEM design, as well as more expensive aftermarket designs, all have single-pass flow structures.

• Core Size: 524mm Length x 478mm Height x 69mm Wide
• 68mm 2-Row Core with CSF's B-Tube Technology (World's Largest 2-Row Core)
• 6.5mm Multi-Louvered Fin Height
• Triple-Pass Flow Design
• Included Detachable Rock Guard
• OEM CNC Machined Mounting Location Pins and Brackets
• Direct Plug-and-Play Design, Including CNC Machined "Quick Connect" Inlet/Outlet Water Fittings
• No Modifications Needed to Install
• 1-Hour "Mirror Finish" Hand Polish
• Replaces OEM Part Number: 17118741830

Exchanger, Intercooler, Triple Pass, OEM Inlet / Outlet, Rock Guard Included, Aluminum, Natural, BMW F22/F23 2017-21 / F3X 2016-20
