Comp Cams

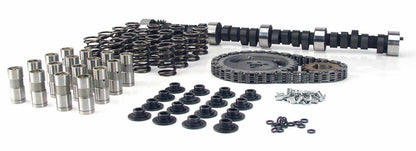

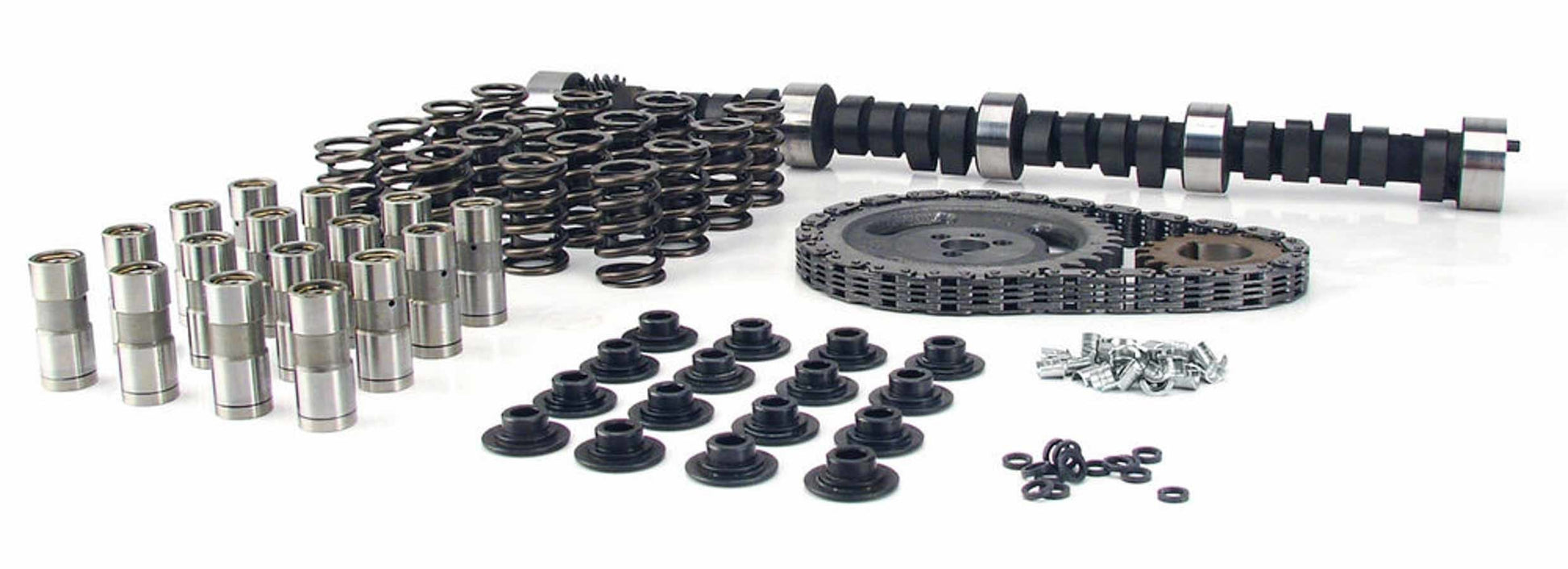

Comp Cams SBC Cam K-Kit 292H (Hydraulic)
Comp Cams SBC Cam K-Kit 292H (Hydraulic)
Regular price
$603.95 USD
Regular price
Sale price
$603.95 USD
Unit price
/
per
SKU:COMK12-213-3
Inventory: 2 in stock
Couldn't load pickup availability
Camshaft / Lifters / Springs / Timing Set - Magnum - Hydraulic Flat Tappet - Lift 0.501 / 0.501 in - Duration 292 / 292 - 110 LSA - Small Block Chevy - Kit - Brand: Comp Cams - Part Number: K12-213-3
|
Product Line
|
Magnum
|
|
Camshaft Lifter Style
|
Hydraulic Flat Tappet
|
|
Advertised Intake Duration
|
292
|
|
Intake Duration at 0.050 in
|
244
|
|
Advertised Exhaust Duration
|
292
|
|
Exhaust Duration at 0.050 in
|
244
|
|
Intake Lift
|
0.501 in
|
|
Exhaust Lift
|
0.501 in
|
|
Lobe Separation Angle
|
110 Degrees
|
|
Operating Range RPM Lower
|
2500 RPM
|
|
Operating Range RPM Upper
|
6500 RPM
|
|
Manufacturer Grind Number
|
292H
|
|
Lifters Included
|
Yes
|
|
Lifter Product Line
|
Pro-Magnum
|
|
Adjustable
|
Yes
|
|
Body Diameter
|
0.842 in
|
|
Pushrod Seat Height
|
1.93 in
|
|
Weight
|
99 grams
|
|
Direct Oiling
|
Yes
|
|
Lifter Material
|
Steel
|
|
Lifter Color
|
Natural
|
|
Lifter Finish
|
Natural
|
|
Valve Springs Included
|
Yes
|
|
Spring Style
|
Standard
|
|
Spring Quantity
|
Dual
|
|
Damper
|
Yes
|
|
Spring Rate
|
322 lb/in
|
|
Coil Bind Height
|
1.15 in
|
|
Installed Height
|
1.75 in
|
|
Outside Diameter of Outer Spring
|
1.43 in
|
|
Inside Diameter of Outer Spring
|
1.07 in
|
|
Inside Diameter of Inner Spring
|
0.697 in
|
|
Maximum Valve Lift
|
0.54 in
|
|
Seat Load (LBS)
|
132 lbs
|
|
Seat Load At (in)
|
1.75 in
|
|
Open Load (LBS)
|
293 lbs
|
|
Open Load At (in)
|
1.25 in
|
|
Valve Spring Material
|
Steel
|
|
Valve Spring Color
|
Natural
|
|
Valve Spring Finish
|
Natural
|
|
Retainers Included
|
Yes
|
|
Valve Locks Included
|
Yes
|
|
Valve Lock Degree
|
10 Degree
|
|
Valve Lock Intended Stem Diameter
|
11/32 in
|
|
Valve Locks Material
|
Steel
|
|
Valve Seals Included
|
Yes
|
|
Timing Chain Set Included
|
Yes
|
|
Chain Included
|
Yes
|
|
Chain Style
|
Double
|
|
Chain Type
|
Non Roller
|
|
Timing Gear Material
|
Steel
|
|
Timing Gear Color
|
Natural
|
|
Timing Gear Finish
|
Natural
|
|
Material
|
Cast Iron
|
|
Color
|
Natural
|
|
Finish
|
Natural
|
|
Quantity
|
Kit
|
|
Note
|
Drag racing applications: 3000 plus stall in heavy car with 10:1 plus compression. Street/strip applications: 3000 stall, headers, gears and 9.5:1 compression. Very rough idle.
|
