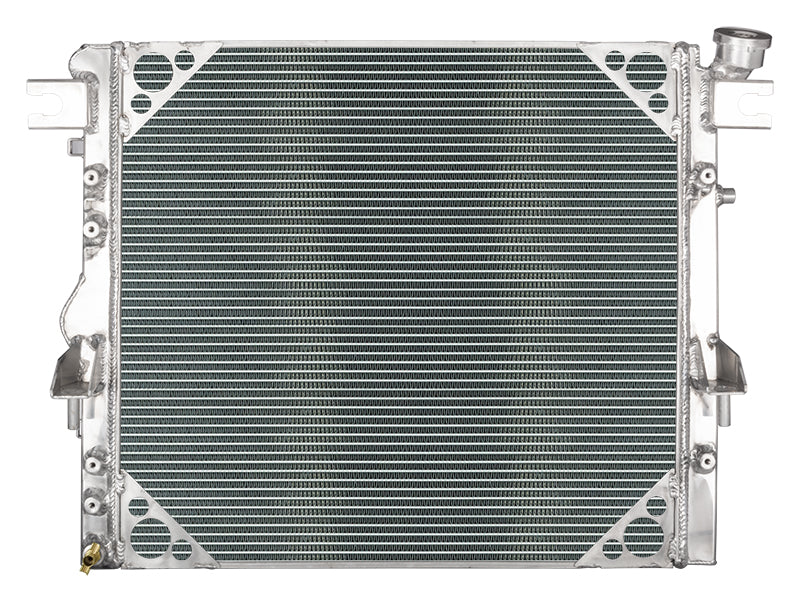

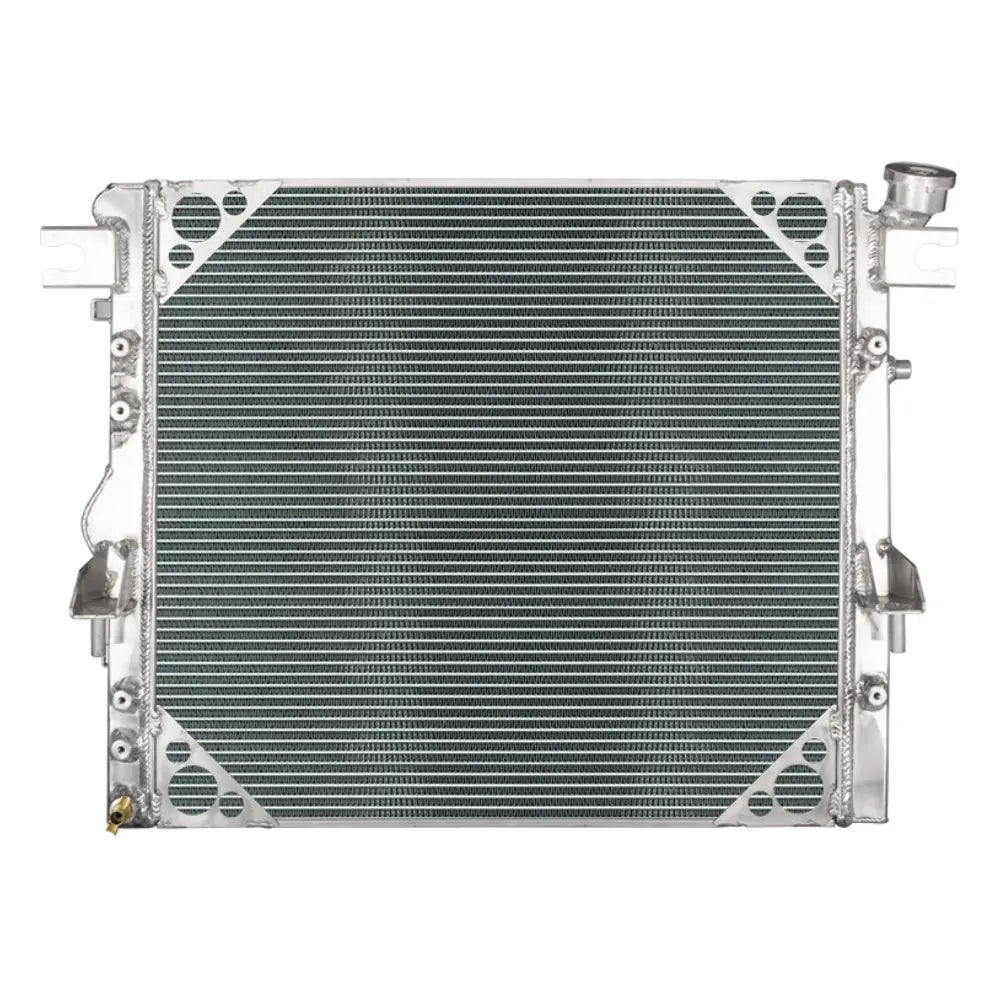

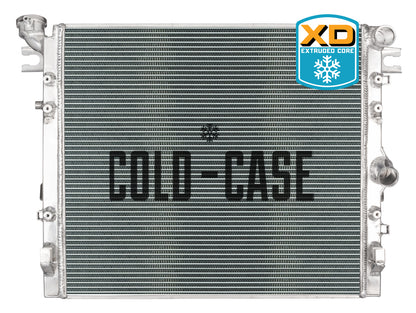

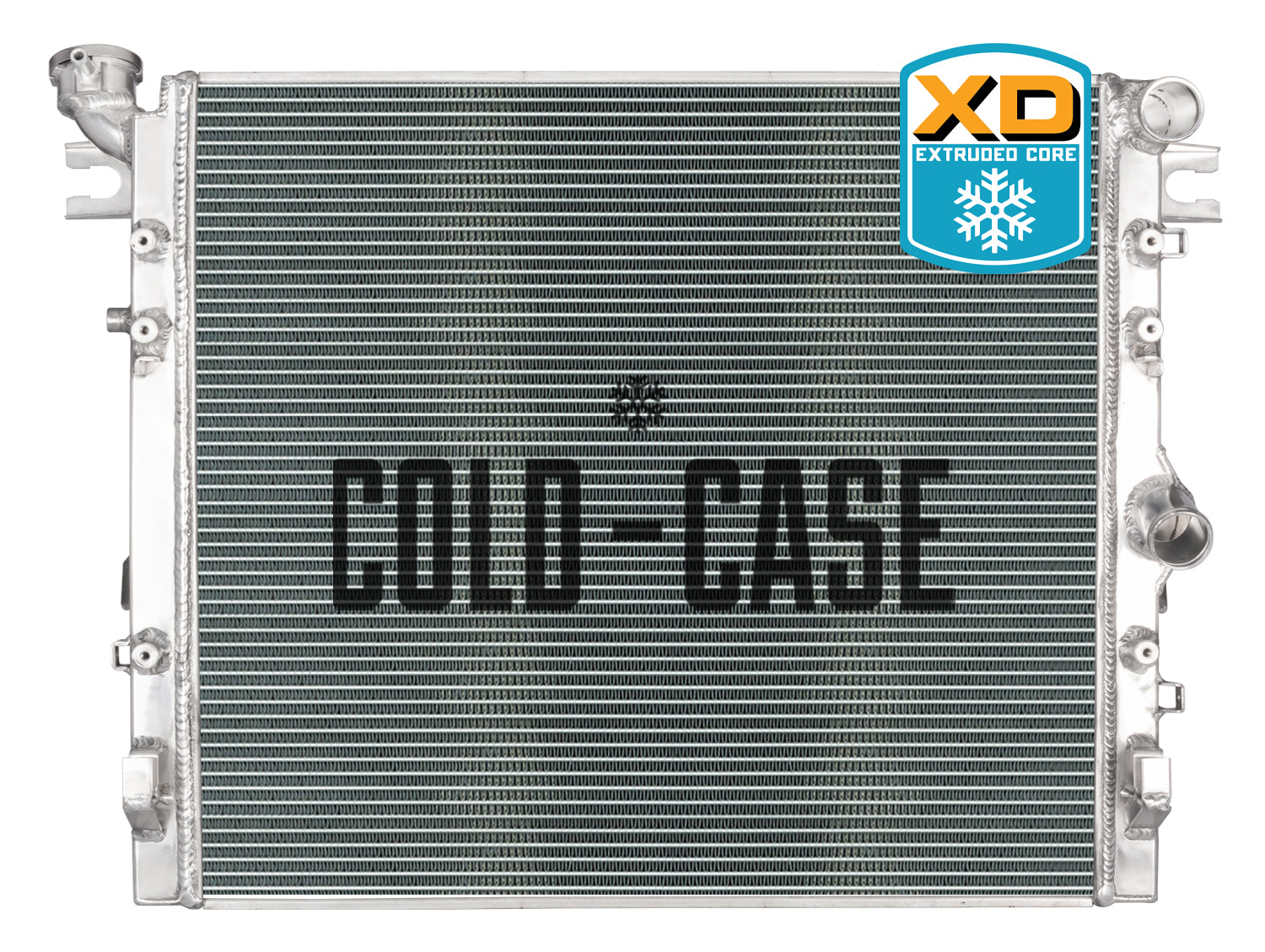

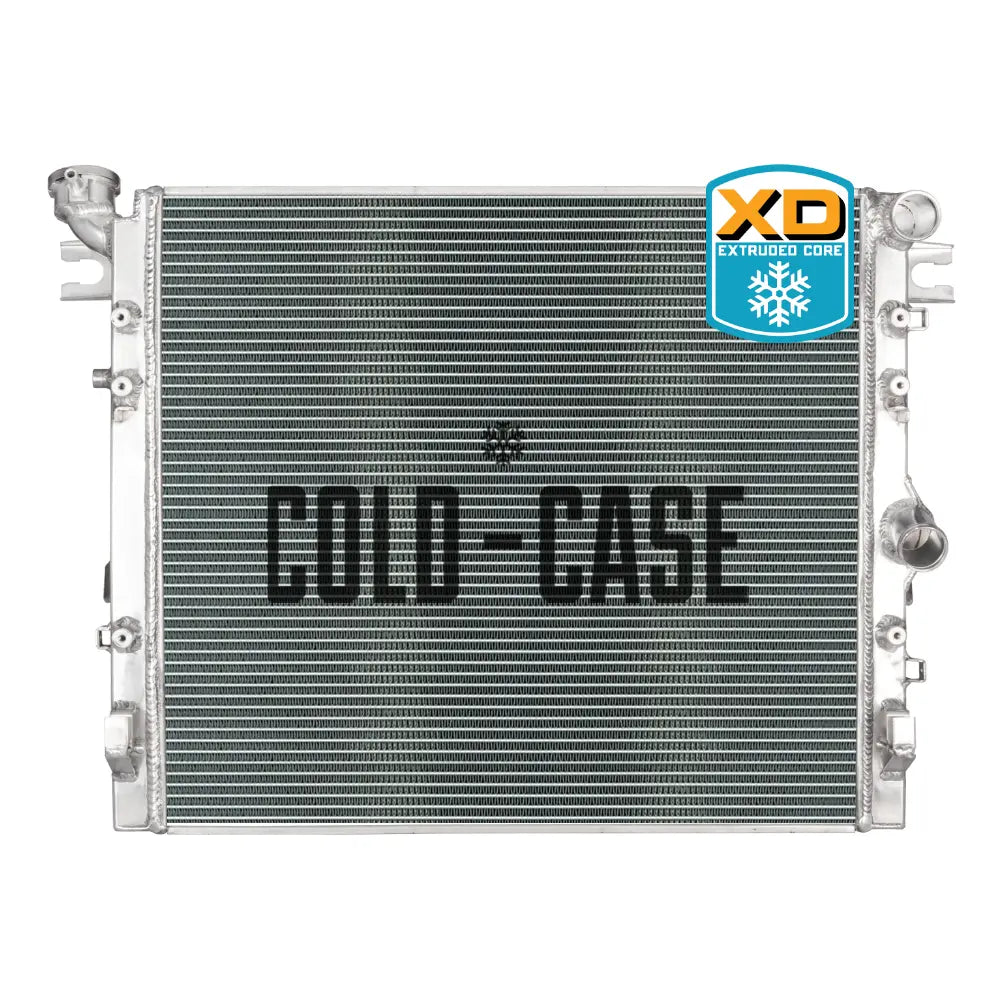

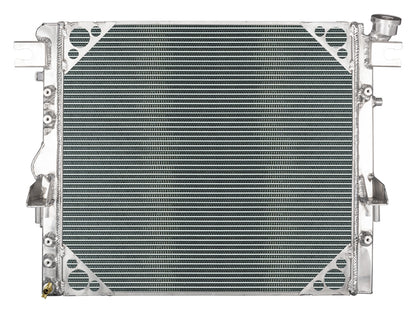

2007-18 Jeep JK Hemi/LS Swap Extruded Core Aluminum Radiator
Cold-Case Radiators have an original look while offering superior cooling power. Oversized 2-row tig-welded aluminum bodies feature 6 fins per inch and are pressure tested to ensure quality.
- 07-18 Jeep Wrangler Hemi/LS Swap Radiator
- Hemi/LS Swap, 1-1/2" Inlet/Outlet
- Part Number: MOJ995-5XD
Specifications
| Brand |
Cold Case Radiators |
| Part Number |
MOJ995-5XD |
|
Product Line
|
XD
|
|
Application Specific
|
Yes
|
|
Extruded Core
|
Yes
|
|
Pass
|
Single
|
|
Row Number
|
2
|
|
Overall Width
|
28.75 in
|
|
Overall Height
|
21.656 in
|
|
Overall Depth
|
2.5 in
|
|
Core Width
|
22 in
|
|
Core Height
|
20.406 in
|
|
Inlet Side
|
Passenger Side
|
|
Inlet Upper/Lower
|
Upper
|
|
Inlet A Size
|
1-1/2 in
|
|
Inlet A Style
|
Hose Barb
|
|
Inlet Quantity
|
1
|
|
Outlet Side
|
Passenger Side
|
|
Outlet Upper/Lower/Middle
|
Center
|
|
Outlet A Size
|
1-1/2 in
|
|
Outlet A Style
|
Hose Barb
|
|
Outlet Quantity
|
1
|
|
Tube Size
|
3/4 in
|
|
Flow Direction
|
Crossflow
|
|
Cap Included
|
No
|
|
Filler
|
Yes
|
|
Material
|
Aluminum
|
|
Color
|
Polished
|
|
Finish
|
Polished
|
|
Quantity
|
Each
|
