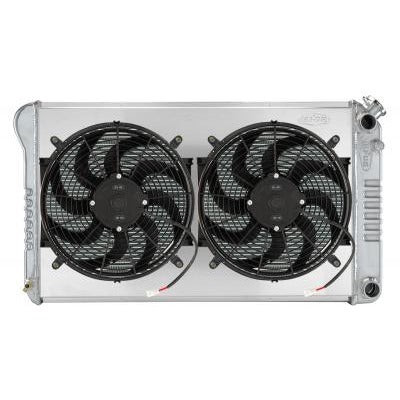

Cold Case Aluminum Radiator and Dual 14" Fans for 68-77 A-Body LS Swap
CCRGMA546ASK (Not in stock)Cold Case Radiators
Regular price
$752.22
Sale
68-77 A-Body LS Swap Aluminum Radiator and Dual 14-inch Fans
1968-1977 GM A-Body with LS Swap Aluminum Performance Dual Flow Radiator and 14 Inch fan kit. Meant to be used with an external trans cooler.
When you need the biggest and best, look no further than the Cold Case Super Duty Line. All Super Duty kits include 2 row radiators with 1.25" tubes, aluminum fan shroud and dual 14" fans, flowing at 2200cfm per fan! For extreme horsepower applications OR if you just want the best of the best...
These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.
These radiators are original appearing and have the correct stamping. Once painted, you will be hard pressed to find a difference over an original versus a COLD-CASE.
- 100 percent TIG welded
- Fan Diameter 12 Inch
- All Aluminum
- (2) 1.25 inch Tubes
- Polished OE style tanks
- 16 fins per inch
- Corrugated fins that give more surface area and more thermal transfer
- Pressure tested
- Dual Flow Design
- Direct fitment for 68-77 A-Body LS Swaps
- Old Part Number: RPE546AK
Specifications
Radiator Specs
Core Height 18.4 inch
Core Width 28.5 inch
Overall Height 18.82 inch
Overall Width 34.21 inch
Overall Thickness 3 inch
Upper Hose 1.25 inch
Lower Hose 1.5 inch
Tubes (2) 1.25 inch Tubes
UPC: 846861014127
Warranty: Limited Lifetime Warranty
Material: Aluminum
Finish: Polished
Country of Origin: CHN
Sold As: Kit
Old Part Number: RPE546AK
Upper Hose: 1.25 Inches
Lower Hose: 1.50 Inches
Includes: Includes radiator, fans and shroud
Shroud Included: 1
Fan Included: 1
Amp Draw: 6.85 Avg
Wiring Included: 1
Availability: 1
Fins per Inch: 16
| Brand | Cold Case Radiators |
| Part Number | GMA546ASK |
| Old Part Number | RPE546AK |
|
Application Specific
|
Yes
|
|
Pass
|
Single
|
|
Row Number
|
2
|
|
Overall Width
|
34-1/4 in
|
|
Overall Height
|
18-53/64 in
|
|
Overall Depth
|
3 in
|
|
Core Width
|
28-1/2 in
|
|
Core Height
|
18-13/32 in
|
|
Inlet Side
|
Passenger Side
|
|
Inlet Upper/Lower
|
Upper
|
|
Inlet Size
|
1-1/4 in
|
|
Inlet Style
|
Hose Barb
|
|
Inlet Quantity
|
1
|
|
Outlet Side
|
Passenger Side
|
|
Outlet Upper/Lower/Middle
|
Lower
|
|
Outlet Size
|
1-1/2 in
|
|
Outlet Style
|
Hose Barb
|
|
Outlet Quantity
|
1
|
|
Tube Size
|
1-1/4 in
|
|
Fluid Cooler
|
No
|
|
Flow Direction
|
Crossflow
|
|
Cap Included
|
No
|
|
Fan Included
|
Yes
|
|
Fan Quantity
|
2
|
|
Fan Diameter
|
14 in
|
|
Fan CFM
|
4,320 cfm
|
|
Blade Material
|
Plastic
|
|
Blade Color
|
Black
|
|
Shroud Material
|
Aluminum
|
|
Shroud Color
|
Natural
|
|
Material
|
Aluminum
|
|
Color
|
Polished
|
|
Finish
|
Polished
|
|
Quantity
|
Kit
|
Prop 65: California Residents: Cancer and Reproductive Harm -www.P65Warnings.ca.gov
Fitment
- 68-72 A-Body LS Swap Dual 12 Inch
- Buick
- Chevrolet
- Oldsmobile
- Pontiac
Cylinders: 8 Cylinder
- 1968 - 1968 Chevrolet Chevelle 300
- 1968 - 1972 Chevrolet Chevelle Nomad
- 1968 - 1968 Oldsmobile Cutlass S
- 1968 - 1969 Pontiac Tempest Safari
- 1968 - 1969 Pontiac Tempest Custom
- 1968 - 1972 Buick Skylark Custom
- 1968 - 1969 Chevrolet Chevelle 300 Deluxe
- 1968 - 1972 Chevrolet Chevelle Concours
- 1968 - 1972 Pontiac GTO
- 1968 - 1971 Oldsmobile 442
- 1968 - 1968 Chevrolet Chevelle
- 1968 - 1972 Buick Skylark
- 1968 - 1972 Pontiac Grand Prix
- 1968 - 1972 Oldsmobile Cutlass
- 1968 - 1970 Pontiac Tempest
- 1968 - 1972 Pontiac LeMans
- 1968 - 1972 Chevrolet Chevelle SS
- 1968 - 1972 Chevrolet Chevelle Malibu
- 1969 - 1970 Pontiac LeMans Safari
- 1969 - 1972 Chevrolet Chevelle Concours Estate
- 1969 - 1972 Chevrolet Chevelle Greenbrier
- 1970 - 1972 Pontiac LeMans Sport
- 1970 - 1971 Pontiac GTO The Judge
- 1970 - 1970 Pontiac Tempest GT
- 1970 - 1972 Chevrolet Chevelle
- 1970 - 1970 Buick Skylark 350
- 1971 - 1972 Oldsmobile Cutlass S
- 1971 - 1971 Pontiac LeMans T37
- 1972 - 1972 Pontiac LeMans Luxury
- 1972 - 1972 Buick Skylark 350
- 1972 - 1972 Oldsmobile Cutlass Cruiser
- 1973 - 1977 Chevrolet Chevelle
- 1968 - 1977 Chevrolet El Camino
- 1970 - 1977 Chevrolet Monte Carlo
