Chassis Engineering

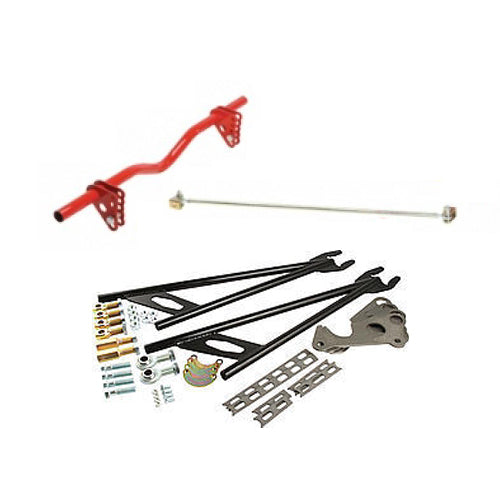

Chassis Engineering Ladder Bar Suspension Kit w/2x3" X-Member
Chassis Engineering Ladder Bar Suspension Kit w/2x3" X-Member
Regular price
$766.85 USD
Regular price
Sale price
$766.85 USD
Unit price
/
per
SKU:CCE3635
Inventory: 2 in stock
Couldn't load pickup availability
Ladder Bar Rear Suspension Package
Stage I - Basic Ladder Bar Suspension
A basic ladder bar suspension for race cars or street/strip vehicles. The kit includes double adjustable “Pro” ladder bars with spherical rod ends and safety brackets, bolt-on diagonal link or weld-on Panhard bar. This Ladder Bar Suspension Kit is also available with 1-3/4" round crossmember (reference part number CCE3627).
- Basic Ladder Bar Suspension with Box 2" x 3" Crossmember
- Ladder Bar Kit - Stage 1 - 32 inches Long - Double Adjustable - 2 x 3 inch Crossmember - Bracket / Hardware - Steel - Kit
- Part Numbers: C/E3635 / 3635
|
Brand
|
Chassis Engineering
|
|
Part Number
|
C/E3635
|
|
Product Line
|
Stage 1
|
|
Mounting Style
|
Bolt-On
|
|
Length
|
32 in
|
|
Diameter
|
1 in
|
|
Tubing Wall Thickness
|
0.156 in
|
|
Adjustable
|
Yes
|
|
Adjustment Amount
|
Double
|
|
Crossmember Included
|
Yes
|
|
Crossmember Length
|
60 in
|
|
Crossmember Height
|
3 in
|
|
Crossmember Width
|
2 in
|
|
Crossmember Wall Thickness
|
0.083 in
|
|
Rear End Brackets Included
|
Yes
|
|
Bracket Thickness
|
0.250 in
|
|
Crossmember Brackets Included
|
Yes
|
|
Bottom Mounted Adjusters Included
|
Yes
|
|
Rod Ends Included
|
Yes
|
|
Rod End 1 Thread Size
|
3/4-20 in
|
|
Rod End 1 Thread Direction
|
Right Hand
|
|
Rod End 1 Hole Size
|
3/4 in
|
|
Rod End 1 Material
|
Steel
|
|
Rod End 1 Color
|
Zinc
|
|
Rod End 1 Finish
|
Oxide
|
|
Rod End 1 Quantity
|
2
|
|
Rod End 2 Thread Size
|
3/4-20 in
|
|
Rod End 2 Thread Direction
|
Right Hand
|
|
Rod End 2 Hole Size
|
5/8 in
|
|
Rod End 2 Material
|
Steel
|
|
Rod End 2 Color
|
Cadmium
|
|
Rod End 2 Finish
|
Plated
|
|
Rod End 2 Quantity
|
4
|
|
Rod End 3 Thread Size
|
1/2-20 in
|
|
Rod End 3 Thread Direction
|
Right Hand
|
|
Rod End 3 Hole Size
|
1/2 in
|
|
Rod End 3 Material
|
Steel
|
|
Rod End 3 Color
|
Zinc
|
|
Rod End 3 Finish
|
Oxide
|
|
Rod End 3 Quantity
|
2
|
|
Diagonal Link Included
|
Yes
|
|
Hardware Included
|
Yes
|
|
Material
|
Steel
|
|
Color
|
Black / Red
|
|
Finish
|
Powder Coat
|
|
Quantity
|
Kit
|
