Champ Pans SBC Wet Sump Oil Pan w/Kickout CP81KO
Champ Pans SBC Wet Sump Oil Pan w/Kickout CP81KO
SKU:CHACP81KO
Inventory: 2 in stock
Couldn't load pickup availability

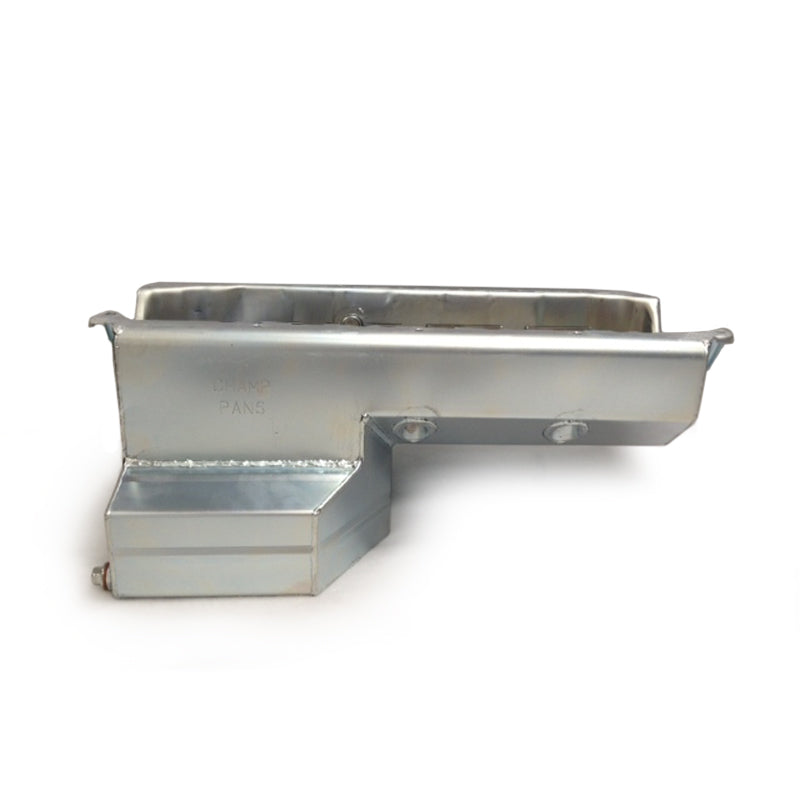

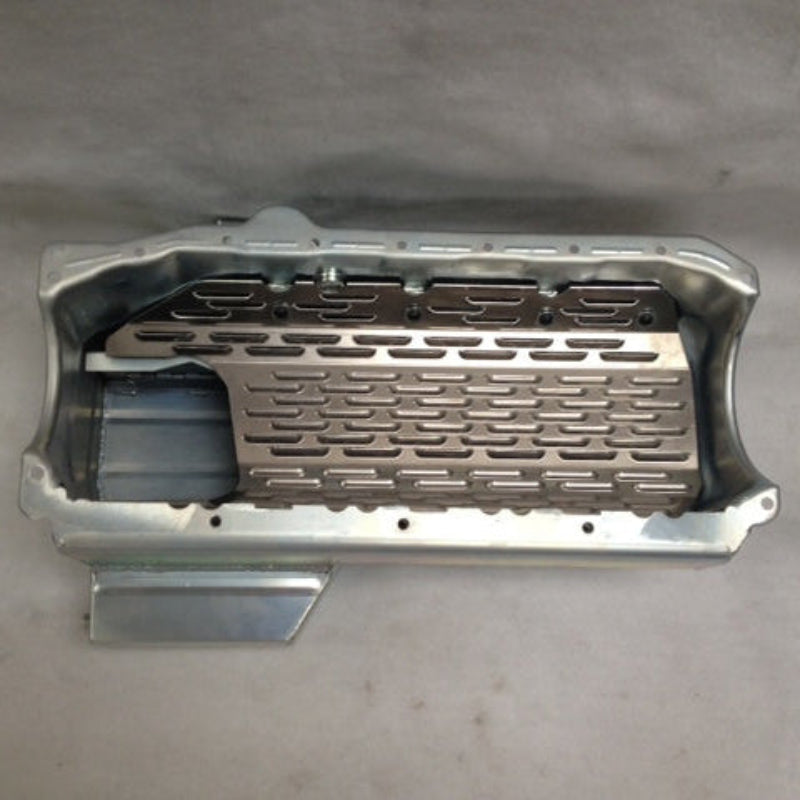

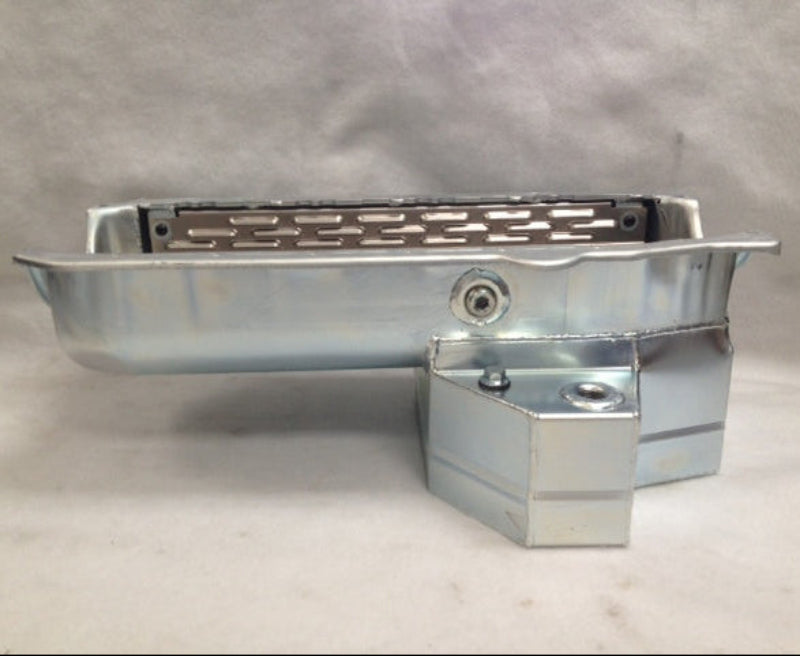

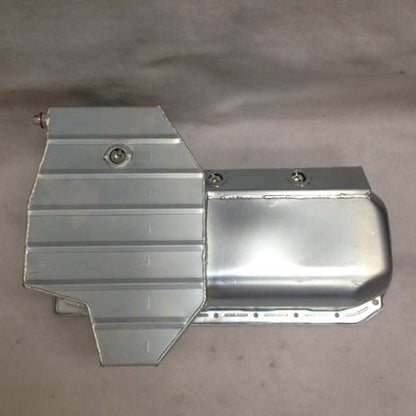

Small Block Chevy Wet Sump Oil Pans, Competition Series Kickout
Steel, kickout design oil pans provide extra ground clearance for asphalt race cars. Kickouts improve oil control and provide increased horsepower. Six trap doors, three crank scrapers, louvered windage tray, oil temperature fitting, and oil level check plug are incorporated into each pan. Pans must be used with a mini starter.
- SB Chevy 1957-85, 8" Deep, 8-qt. Capacity
Note: Champ pans will NOT work with a stock type dipstick in the block. Pans have a block-off on each pan rail for use with LH or RH blocks. Check the oil level using the supplied oil plug or use the CHA-JR131 dipstick.
Engine Oil Pan - Pro Series - Wet Sump - 8 qt With Filter - 8 in Deep - Kick Out - 2 Piece Seal - Small Block Chevy - Sold as Each - Brand: Champ Pans - Part Number: CP81KO
|
Brand
|
Champ Pans
|
|
Part Number
|
CP81KO
|
|
Product Line
|
Pro Series
|
|
Wet/Dry Sump
|
Wet
|
|
Sump Location
|
Rear
|
|
Quart Capacity
|
8 qt
|
|
Depth
|
8 in
|
|
Stroker Clearance
|
Yes
|
|
Rear Main Seal Style
|
2-Piece
|
|
Kickout
|
Yes
|
|
Baffled
|
Yes
|
|
Trap Doors
|
Yes
|
|
Dipstick Compatible
|
Yes
|
|
Dipstick Fitting
|
Screw in
|
|
Pickup Included
|
No
|
|
Oil Pump Included
|
No
|
|
Gaskets Included
|
No
|
|
Windage Tray Included
|
Yes
|
|
Windage Tray Style
|
Louvered
|
|
Hardware Included
|
No
|
|
Manufacturer Style
|
Stamped/Fabricated
|
|
Material
|
Steel
|
|
Color
|
Zinc
|
|
Finish
|
Plated
|
|
Quantity
|
Each
|
