Cold Case Radiators 70-72 A/B Body SB Radiator and 16in Fan Kit AT

Cold Case Radiators 70-74 A/B Body SB Radiator and 16in Fan Kit AT

CCRMOP755AK (1 in stock)

Cold Case Radiators

Regular price $598.95 Sale

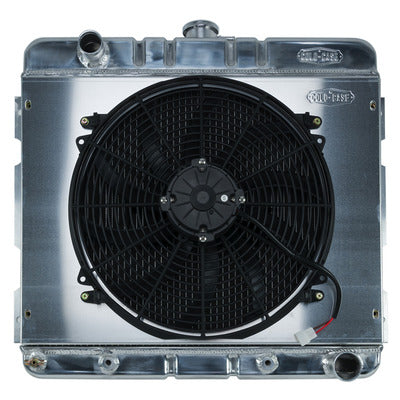

1970-1974 Mopar A,B Body Small Block Aluminum Performance Radiator and 16 inch fan kit for automatic transmissions fits some of the following cars.  Double check the dimensions to be sure of the fit.

  • 71-74 Barracuda
  • 70-72 Dart
  • 71-72 Demon
  • 71-72 Duster
  • 71-72 Valiant

These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.

These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

  • 100 percent TIG welded
  • Fan Diameter 16 Inch
  • All Aluminum
  • (2) 1.25 inch Tubes
  • Polished OE style tanks
  • 16 fins per inch
  • Corrugated fins that give more surface area and more thermal transfer
  • Pressure tested
  • For Automatic trans
  • Radiator and Fan - 25 in W x 22.5 in H x 3 in D - Driver Side Inlet - Passenger Side Outlet - Aluminum - Automatic - Mopar A-Body / B-Body 1970-72 - Kit

Radiator Specs:

  • Core Height 17 inch
  • Core Width 22 inch
  • Overall Height 22.5 inch
  • Overall Width 25 inch
  • Overall Thickness 6 inch
  • Tubes (2) 1.25 inch Tubes
  • Upper Hose 1.50 inch
  • Lower Hose 1.75 inch

Specifications

Brand Cold Case Radiators
Part Number MOP755AK
Old Part Number RPE755AK
Application Specific
Yes
Pass
Single
Row Number
2
Overall Width
25 in
Overall Height
22-1/2 in
Overall Depth
3 in
Core Width
22 in
Core Height
17 in
Inlet Side
Driver Side
Inlet Upper/Lower
Upper
Inlet Size
1-1/2 in
Inlet Style
Hose Barb
Inlet Quantity
1
Outlet Side
Passenger Side
Outlet Upper/Lower/Middle
Lower
Outlet Size
1-49/64 in
Outlet Style
Hose Barb
Outlet Quantity
1
Tube Size
1-1/4 in
Fluid Cooler
Yes
Flow Direction
Downflow
Cap Included
No
Fan Included
Yes
Fan Quantity
1
Fan Diameter
16 in
Fan CFM
2,500 cfm
Blade Material
Plastic
Blade Color
Black
Shroud Material
Aluminum
Shroud Color
Natural
Material
Aluminum
Color
Polished
Finish
Polished
Quantity
Kit

Fitment

Vehicle Type: Car
Transmission Type: Automatic
Make: Dodge, Plymouth
Cylinders: 8 Cylinder

Fitment:
1970 - 1972 Dodge Dart
1970 - 1972 Dodge Dart Custom
1970 - 1972 Dodge Dart Swinger
1971 - 1972 Plymouth Duster 340
1971 - 1974 Plymouth Barracuda
1971 - 1972 Plymouth Duster
1971 - 1972 Plymouth Valiant
1971 - 1972 Dodge Dart Demon
1971 - 1972 Dodge Dart Demon 340
1971 - 1971 Plymouth Barracuda Gran Coupe
1971 - 1972 Dodge Dart Special

Fitment Notes:
70-72 A,B Body SB 17 Inch x 22 Inch AT 16 Inch
